Kenmore
Sewing Machine

Model # 158922 Official Kenmore sewing machine

Here are the diagrams and repair parts for Official Kenmore 158922 sewing machine, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

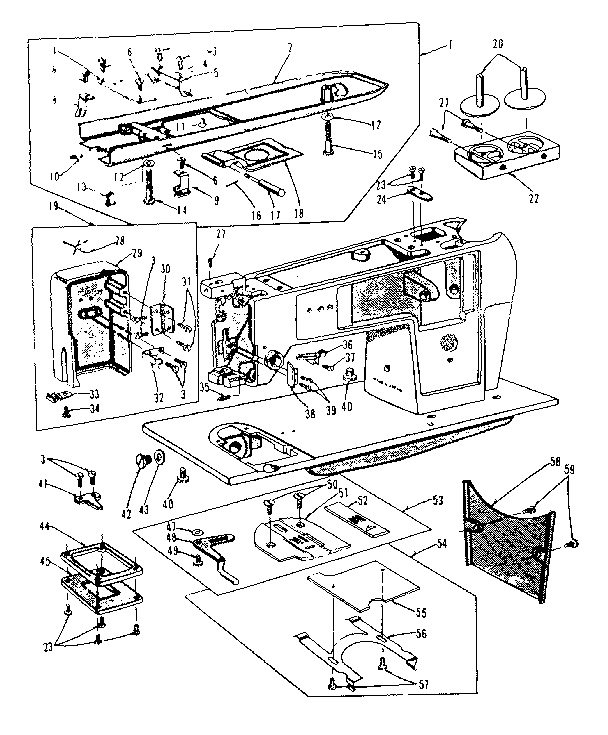

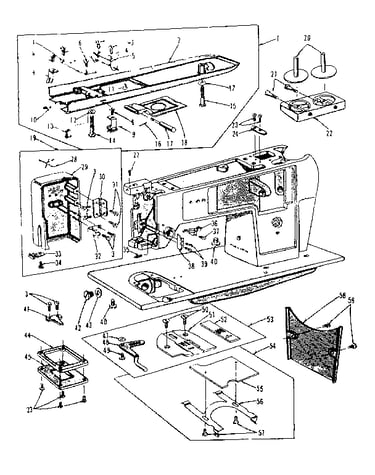

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 201 parts  |
Nameplate 23100
#10

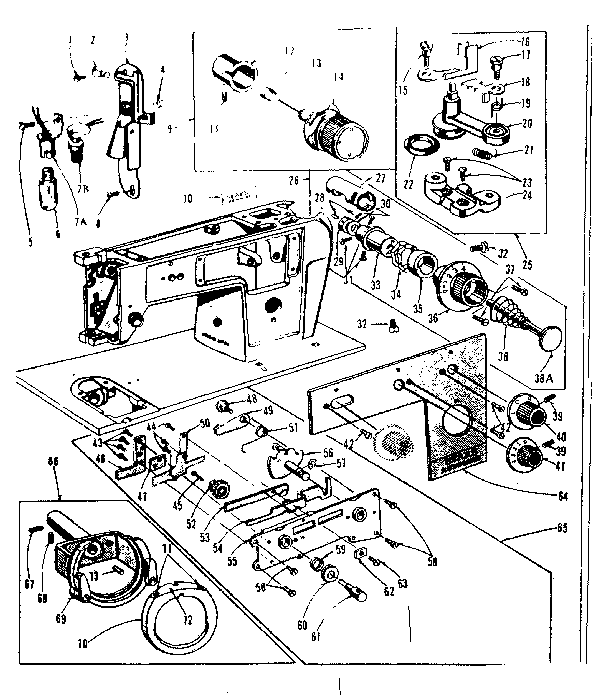

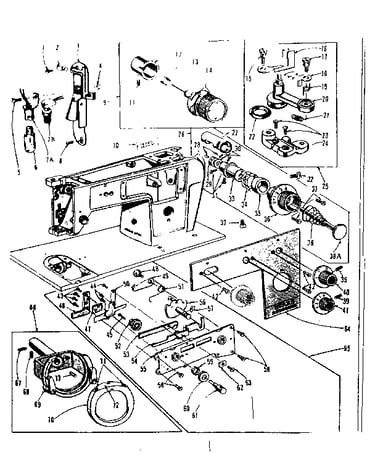

Bobbin winder and tension controls diagram

Nameplate

Part #23100

The manufacturer no longer makes this part, and there's no substitute part

Spring 439
#38

Bobbin winder and tension controls diagram

Spring

Part #439

The manufacturer no longer makes this part, and there's no substitute part

Control Plate 24111
#64

Bobbin winder and tension controls diagram

Control plate

Part #24111

The manufacturer no longer makes this part, and there's no substitute part

Control Knob 25042
#26

Bobbin winder and tension controls diagram

Control knob

Part #25042

The manufacturer no longer makes this part, and there's no substitute part

Spring 24520
#59

Bobbin winder and tension controls diagram

Spring

Part #24520

The manufacturer no longer makes this part, and there's no substitute part

Dial Base 24180
#35

Bobbin winder and tension controls diagram

Dial base

Part #24180

The manufacturer no longer makes this part, and there's no substitute part

Cover 24491
#50

Bobbin winder and tension controls diagram

Cover

Part #24491

The manufacturer no longer makes this part, and there's no substitute part

Spring 24860
#74

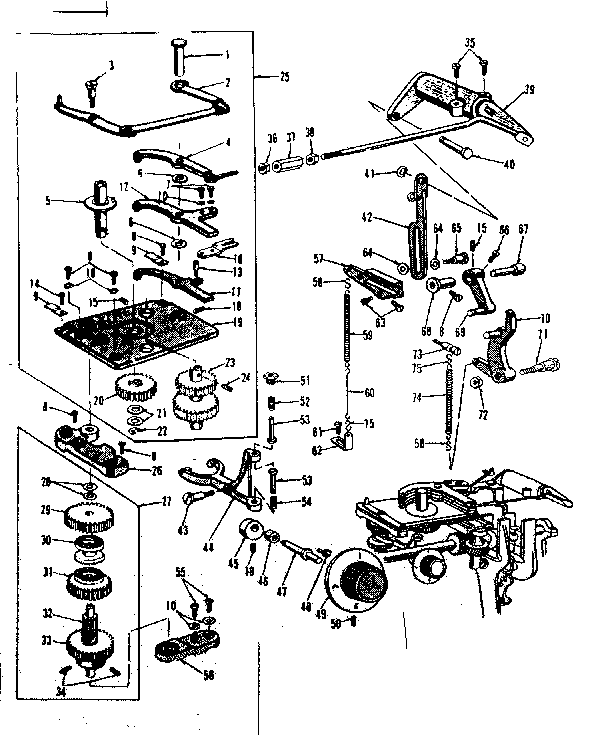

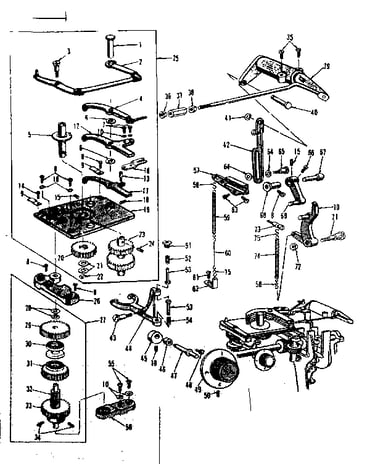

Cam assembly diagram

Spring

Part #24860

The manufacturer no longer makes this part, and there's no substitute part

Expander 2459
#60

Cam assembly diagram

Expander

Part #2459

The manufacturer no longer makes this part, and there's no substitute part

Bracket 2297
#62

Cam assembly diagram

Bracket

Part #2297

The manufacturer no longer makes this part, and there's no substitute part
