Model # 79640272800 Official Kenmore washer

Here are the diagrams and repair parts for Official Kenmore 79640272800 washer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 96 parts  |
Washer Water Inlet Valve 5221ER1003C
#F160

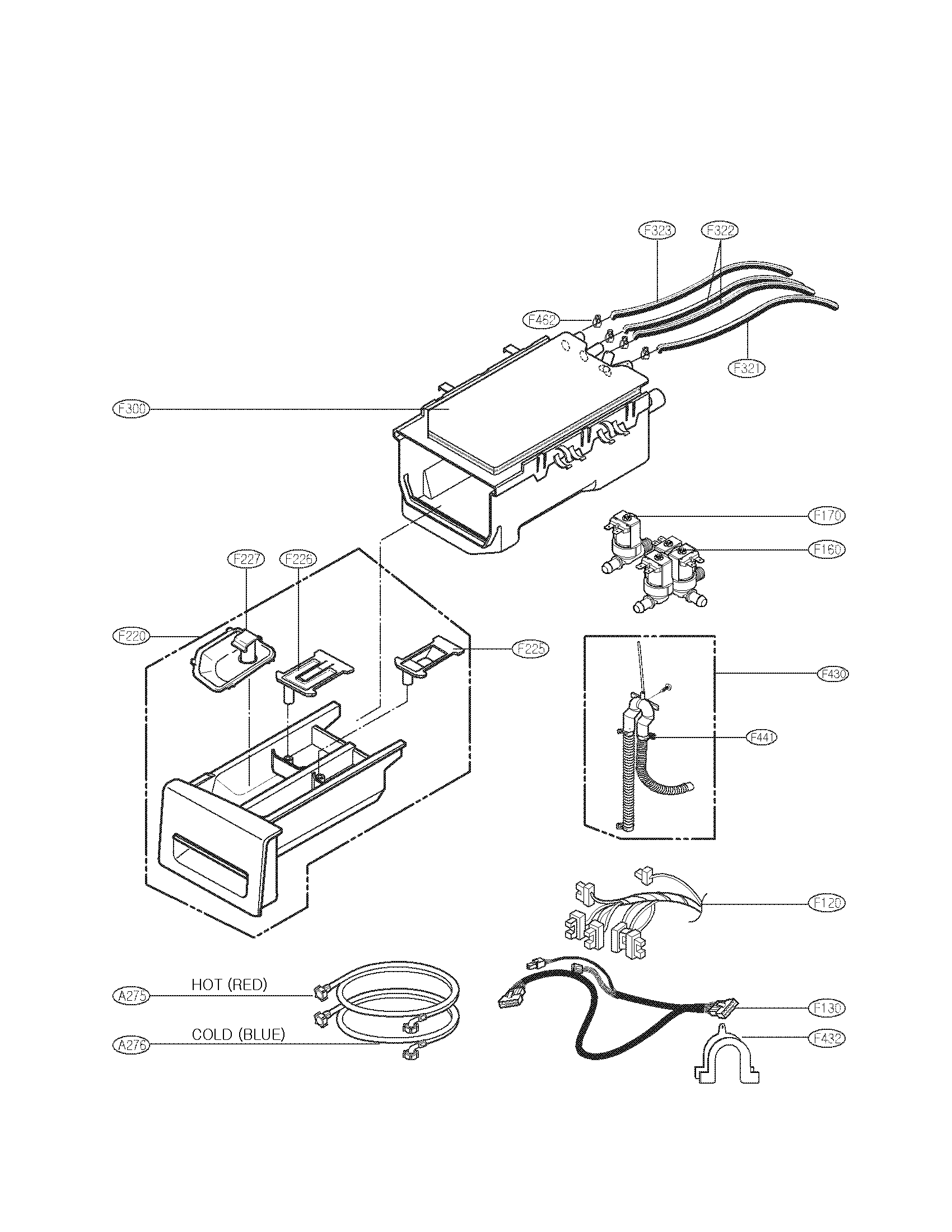

Dispenser parts diagram

Washer water inlet valve

Part #5221ER1003C

Replaced by #5220FR2075L

?
Manufacturer substitution
This part replaces 5221ER1003C. Substitute parts can look different from the original.
BEST SELLER
$63.19 |
7% OFF Phone Price : $68.19
In Stock
Washer Inlet Valve 5220FR2006L
#F170

Dispenser parts diagram

Washer inlet valve

Part #5220FR2006L

Replaced by #5220FR2006H

?
Manufacturer substitution
This part replaces 5220FR2006L. Substitute parts can look different from the original.
BEST SELLER
$22.33 |
18% OFF Phone Price : $27.33
In Stock
Washer Door Boot (replaces 4986er0004j, 4986er0004k, 4986er0004n) 4986ER0004F
#K510

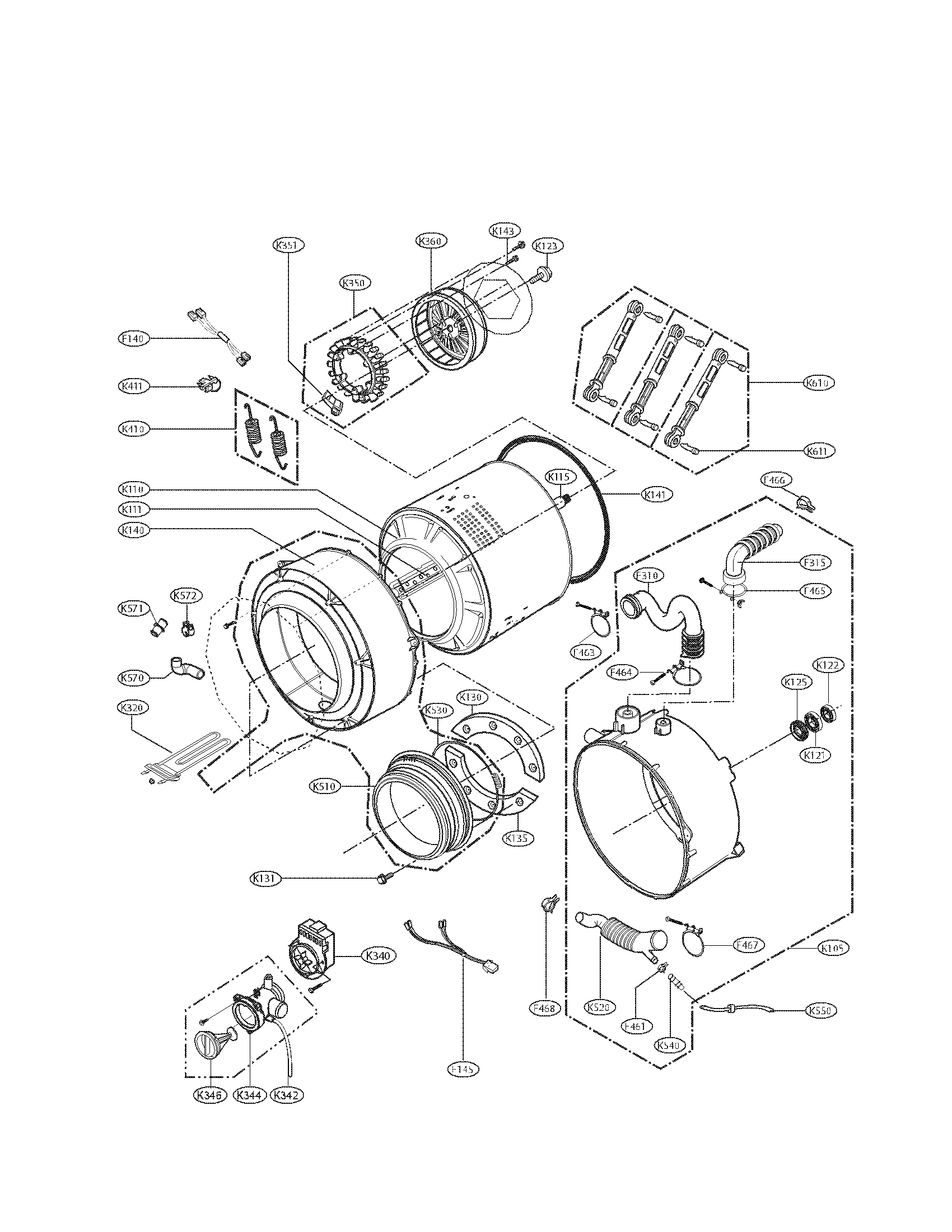

Drum and tub parts diagram

Washer door boot (replaces 4986er0004j, 4986er0004k, 4986er0004n)

Part #4986ER0004F

BEST SELLER
$60.11 |
8% OFF Phone Price : $65.11
In Stock
Washer Motor Rotor Position Sensor 6501KW2002A
#K351

Drum and tub parts diagram

Washer motor rotor position sensor

Part #6501KW2002A

Replaced by #6501KW2002B

?
Manufacturer substitution
This part replaces 6501KW2002A. Substitute parts can look different from the original.
BEST SELLER
$35.77 |
12% OFF Phone Price : $40.77
In Stock
Washer Door Lock Switch 6601ER1004C
#A440

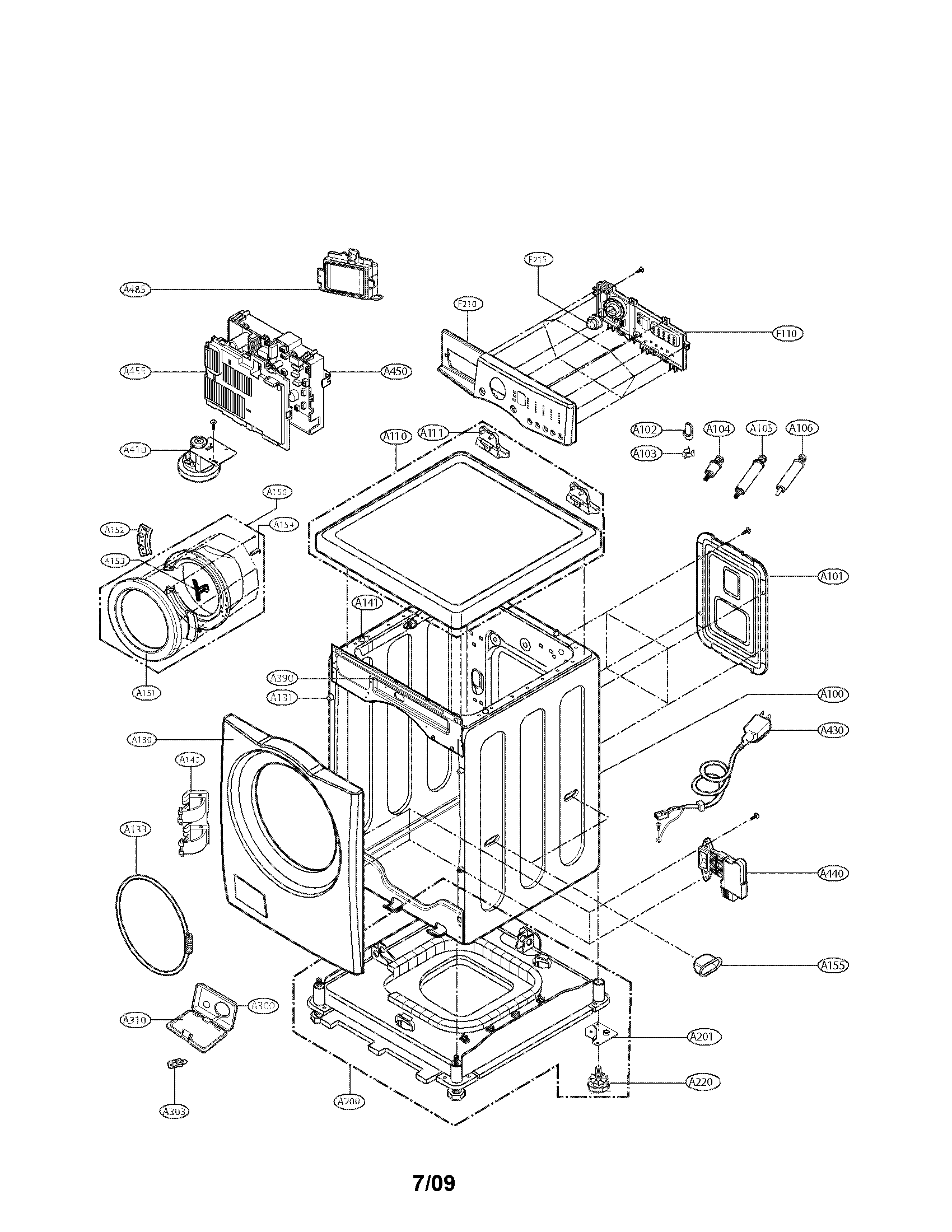

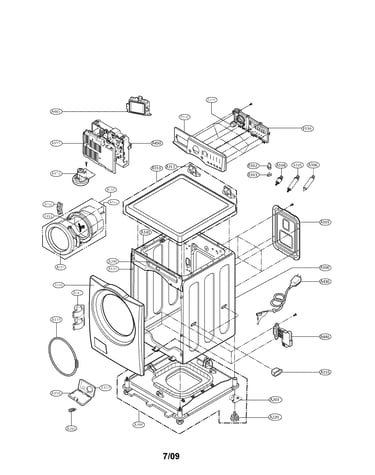

Cabinet and control panel parts diagram

Washer door lock switch

Part #6601ER1004C

Replaced by #EBF49827801

?
Manufacturer substitution
This part replaces 6601ER1004C. Substitute parts can look different from the original.
BEST SELLER
$71.40 |
7% OFF Phone Price : $76.40
In Stock
Washer Tub Inner Rear 6306uu Bearing (replaces 4280fr4048l) 4280FR4048N
#K121

Drum and tub parts diagram

Washer tub inner rear 6306uu bearing (replaces 4280fr4048l)

Part #4280FR4048N

BEST SELLER
$43.03 |
10% OFF Phone Price : $48.03
In Stock
Washer Outer Tub Gasket 4036ER4001B
#K141

Drum and tub parts diagram

Washer outer tub gasket

Part #4036ER4001B

BEST SELLER
$22.64 |
18% OFF Phone Price : $27.64
In Stock
Washer Rear Tub Gasket (replaces 4036er3002a) 4036ER2004A
#K125

Drum and tub parts diagram

Washer rear tub gasket (replaces 4036er3002a)

Part #4036ER2004A

BEST SELLER
$30.50 |
14% OFF Phone Price : $35.50
In Stock
Washer Dispenser Hose 4738ER1004B
#F310

Drum and tub parts diagram

Washer dispenser hose

Part #4738ER1004B

BEST SELLER
$27.20 |
16% OFF Phone Price : $32.20
In Stock
Washer Drain Hose (replaces 5215er2002b, 5215er2002c, 5215er2002f, 5215er2002n, 5215er2002r, 5215er2002s, Aem73773301) 5215ER2002G
#F430

Dispenser parts diagram

Washer drain hose (replaces 5215er2002b, 5215er2002c, 5215er2002f, 5215er2002n, 5215er2002r, 5215er2002s, aem73773301)

Part #5215ER2002G

BEST SELLER
$33.48 |
13% OFF Phone Price : $38.48
In Stock
