Model # GJD3044RB00 Official Whirlpool electric counter unit

Here are the diagrams and repair parts for Official Whirlpool GJD3044RB00 electric counter unit, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual
Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 72 parts  |
Polish 3191048
#NI

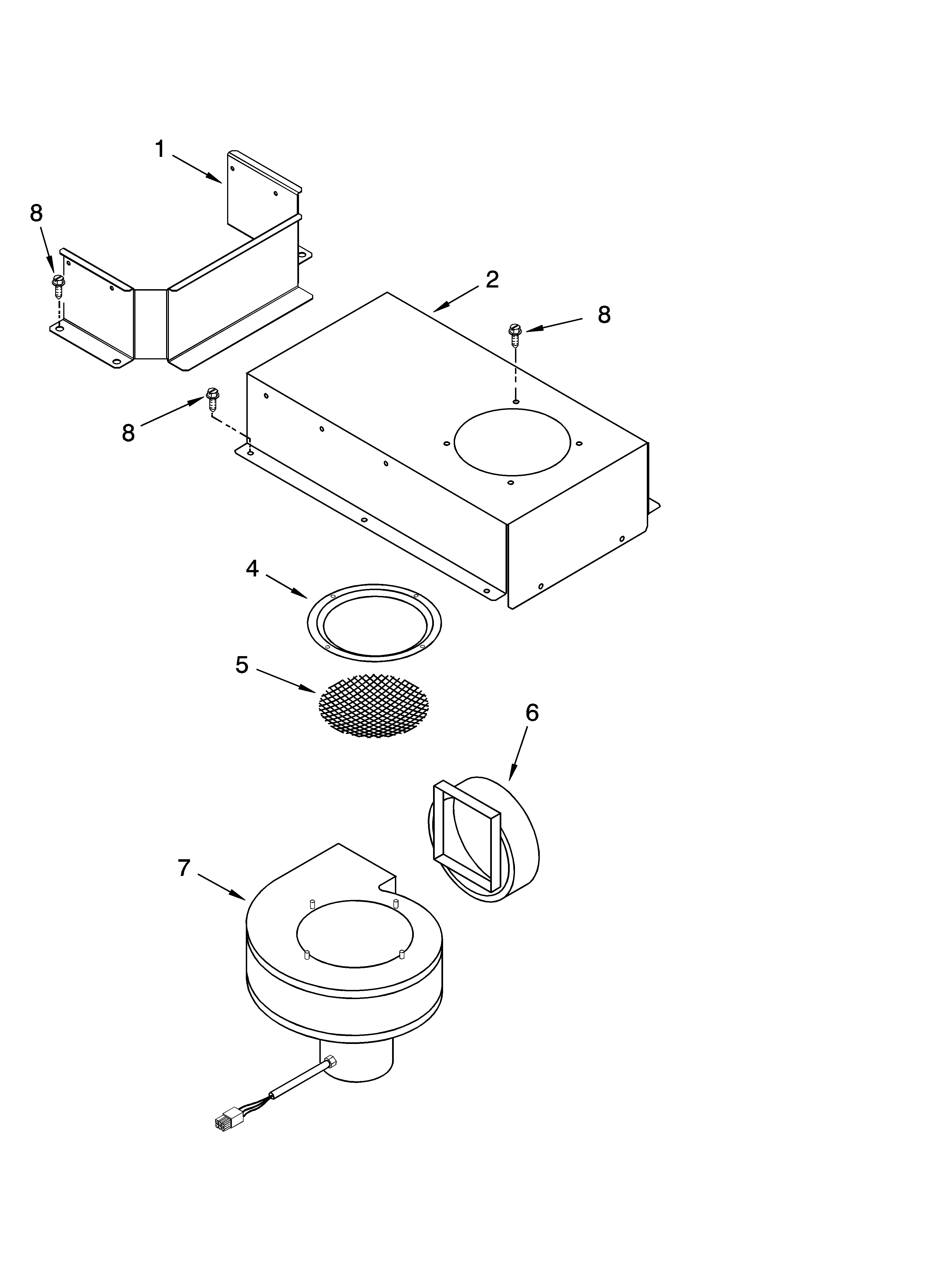

Blower unit parts, optional parts diagram

Polish

Part #3191048

Replaced by #W10355051

?
Manufacturer substitution
This part replaces 3191048. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable

Get free shipping with Automatic Reorder

$10.89 |
16% OFF Phone Price : $12.89
In Stock
Range Dual Radiant Surface Element 4453909
#5A

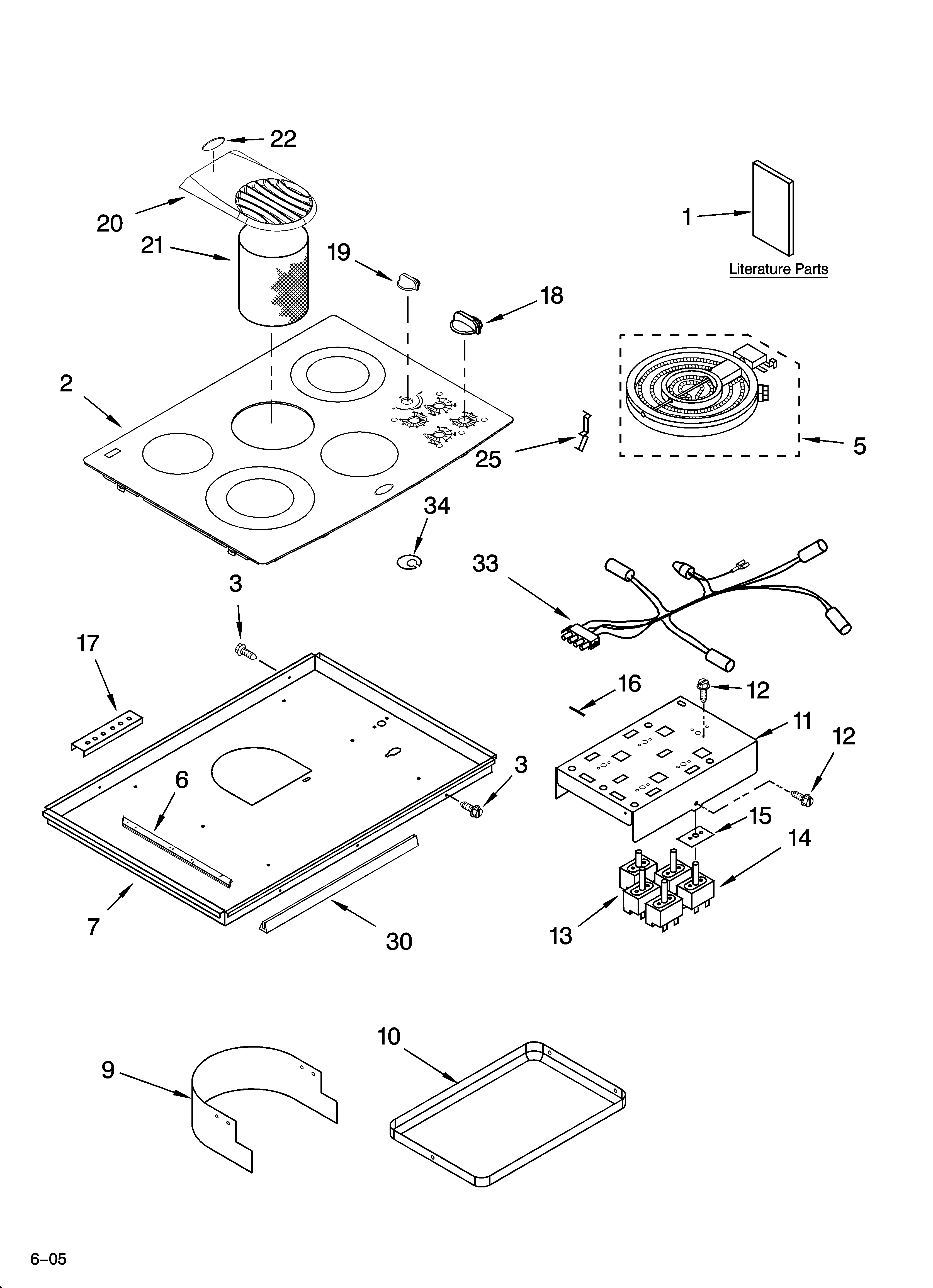

Cooktop parts diagram

Range dual radiant surface element

Part #4453909

Replaced by #W10823692

?
Manufacturer substitution
This part replaces 4453909. Substitute parts can look different from the original.
BEST SELLER
$144.53 |
20% OFF MSRP : $180.00
In Stock
Range Radiant Surface Element, 6-in 8523698
#5

Cooktop parts diagram

Range radiant surface element, 6-in

Part #8523698

Replaced by #W10823711

?
Manufacturer substitution
This part replaces 8523698. Substitute parts can look different from the original.
BEST SELLER
$184.51 |
5% OFF Phone Price : $194.51
In Stock
Range Surface Element Control Switch 3191049
#14

Cooktop parts diagram

Range surface element control switch

Part #3191049

Replaced by #WP3191049

?
Manufacturer substitution
This part replaces 3191049. Substitute parts can look different from the original.
$77.73 |
21% OFF MSRP : $98.00
In Stock
Range Screw 3196160
#NI

Blower unit parts, optional parts diagram

Range screw

Part #3196160

Replaced by #W10491985

?
Manufacturer substitution
This part replaces 3196160. Substitute parts can look different from the original.
This item is not returnable
$4.39 |
19% OFF Phone Price : $5.39
In Stock
Screw 3196537
Screw

Part #3196537

Replaced by #WP3196557

?
Manufacturer substitution
This part replaces 3196537. Substitute parts can look different from the original.
This item is not returnable
$4.39 |
19% OFF Phone Price : $5.39
In Stock
Cooktop Downdraft Vent Fan Control Switch 4456836
#13

Cooktop parts diagram

Cooktop downdraft vent fan control switch

Part #4456836

Replaced by #WP4456836

?
Manufacturer substitution
This part replaces 4456836. Substitute parts can look different from the original.
$101.69 |
9% OFF Phone Price : $111.69
In Stock
Main Top 8285969
#2

Cooktop parts diagram

Main top

Part #8285969

Replaced by #W10239873

?
Manufacturer substitution
This part replaces 8285969. Substitute parts can look different from the original.
$307.39 |
$10.00 OFF Phone Price : $317.39
In Stock
Cooktop Element Control Switch Seal 3183956
#11A

Cooktop parts diagram

Cooktop element control switch seal

Part #3183956

This item is not returnable
$31.09 |
14% OFF Phone Price : $36.09
In Stock
Range Screw 3177991
#9A

Cooktop parts diagram

Range screw

Part #3177991

Replaced by #WP3177991

?
Manufacturer substitution
This part replaces 3177991. Substitute parts can look different from the original.
This item is not returnable
$4.37 |
19% OFF Phone Price : $5.37
In Stock
