Caloric
Electric Cooktop

Model # ETR646 Official Caloric electric built-in cooktop

Here are the diagrams and repair parts for Official Caloric ETR646 electric built-in cooktop, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 40 parts  |
Term Bl 42147
Term bl

Part #42147

Replaced by #330031

?
Manufacturer substitution
This part replaces 42147. Substitute parts can look different from the original.
BEST SELLER
$10.44 |
16% OFF Phone Price : $12.44
In Stock
S Pan 42143
#17

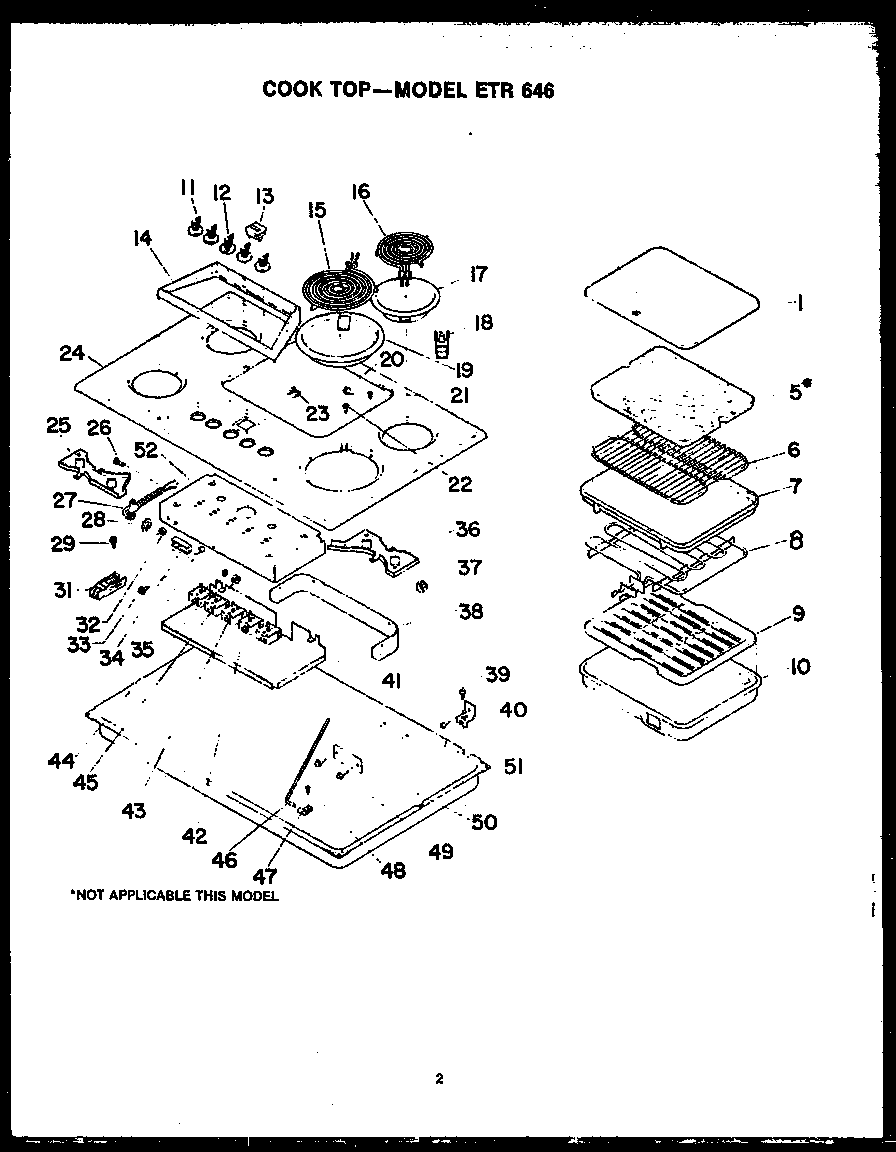

Cooktop diagram

S pan

Part #42143

Replaced by #W10196406RW

?
Manufacturer substitution
This part replaces 42143. Substitute parts can look different from the original.
$12.95 |
13% OFF Phone Price : $14.95
In Stock
Lg Pan 42144
#19

Cooktop diagram

Lg pan

Part #42144

Replaced by #WPW10196405

?
Manufacturer substitution
This part replaces 42144. Substitute parts can look different from the original.
$8.52 |
11% OFF Phone Price : $9.52
In Stock
Lockwasher, Part Of Ref. No. 45 41846
Lockwasher, part of ref. no. 45

Part #41846

The manufacturer no longer makes this part, and there's no substitute part

Screw, Hinge Mtg. 41800
#39

Cooktop diagram

Screw, hinge mtg.

Part #41800

The manufacturer no longer makes this part, and there's no substitute part

Indicator Light 42198
#13

Cooktop diagram

Indicator light

Part #42198

The manufacturer no longer makes this part, and there's no substitute part

Griddle Element 42135
#8

Cooktop diagram

Griddle element

Part #42135

The manufacturer no longer makes this part, and there's no substitute part

Element, Large 42131
#15

Cooktop diagram

Element, large

Part #42131

The manufacturer no longer makes this part, and there's no substitute part

Support Rod Clamp 41869
#47

Cooktop diagram

Support rod clamp

Part #41869

The manufacturer no longer makes this part, and there's no substitute part

Element, Small 42132
#16

Cooktop diagram

Element, small

Part #42132

The manufacturer no longer makes this part, and there's no substitute part
