Model # CEE2760KQ0 Official Whirlpool dryer

Here are the diagrams and repair parts for Official Whirlpool CEE2760KQ0 dryer, as well as links to manuals and error code tables, if available.

By Schematic
By Part

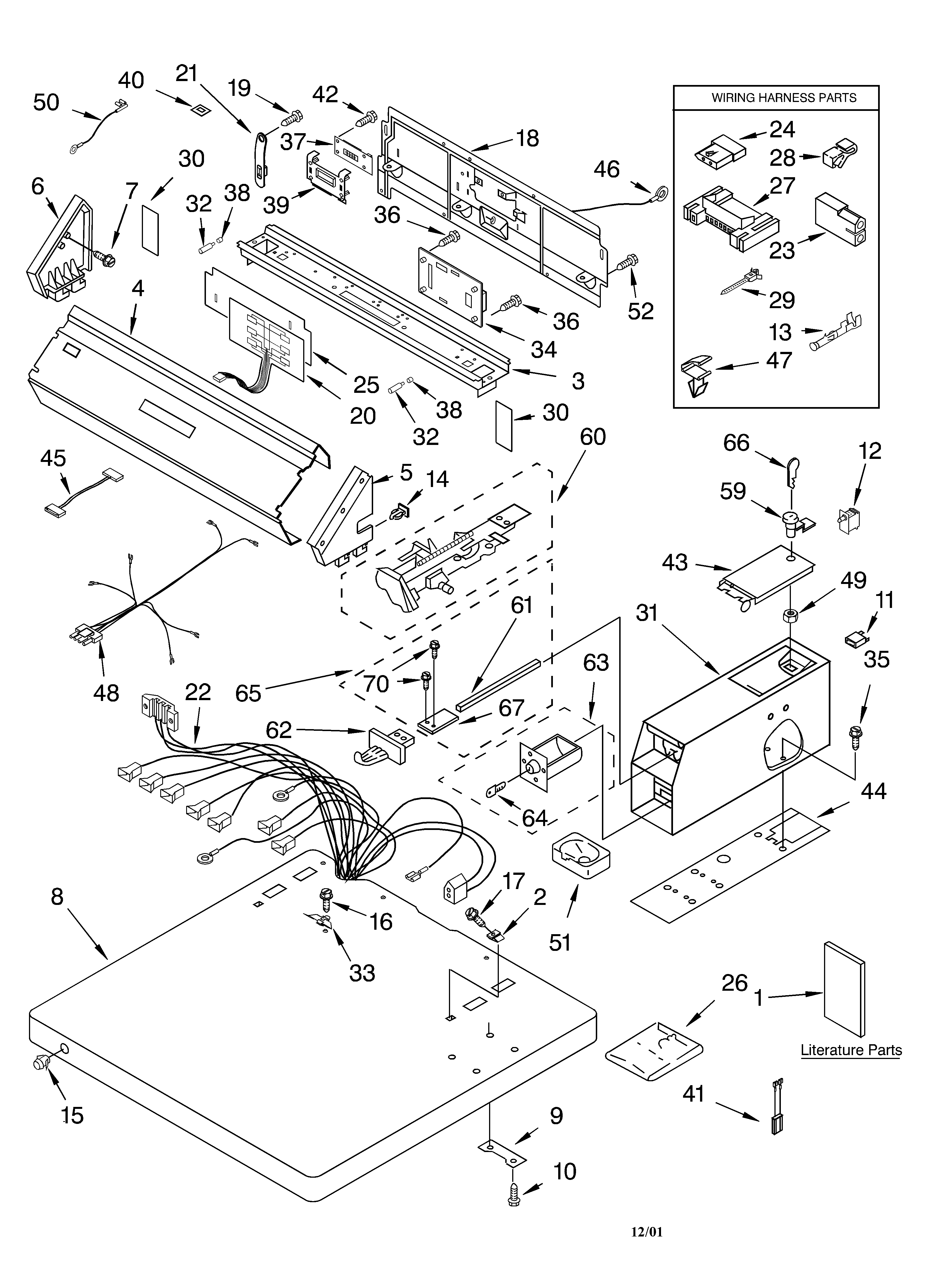

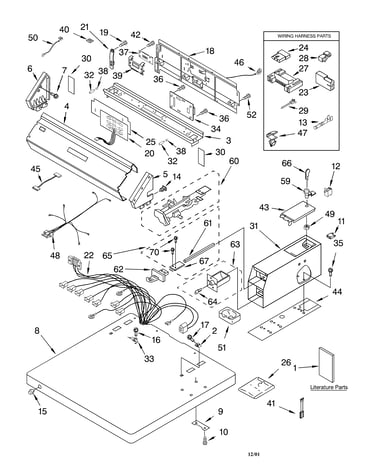

SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts forCEE2760KQ0 Dryer

  • Dryer Idler Pulley 3388672
    #13

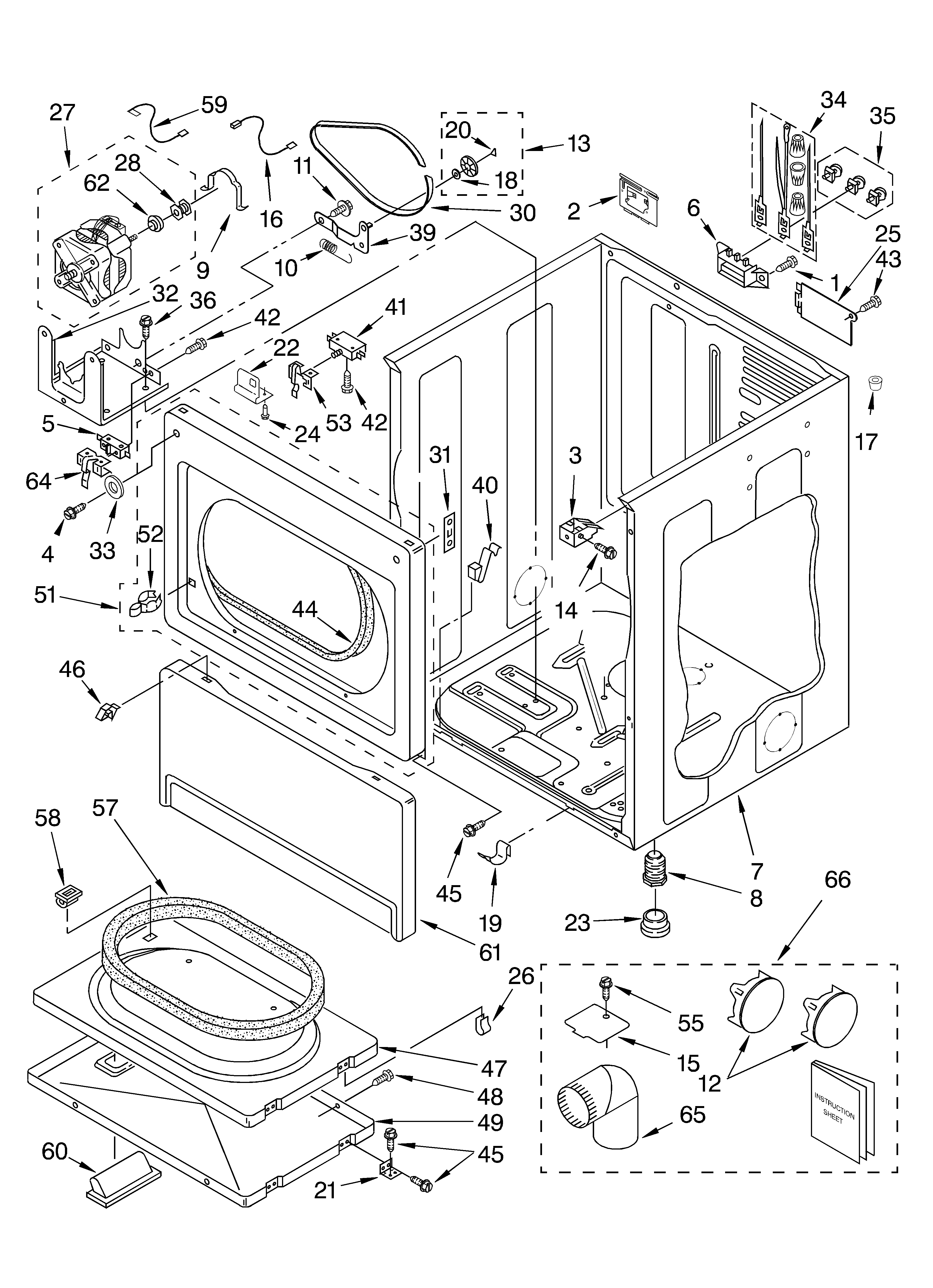

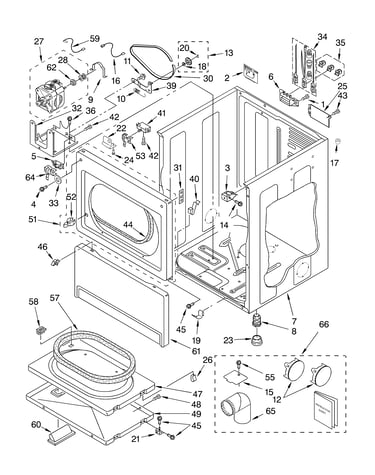

    Cabinet diagram

    Dryer idler pulley

    Part #3388672

    Replaced by #279640

    ?
    Manufacturer substitution
    This part replaces 3388672. Substitute parts can look different from the original.
    BEST SELLER
    $27.55 |
    18% OFF Phone Price : $33.55
    In Stock
  • Support Kit 3396801
    #21

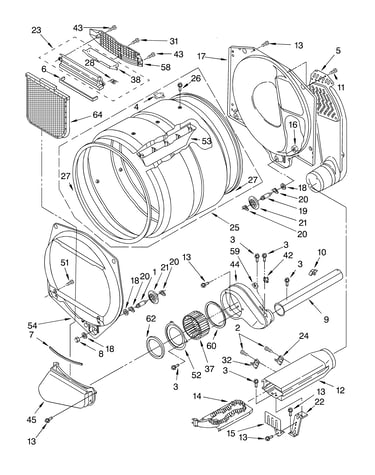

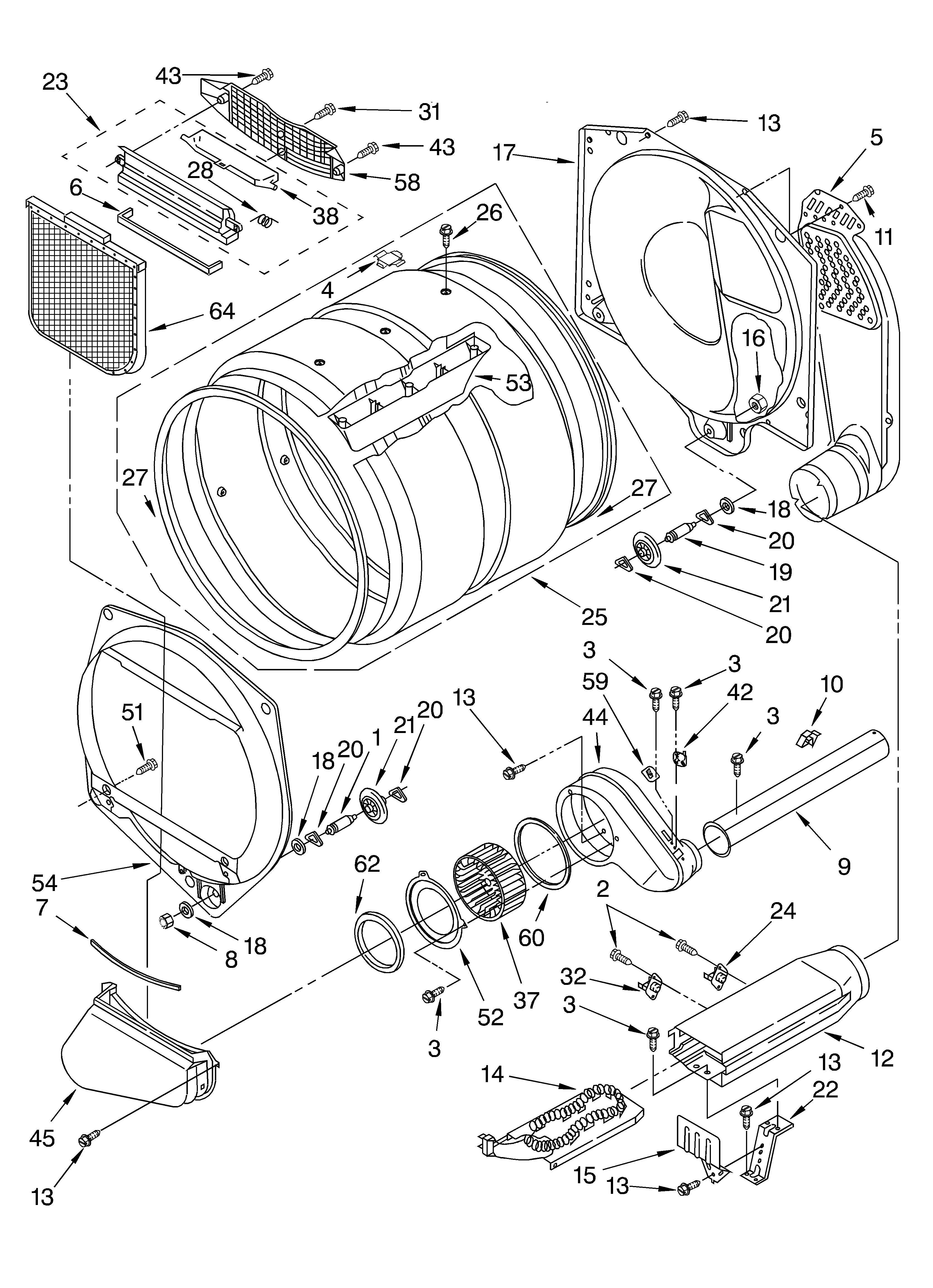

    Bulkhead diagram

    Support kit

    Part #3396801

    Replaced by #WPW10314173

    ?
    Manufacturer substitution
    This part replaces 3396801. Substitute parts can look different from the original.
    BEST SELLER
    $12.46 |
    14% OFF Phone Price : $14.46
    In Stock
  • Bracket 3388674
    #39

    Cabinet diagram

    Bracket

    Part #3388674

    Replaced by #W10837240

    ?
    Manufacturer substitution
    This part replaces 3388674. Substitute parts can look different from the original.
    BEST SELLER
    $17.20 |
    10% OFF Phone Price : $19.20
    In Stock
  • Dryer Blower Wheel 697772
    #37

    Bulkhead diagram

    Dryer blower wheel

    Part #697772

    Replaced by #WP697772

    ?
    Manufacturer substitution
    This part replaces 697772. Substitute parts can look different from the original.
    BEST SELLER
    $33.90 |
    15% OFF Phone Price : $39.90
    In Stock
  • Dryer Thermal Cut-off Fuse Kit 8318314
    #24

    Bulkhead diagram

    Dryer thermal cut-off fuse kit

    Part #8318314

    Replaced by #279973

    ?
    Manufacturer substitution
    This part replaces 8318314. Substitute parts can look different from the original.
    BEST SELLER
    $36.29 |
    14% OFF Phone Price : $42.29
    In Stock
  • Dryer Thermal Fuse 3390719
    #59

    Bulkhead diagram

    Dryer thermal fuse

    Part #3390719

    Replaced by #WP3390719

    ?
    Manufacturer substitution
    This part replaces 3390719. Substitute parts can look different from the original.
    BEST SELLER
    $14.13 |
    12% OFF Phone Price : $16.13
    In Stock
  • Screen 3390721
    #64

    Bulkhead diagram

    Screen

    Part #3390721

    Replaced by #W10120998

    ?
    Manufacturer substitution
    This part replaces 3390721. Substitute parts can look different from the original.
    BEST SELLER
    $51.73 |
    10% OFF Phone Price : $57.73
    In Stock
  • Dryer Drum Seal 697694
    #27

    Bulkhead diagram

    Dryer drum seal

    Part #697694

    Replaced by #280114

    ?
    Manufacturer substitution
    This part replaces 697694. Substitute parts can look different from the original.
    BEST SELLER
    $34.27 |
    15% OFF Phone Price : $40.27
    In Stock
  • Dryer Door Switch 347207
    #41

    Cabinet diagram

    Dryer door switch

    Part #347207

    Replaced by #W10820036

    ?
    Manufacturer substitution
    This part replaces 347207. Substitute parts can look different from the original.
    BEST SELLER
    $21.46 |
    22% OFF Phone Price : $27.46
    In Stock
  • Dryer Tri-ring Retainer 690997
    Dryer tri-ring retainer

    Part #690997

    Replaced by #WPW10512946

    ?
    Manufacturer substitution
    This part replaces 690997. Substitute parts can look different from the original.
    BEST SELLER
    $7.09 |
    12% OFF Phone Price : $8.09
    In Stock
