Gibson GEF322WBWD electric range - 5995274700

Gibson GEF322WBWD electric range - 5995274700 Parts

Here are the diagrams and repair parts for Gibson GEF322WBWD electric range - 5995274700, as well as links to manuals and error code tables, if available.

By Schematic

By Part

SELECT DIAGRAM

Browse Parts for GEF322WBWD Ranges

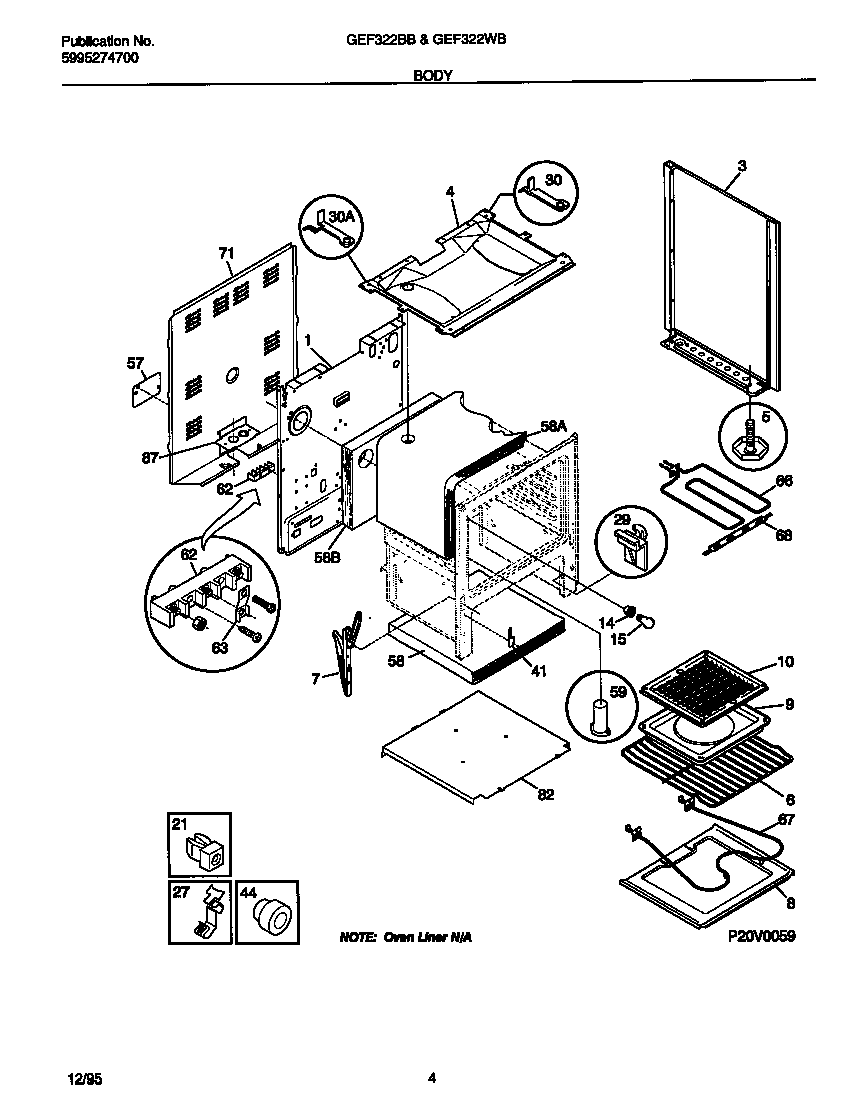

Body diagram
Bake Element
Part #316075102
Replaced by #316075103
Manufacturer substitution
This part replaces 316075102. Substitute parts can look different from the original.
In Stock
$23.77
20% OFF Phone Price : $29.77
Qty

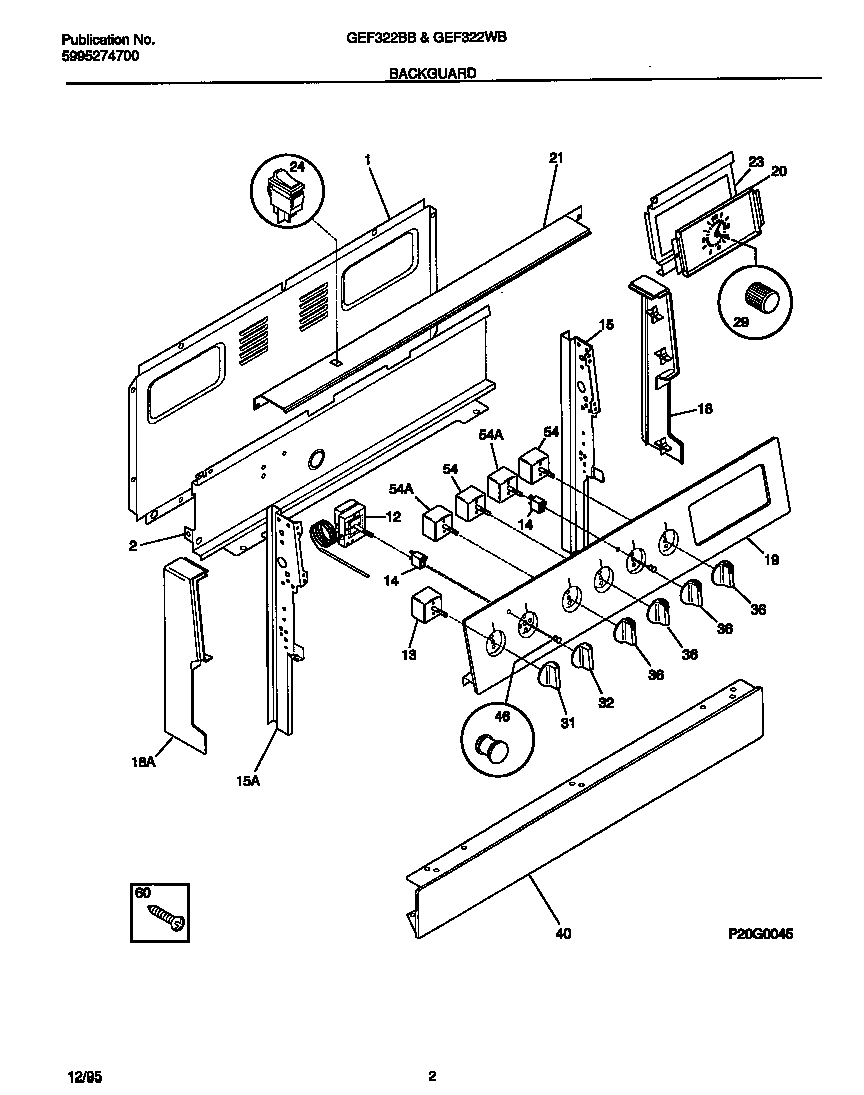

Backguard diagram
Range Surface Element Control Switch
Part #316021501
Replaced by #316436001
Manufacturer substitution
This part replaces 316021501. Substitute parts can look different from the original.
In Stock
$38.18
14% OFF Phone Price : $44.18
Qty
Backguard diagram
Oven Switch
Part #316021500
Replaced by #316436000
Manufacturer substitution
This part replaces 316021500. Substitute parts can look different from the original.
In Stock
$65.35
8% OFF Phone Price : $71.35
Qty

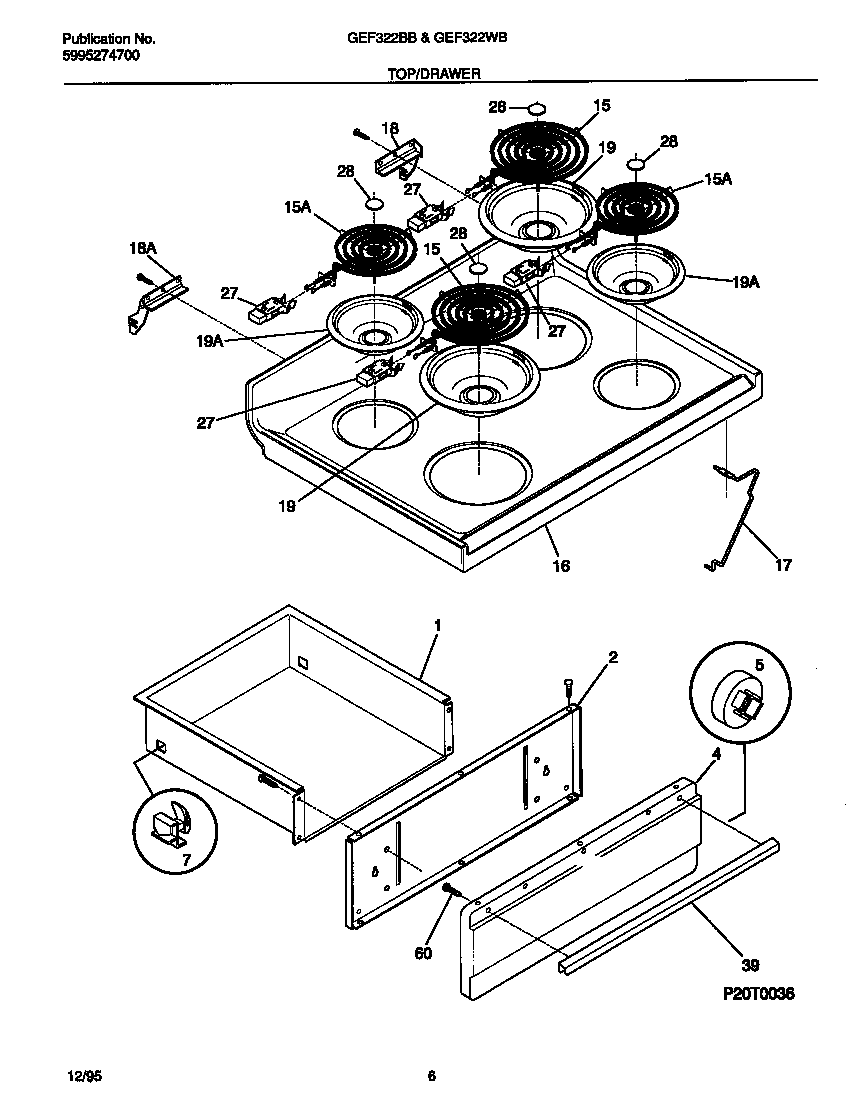

Top/drawer diagram
Range Surface Element, 8-in
Part #5303012223
Replaced by #316442301
Manufacturer substitution
This part replaces 5303012223. Substitute parts can look different from the original.
In Stock
$70.06
8% OFF Phone Price : $76.06
Qty
Top/drawer diagram
Range Drawer Glide
Part #3051163
This item is not returnable
In Stock
$4.60
18% OFF Phone Price : $5.60
Qty
Body diagram
Socket
Part #3014073
Replaced by #316116400
Manufacturer substitution
This part replaces 3014073. Substitute parts can look different from the original.
In Stock
$49.60
11% OFF Phone Price : $55.60
Qty
Backguard diagram
Range Hex Head Screw, #8-18 X 3/8-in
Part #316021105
Replaced by #316021109
Manufacturer substitution
This part replaces 316021105. Substitute parts can look different from the original.
In Stock
$16.27
11% OFF Phone Price : $18.27
Qty
Body diagram
Range Oven Insulation
Part #316047707
In Stock
$112.13
10% OFF Phone Price : $124.13
Qty
Top/drawer diagram
Cooktop Element Center Medallion (black)
Part #5303017715
In Stock
$54.67
10% OFF Phone Price : $60.67
Qty
Body diagram
Hinge
Part #5303283575
In Stock
$26.11
Qty
