Kenmore Elite 79049079400 wall oven

Kenmore Elite 79049079400 wall oven Parts

Here are the diagrams and repair parts for Kenmore Elite 79049079400 wall oven, as well as links to manuals and error code tables, if available.

By Schematic
By Part

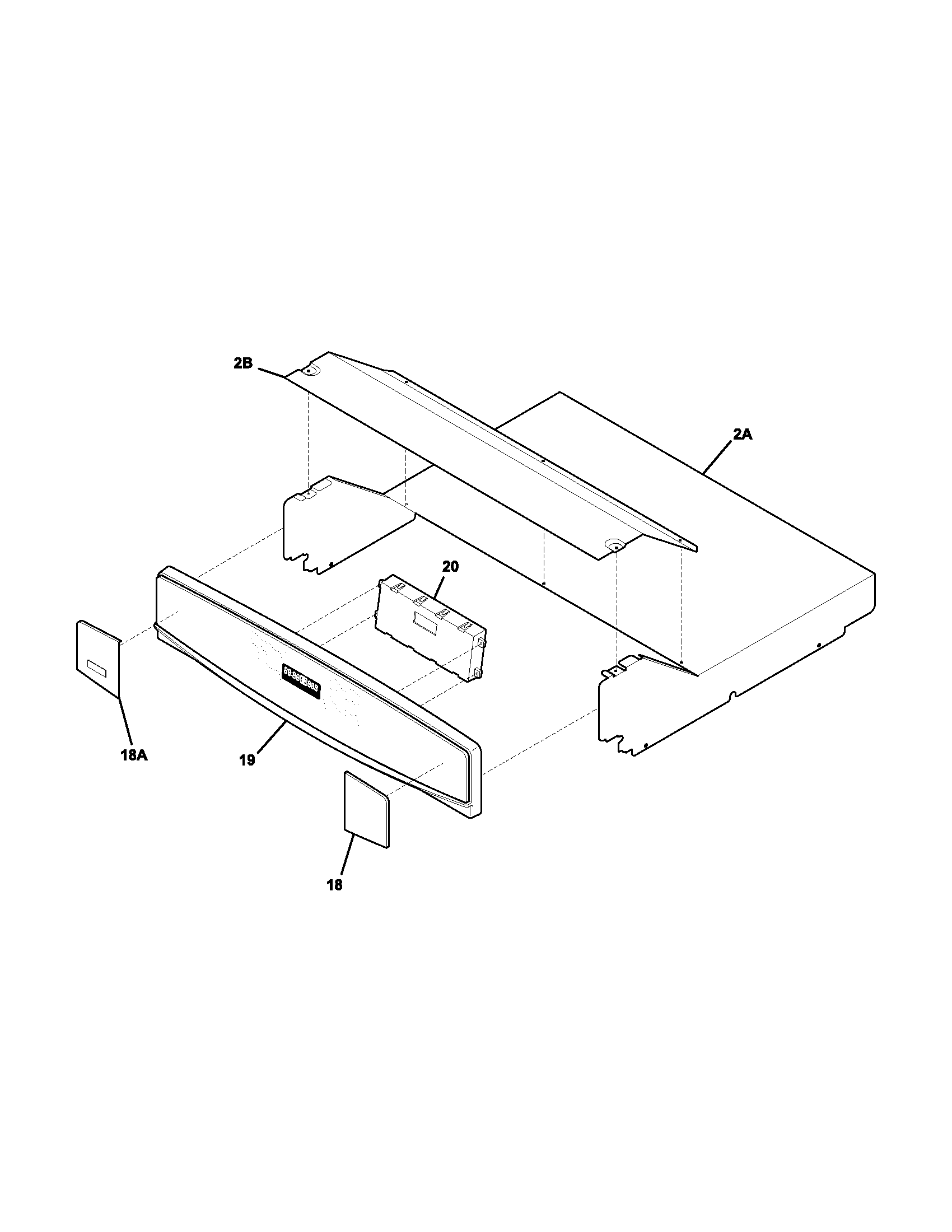

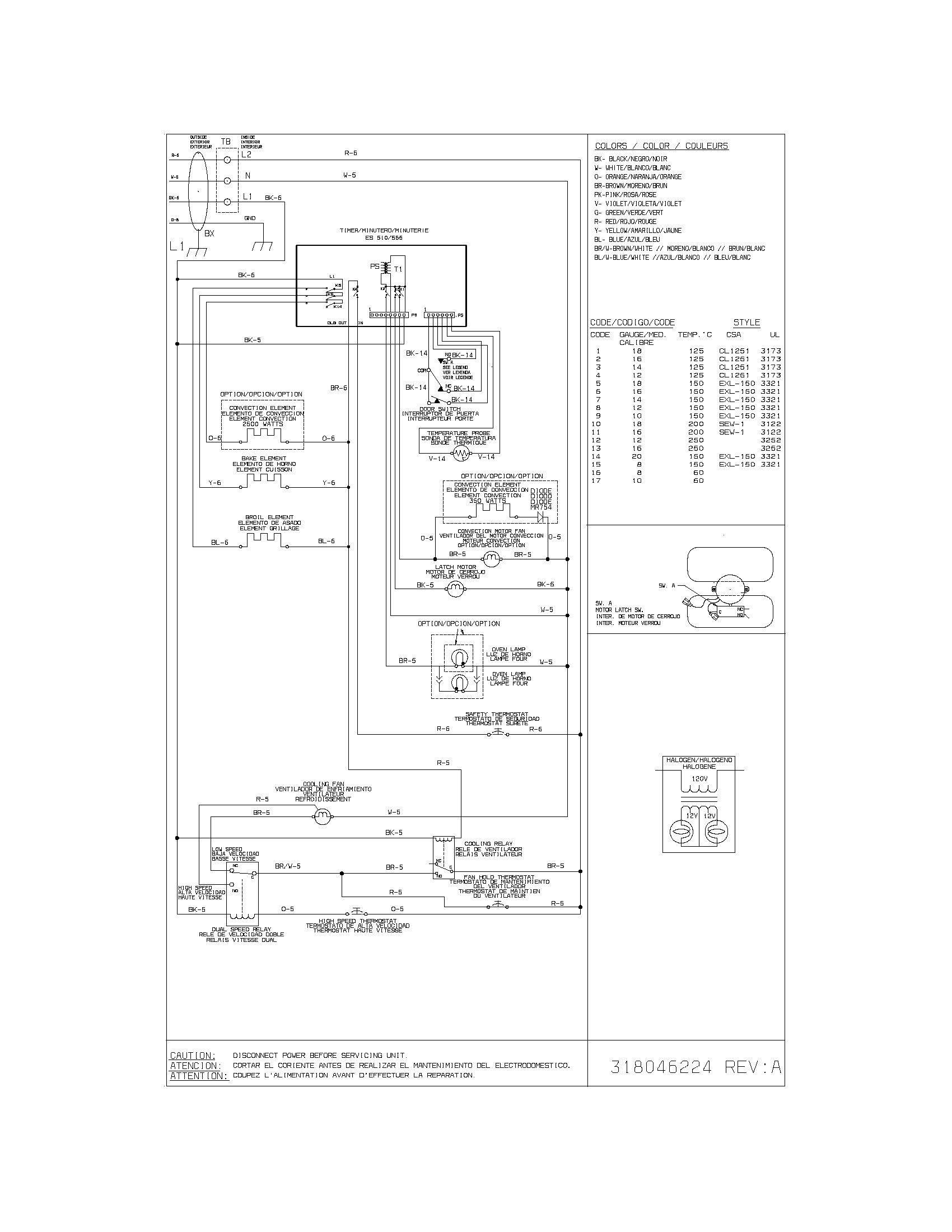

SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for 79049079400 Wall Ovens

  • Frigidaire Range Oven Door Inner Glass for Kenmore Elite 79049079400 - Part 5304503232

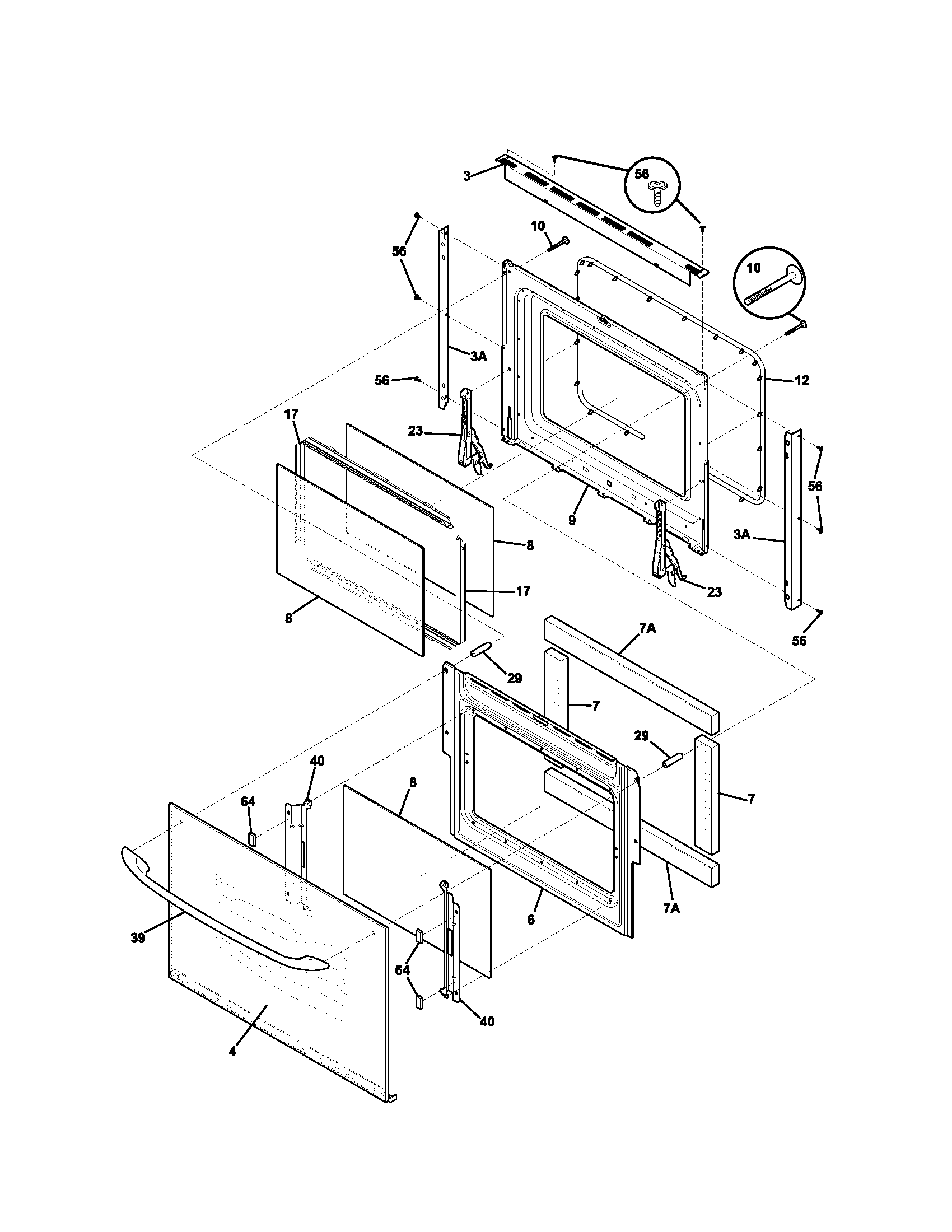

    Door diagram

    Range Oven Door Inner Glass

    Part #316117500

    Replaced by #5304503232

    Info Icon
    Manufacturer substitution
    This part replaces 316117500. Substitute parts can look different from the original.
    In Stock
    $67.96
    8% OFF Phone Price : $73.96Info Icon
    Minus Item
    Qty
    Plus Item
  • Kelvinator Range Terminal Block for Kenmore Elite 79049079400 - Part 5304409888

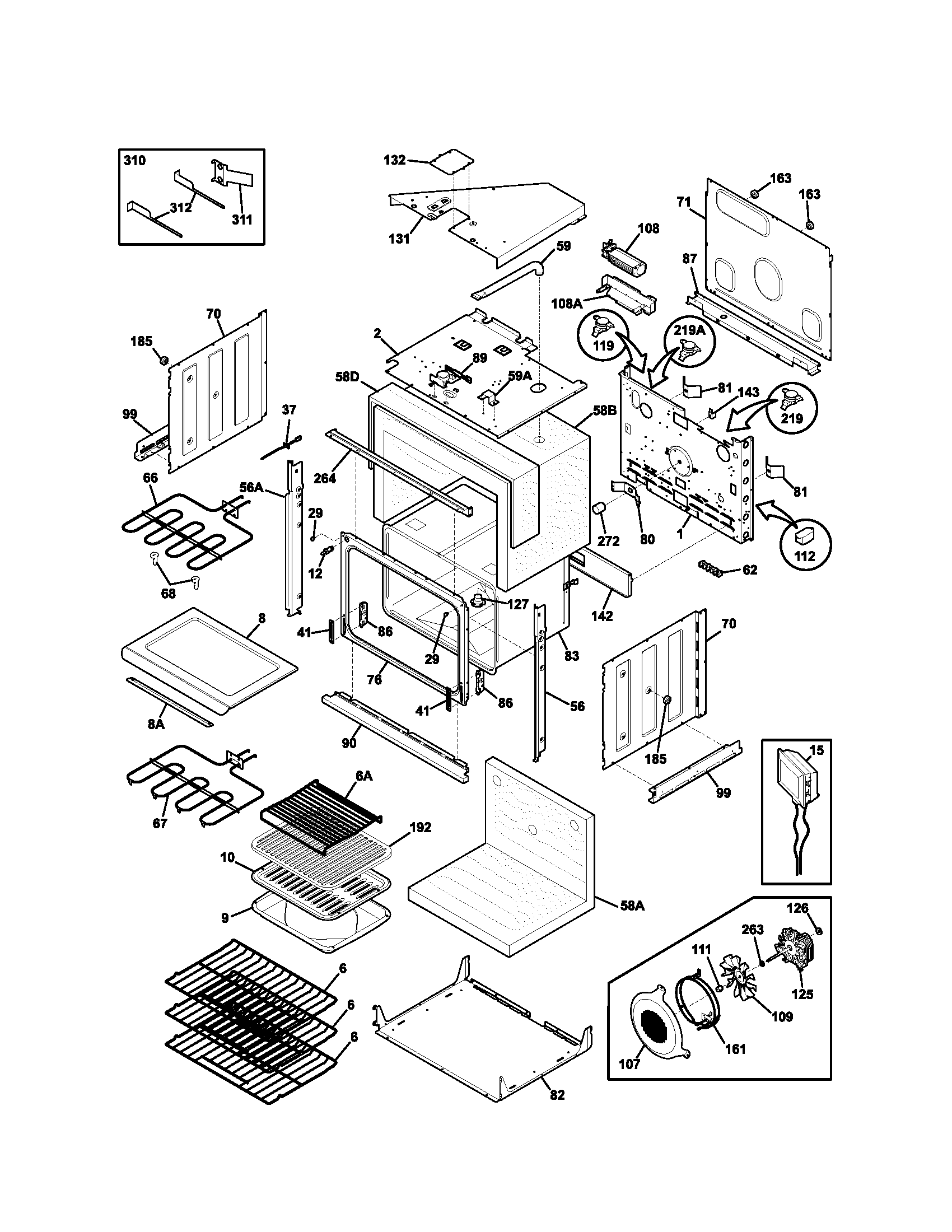

    Body diagram

    Terminal Block

    Part #316056000

    Replaced by #5304409888

    Info Icon
    Manufacturer substitution
    This part replaces 316056000. Substitute parts can look different from the original.
    In Stock
    $25.30
    19% OFF Phone Price : $31.30Info Icon
    Minus Item
    Qty
    Plus Item
  • Wall Oven Thermal Fuse for Kenmore Elite 79049079400 - Part 318004900

    Body diagram

    Wall Oven Thermal Fuse

    Part #318004900
    In Stock
    $35.01
    15% OFF Phone Price : $41.01Info Icon
    Minus Item
    Qty
    Plus Item
  • Frigidaire Range Convection Fan Motor for Kenmore Elite 79049079400 - Part 5304467898

    Body diagram

    Motor

    Part #316415800

    Replaced by #5304467898

    Info Icon
    Manufacturer substitution
    This part replaces 316415800. Substitute parts can look different from the original.
    In Stock
    $147.31
    8% OFF Phone Price : $159.31Info Icon
    Minus Item
    Qty
    Plus Item
  • Range High-limit Thermostat for Kenmore Elite 79049079400 - Part 318003624

    Body diagram

    Thermostat

    Part #318003613

    Replaced by #318003624

    Info Icon
    Manufacturer substitution
    This part replaces 318003613. Substitute parts can look different from the original.
    This item is not returnable
    In Stock
    $27.82
    18% OFF Phone Price : $33.82Info Icon
    Minus Item
    Qty
    Plus Item
  • Crosley Range Oven Door Seal for Kenmore Elite 79049079400 - Part 318053120

    Door diagram

    Crosley Range Oven Door Seal

    Part #318053120
    In Stock
    $117.83
    9% OFF Phone Price : $129.83Info Icon
    Minus Item
    Qty
    Plus Item
  • Frigidaire Crosley Range Oven Door Outer Panel Assembly (white) for Kenmore Elite 79049079400 - Part 318261301

    Door diagram

    Glass Assembly

    Part #318261305

    Replaced by #318261301

    Info Icon
    Manufacturer substitution
    This part replaces 318261305. Substitute parts can look different from the original.
    In Stock
    $355.80
    $12.00 OFF Phone Price : $367.80Info Icon
    Minus Item
    Qty
    Plus Item
  • Gibson Wall Oven Screw, 6 X 3/8-in for Kenmore Elite 79049079400 - Part 3201861

    Body diagram

    Gibson Wall Oven Screw, 6 X 3/8-in

    Part #3201861
    This item is not returnable
    In Stock
    $2.74
    27% OFF Phone Price : $3.74Info Icon
    Minus Item
    Qty
    Plus Item
  • Wall Oven Broil Element Support Hanger for Kenmore Elite 79049079400 - Part 5304403015

    Body diagram

    Wall Oven Broil Element Support Hanger

    Part #5304403015
    In Stock
    $32.54
    16% OFF Phone Price : $38.54Info Icon
    Minus Item
    Qty
    Plus Item
  • Range Oven Door Lock Motor for Kenmore Elite 79049079400 - Part 318261213

    Body diagram

    Motor

    Part #318261200

    Replaced by #318261213

    Info Icon
    Manufacturer substitution
    This part replaces 318261200. Substitute parts can look different from the original.
    In Stock
    $124.30
    9% OFF Phone Price : $136.30Info Icon
    Minus Item
    Qty
    Plus Item

RECOMMENDED MAINTENANCE PARTS AND ACCESSORIES

Wall Oven Owner's Manual 318201512

Wall Oven Owner's Manual

Part #318201512
This item is not returnable
In Stock
$4.08
20% OFF Phone Price : $5.08Info Icon
Minus Item
Qty
Plus Item

Most common symptoms to help you fix your wall oven
