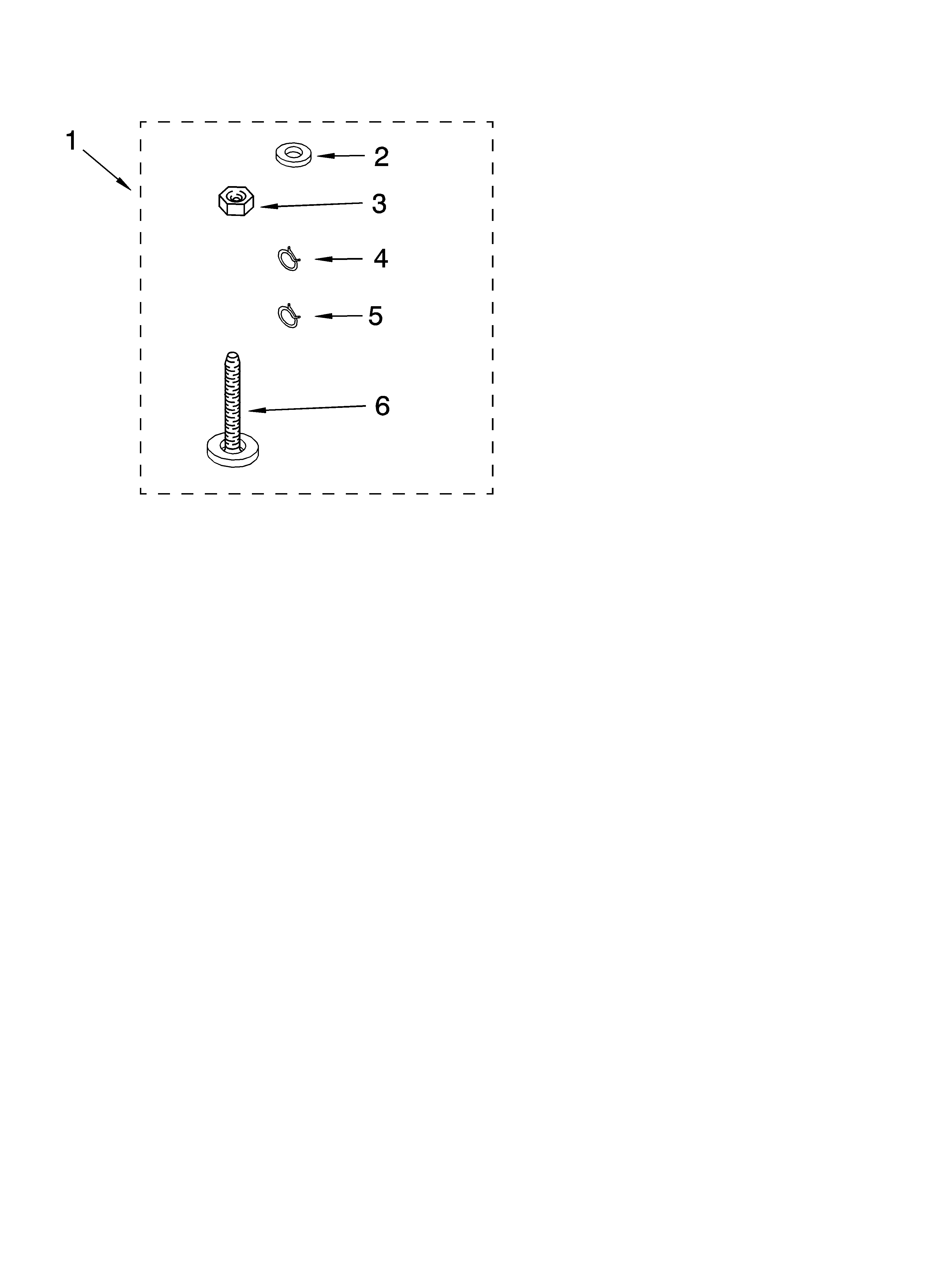

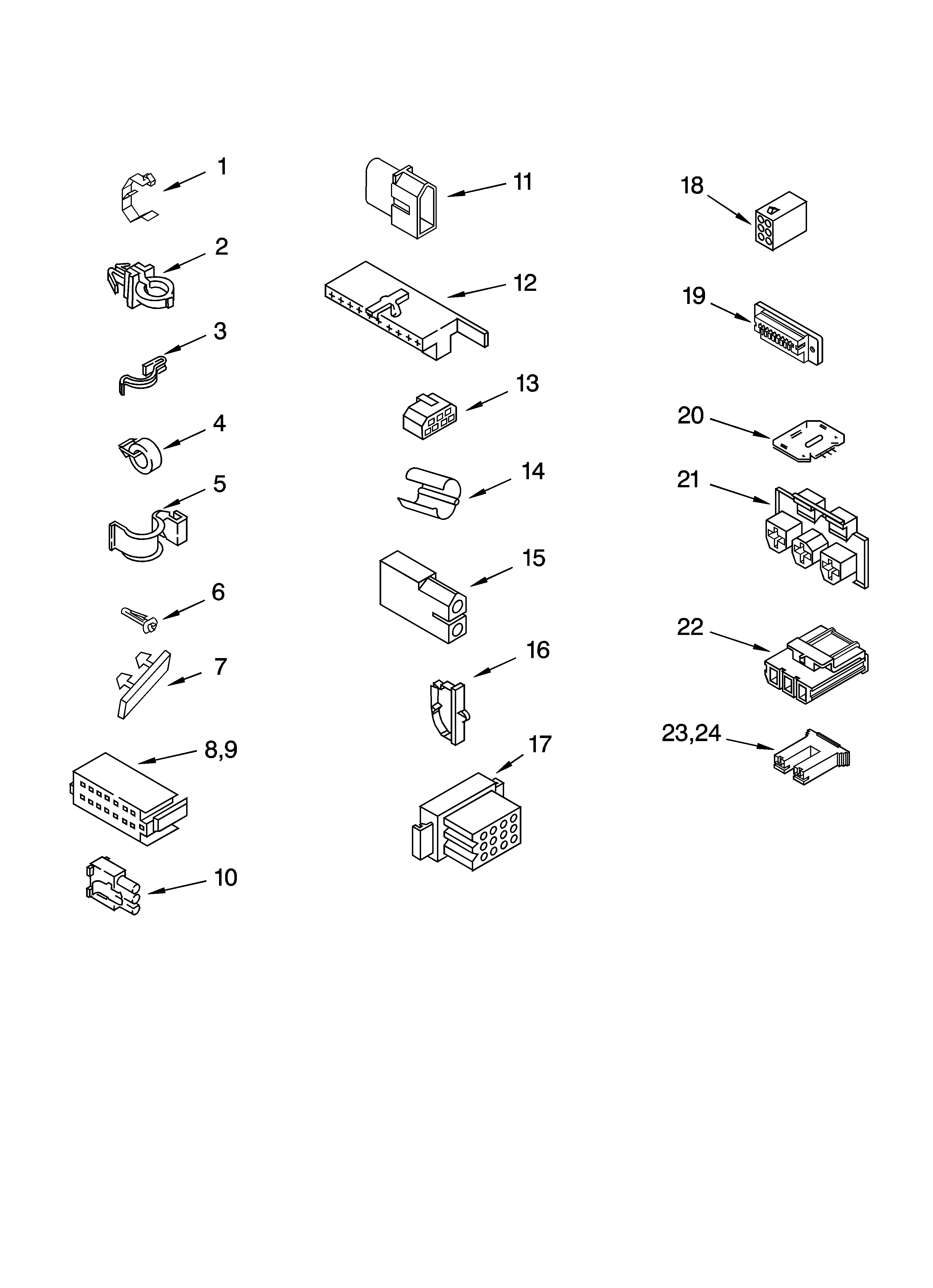

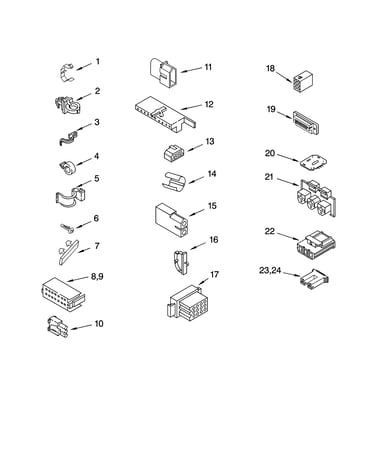

Model #7MLBR7333MT2 Whirlpool washer

Here are the diagrams and repair parts for Whirlpool 7MLBR7333MT2 washer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

    Showing 10 of 211 parts

    Washer Motor Coupling#13

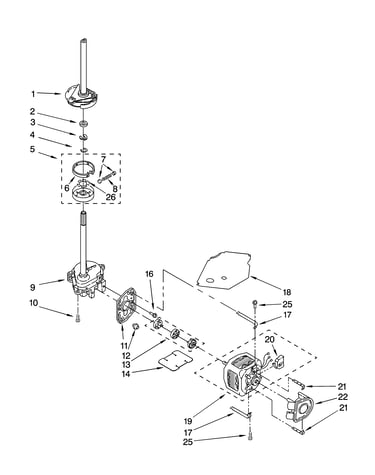

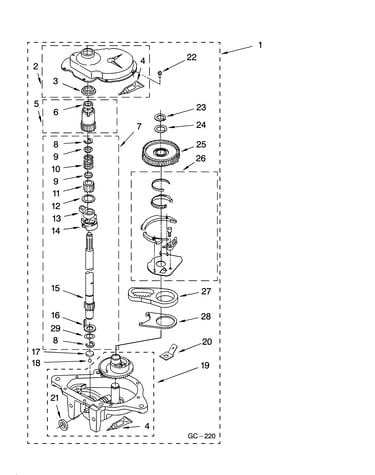

    Brake, clutch, gearcase, motor and pump parts Diagram

    Coupling

    Part #285753
    Replaced by #285753A
    ?
    Manufacturer substitution
    This part replaces 285753. Substitute parts can look different from the original.
    BEST SELLER
    In Stock
    $29.39
    Washer Drain Pump#22

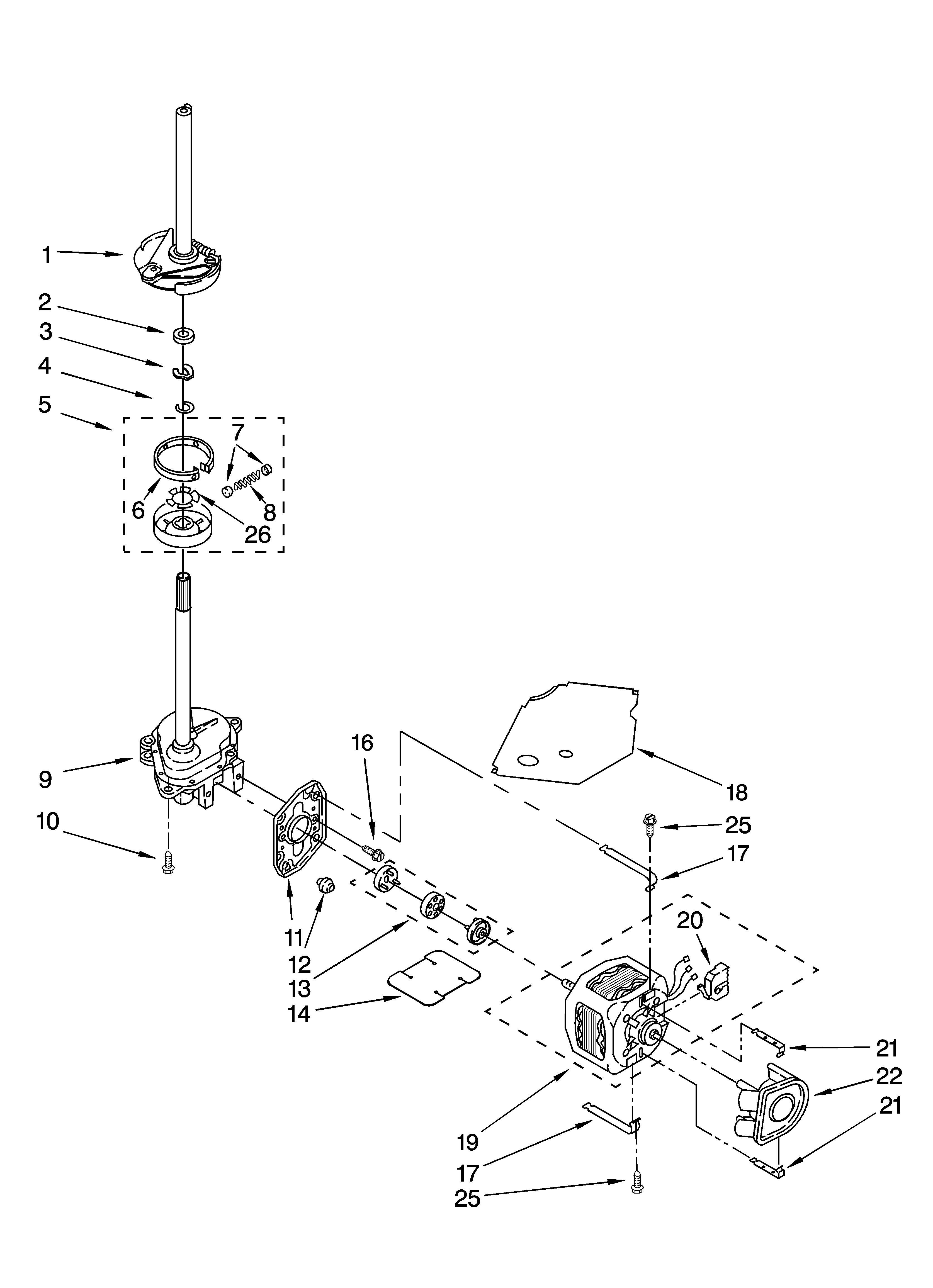

    Brake, clutch, gearcase, motor and pump parts Diagram

    Washer drain pump

    Part #3363394
    Replaced by #WP3363394
    ?
    Manufacturer substitution
    This part replaces 3363394. Substitute parts can look different from the original.
    BEST SELLER
    Back Order
    $48.19
    Washer Water Inlet Valve#18

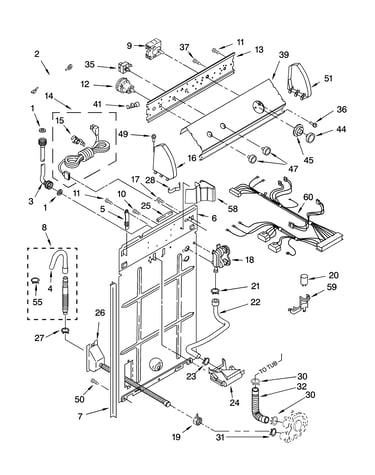

    Controls and rear panel parts Diagram

    Washer inlet valve

    Part #3952164
    Replaced by #285805
    ?
    Manufacturer substitution
    This part replaces 3952164. Substitute parts can look different from the original.
    BEST SELLER
    In Stock
    $45.99
    Washer Clutch#5

    Brake, clutch, gearcase, motor and pump parts Diagram

    Clutch

    Part #3951311
    Replaced by #285785
    ?
    Manufacturer substitution
    This part replaces 3951311. Substitute parts can look different from the original.
    BEST SELLER
    In Stock
    $41.89 |
    13% OFF
    MSRP: $48.00
    Washer Lid Switch Assembly#11

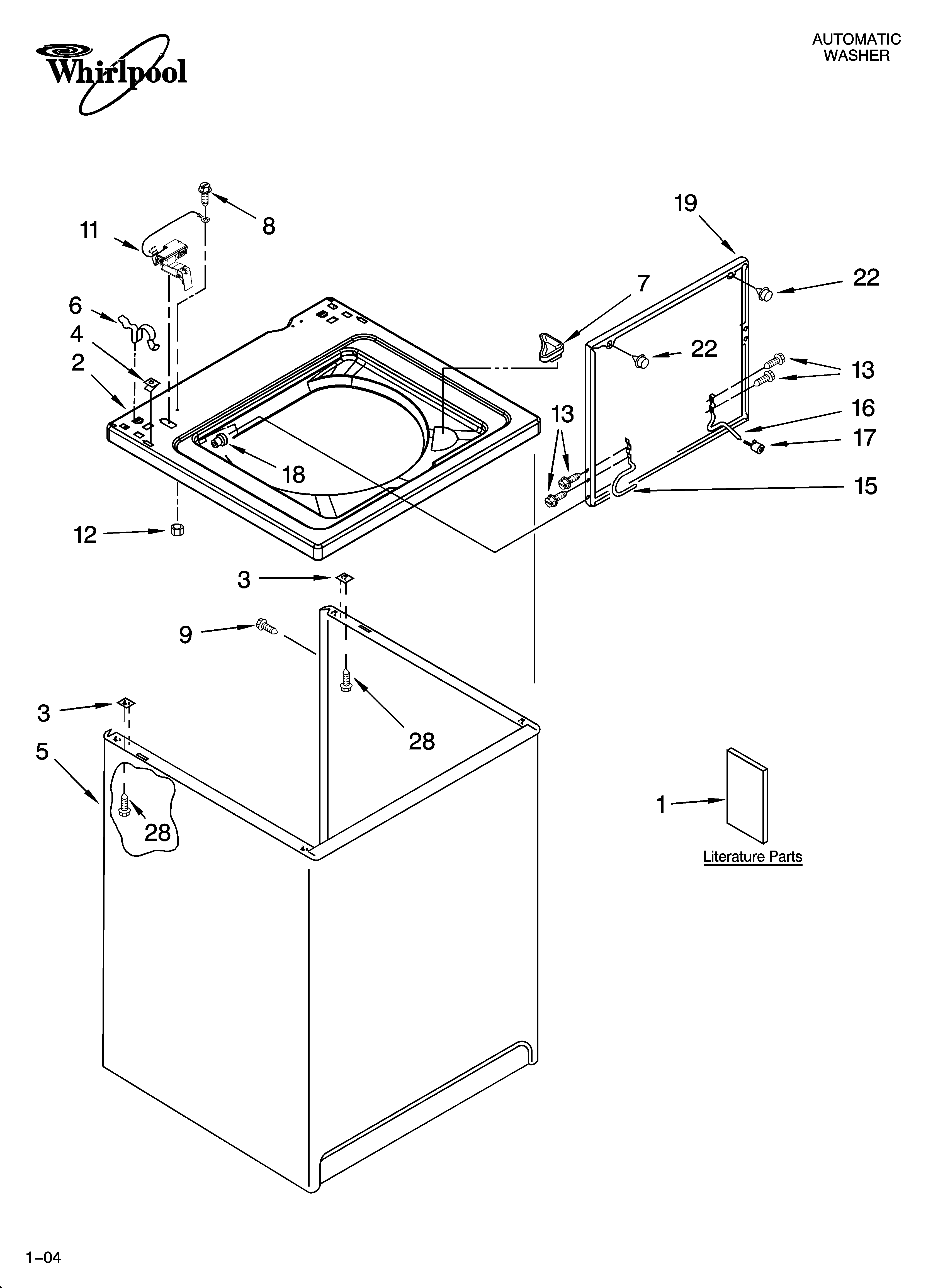

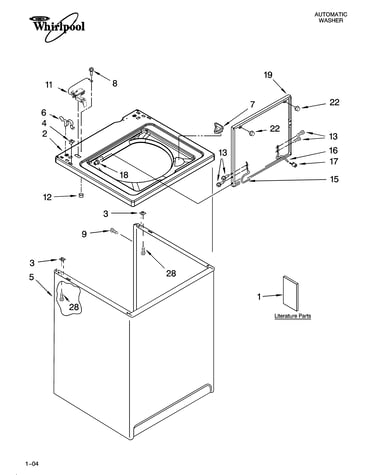

    Top and cabinet parts Diagram

    Washer lid switch assembly

    Part #8318084
    Replaced by #WP8318084
    ?
    Manufacturer substitution
    This part replaces 8318084. Substitute parts can look different from the original.
    BEST SELLER
    In Stock
    $43.19
    Washer Agitator Bolt#2

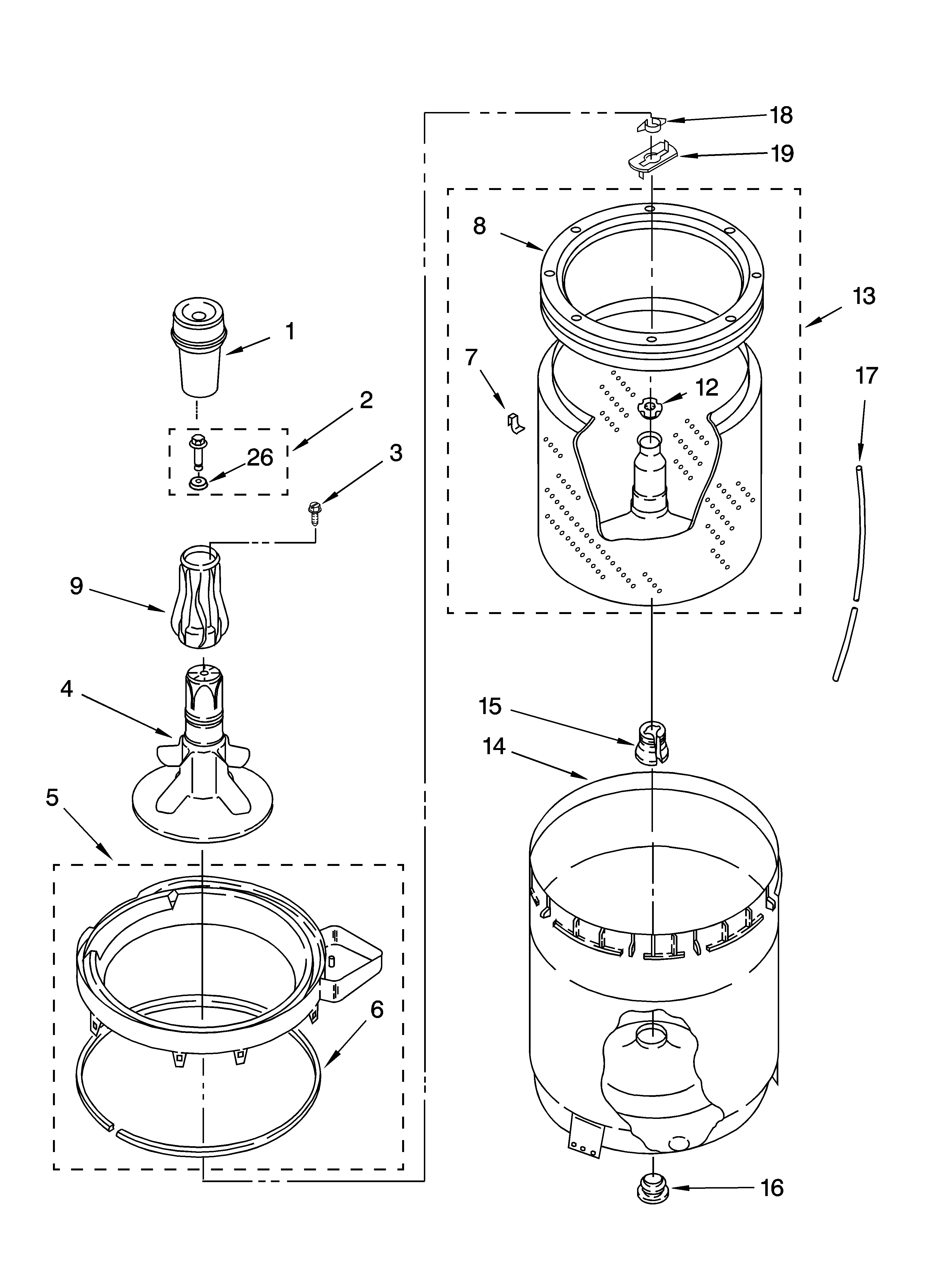

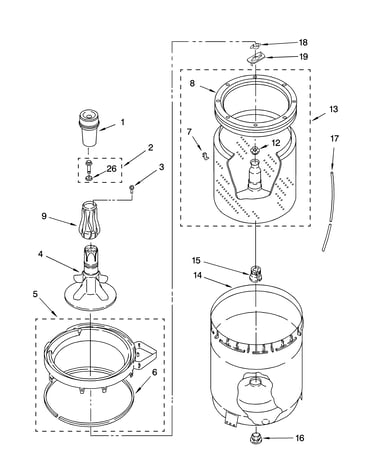

    Agitator, basket and tub parts Diagram

    Washer agitator bolt

    Part #358237
    Replaced by #WP358237
    ?
    Manufacturer substitution
    This part replaces 358237. Substitute parts can look different from the original.
    BEST SELLER
    This item is not returnable
    In Stock
    $5.69

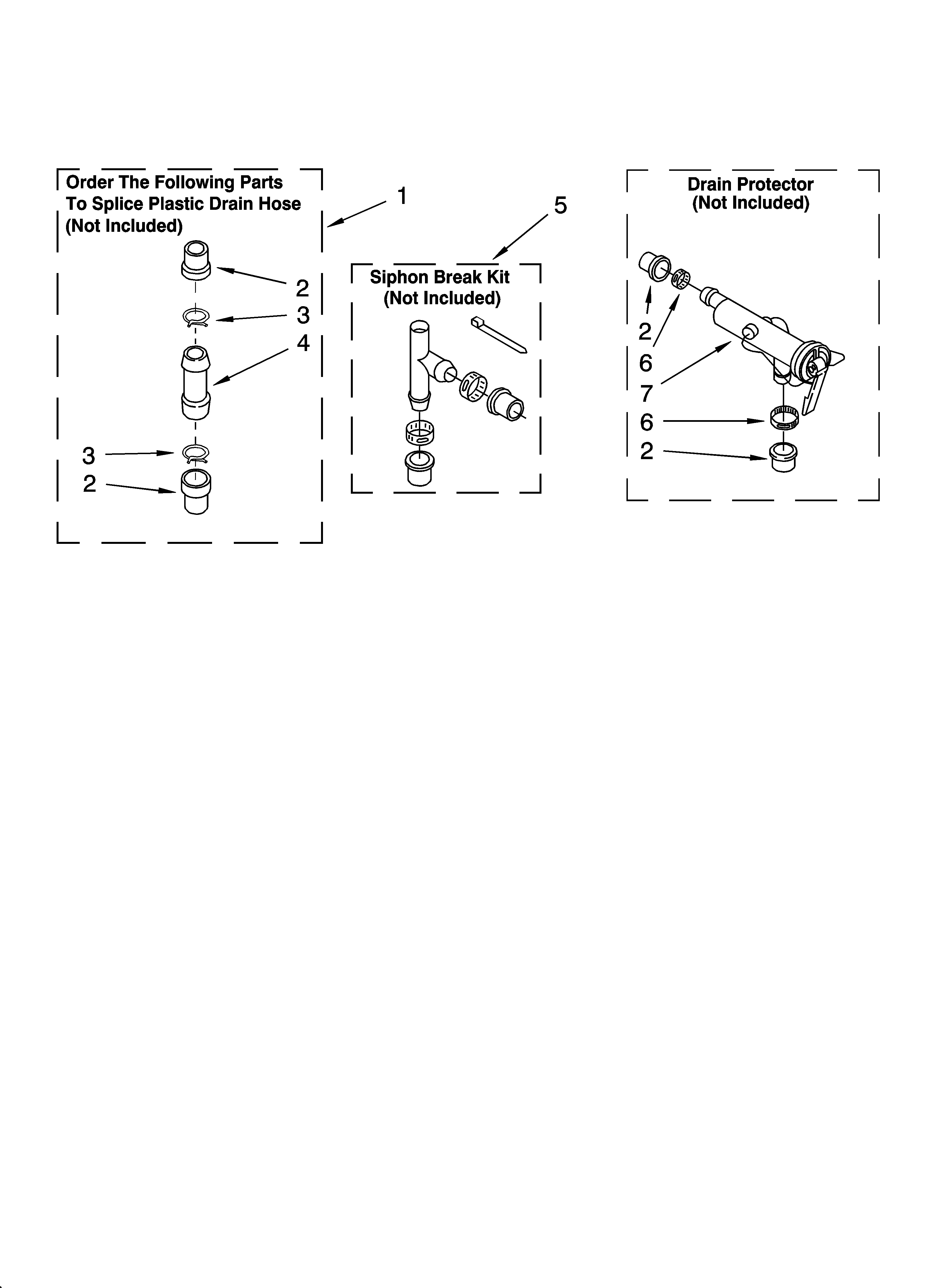

    Washer Pump Drain Hose#26

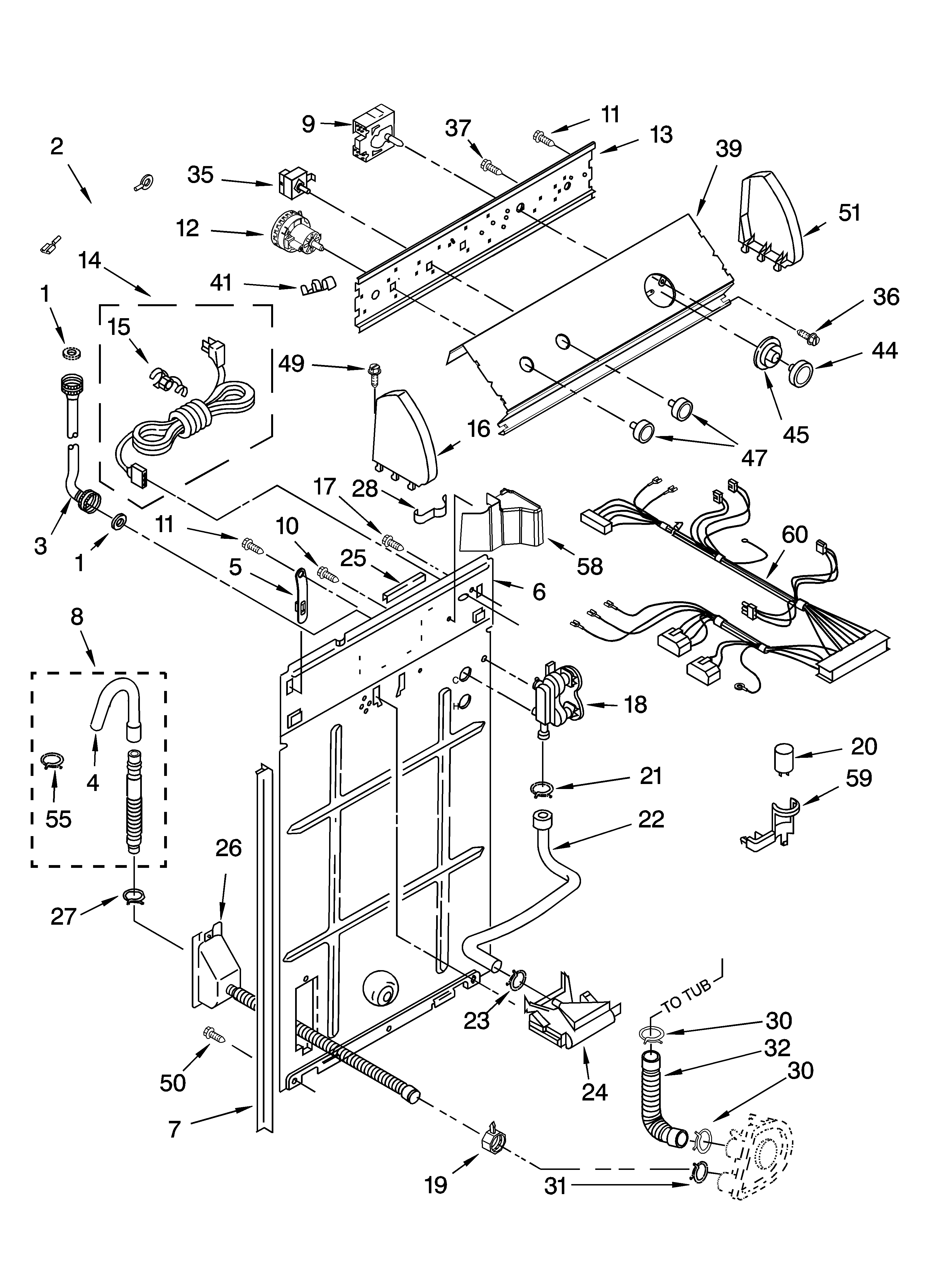

    Controls and rear panel parts Diagram

    Washer inner drain hose

    Part #8317940
    Replaced by #WPW10358149
    ?
    Manufacturer substitution
    This part replaces 8317940. Substitute parts can look different from the original.
    BEST SELLER
    In Stock
    $27.49

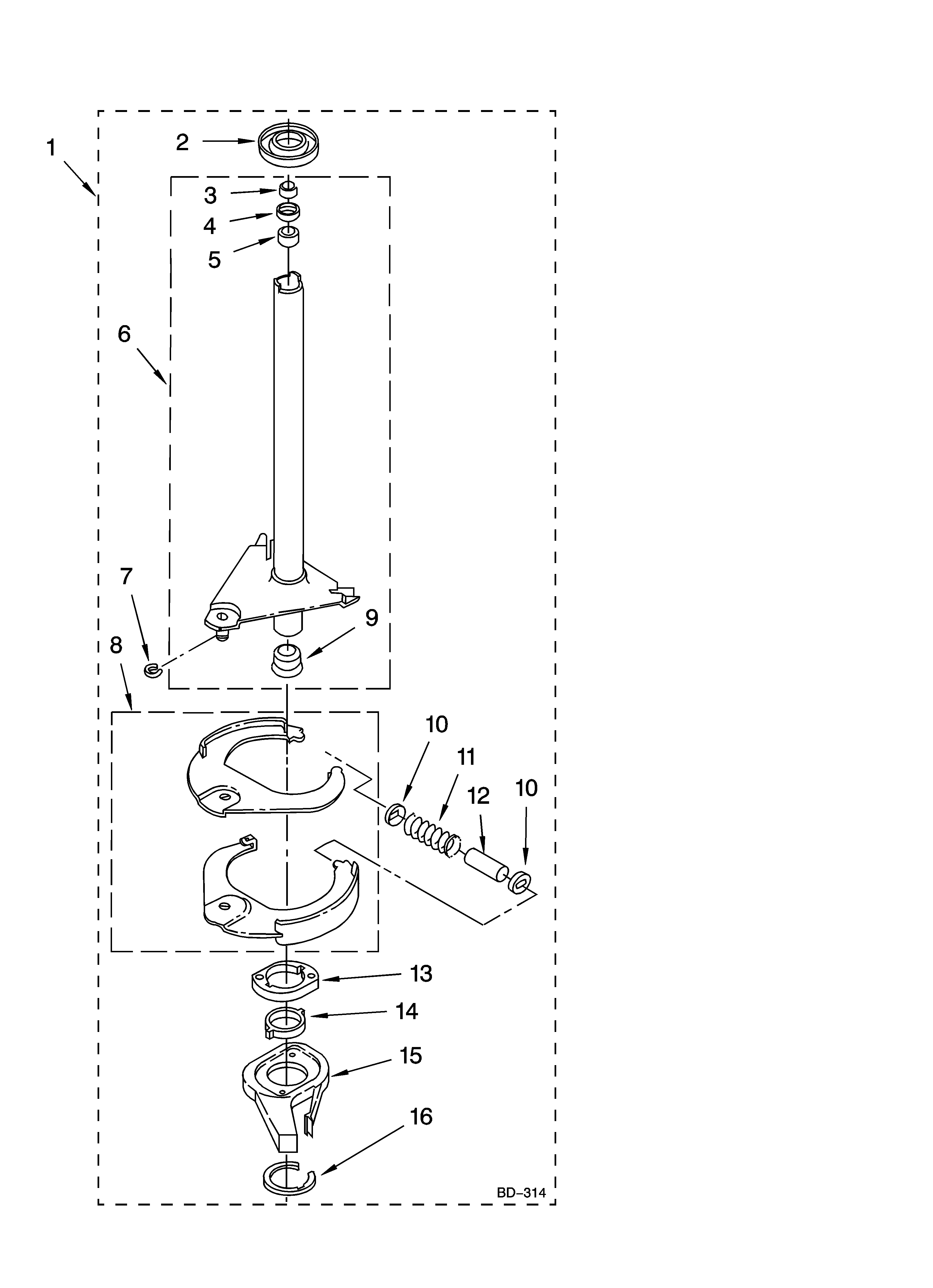

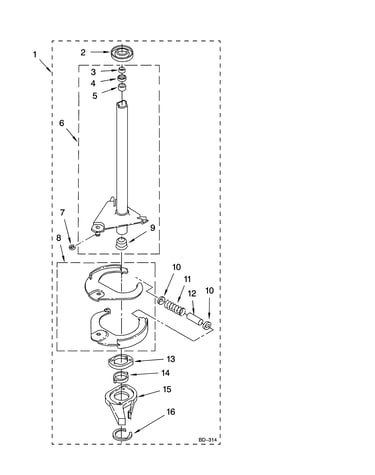

    Washer Basket Drive Assembly

    See All Related Diagrams

    Basketdriv

    Part #388951
    Replaced by #W10820043
    ?
    Manufacturer substitution
    This part replaces 388951. Substitute parts can look different from the original.
    BEST SELLER
    In Stock
    $150.49
    Washer Counterweight Spring#15

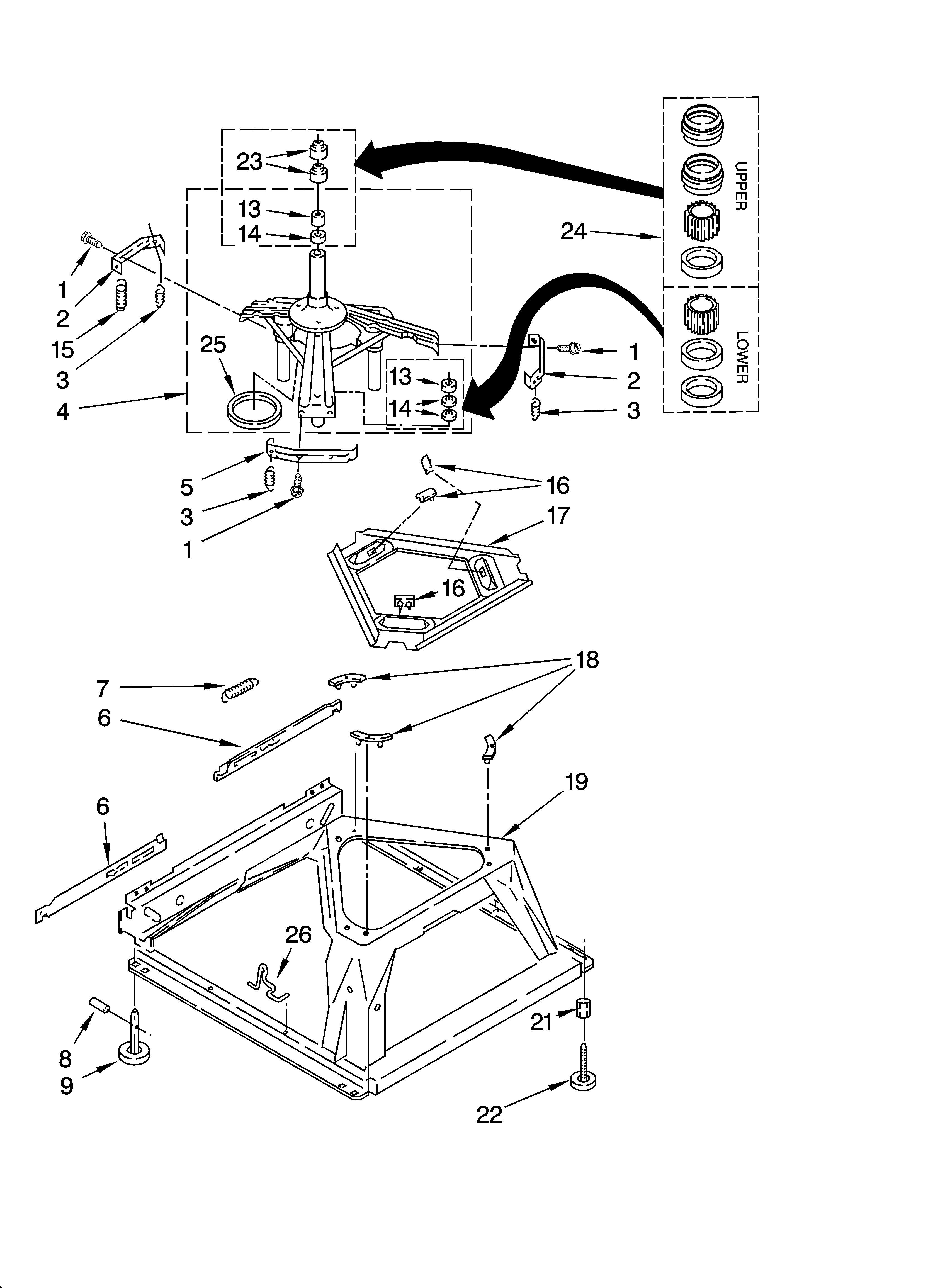

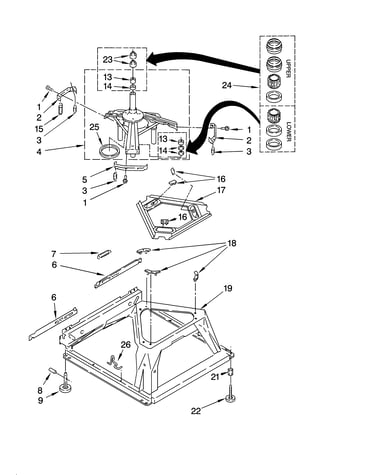

    Machine base parts Diagram

    Counterweight spring (red)

    Part #388492
    Replaced by #WPW10250667
    ?
    Manufacturer substitution
    This part replaces 388492. Substitute parts can look different from the original.
    BEST SELLER
    This item is not returnable
    In Stock
    $5.69
    Washer Drive Block#15

    Agitator, basket and tub parts Diagram

    Washer drive block

    Part #389140
    Replaced by #WP389140
    ?
    Manufacturer substitution
    This part replaces 389140. Substitute parts can look different from the original.
    BEST SELLER
    In Stock
    $27.39
