Kenmore
Electric Range

Model # 9119333190 Official Kenmore electric range

Here are the diagrams and repair parts for Official Kenmore 9119333190 electric range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

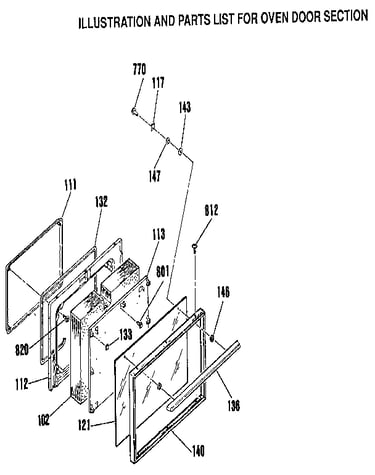

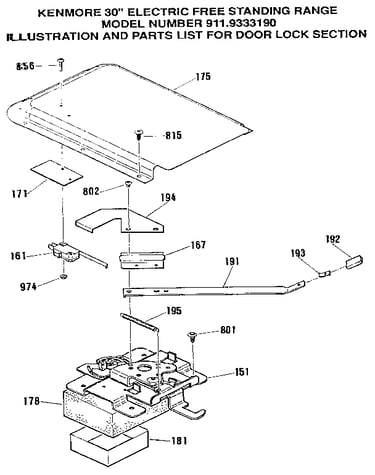

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 139 parts  |

40a15 Bulb STD372401
#257

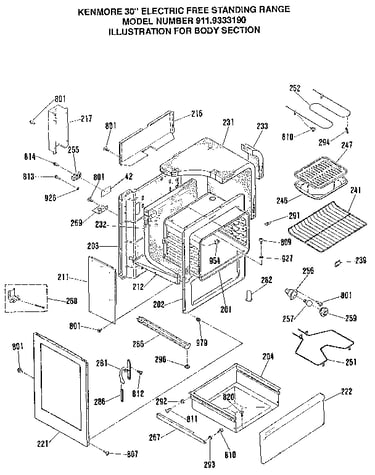

Body section diagram

40a15 bulb

Part #STD372401

Replaced by #40A15

?
Manufacturer substitution
This part replaces STD372401. Substitute parts can look different from the original.
BEST SELLER
$15.39
12% OFF Phone Price : $17.39
In Stock
Term Blk Asm WB17K5017
#82

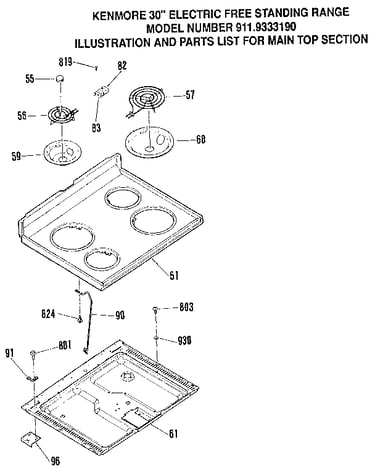

Main top section diagram

Term blk asm

Part #WB17K5017

Replaced by #WB17X210

?
Manufacturer substitution
This part replaces WB17K5017. Substitute parts can look different from the original.
BEST SELLER
$22.97
18% OFF Phone Price : $27.97
In Stock
Hinge WB14X0104
#281B

Body section diagram

Hinge

Part #WB14X0104

Replaced by #WB14X104

?
Manufacturer substitution
This part replaces WB14X0104. Substitute parts can look different from the original.
BEST SELLER
$32.83
13% OFF Phone Price : $37.83
In Stock
Screw 10 WB01M0001
Screw 10

Part #WB01M0001

Replaced by #WB1M1

?
Manufacturer substitution
This part replaces WB01M0001. Substitute parts can look different from the original.
This item is not returnable
$6.09
14% OFF Phone Price : $7.09
In Stock
Element Control WB23K5027
#19B

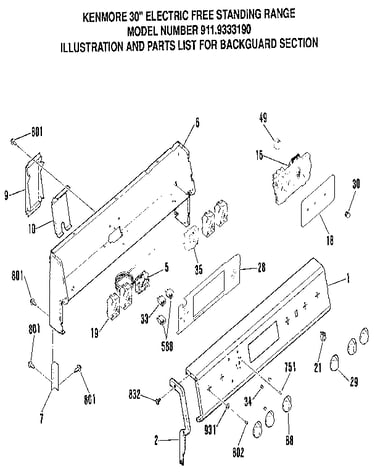

Back guard section diagram

Element control

Part #WB23K5027

Replaced by #WB23K5027

?
Manufacturer substitution
This part replaces WB23K5027. Substitute parts can look different from the original.
$83.43
6% OFF Phone Price : $88.43
Back Order
Control WB23M0024
#19A

Back guard section diagram

Control

Part #WB23M0024

Replaced by #WB23M24

?
Manufacturer substitution
This part replaces WB23M0024. Substitute parts can look different from the original.
$85.06
6% OFF Phone Price : $90.06
In Stock
Washer WB01X1254
#927

Body section diagram

Washer

Part #WB01X1254

Replaced by #WB1X119D

?
Manufacturer substitution
This part replaces WB01X1254. Substitute parts can look different from the original.
This item is not returnable
$22.85
18% OFF Phone Price : $27.85
In Stock
Light Lens WB25X0094
#34

Back guard section diagram

Light lens

Part #WB25X0094

Replaced by #WB25T10042

?
Manufacturer substitution
This part replaces WB25X0094. Substitute parts can look different from the original.
This item is not returnable
$7.88
11% OFF Phone Price : $8.88
In Stock
Rocker Switch (black) WB24K5035
#21

Back guard section diagram

Rocker switch (black)

Part #WB24K5035

Replaced by #WB24K5035

?
Manufacturer substitution
This part replaces WB24K5035. Substitute parts can look different from the original.
This item is not returnable
$20.34
20% OFF Phone Price : $25.34
In Stock
Grid Broil WB49X0627
#247

Body section diagram

Grid broil

Part #WB49X0627

Replaced by #WB48X10056

?
Manufacturer substitution
This part replaces WB49X0627. Substitute parts can look different from the original.
$26.63
16% OFF Phone Price : $31.63
In Stock

Most common symptoms to help you fix your ranges

Choose a symptom to see related range repairs.

Main causes: broken oven door lock assembly, wiring failure, electronic control board problem…

Main causes: bad bake element, broken burner igniter, control system failure, blown thermal fuse, faulty temperature sen…

Main causes: food splatters, spilling food on the oven door, allowing liquid to drip through oven door vent when cleanin…

Main causes: faulty temperature sensor, electronic control board problem, control thermostat failure, weak burner ignite…

Main causes: broken broiler element, weak or broken broil burner igniter, control system failure, faulty temperature sen…

Main causes: power supply problem, control thermostat or electronic control board failure, broken element, bad burner ig…

Main causes: power supply failure, blown thermal fuse, bad relay control board, damaged terminal block, wiring failure…
