Model # KGCP463KSS04 Official KitchenAid gas counter unit

Here are the diagrams and repair parts for Official KitchenAid KGCP463KSS04 gas counter unit, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual
Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 81 parts  |
Range Screw 3368921
#20

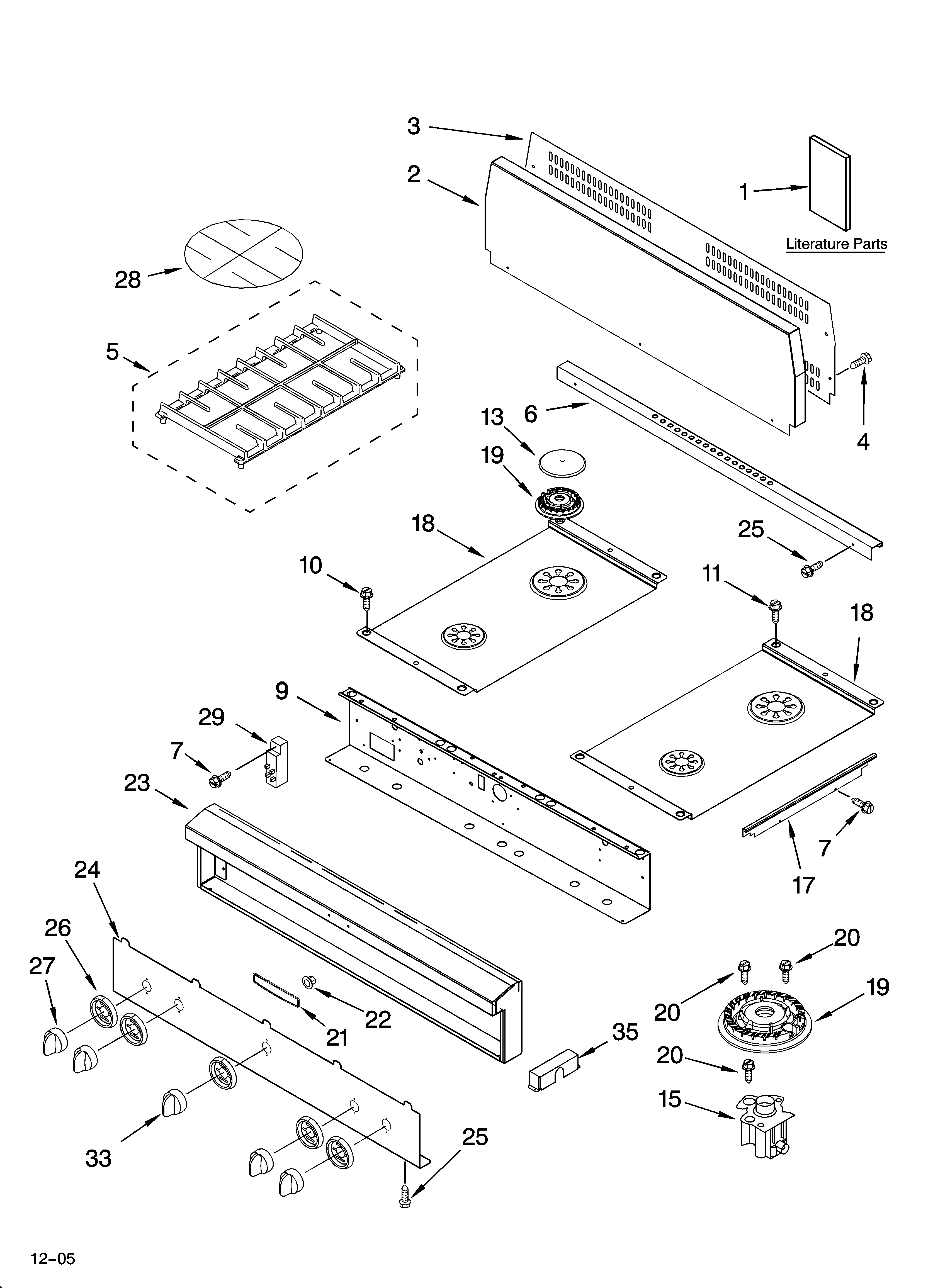

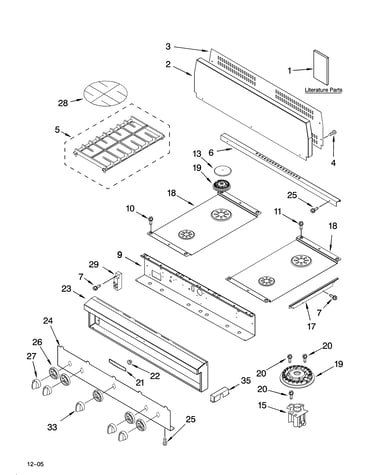

Cooktop, burner and grate parts diagram

Range screw

Part #3368921

Replaced by #WP3368921

?
Manufacturer substitution
This part replaces 3368921. Substitute parts can look different from the original.
BEST SELLER
$6.82 |
43% OFF MSRP : $12.00
In Stock
Screw 3400805
#36A

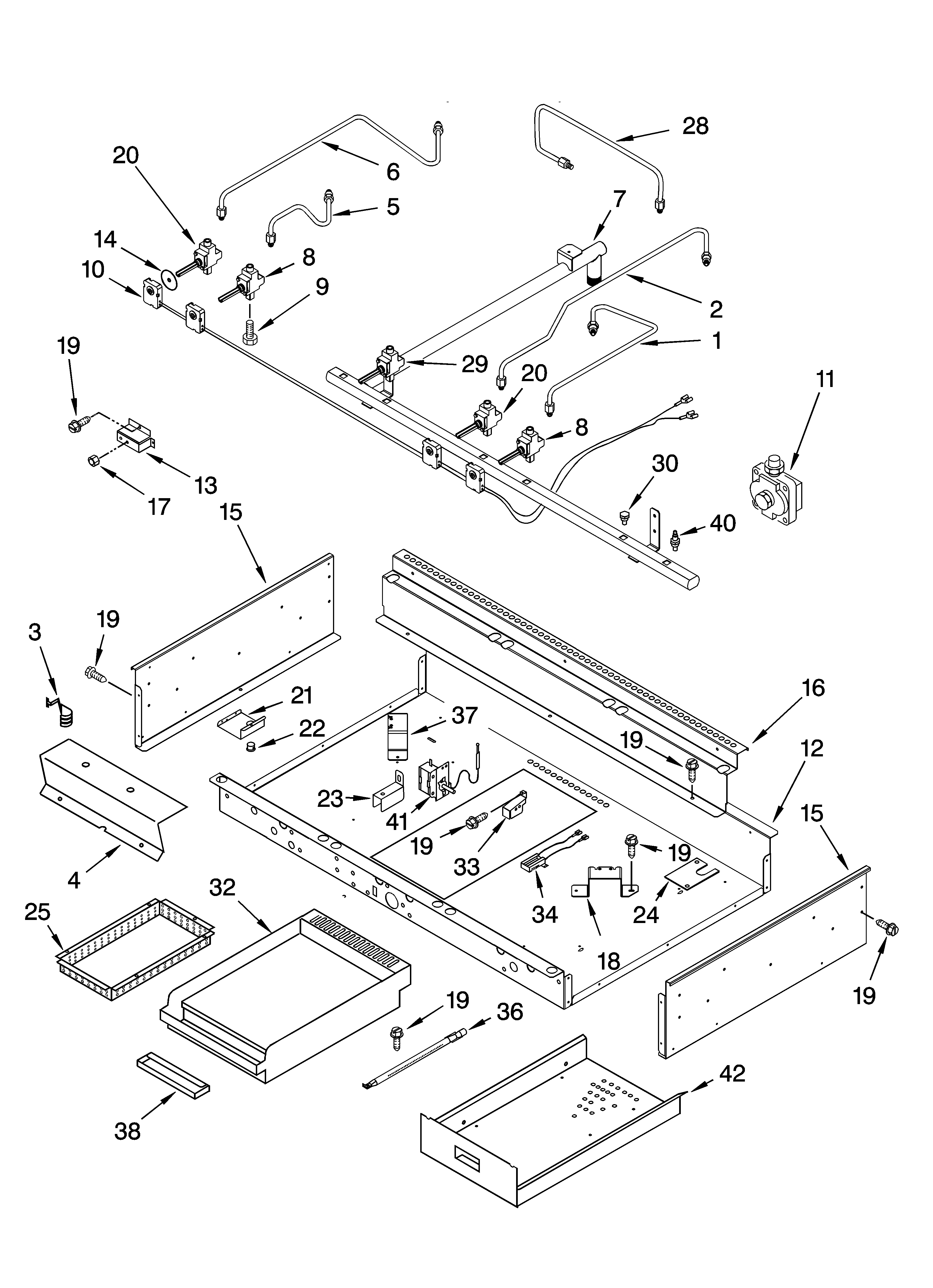

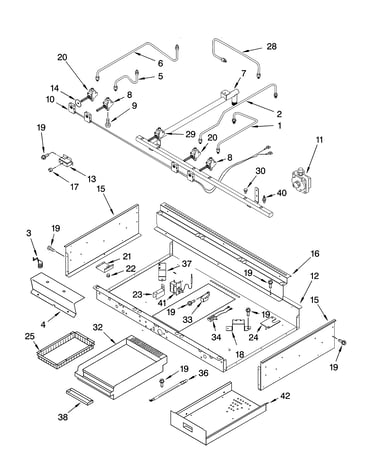

Burner box, gas valves, and switches, optional parts diagram

Screw

Part #3400805

Replaced by #WP3400805

?
Manufacturer substitution
This part replaces 3400805. Substitute parts can look different from the original.
This item is not returnable
$4.39 |
19% OFF Phone Price : $5.39
In Stock
Screw 8523704
#9

Burner box, gas valves, and switches, optional parts diagram

Screw

Part #8523704

Replaced by #WP3186217

?
Manufacturer substitution
This part replaces 8523704. Substitute parts can look different from the original.
This item is not returnable
$4.33
In Stock
Range Surface Burner Head, Right 4455979
#19A

Cooktop, burner and grate parts diagram

Range surface burner head, right

Part #4455979

Replaced by #WP4455979

?
Manufacturer substitution
This part replaces 4455979. Substitute parts can look different from the original.
$38.89 |
11% OFF Phone Price : $43.89
In Stock
Cooktop Knob 8284743
#33

Cooktop, burner and grate parts diagram

Cooktop knob

Part #8284743

$56.67
In Stock
Bushing 4173634
#NI

Burner box, gas valves, and switches, optional parts diagram

Bushing

Part #4173634

$8.49 |
11% OFF Phone Price : $9.49
In Stock
Range Wire Harness 4456627
#NI

Burner box, gas valves, and switches, optional parts diagram

Range wire harness

Part #4456627

$53.76
In Stock
Range Burner Valve 4456818
#20

Burner box, gas valves, and switches, optional parts diagram

Range burner valve

Part #4456818

$141.09 |
12% OFF MSRP : $160.00
In Stock
Seal Switch 3192439
#NI

Burner box, gas valves, and switches, optional parts diagram

Seal switch

Part #3192439

Replaced by #W10491984

?
Manufacturer substitution
This part replaces 3192439. Substitute parts can look different from the original.
This item is not returnable
$8.79 |
10% OFF Phone Price : $9.79
In Stock
Range Screw 3177991
#19

Burner box, gas valves, and switches, optional parts diagram

Range screw

Part #3177991

Replaced by #WP3177991

?
Manufacturer substitution
This part replaces 3177991. Substitute parts can look different from the original.
This item is not returnable
$4.37 |
19% OFF Phone Price : $5.37
In Stock
