KitchenAid KSMC50 mixer Parts
Here are the diagrams and repair parts for KitchenAid KSMC50 mixer, as well as links to manuals and error code tables, if available.
By Schematic
SELECT DIAGRAM
Browse Parts for KSMC50 Mixer

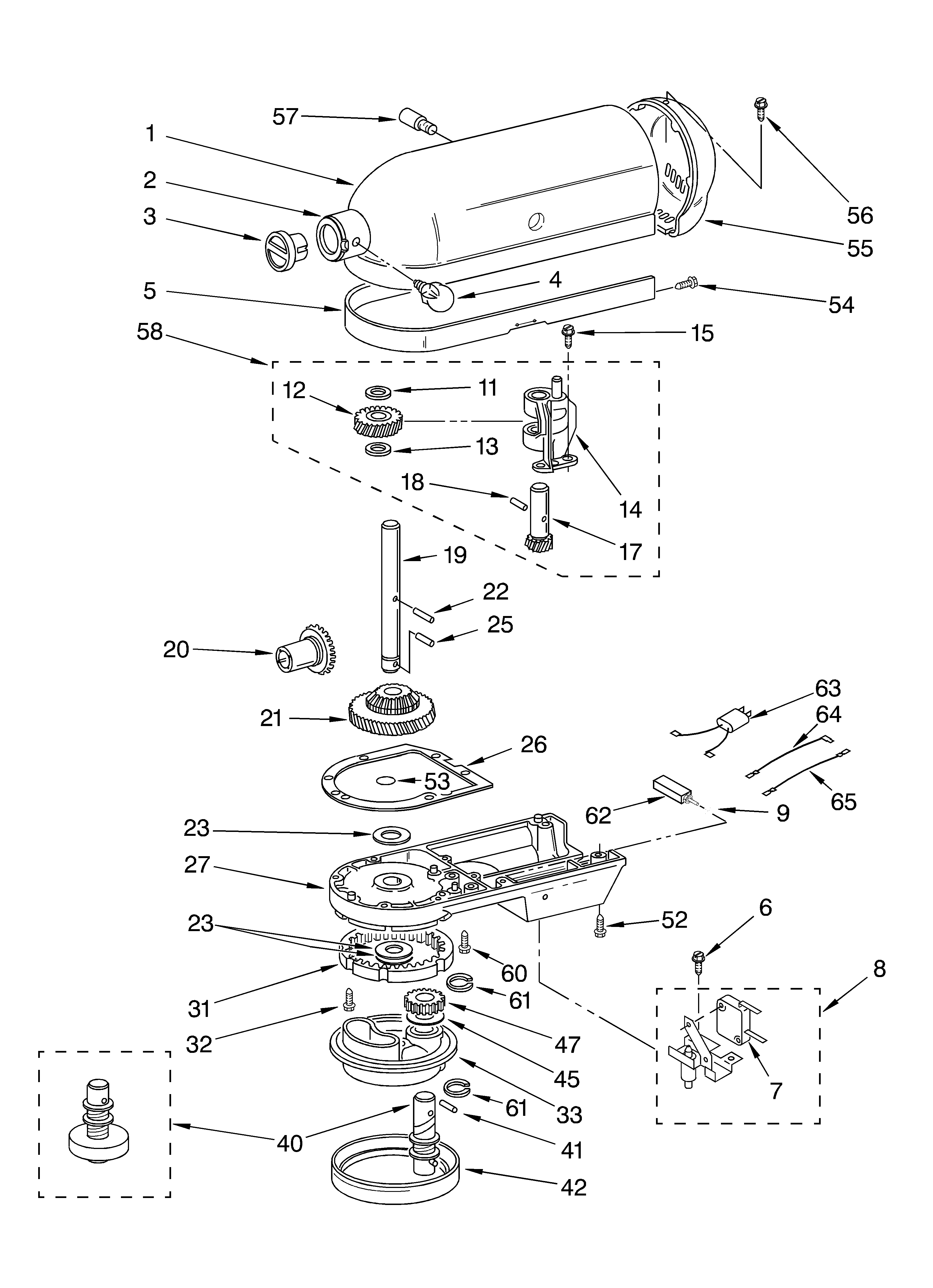

Case, gearing and planetary unit diagram
Gear
Part #4162897Replaced by #WPW10112253
Manufacturer substitutionThis part replaces 4162897. Substitute parts can look different from the original.In Stock$16.2711% OFF Phone Price : $18.27
Qty

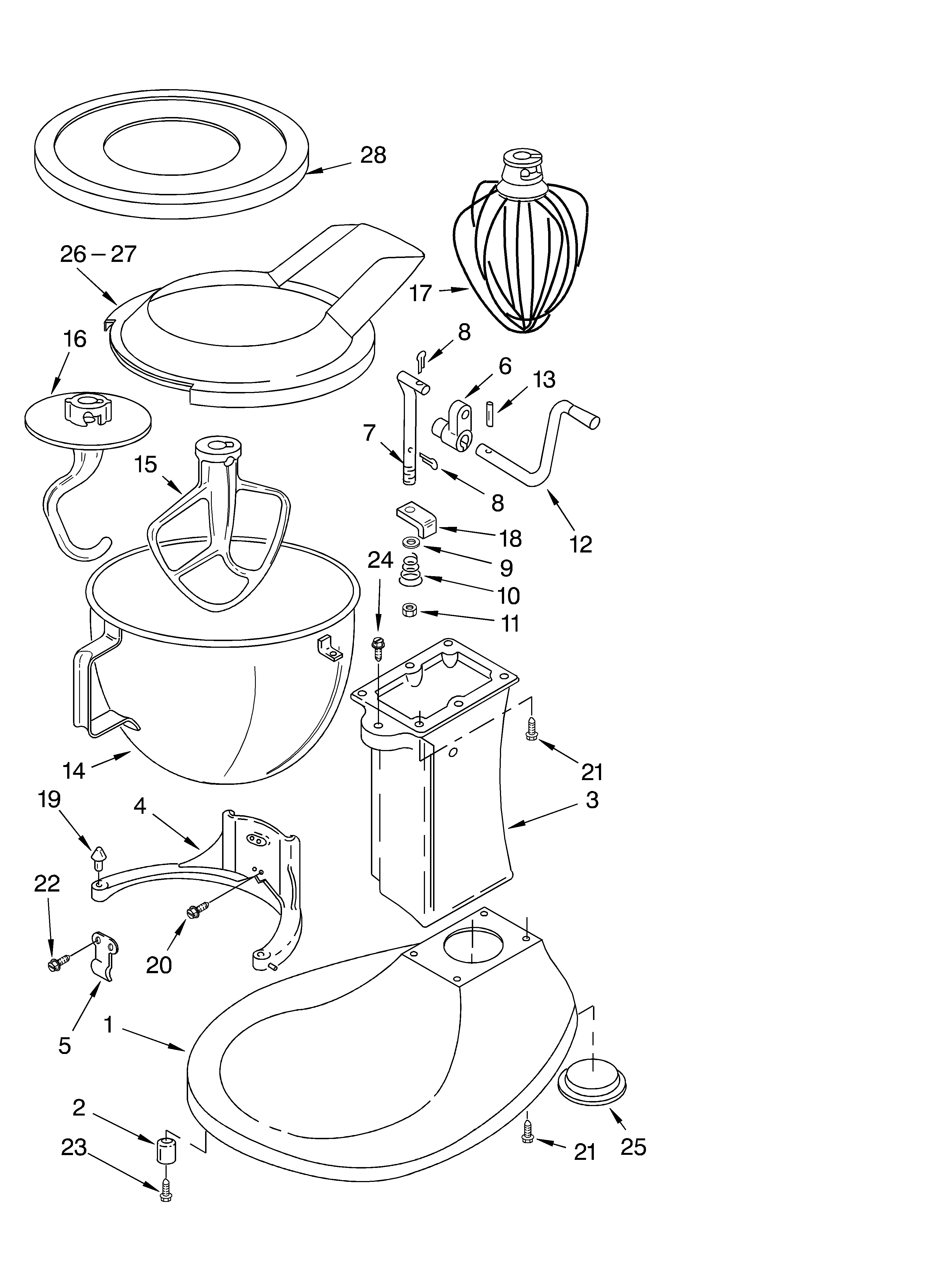

Base and pedestal unit diagram
Pin-bowl
Part #4162028Replaced by #WP240185
Manufacturer substitutionThis part replaces 4162028. Substitute parts can look different from the original.This item is not returnableIn Stock$6.0514% OFF Phone Price : $7.05QtyCase, gearing and planetary unit diagram
Pin-groove
Part #9705443Replaced by #WP9705443
Manufacturer substitutionThis part replaces 9705443. Substitute parts can look different from the original.This item is not returnableIn Stock$5.6615% OFF Phone Price : $6.66QtyCase, gearing and planetary unit diagram
Pin-groove
Part #9705444Replaced by #WP9705444
Manufacturer substitutionThis part replaces 9705444. Substitute parts can look different from the original.This item is not returnableIn Stock$6.4413% OFF Phone Price : $7.44QtyCase, gearing and planetary unit diagram
Screw
Part #4176211Replaced by #WP9709196
Manufacturer substitutionThis part replaces 4176211. Substitute parts can look different from the original.This item is not returnableIn Stock$11.4315% OFF Phone Price : $13.43QtyCase, gearing and planetary unit diagram
Gear
Part #4162101Replaced by #WP240309-2
Manufacturer substitutionThis part replaces 4162101. Substitute parts can look different from the original.In Stock$38.6013% OFF Phone Price : $44.60QtyBase and pedestal unit diagram
Stand Mixer Bowl Lift Rod Spring

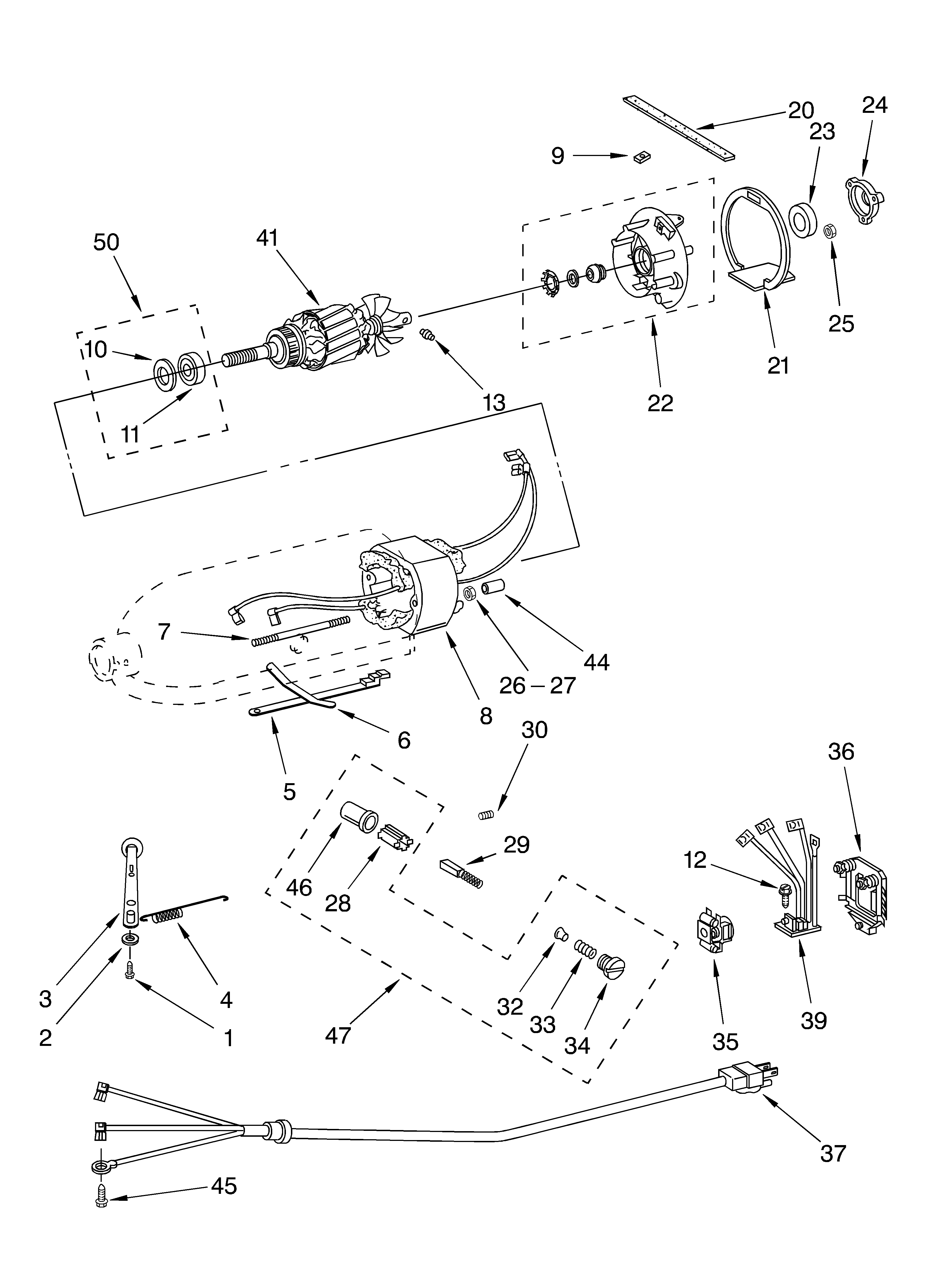

Part #4159622This item is not returnableIn Stock$6.0314% OFF Phone Price : $7.03QtyMotor and control parts diagram
Seal
Part #4162351Replaced by #WP240775-1
Manufacturer substitutionThis part replaces 4162351. Substitute parts can look different from the original.This item is not returnableIn Stock$6.2514% OFF Phone Price : $7.25QtyMotor and control parts diagram
Brush
Part #9706416Replaced by #WPW10380496
Manufacturer substitutionThis part replaces 9706416. Substitute parts can look different from the original.In Stock$8.5011% OFF Phone Price : $9.50QtyBase and pedestal unit diagram
Scerw
Part #3400024Replaced by #WP4159193
Manufacturer substitutionThis part replaces 3400024. Substitute parts can look different from the original.This item is not returnableIn Stock$6.0014% OFF Phone Price : $7.00Qty
Most common symptoms to help you fix your stand mixers
Choose a symptom to see related stand mixer repairs.
Main causes: bad worm gear, damaged planetary gear assembly…
Main causes: bad wiring connections, faulty speed control plate, electronic control board failure…
Main cause: worn carbon motor brushes…
Main causes: phase control board failure, wiring connection problem, faulty electronic control board…
Main causes: bad lubricating grease, mixer sitting idle for weeks at a time, mixer running constantly for more than 30 m…
Main causes: lack of electrical power, wiring failure, worn carbon motor brushes, bad drive motor, tripped overload swit…
Main cause: attachment clearance setting needs adjustment…
Most common repair guides to help fix your stand mixers
These step-by-step repair guides will help you safely fix what’s broken on your stand mixer.
How to replace a stand mixer worm gear
Here’s how to replace the worm gear in your stand mixer if it’s worn or damaged.…
Repair time and Difficulty
30 minutes or less
How to replace a stand mixer phase control board
The phase control board works with the governor and control plate to control motor speed. Replace the phase control boar…
Repair time and Difficulty
30 minutes or less
How to replace stand mixer motor brushes
If the carbon brushes are worn and damaged, replace them using these steps.…
Repair time and Difficulty
15 minutes or less
Effective articles & videos to help repair your stand mixers
Use the advice and tips in these articles and videos to get the most out of your stand mixer.
Find out what’s wrong with your appliance by following a circuit.…
Learn how to decipher symbols so you can buy the right part for your problem.…
Find out five tips and techniques to help get the most out of your stand mixer.…
