Campbell Hausfeld
Air Compressor

Model # VT6329 Official Campbell Hausfeld air compressor

Here are the diagrams and repair parts for Official Campbell Hausfeld VT6329 air compressor, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
PART LIST
Showing 10 of 71 parts  |
Extension
#24

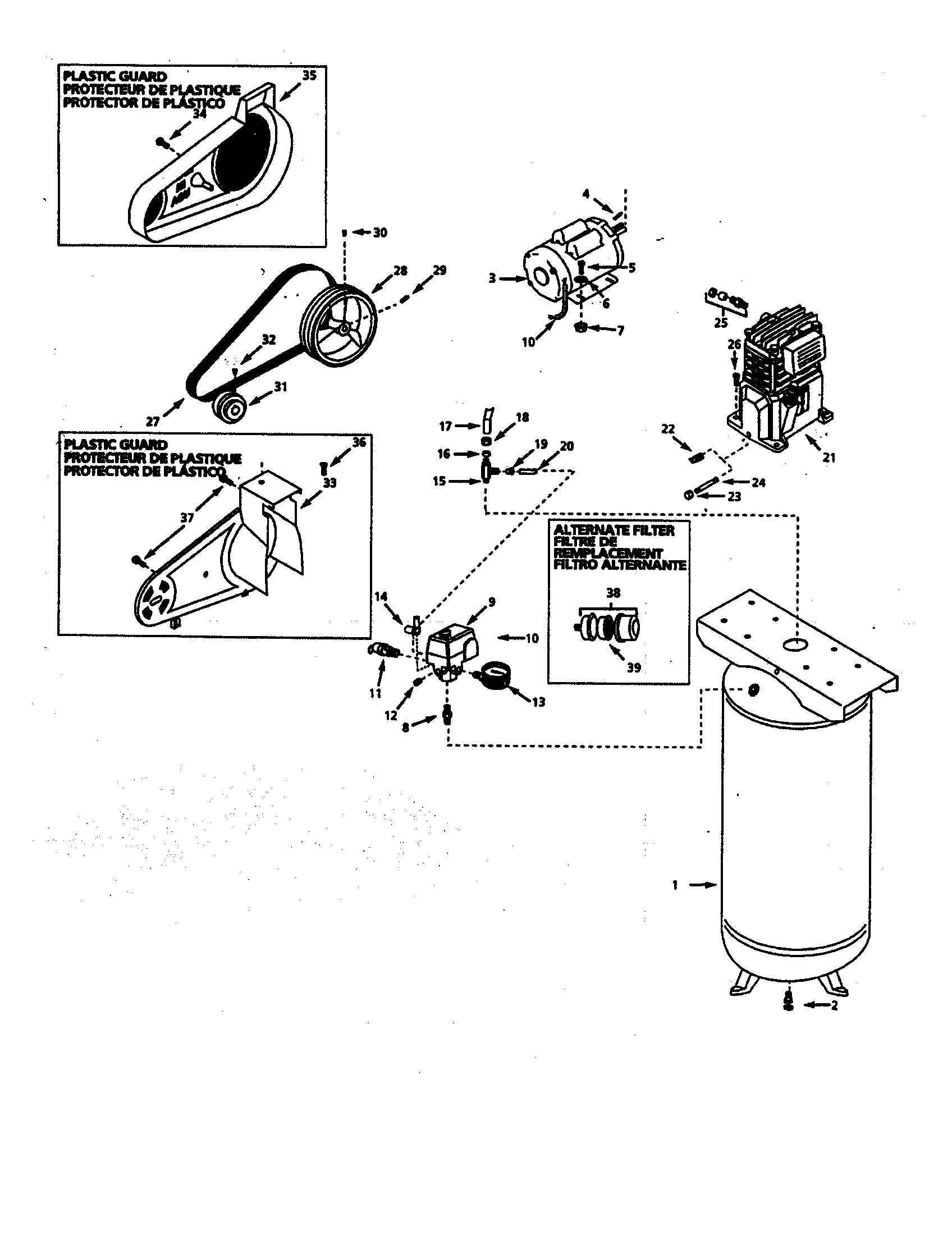

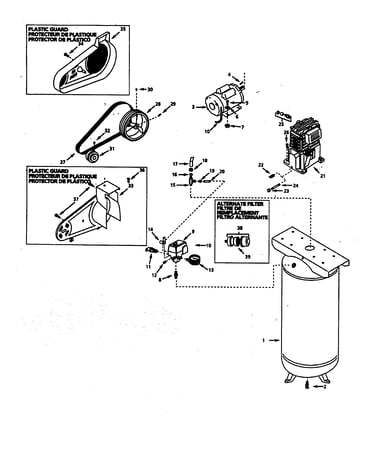

Air compressor diagram

Extension

Part #ST083800AV

The manufacturer no longer makes this part, and there's no substitute part

Oil Seal
#11

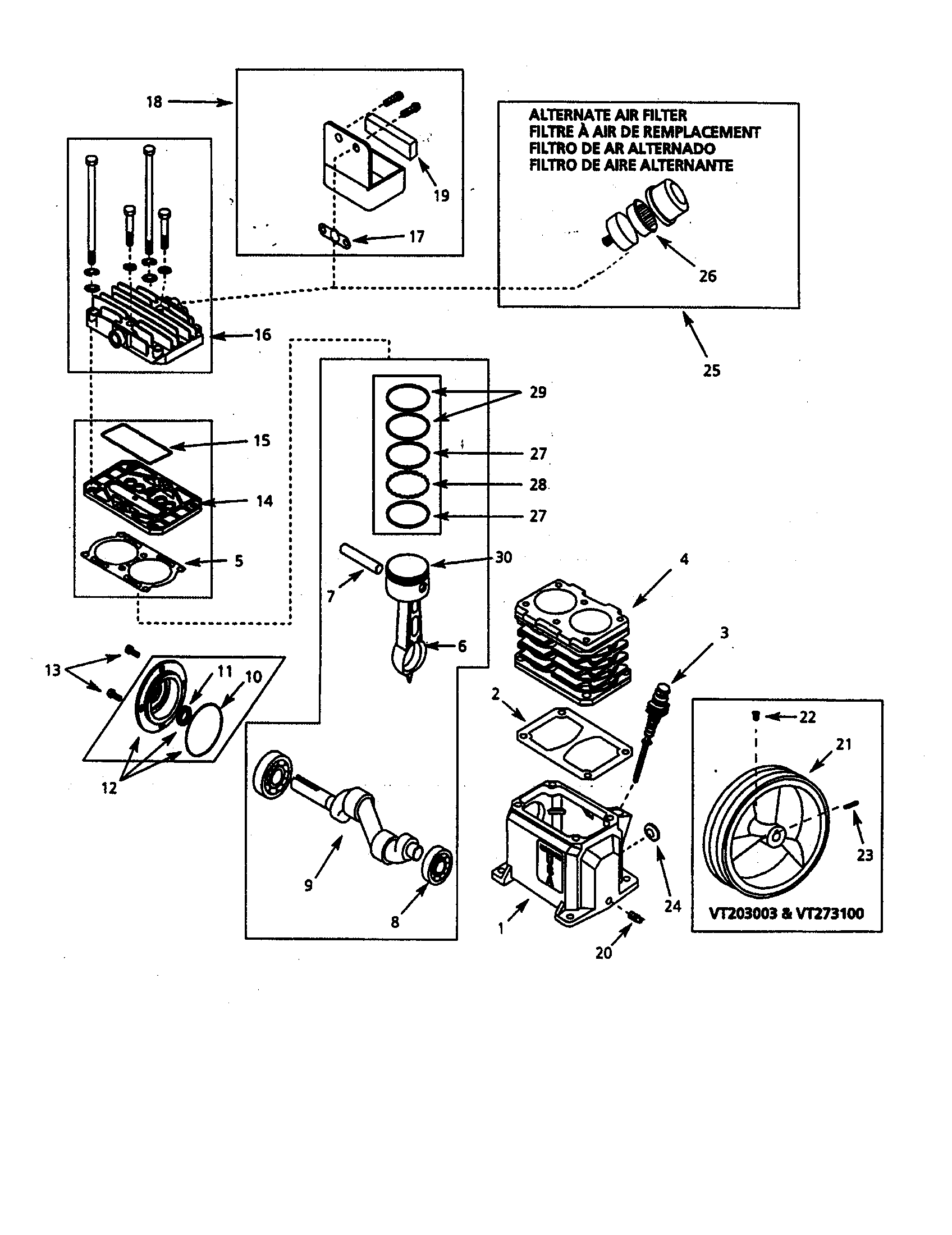

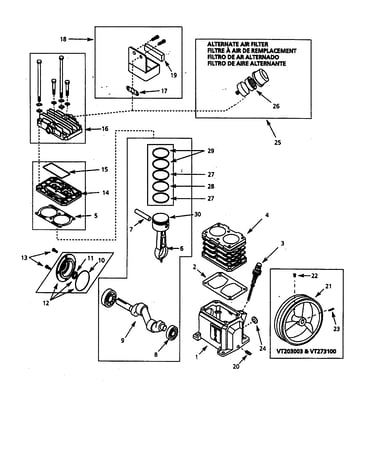

Filter diagram

Oil seal

Part #ST129700AV

The manufacturer no longer makes this part, and there's no substitute part

Bearing
#8

Filter diagram

Bearing

Part #ST084202AV

The manufacturer no longer makes this part, and there's no substitute part

Filter
#19

Filter diagram

Filter

Part #VT042500AV

The manufacturer no longer makes this part, and there's no substitute part

Air Compressor Manifold Fitting
#25

Air compressor diagram

Air compressor manifold fitting

Part #ST018300AV

The manufacturer no longer makes this part, and there's no substitute part

Strain Relief
#NI

Air compressor diagram

Strain relief

Part #CW209700AV

The manufacturer no longer makes this part, and there's no substitute part

Felt Filter
#38

Air compressor diagram

Felt filter

Part #ST073915AV

The manufacturer no longer makes this part, and there's no substitute part

Cord
#10

Air compressor diagram

Cord

Part #EC012800AV

The manufacturer no longer makes this part, and there's no substitute part

Key, 3/16-in
#29

Air compressor diagram

Key, 3/16-in

Part #KE000900AV

The manufacturer no longer makes this part, and there's no substitute part

Bearing Cap
#12

Filter diagram

Bearing cap

Part #VT040200AJ

The manufacturer no longer makes this part, and there's no substitute part
