Frigidaire
Electric Cooktop

Model # FEC3X9XESB Official Frigidaire electric cooktop - 5995292967

Here are the diagrams and repair parts for Official Frigidaire FEC3X9XESB electric cooktop - 5995292967, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

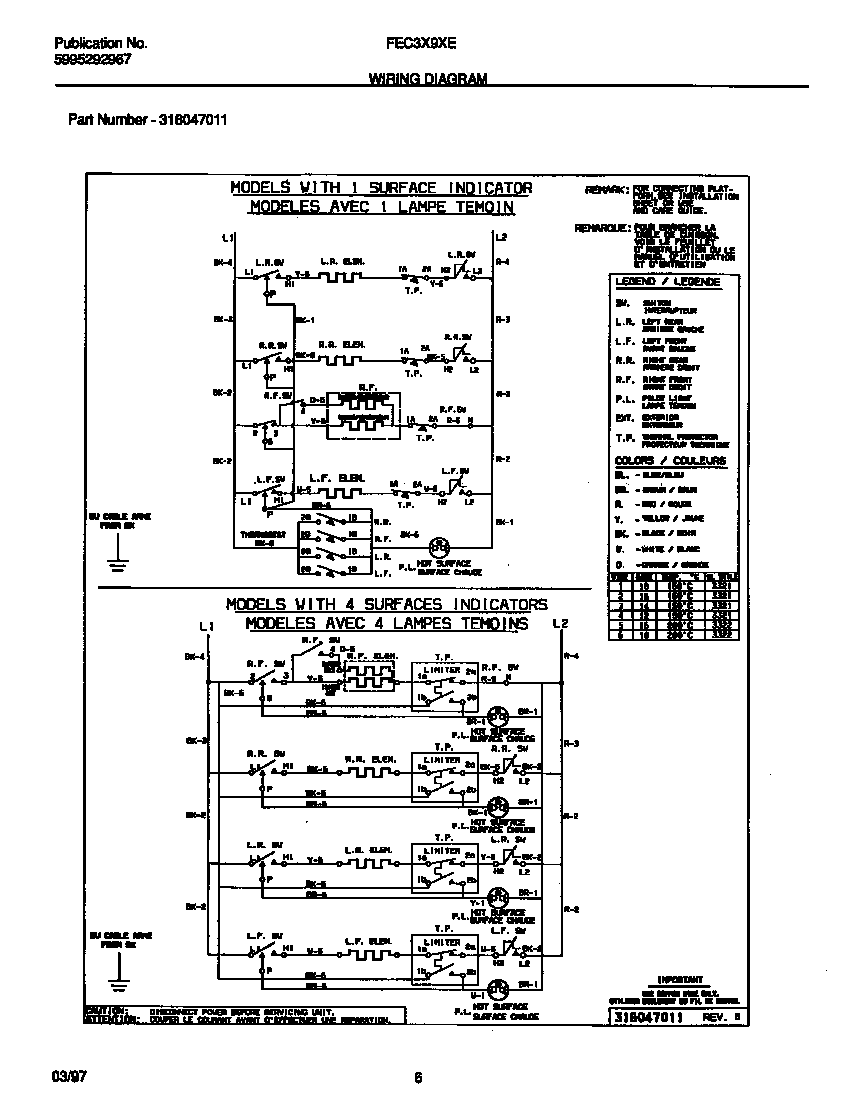

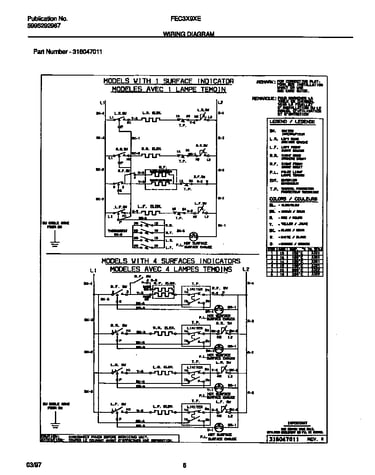

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 28 parts  |

R F Element 316010203
#15

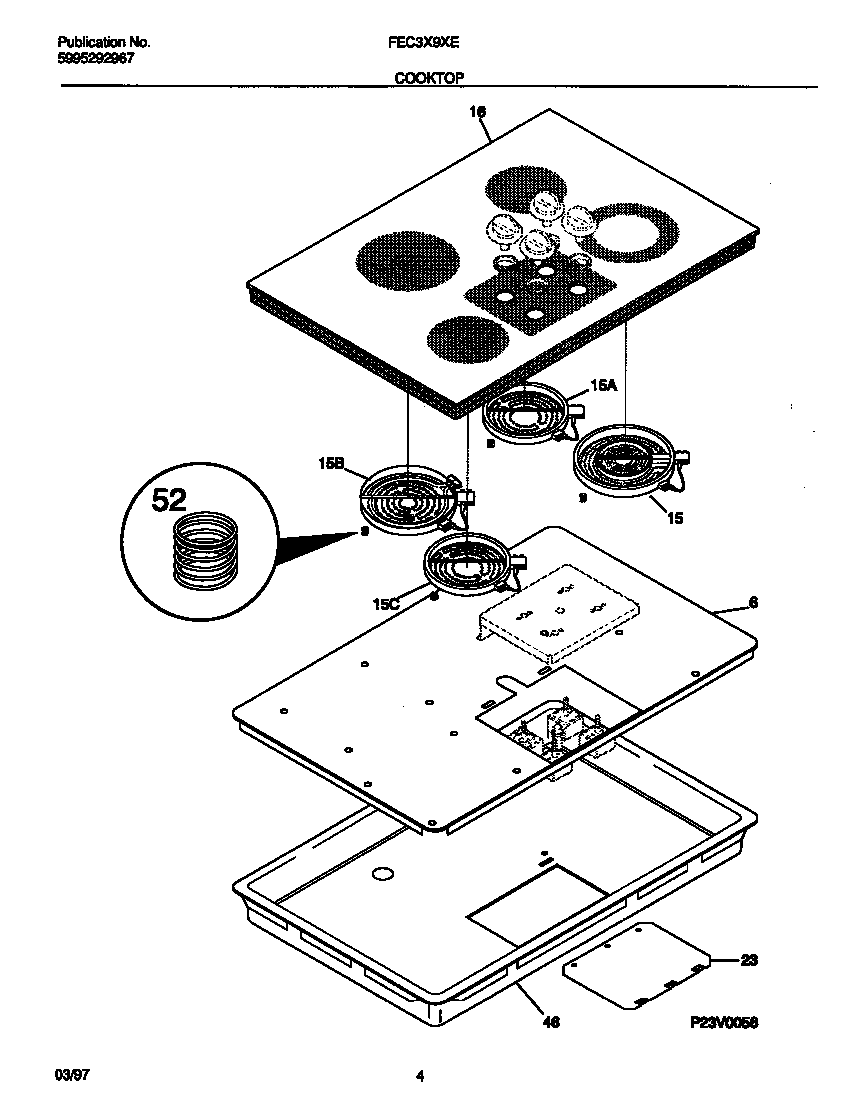

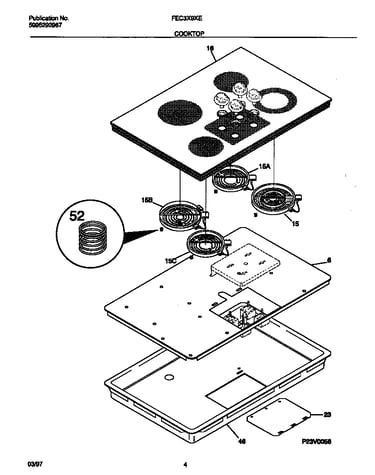

Cooktop diagram

R f element

Part #316010203

Replaced by #318178110

?
Manufacturer substitution
This part replaces 316010203. Substitute parts can look different from the original.
BEST SELLER
$147.02
6% OFF Phone Price : $157.02
In Stock
Range Screw 5303300265

#NI

All parts diagram

Range screw

Part #5303300265

This item is not returnable
In Stock
Screw 5303305528
#54B

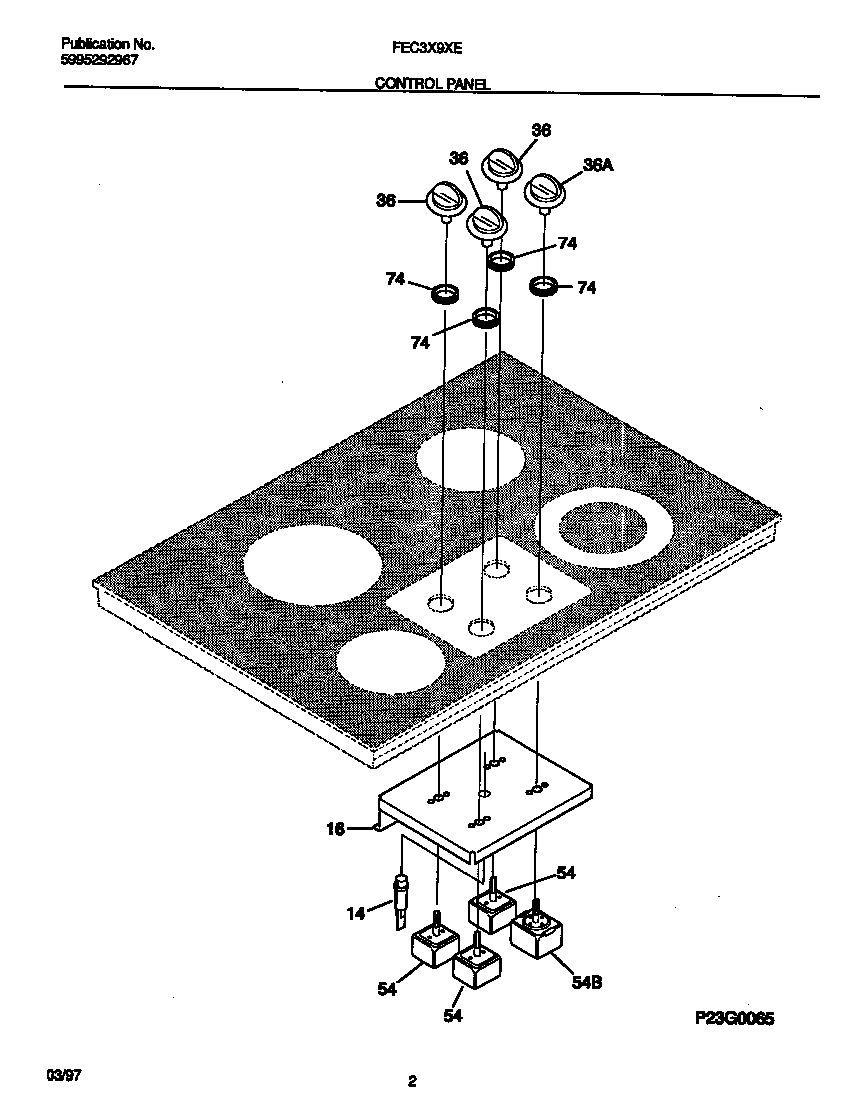

Control panel diagram

Screw

Part #5303305528

Replaced by #5303323137

?
Manufacturer substitution
This part replaces 5303305528. Substitute parts can look different from the original.
In Stock
Range Surface Element Control Switch 318120505
#54A

Control panel diagram

Range surface element control switch

Part #318120505

$183.99
5% OFF Phone Price : $193.99
In Stock
Spacer 08007817

#NI

All parts diagram

Spacer

Part #08007817

Replaced by #318531702

?
Manufacturer substitution
This part replaces 08007817. Substitute parts can look different from the original.
In Stock
Surface Switch 318078200
#54A

Control panel diagram

Surface switch

Part #318078200

The manufacturer no longer makes this part, and there's no substitute part

Range Screw 5303323134
#54B

Control panel diagram

Range screw

Part #5303323134

Replaced by #5303288565

?
Manufacturer substitution
This part replaces 5303323134. Substitute parts can look different from the original.
This item is not returnable
In Stock
Spring Element 318122000
#52A

Cooktop diagram

Spring element

Part #318122000

The manufacturer no longer makes this part, and there's no substitute part

Box 318096312
#16

Control panel diagram

Box

Part #318096312

The manufacturer no longer makes this part, and there's no substitute part

Screen-therm 318125200

#NI

All parts diagram

Screen-therm

Part #318125200

The manufacturer no longer makes this part, and there's no substitute part
