Model # QFD15ESSN1WW Official Haier dryer

Here are the diagrams and repair parts for Official Haier QFD15ESSN1WW dryer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

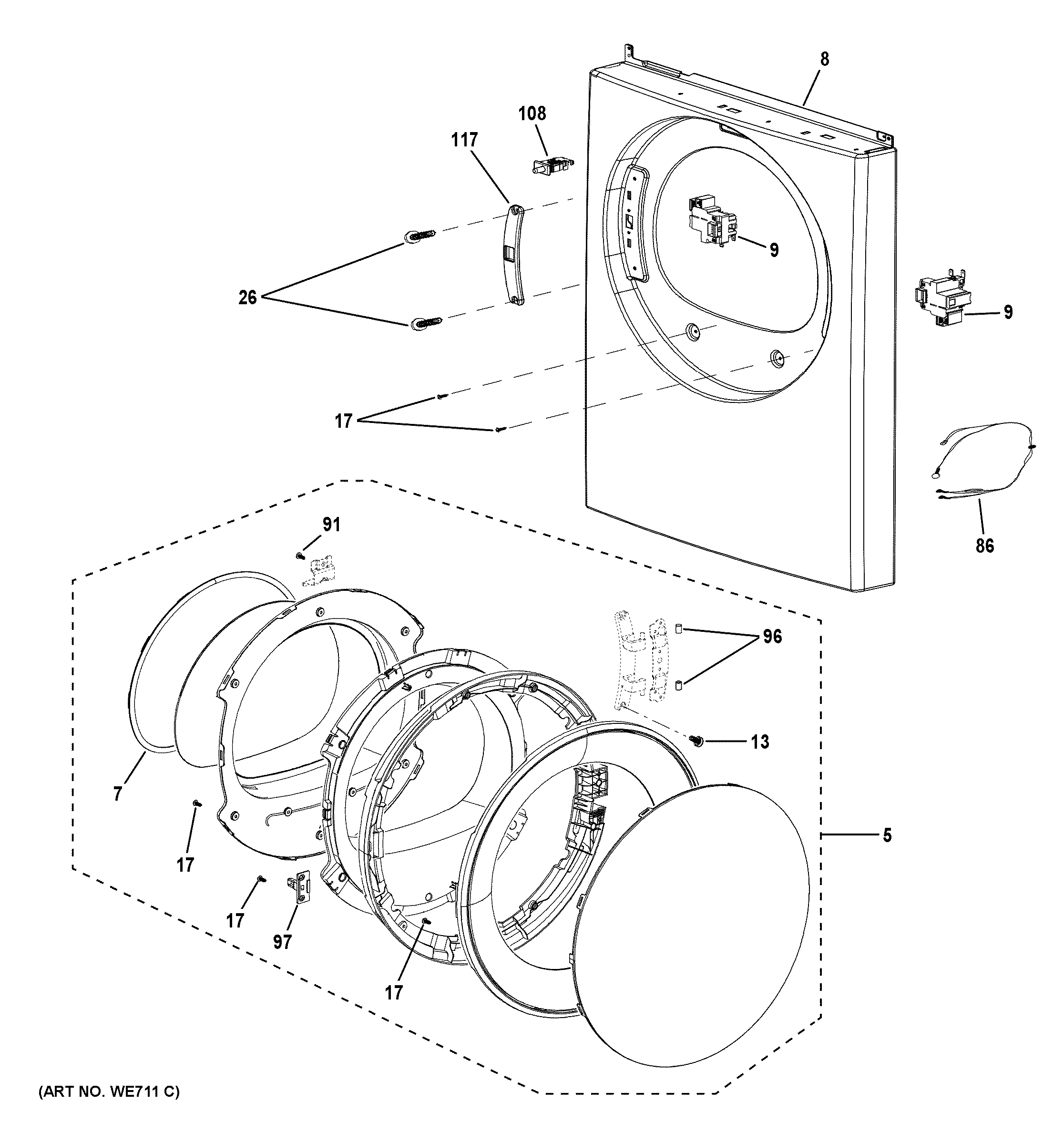

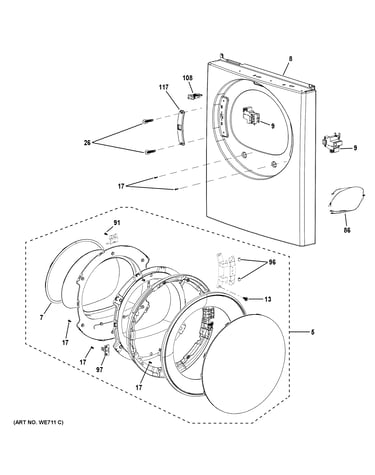

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 95 parts  |
Outlet Therm WE04X26348
#21

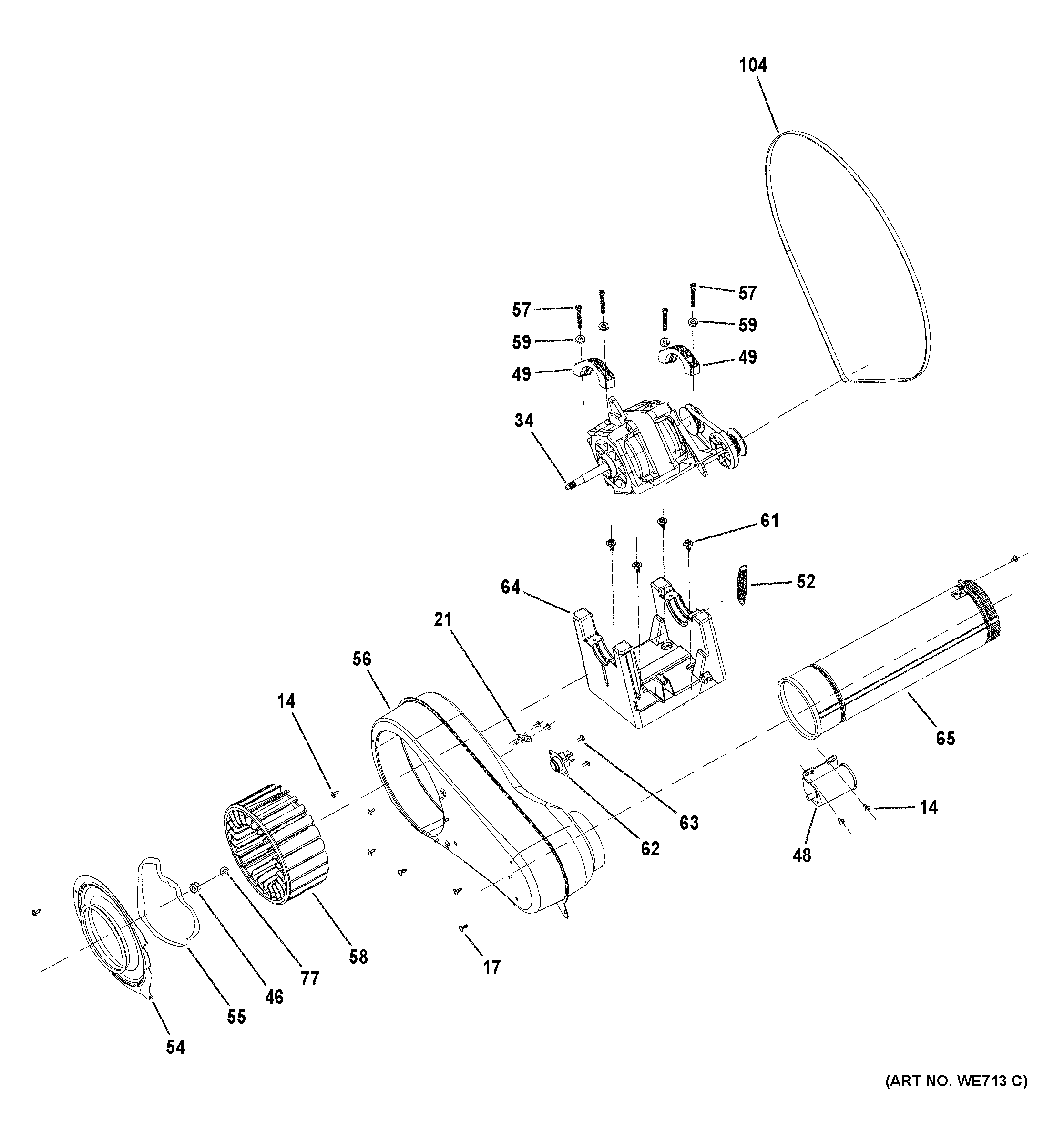

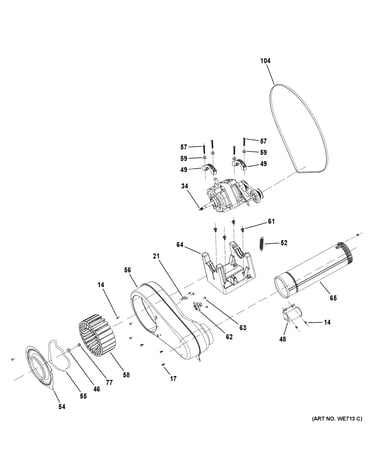

Blower & motor assembly diagram

Outlet therm

Part #WE04X26348

$24.28 |
17% OFF Phone Price : $29.28
In Stock
Lint Filter WE16X28728
#27

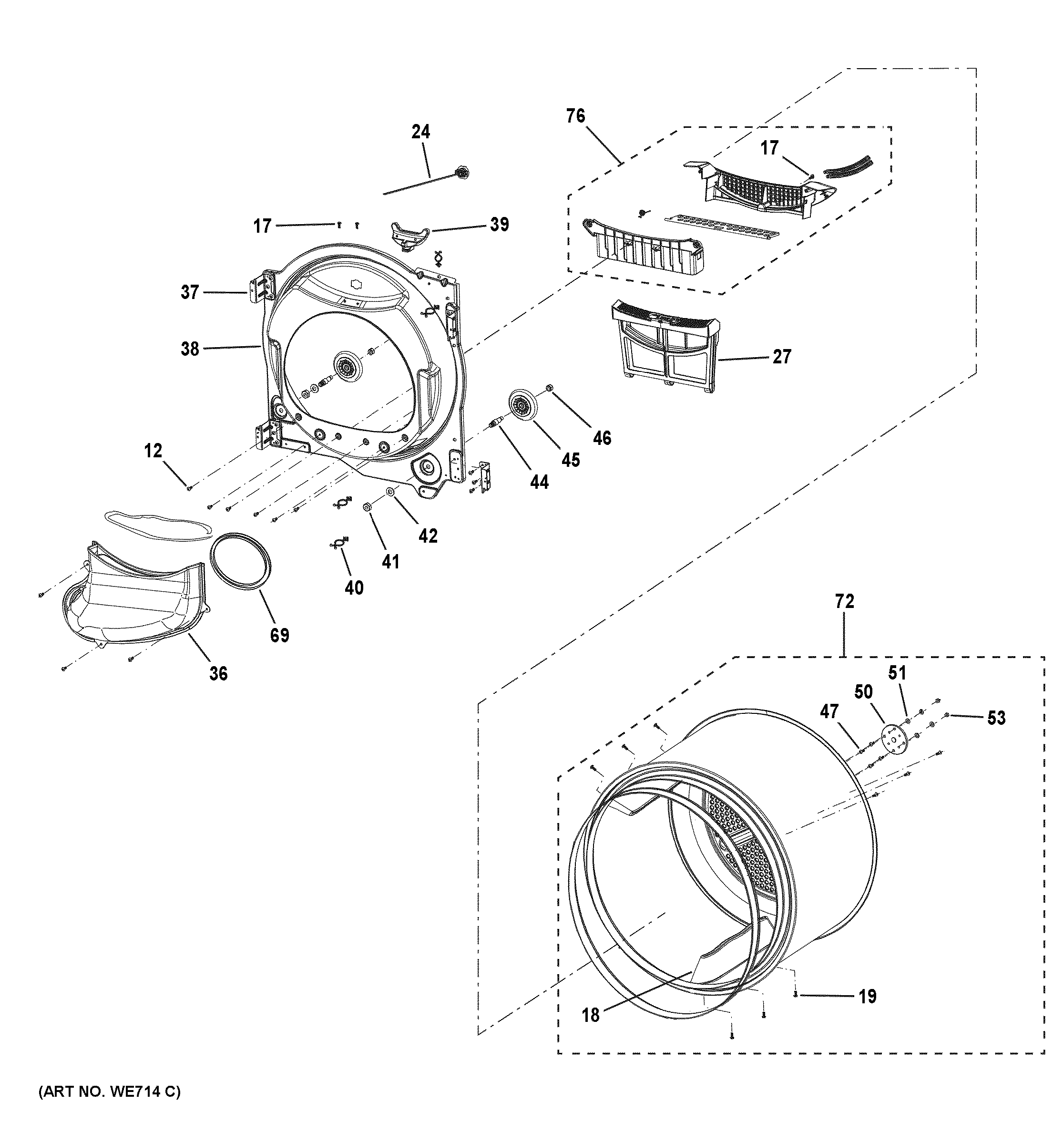

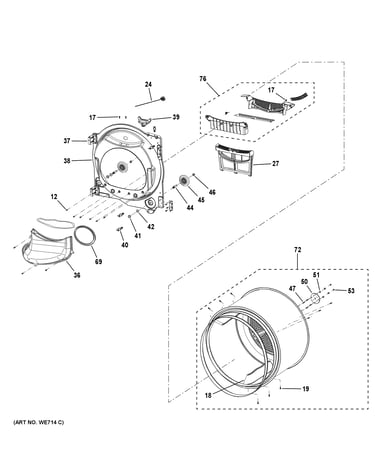

Drum diagram

Lint filter

Part #WE16X28728

$36.68 |
12% OFF Phone Price : $41.68
In Stock

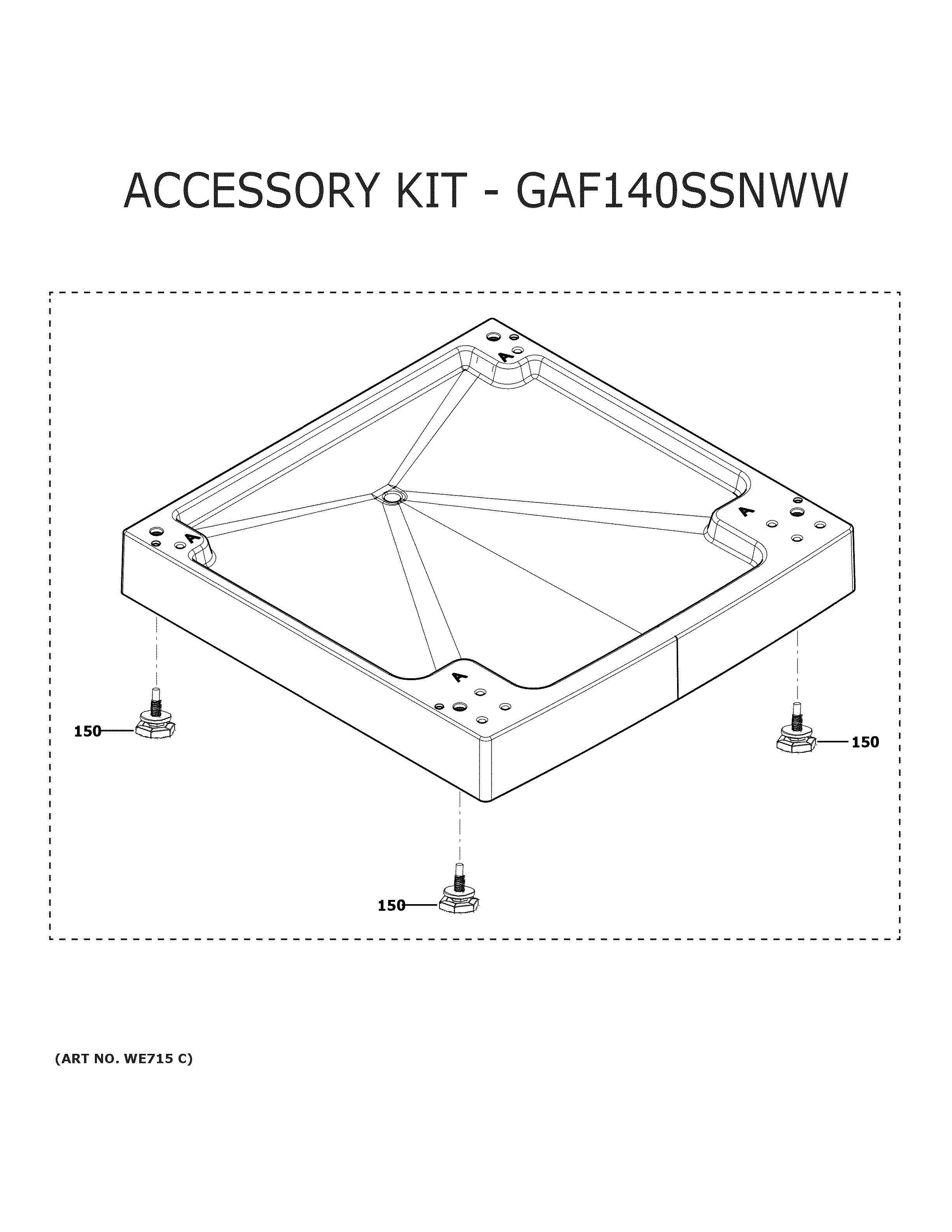

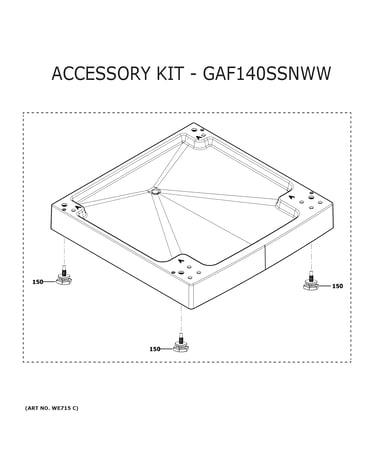

Leveling Leg WH46X28359
Leveling leg

Part #WH46X28359

$12.53 |
14% OFF Phone Price : $14.53
In Stock
Water Channel WE01X27779
#106

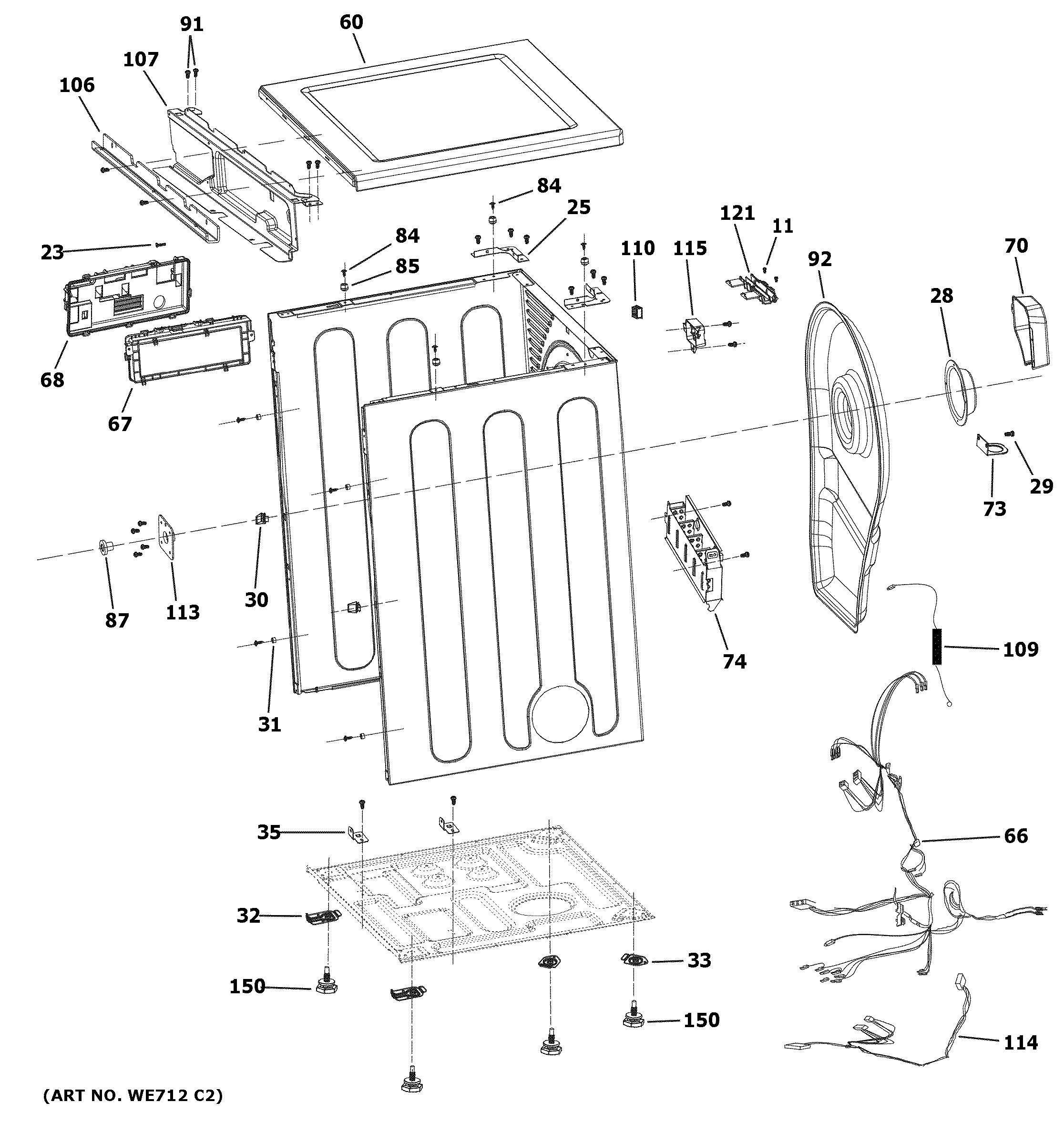

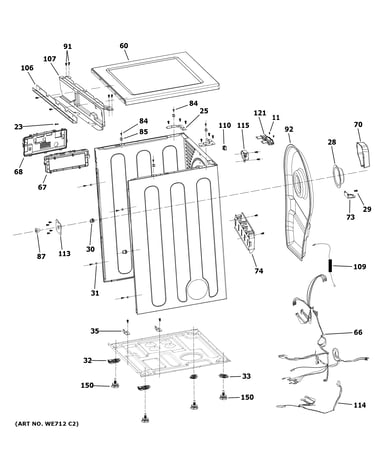

Cabinet & top panel diagram

Water channel

Part #WE01X27779

This item is not returnable
$4.87
In Stock
Motor Bracket WE13X28727
#64

Blower & motor assembly diagram

Motor bracket

Part #WE13X28727

$72.33
In Stock
Nut M10 Gasket WE02X28702
#42

Drum diagram

Nut m10 gasket

Part #WE02X28702

This item is not returnable
$5.00
In Stock
Terminal Blo WE01X26404
#70

Cabinet & top panel diagram

Terminal blo

Part #WE01X26404

$21.00
In Stock
Control Pane WE22X29265
#16

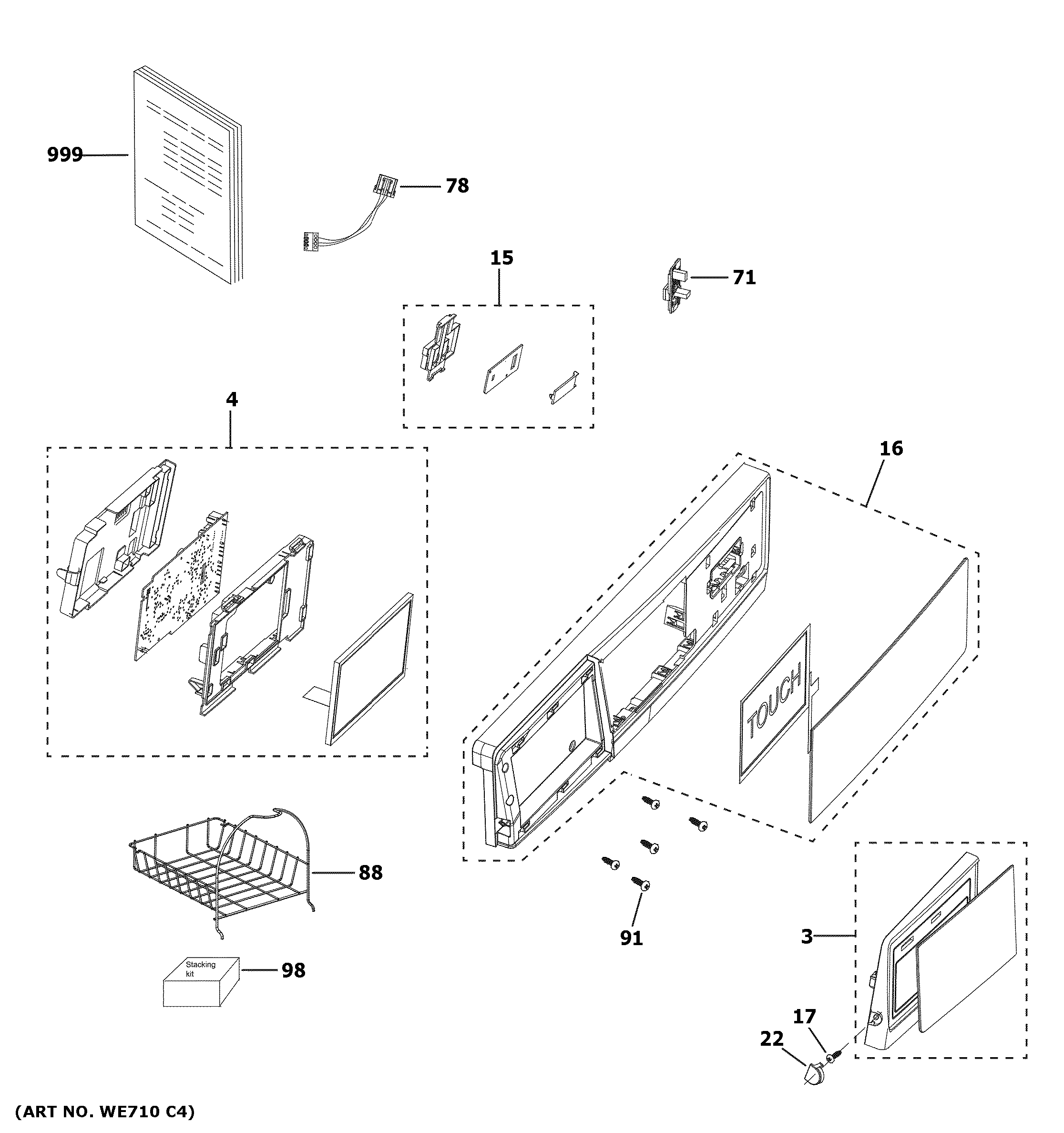

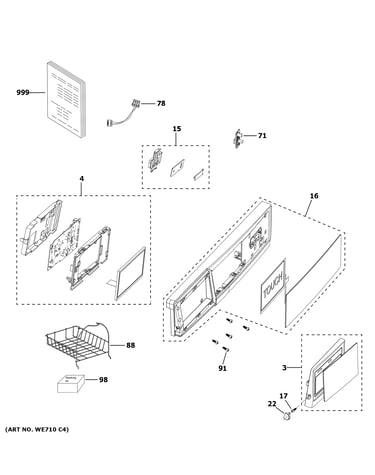

Controls & backsplash diagram

Control pane

Part #WE22X29265

$351.58
In Stock
Bolt M6*14 WE02X28697
#47

Drum diagram

Bolt m6*14

Part #WE02X28697

$8.11
In Stock
Control Board WE04X27515
#67

Cabinet & top panel diagram

Control board

Part #WE04X27515

$192.76
In Stock
