Amana
Bottom-Mount Refrigerator

Model # BX22RL-P1161604WL Official Amana bottom-mount refrigerator

Here are the diagrams and repair parts for Official Amana BX22RL-P1161604WL bottom-mount refrigerator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

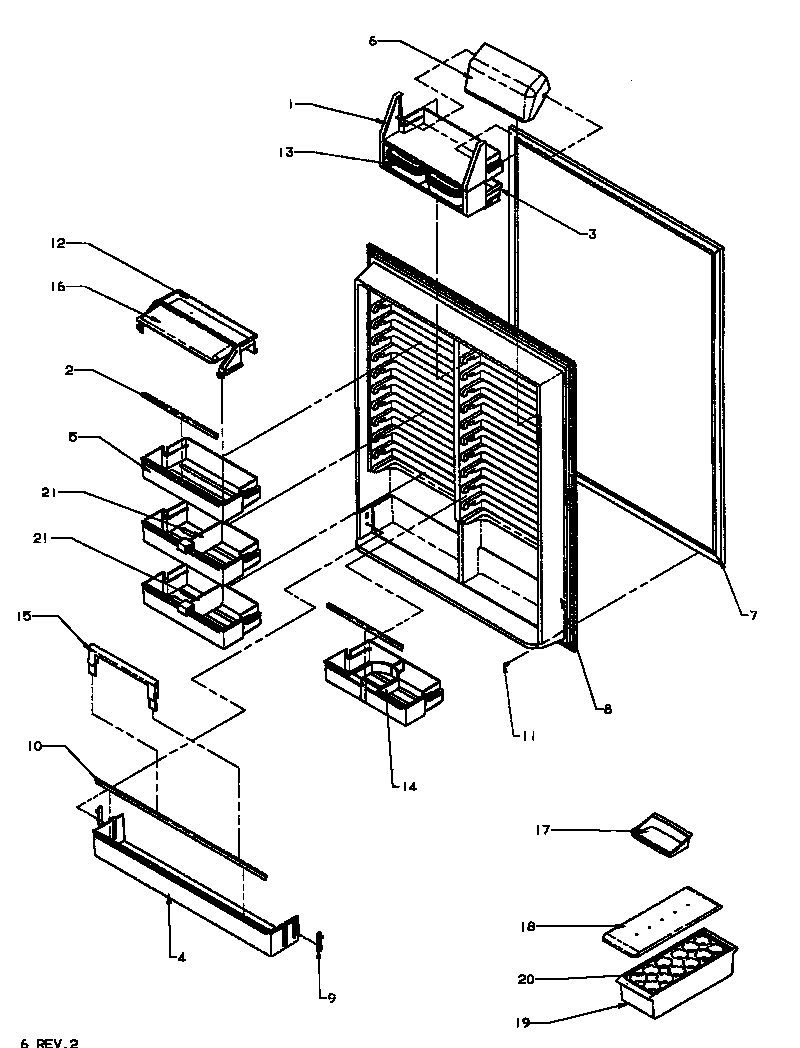

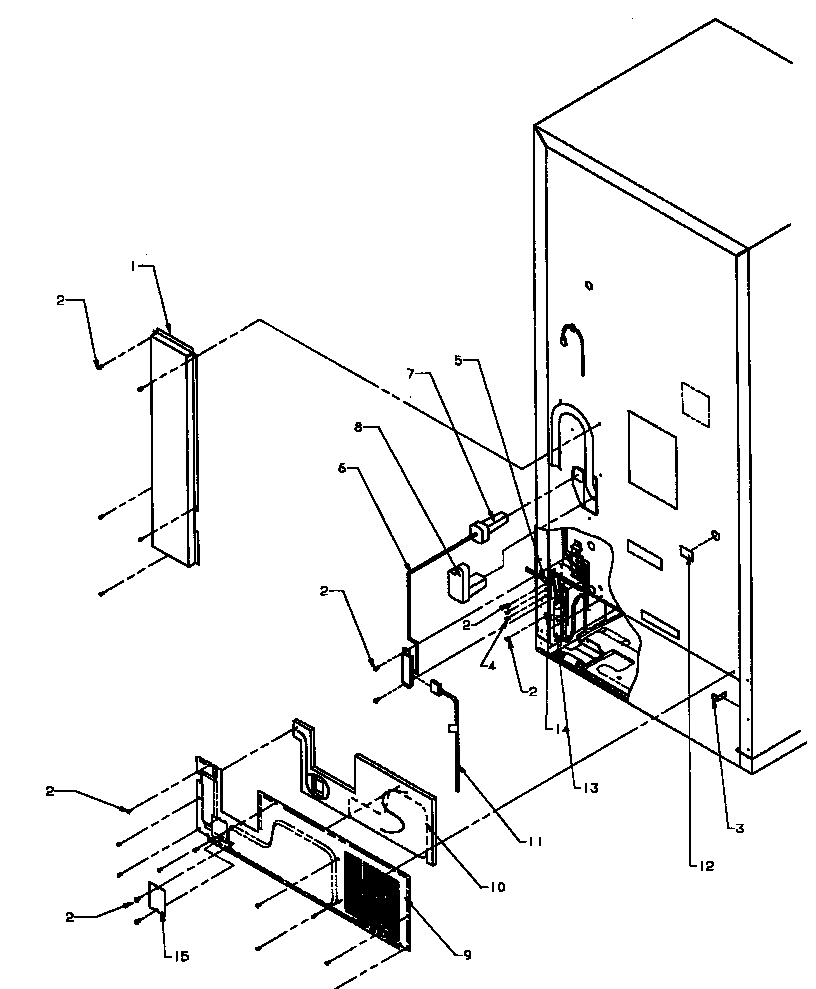

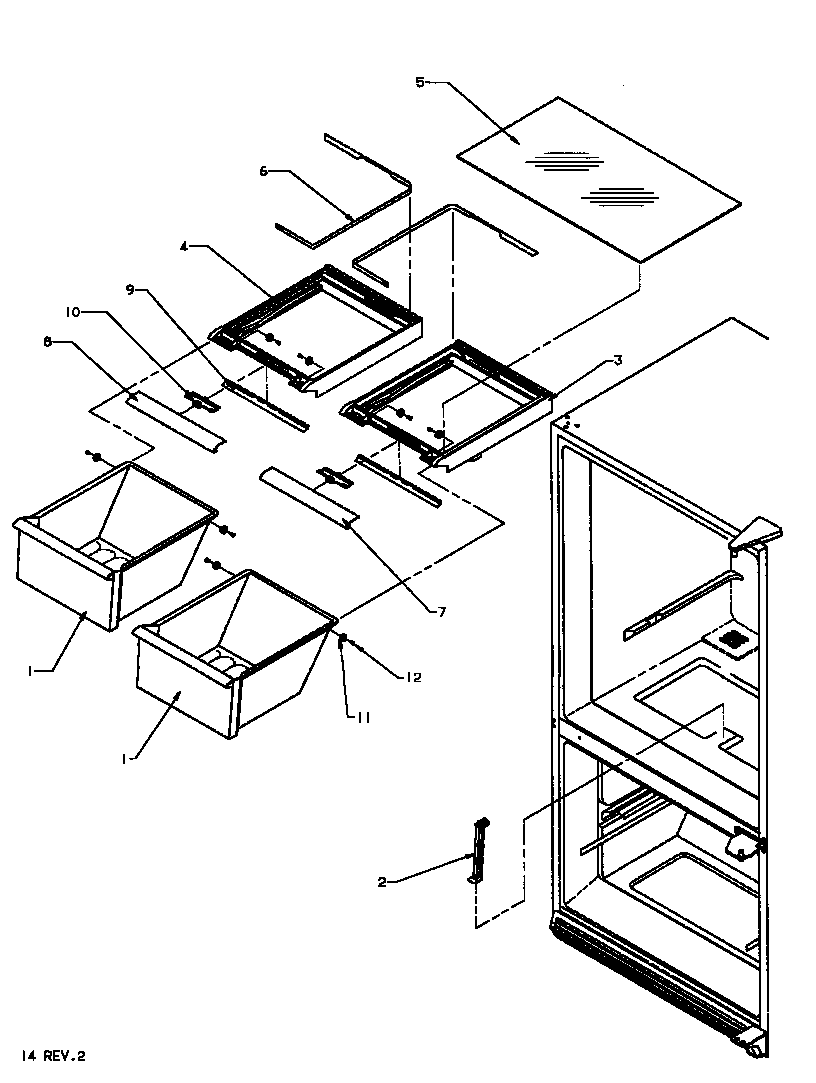

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 291 parts  |

Refrigerator Lamp, 40-watt, 115 To 125-volt A0282803
#15

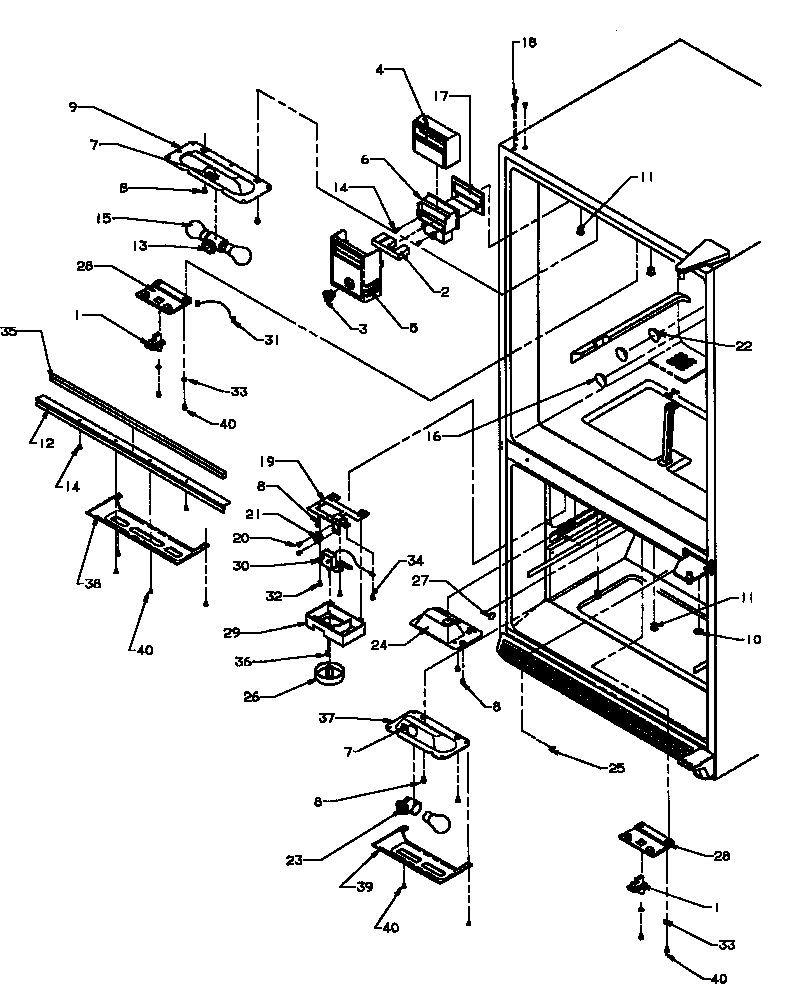

Refrigerator/freezer control switches & lights diagram

Refrigerator lamp, 40-watt, 115 to 125-volt

Part #A0282803

The manufacturer no longer makes this part, and there's no substitute part

Refrigerator Light Switch C3680307
#1

Refrigerator/freezer control switches & lights diagram

Refrigerator light switch

Part #C3680307

The manufacturer no longer makes this part, and there's no substitute part

Refrigerator Ice Maker (red) D7824702
#2

Ice maker diagram

Refrigerator ice maker (red)

Part #D7824702

Replaced by #D7824706Q

?
Manufacturer substitution
This part replaces D7824702. Substitute parts can look different from the original.
BEST SELLER
$105.19
12% OFF MSRP : $120.00
In Stock
Refrigerator Capacitor C8931602
#21

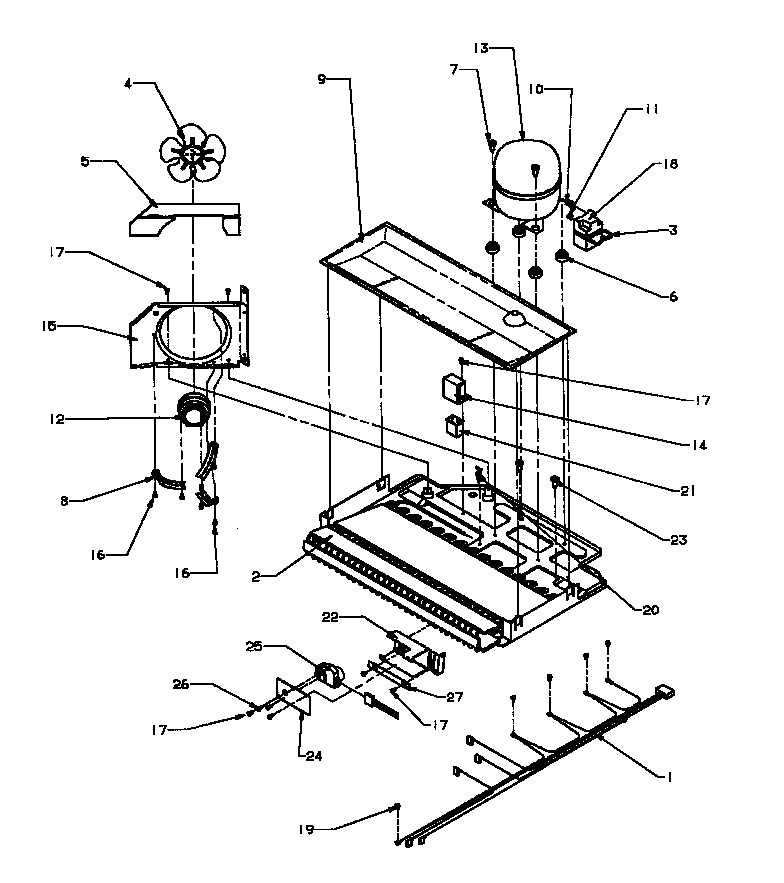

Compressor compartment diagram

Refrigerator capacitor

Part #C8931602

Replaced by #WPW10662129

?
Manufacturer substitution
This part replaces C8931602. Substitute parts can look different from the original.
BEST SELLER
$69.21
7% OFF Phone Price : $74.21
In Stock
Refrigerator Gasket 10456816
#4B

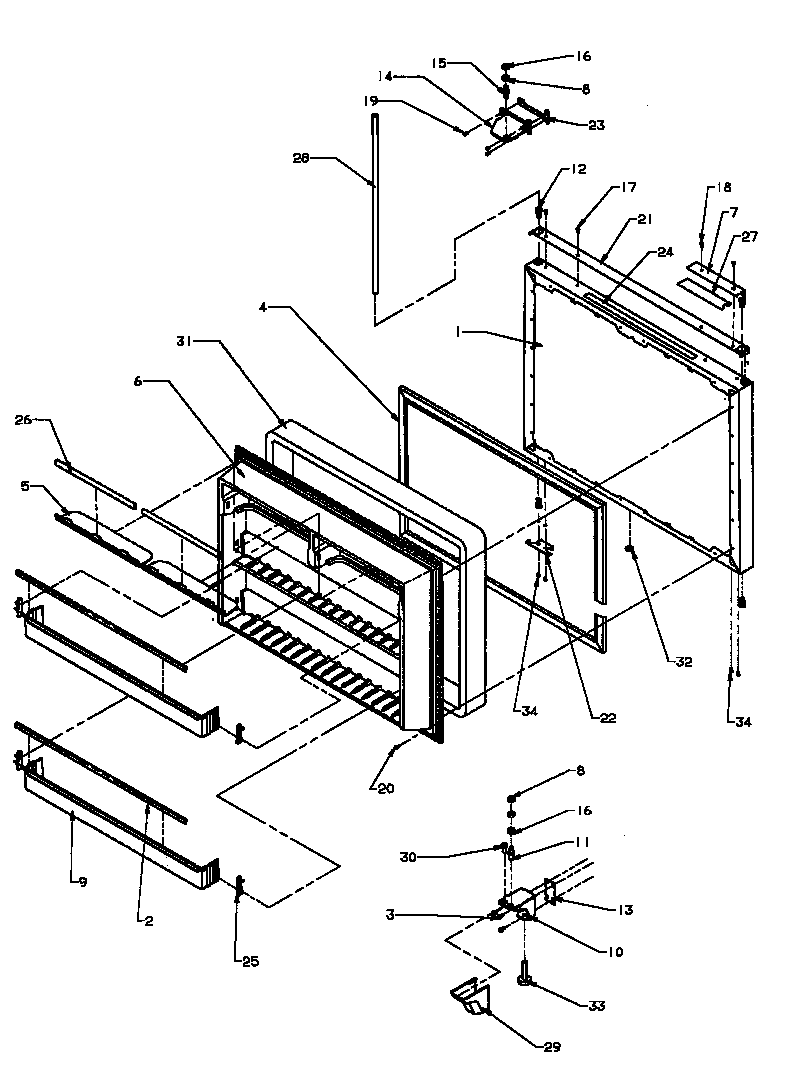

Freezer door diagram

Refrigerator gasket

Part #10456816

Replaced by #WP12550101Q

?
Manufacturer substitution
This part replaces 10456816. Substitute parts can look different from the original.
BEST SELLER
$108.24
8% OFF Phone Price : $118.24
In Stock
Refrigerator Thermostat 10442402
#6

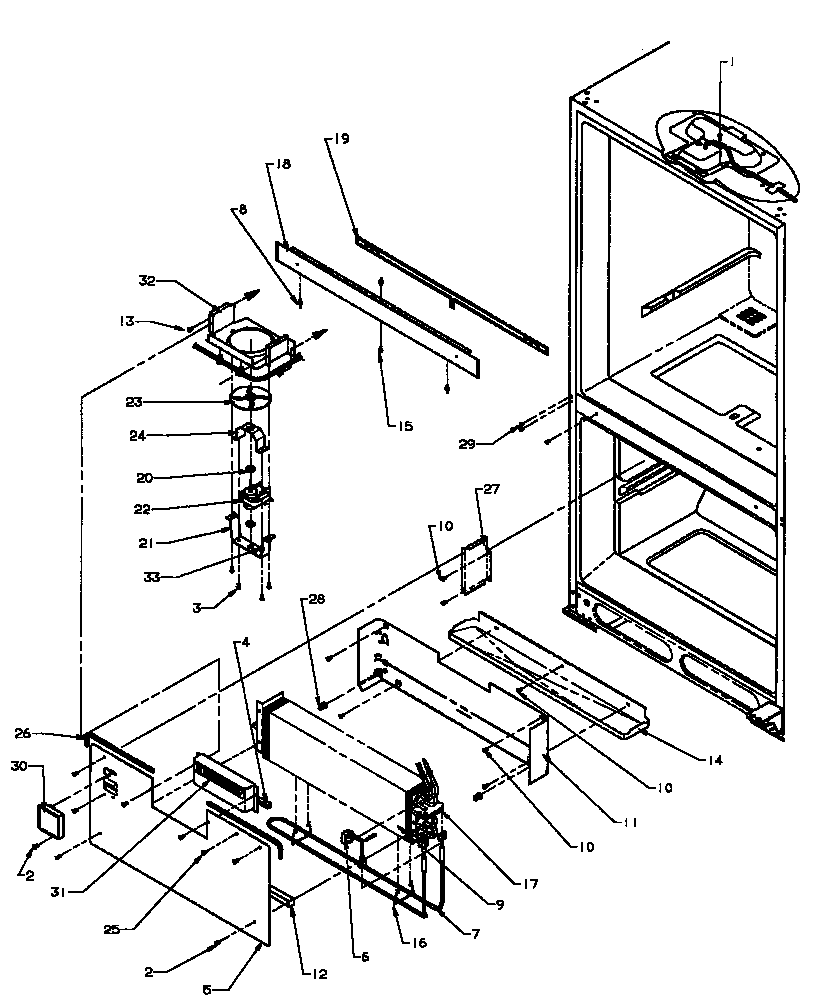

Evaporator area diagram

Refrigerator thermostat

Part #10442402

The manufacturer no longer makes this part, and there's no substitute part

Refrigerator Ice Tray D7725401
#3

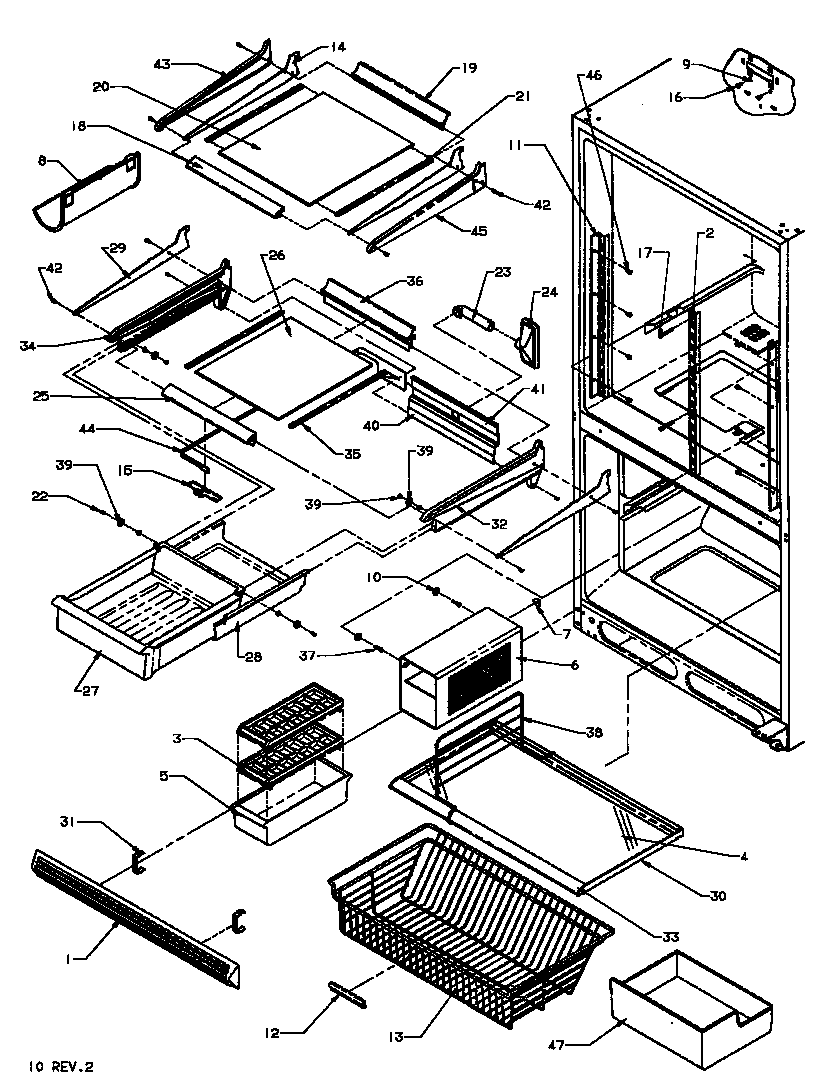

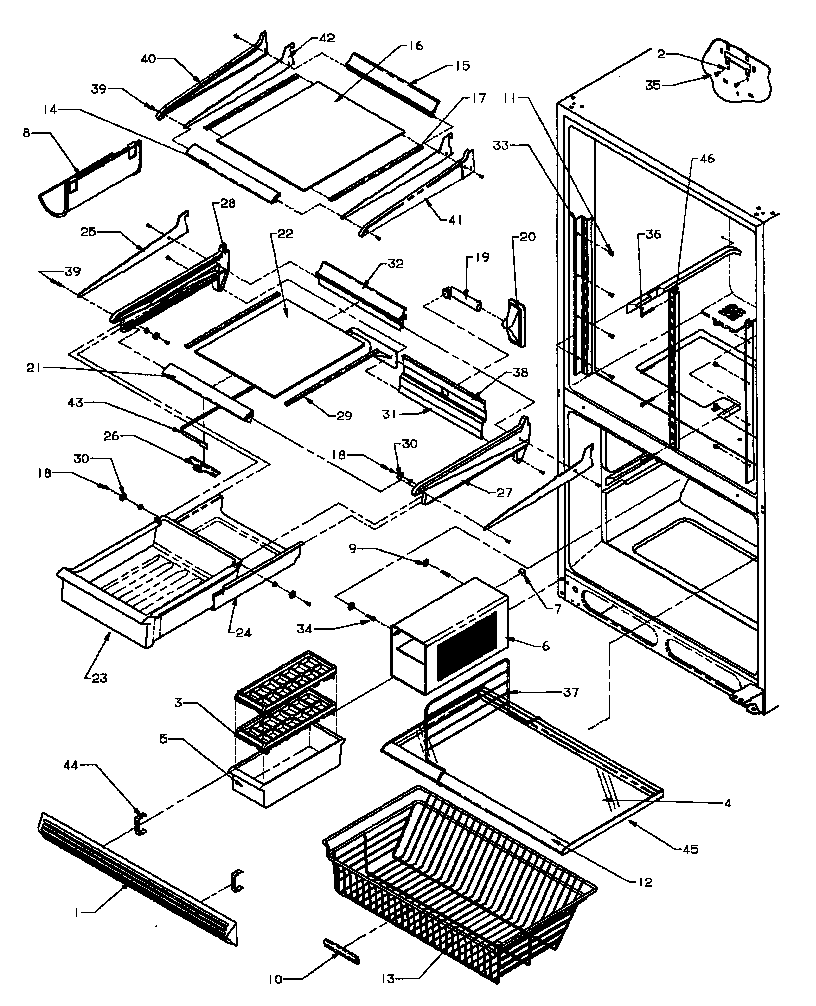

Refrigerator/freezer shelving (bp22a2e/p1161605we) (bp22a2l/p1161605wl) (bp22a2w/p1161605ww) (bx22a2e/p1161606we) (bx22a2l/p1161606wl) (bx22a2w/p1161606ww) (bx22r3e/p1183601we) (bx22r3l/p1183601wl) (bx22r3w/p1183601ww) (bx22re/p1161602we) (bx22re/p1161604 diagram

Refrigerator ice tray

Part #D7725401

Replaced by #WP841180A

?
Manufacturer substitution
This part replaces D7725401. Substitute parts can look different from the original.
This item is not returnable
$7.19
12% OFF Phone Price : $8.19
In Stock
Refrigerator Roller 10450601
#4

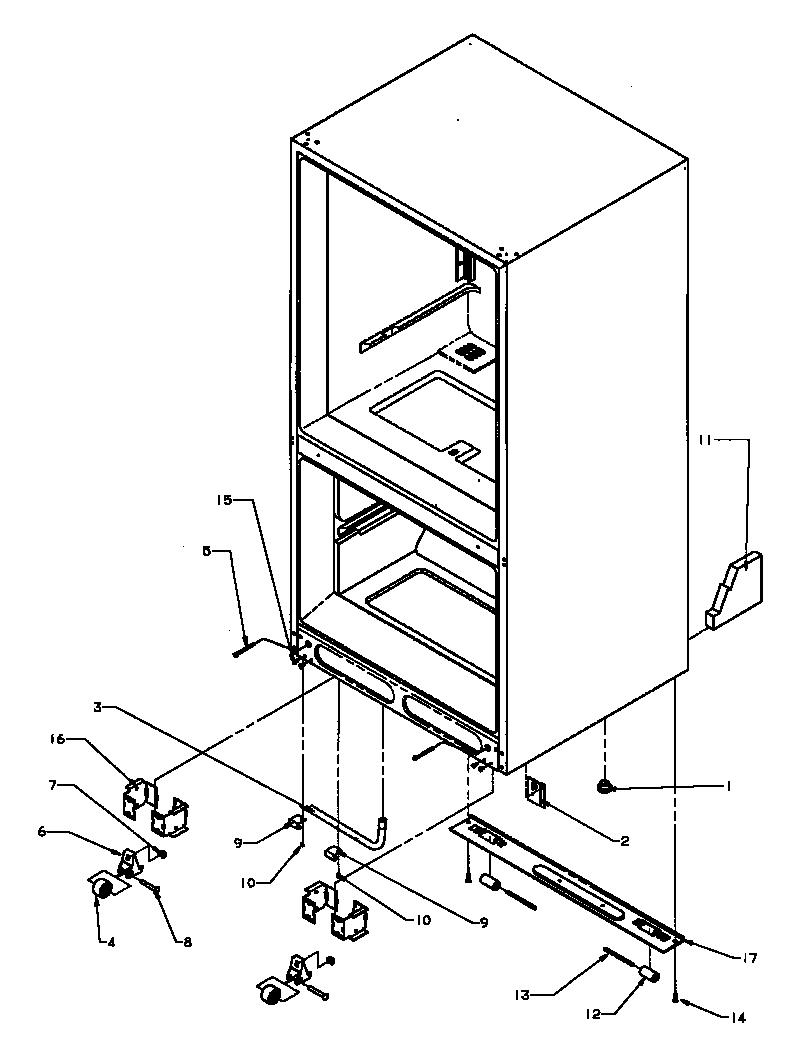

Rollers/drain tube diagram

Refrigerator roller

Part #10450601

Replaced by #WP10450603

?
Manufacturer substitution
This part replaces 10450601. Substitute parts can look different from the original.
This item is not returnable
$6.49
13% OFF Phone Price : $7.49
In Stock
Refrigerator Evaporator Motor 10513801
#22A

Evaporator area diagram

Refrigerator evaporator motor

Part #10513801

The manufacturer no longer makes this part, and there's no substitute part

Refrigerator Temperature Control C8946703
#30

Refrigerator/freezer control switches & lights diagram

Refrigerator temperature control

Part #C8946703

Replaced by #W10752646

?
Manufacturer substitution
This part replaces C8946703. Substitute parts can look different from the original.
$113.46
8% OFF Phone Price : $123.46
In Stock
