Magic Chef B35HA-3EX-ON electric range Parts
Here are the diagrams and repair parts for Magic Chef B35HA-3EX-ON electric range, as well as links to manuals and error code tables, if available.
Error CodesBy Schematic
By Part
SELECT DIAGRAM

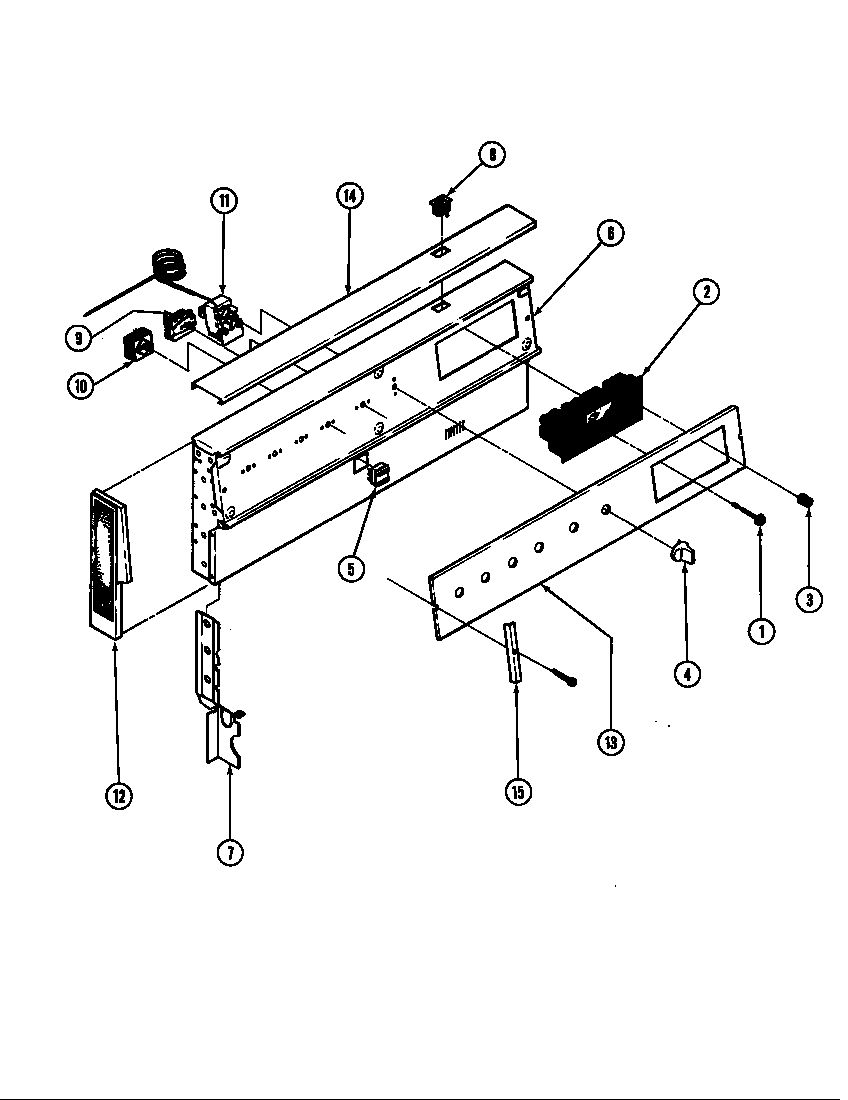

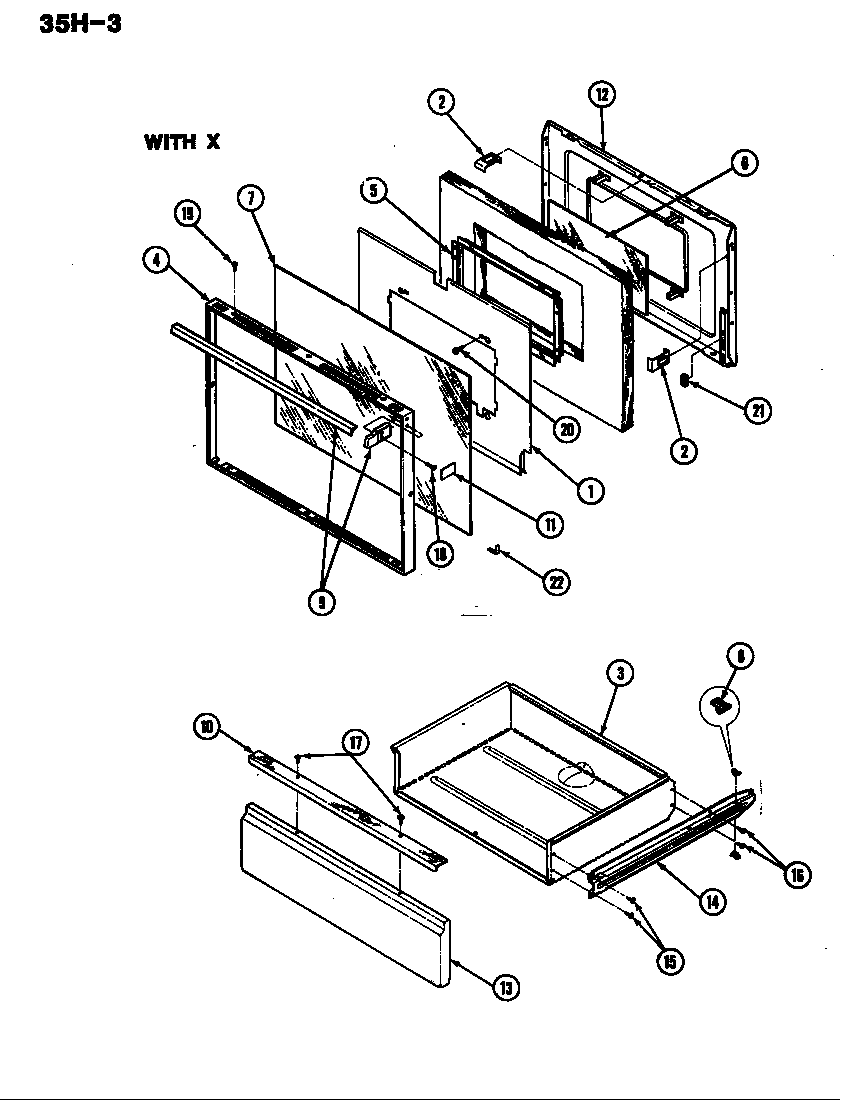

Browse Parts for B35HA-3EX-ON Ranges

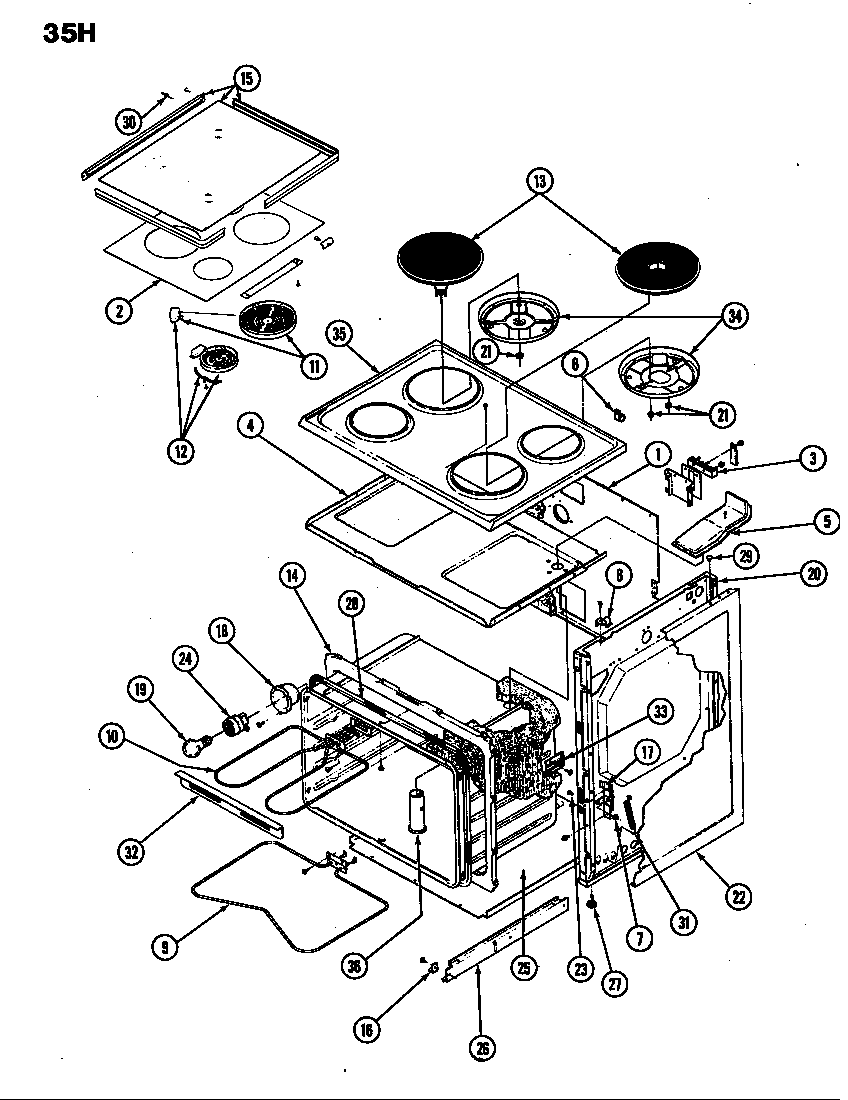

Body parts diagram
Terminal Block
Part #7401P002-60Replaced by #WPW10245259
Manufacturer substitutionThis part replaces 7401P002-60. Substitute parts can look different from the original.In Stock$27.9118% OFF Phone Price : $33.91
Qty
Body parts diagram
Broiler Element
Part #7406P003-60Replaced by #WPY04000048
Manufacturer substitutionThis part replaces 7406P003-60. Substitute parts can look different from the original.In Stock$115.769% OFF Phone Price : $127.76QtyBody parts diagram
Bake Element
Part #7406P010-60Replaced by #WPY04000041
Manufacturer substitutionThis part replaces 7406P010-60. Substitute parts can look different from the original.In Stock$80.517% OFF Phone Price : $86.51QtyBody parts diagram
Oven Broiler Element
Part #7406P076-60Replaced by #WPY04000048
Manufacturer substitutionThis part replaces 7406P076-60. Substitute parts can look different from the original.In Stock$115.769% OFF Phone Price : $127.76QtyBody parts diagram
Bake Element
Part #7406P067-60Replaced by #WPY04000041
Manufacturer substitutionThis part replaces 7406P067-60. Substitute parts can look different from the original.In Stock$80.517% OFF Phone Price : $86.51QtyScrew
Part #7101P061-60Replaced by #WP7101P126-60
Manufacturer substitutionThis part replaces 7101P061-60. Substitute parts can look different from the original.This item is not returnableIn Stock$4.9517% OFF Phone Price : $5.95QtyBody parts diagram
"bracket, Ant"
Part #3801F218-51Replaced by #WP3801F656-51
Manufacturer substitutionThis part replaces 3801F218-51. Substitute parts can look different from the original.This item is not returnableIn Stock$5.7415% OFF Phone Price : $6.74QtyKnob
Part #7737P021-60Replaced by #WP7737P021-60
Manufacturer substitutionThis part replaces 7737P021-60. Substitute parts can look different from the original.In Stock$30.75QtyBody parts diagram
Thermostat Clip
Part #7112P004-60Replaced by #WP7112P004-60
Manufacturer substitutionThis part replaces 7112P004-60. Substitute parts can look different from the original.This item is not returnableIn Stock$9.979% OFF Phone Price : $10.97QtyBody parts diagram
Oven Bulb
Part #7407P026-60Replaced by #8009
Manufacturer substitutionThis part replaces 7407P026-60. Substitute parts can look different from the original.This item is not returnableIn Stock$14.6812% OFF Phone Price : $16.68Qty
