Kenmore 25370505512 refrigerator Parts

Most Kenmore refrigerators, including model 25370505512, do not have one single universal “reset” button; the reliable reset is a power reset (unplugging the refrigerator briefly) and, on some versions, using the control panel’s specific button sequence listed in the 25370505512 owner’s manual.

How to reset a Kenmore 25370505512 refrigerator

• Power reset (most common): unplug the refrigerator (or switch the breaker off), wait 5 minutes, then restore power.
• Control reset (if equipped): follow the exact button sequence for your control style in the 25370505512 owner’s manual.
• After a power interruption: allow the refrigerator time to restart and stabilize temperatures; cooling can take several hours.
• If the ice maker is not connected to water: keep the ice maker switch OFF (this is called out in the installation instructions).
• If you recently moved/leveled the unit: confirm the cabinet is level and slightly tilted back so doors seal correctly.

Quick checks that often solve “needs a reset” symptoms

Many “reset” complaints are actually caused by power, airflow, or door-seal issues.

Symptom	What to check first	What to do next
Lights on but not cooling	Air vents blocked, doors not sealing	Power reset; then verify door closure and airflow
Ice maker not making ice	Ice maker switch OFF, water supply shut off	Turn ice maker ON; confirm water supply and no leaks
Warm temps after outage	Normal recovery time	Keep doors closed; allow several hours to stabilize
Door not closing well	Refrigerator not tilted back	Re-level per the 25370505512 installation guide

Why it matters

A power reset clears minor electronic glitches and forces the control to restart. Leveling and door sealing matter because poor sealing and restricted airflow can look like a “control problem” even when the electronics are fine.

Last updated: January 2026

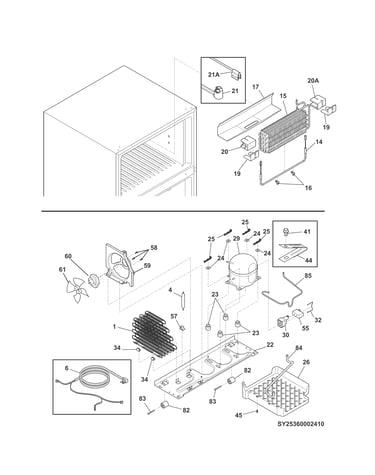

On the Kenmore 25370505512 refrigerator, the lower section is commonly called the machine compartment (or base compartment). It houses key cooling-system parts like the compressor and condenser area, and it also includes the lower front toe grille for airflow.

Common names you’ll hear

• Machine compartment: the service area at the bottom where major cooling components sit
• Base compartment: another term for the lower housing area
• Toe grille: the vented grille on the lower front (do not block it)
• Drain pan area: the bottom zone where a pan may sit to catch defrost water

What’s typically located down there

Most refrigerators, including Kenmore models like 25370505512, place these components in or around the lower compartment:

• Compressor (pumps refrigerant through the sealed system)
• Condenser coils (release heat)
• Condenser fan (moves air across the condenser on many designs)
• Drain pan (collects defrost water for evaporation)
• Access cover or toe grille (front airflow and service access)

Lower-area term	Where it is	What it does
Toe grille	Lower front	Lets air circulate; helps cooling efficiency
Machine compartment	Bottom rear (usually)	Holds compressor and condenser-side components
Drain pan area	Under/near the base	Manages defrost water evaporation

Why it matters

Airflow through the lower front toe grille is essential for proper operation. If the grille is blocked by dust, pet hair, or flooring trim, the refrigerator can run hotter, run longer, and cool less effectively.

Helpful next steps

• Keep the toe grille clear and unobstructed (the installation instructions specifically warn not to block it).
• If you need leveling access, remove the toe grille and adjust the front rollers/leveling screws as described in the 25370505512 installation guide.
• If you’re troubleshooting cooling or noise from the bottom area, check for a failing fan motor or compressor-related symptoms.

Last updated: January 2026

On Kenmore refrigerator model 25370505512, the model number is typically printed on a rating label inside the fresh food compartment or freezer. Common spots include the inside wall, the door frame, behind the crisper drawers, or behind the toe grille; confirm the exact label location in the 25370505512 owner's manual.

Most common places to check

• Inside the refrigerator compartment on a side wall (often near the top)
• Inside the refrigerator door frame (open the door and look around the perimeter)
• Inside the freezer compartment on a side wall
• Behind the lower crisper drawers (remove drawers and look on the back wall)
• Behind the toe grille (kick plate) at the bottom front

What the label looks like (and what to write down)

The rating label usually includes several identifiers. We recommend copying these exactly:

• Model number (for example: 25370505512)
• Serial number (helps match production version)
• Electrical ratings (volts/amps)
• Sometimes a type or code number

Label item	Why it matters	When you need it
Model number	Matches diagrams and part fit	Ordering parts, looking up manuals
Serial number	Identifies production run details	Service calls, verifying revisions
Electrical ratings	Confirms correct power specs	Troubleshooting, installation checks

Quick tips if you cannot spot it right away

• Use a flashlight and look along the cabinet walls near shelves and drawers
• Wipe condensation or dust off the label so the numbers are readable
• Remove the toe grille carefully and look for a label on the lower frame area
• If the refrigerator was recently installed, review the placement and access notes in the 25370505512 installation guide

Why it matters

The exact model number ensures we match the correct Kenmore refrigerator parts (like a door gasket, evaporator fan motor, or ice maker) and the right procedures for your configuration.

Last updated: January 2026

Most Kenmore refrigerator models like 25370505512 are organized into zones that help keep food safer and fresher: upper shelves for ready-to-eat items, middle shelves for dairy and frequently used foods, lower shelves for raw meats (coldest, least drip risk), plus crisper drawers for produce and door bins for condiments.

Common fridge compartments and what to store

• Top shelf: leftovers, drinks, ready-to-eat foods
• Middle shelves: milk, yogurt, eggs, deli items, tall bottles (where they fit best)
• Bottom shelf (coldest area in many fridges): raw meat, poultry, seafood (use a tray to catch drips)
• Crisper drawers: fruits and vegetables (use humidity controls if equipped)
• Door bins: condiments, juices, butter (avoid storing milk here because temps fluctuate)
• Freezer section (if applicable): frozen foods; keep vents clear for airflow

Quick guide: compartment comparison

Compartment	Best for	Avoid storing
Top shelf	Ready-to-eat foods	Raw meat or seafood
Middle shelves	Dairy, daily-use items	Uncovered strong-odor foods
Bottom shelf	Raw proteins in sealed packaging	Produce that can freeze
Crispers	Produce with humidity control	Raw meat, uncovered foods
Door bins	Condiments, shelf-stable items after opening	Milk (temp swings)

Why it matters

Using the right compartments helps reduce cross-contamination (raw meat drips), limits temperature swings (door storage), and keeps produce at better humidity. It also supports steady airflow, which helps the refrigerator maintain consistent temperatures.

Model-specific tips for 25370505512

• After changing temperature controls, wait 24 hours before making more adjustments (this is a common guideline for this model family). See the 25370505512 owner's manual.
• Keep the toe grille area unobstructed so the refrigerator can circulate air properly.
• If you need to remove doors to move the refrigerator, follow the door removal instructions in the 25370505512 owner's manual.

Last updated: January 2026
