Kenmore
Electric Cooktop

Model # 79042734400 Official Kenmore electric cooktop

Here are the diagrams and repair parts for Official Kenmore 79042734400 electric cooktop, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual
Error Codes

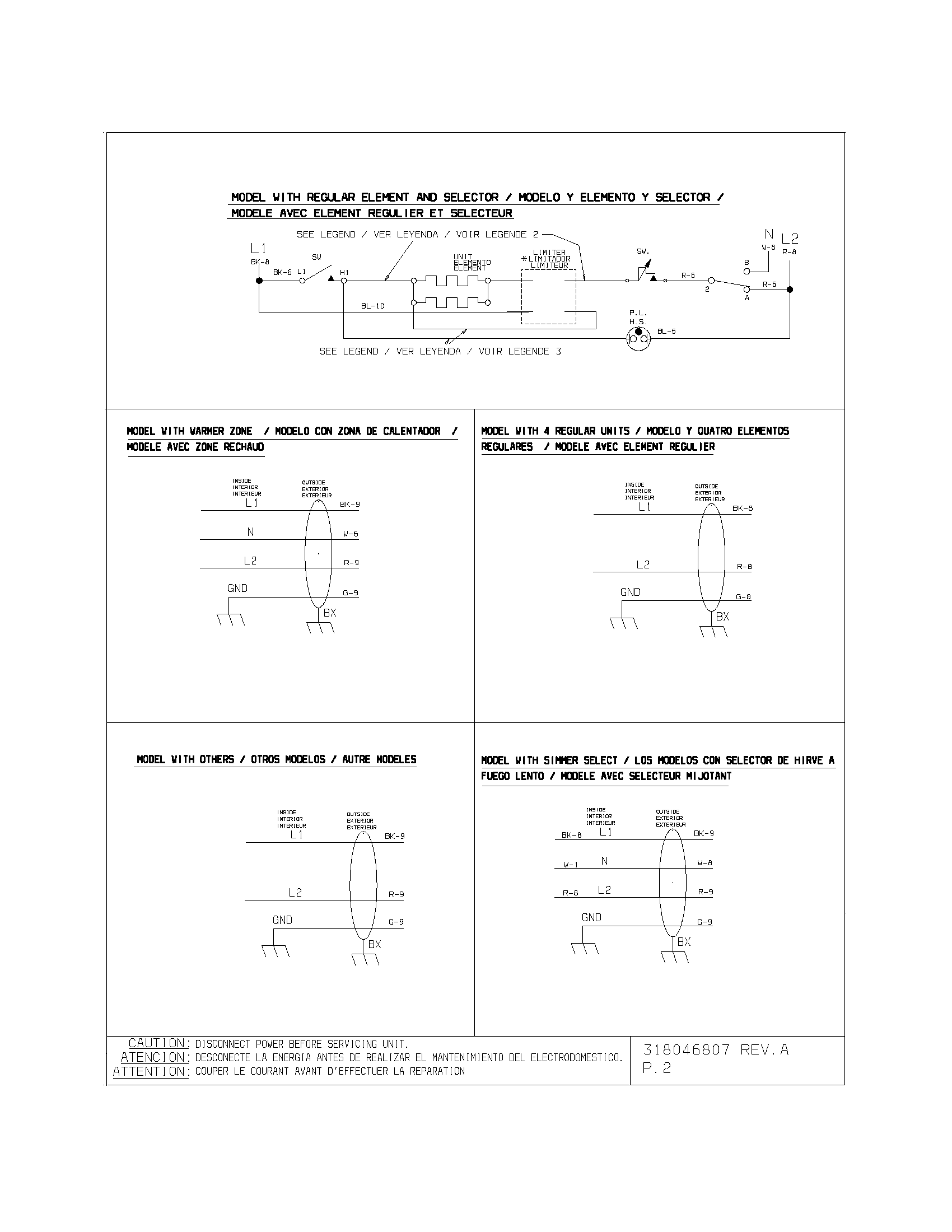

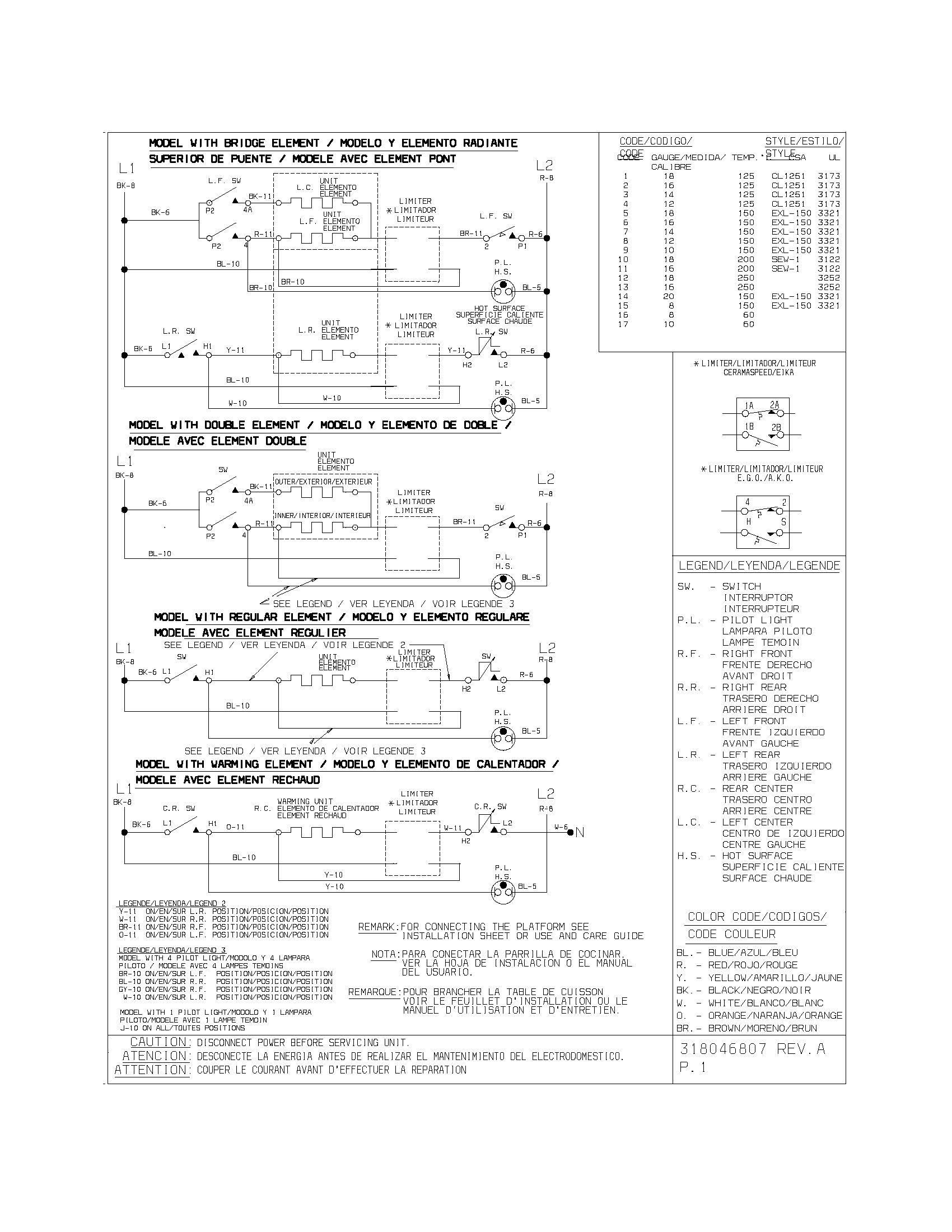

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 54 parts  |
Range Dual Radiant Surface Element 316418400
#15B

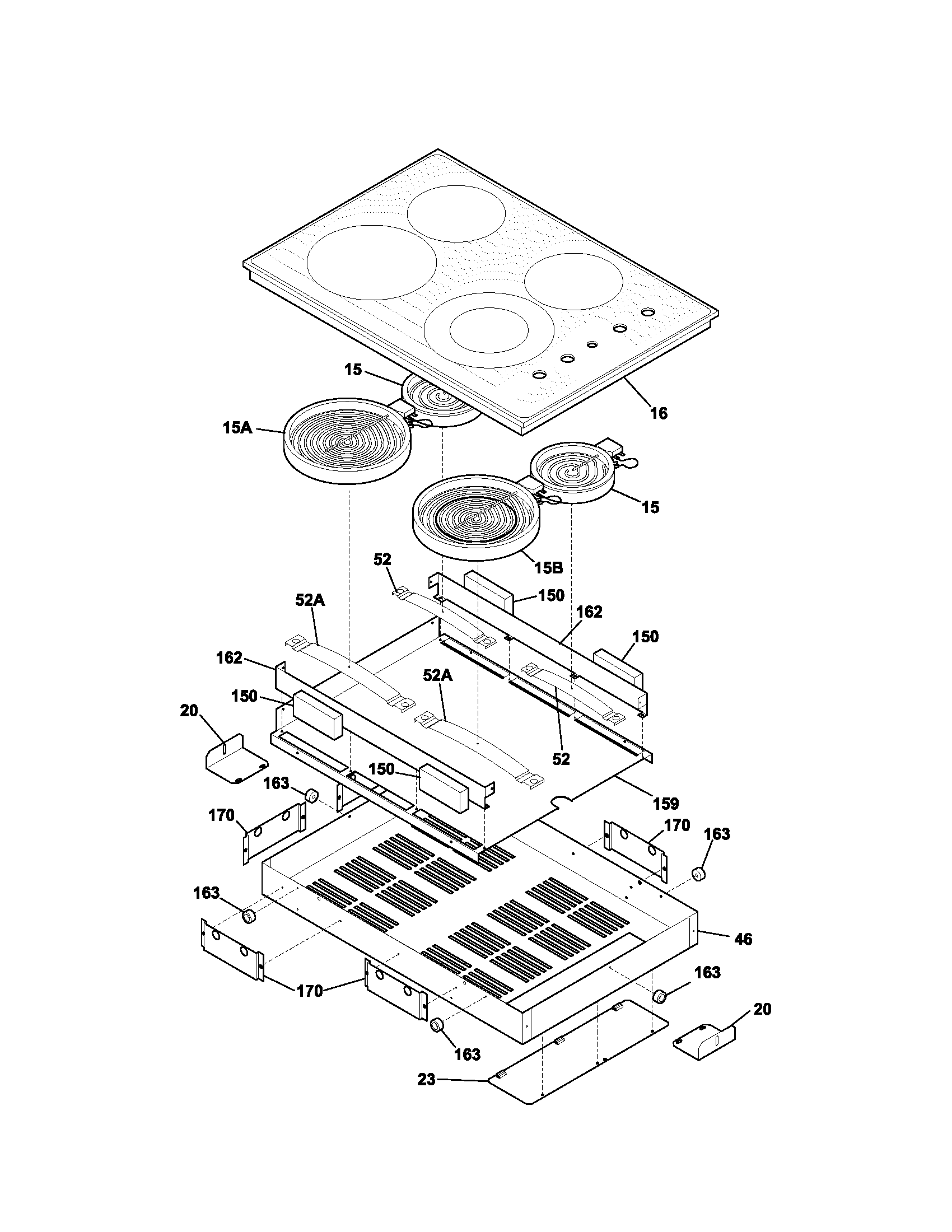

Maintop diagram

Range dual radiant surface element

Part #316418400

Replaced by #316555800

?
Manufacturer substitution
This part replaces 316418400. Substitute parts can look different from the original.
BEST SELLER
$186.98 |
7% OFF MSRP : $200.00
In Stock
Range Surface Element Control Switch (replaces 903097-9050) 318191000
#54A

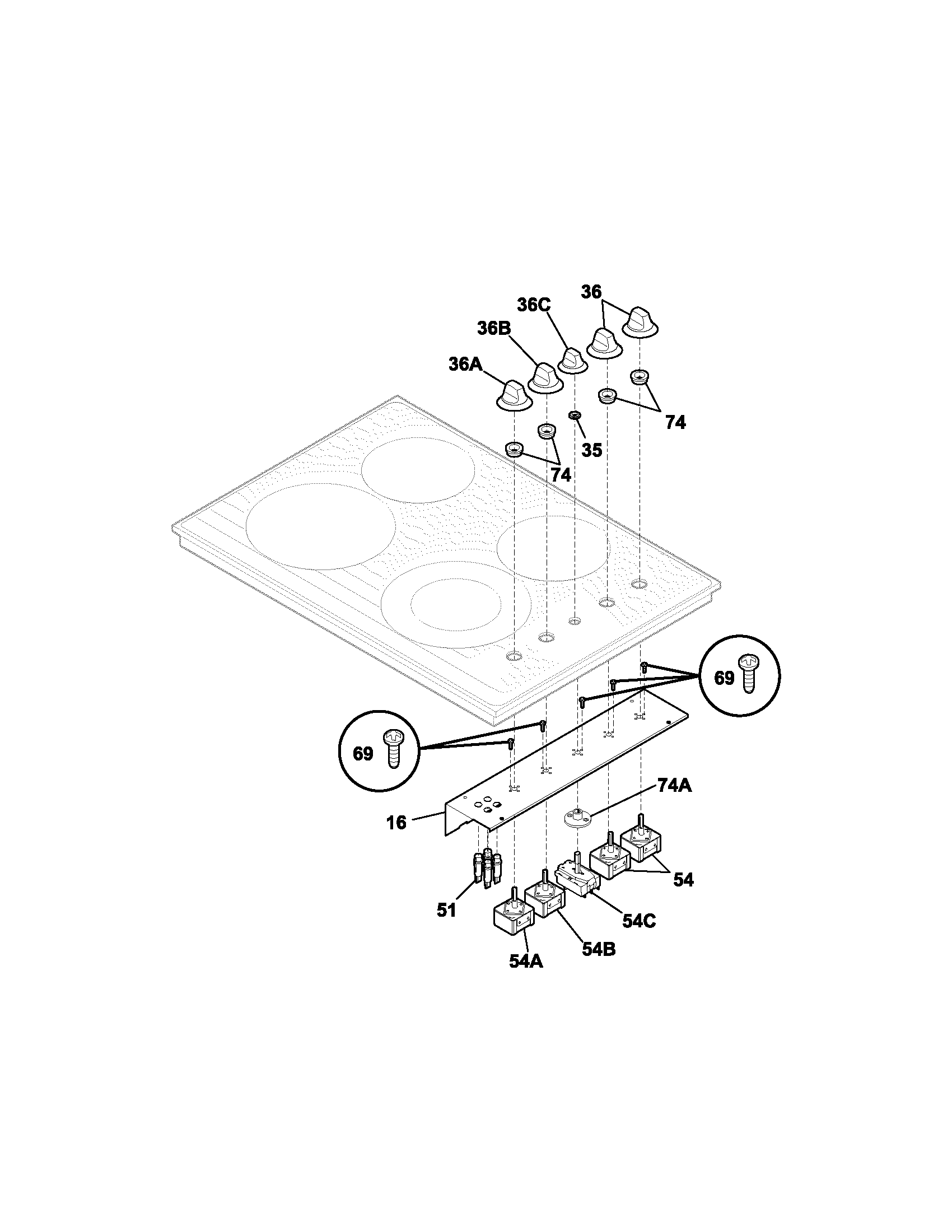

Controls diagram

Range surface element control switch (replaces 903097-9050)

Part #318191000

BEST SELLER
$67.09 |
7% OFF Phone Price : $72.09
In Stock
Appliance Stainless Steel Cleaner, 1-oz 316136900
#NI

Maintop diagram

Appliance stainless steel cleaner, 1-oz

Part #316136900

$25.09 |
17% OFF Phone Price : $30.09
In Stock
Range Screw 5303323134
#69

Controls diagram

Range screw

Part #5303323134

Replaced by #5303288565

?
Manufacturer substitution
This part replaces 5303323134. Substitute parts can look different from the original.
This item is not returnable
$2.16
In Stock
Range Surface Element Control Switch 318120505
#54B

Controls diagram

Range surface element control switch

Part #318120505

$183.99 |
5% OFF Phone Price : $193.99
In Stock
Element 318198810
#15

Maintop diagram

Element

Part #318198810

Replaced by #318198817

?
Manufacturer substitution
This part replaces 318198810. Substitute parts can look different from the original.
$149.91 |
6% OFF Phone Price : $159.91
In Stock
Range Screw 5303300265
#NI

Maintop diagram

Range screw

Part #5303300265

This item is not returnable
$3.23
In Stock
Range Screw 5303307980
#NI

Maintop diagram

Range screw

Part #5303307980

$21.34 |
19% OFF Phone Price : $26.34
In Stock
Sponge 316255000
#NI

Maintop diagram

Sponge

Part #316255000

Replaced by #316459400

?
Manufacturer substitution
This part replaces 316255000. Substitute parts can look different from the original.
This item is not returnable
$2.16
In Stock
Pilot Light 318044820
#51

Controls diagram

Pilot light

Part #318044820

Replaced by #318044827

?
Manufacturer substitution
This part replaces 318044820. Substitute parts can look different from the original.
$48.99 |
9% OFF Phone Price : $53.99
In Stock
