Samsung WA55A7300AE/US-00 washer

Samsung WA55A7300AE/US-00 washer Parts

Here are the diagrams and repair parts for Samsung WA55A7300AE/US-00 washer, as well as links to manuals and error code tables, if available.

By Schematic
By Part
SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for WA55A7300AE/US-00 WASHER

  • Assy Pulsator-lower for Samsung WA55A7300AE/US-00 - Part DC97-22925A

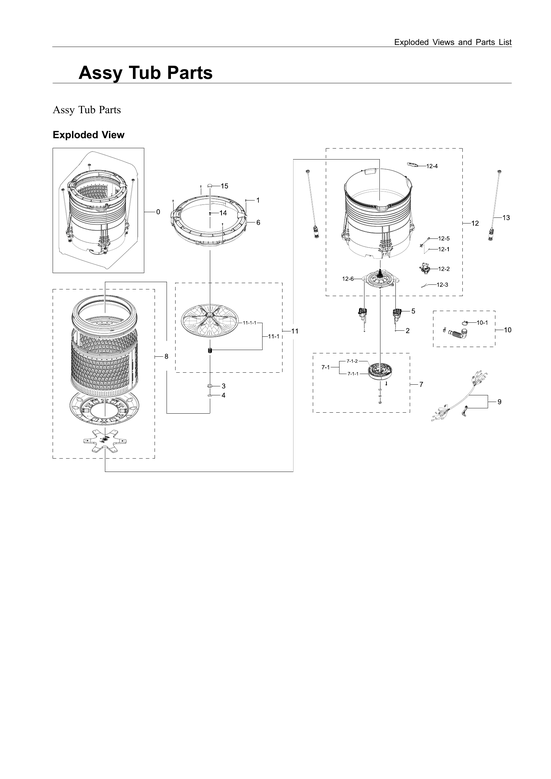

    Tub assy diagram

    Assy Pulsator-lower

    Part #DC97-22925A

    The manufacturer no longer makes this part, and there's no substitute part

  • Pulsator-lower for Samsung WA55A7300AE/US-00 - Part DC66-01079A

    Tub assy diagram

    Pulsator-lower

    Part #DC66-01079A

    The manufacturer no longer makes this part, and there's no substitute part

  • Bag Pe for Samsung WA55A7300AE/US-00 - Part 6902-000286

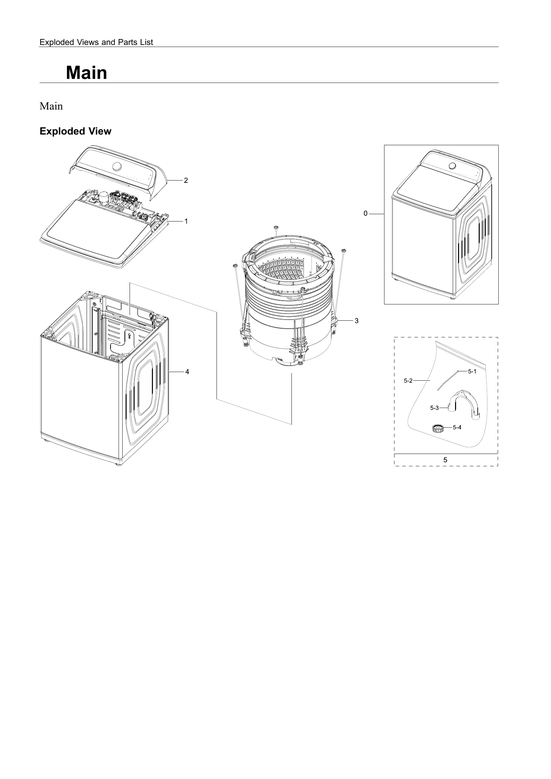

    Main assy diagram

    Bag Pe

    Part #6902-000286

    The manufacturer no longer makes this part, and there's no substitute part

  • Support Saddle (2) for Samsung WA55A7300AE/US-00 - Part DC61-04843A

    Tub assy diagram

    Support Saddle (2)

    Part #DC61-04843A

    The manufacturer no longer makes this part, and there's no substitute part

  • Assy Stator for Samsung WA55A7300AE/US-00 - Part DC97-20946A

    Tub assy diagram

    Assy Stator

    Part #DC97-20946A

    The manufacturer no longer makes this part, and there's no substitute part

  • Washer Electronic Control Board for Samsung WA55A7300AE/US-00 - Part DC92-02965B

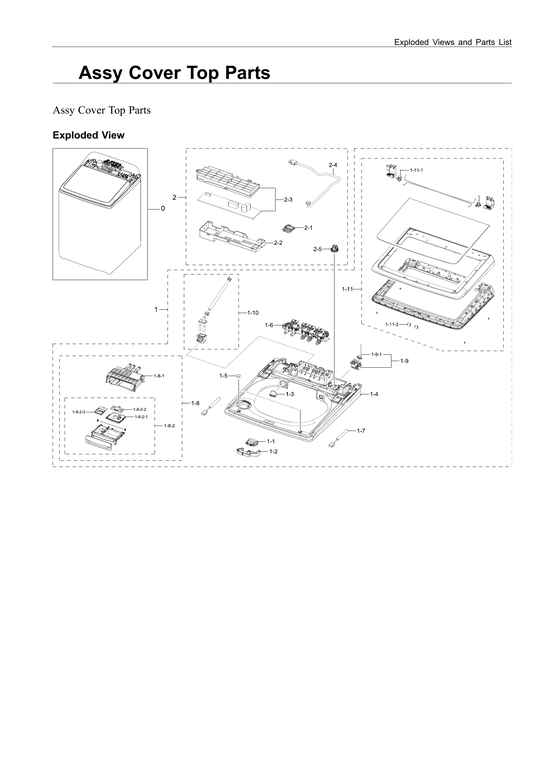

    Top cover assy diagram

    Washer Electronic Control Board

    Part #DC92-02965B

    The manufacturer no longer makes this part, and there's no substitute part

  • Guide Detergent for Samsung WA55A7300AE/US-00 - Part DC61-05396B

    Top cover assy diagram

    Guide Detergent

    Part #DC61-05396B

    The manufacturer no longer makes this part, and there's no substitute part

Samsung WASHER WA55A7300AE/US-00 FAQs

Yes. Samsung top-load washers like model WA55A7300AE are a solid choice for many homes because they typically offer large capacity, strong everyday cleaning, and convenient cycle options. The main tradeoffs we see with top-load designs are occasional out-of-balance loads and longer cycle times on certain settings.

What “good” usually means for a top-load washer

A good top-load washer should clean well, handle bulky loads, and run reliably with normal maintenance. For Samsung WA55A7300AE, we recommend using the cycle and load settings exactly as shown in the WA55A7300AE owner's manual.

Common strengths

  • Large tub capacity for comforters and mixed family loads
  • Simple loading and unloading (no bending as much as front-load)
  • Good rinse and spin performance when loads are balanced
  • User-friendly controls and cycle selection

Common complaints (and what they point to)

  • Out-of-balance or banging: load size, leveling, or worn suspension
  • Not draining well: drain path restriction or pump issue
  • Longer cycles: normal on some sensor-based or deep-fill style cycles
Quick comparison: top-load pros and cons
Topic What you’ll likely like What to watch for
Capacity Handles bulky items well Overloading can cause imbalance
Convenience Easy access from the top Deep tubs can be harder to reach
Performance Strong agitation or washplate action Some cycles run longer to protect fabrics
Maintenance Straightforward upkeep Needs proper leveling to reduce vibration
How to get the best results (and avoid common issues)
  • Sort by fabric weight; wash heavy items with similar-weight items.
  • Do not pack the tub tight; allow items to move freely.
  • Level the washer and confirm it sits firmly on the floor.
  • Use the recommended detergent type and amount (too much can cause oversudsing).
  • If you see error codes, use the Samsung top load washer error codes guide to narrow the cause.
Why it matters

Most “bad washer” experiences come from setup and load habits, not the brand itself. A properly leveled Samsung top-load washer with correctly sized loads is typically quiet, stable, and cleans very well.

Last updated: February 2026

A Samsung top-load washer like model WA55A7300AE typically lasts 10 to 15 years with normal household use. Reaching the high end usually comes down to correct loading, using the right detergent amount, keeping the washer clean, and fixing drain or vibration problems early (see the WA55A7300AE owner's manual).

What affects washer lifespan most
  • Overloading (stresses the motor, clutch, and suspension)
  • Frequent unbalanced loads (wears suspension and can damage the tub support)
  • Poor draining (standing water strains the drain pump and can cause odors)
  • Too much detergent (creates excess suds and residue buildup)
  • Hard water and lack of cleaning cycles (accelerates scale and grime)
Maintenance that helps you get 12 to 15 years
  • Run a monthly cleaning cycle (or the hottest cycle recommended in the manual).
  • Leave the lid open after loads so moisture can evaporate.
  • Use HE detergent and measure it; more soap does not mean cleaner clothes.
  • Check pockets and wash small items in a mesh bag to reduce drain clogs.
  • Level the washer and keep loads balanced to reduce vibration.
Common “wear items” and what they usually look like
Symptom Most likely area What to do first
Won’t drain or drains slowly Drain path (pump, hoses) Check for kinks, clogs, and debris; then test the pump
Loud banging or walking Suspension/leveling Re-level; reduce load size; inspect suspension
Grinding or poor agitation/spin Drive components Stop using it and inspect before more damage occurs

If you’re seeing drain issues, the washer drain pump DC97-22840A and Samsung washer drain hose DC97-18682D are common repair parts for this model.

Why it matters

A washer that is maintained and repaired early costs less over time; it also protects clothing, reduces water left in the tub, and prevents vibration from damaging the cabinet and floor.

Last updated: February 2026

The most common Samsung washer complaint we see is excessive shaking or out-of-balance spinning, especially on high-speed spin cycles. On the Samsung WA55A7300AE, this is usually caused by load size/distribution, an unlevel installation, or worn suspension components.

Quick checks that fix most shaking complaints
  • Re-distribute the load (mix large and small items; avoid washing one heavy item alone).
  • Run a smaller load; overloading is the fastest way to trigger imbalance.
  • Confirm the washer is level and solid on the floor (no rocking).
  • Use the correct cycle and spin speed for bulky items.
  • If banging continues with normal loads, inspect the suspension.
Other very common Samsung washer problems

Even when shaking is the main symptom, these issues are also frequent on top-load washers:

Symptom Most likely cause What to check first
Won’t drain / stops with water in tub Drain restriction or failed pump Kinked hose, clogs, pump noise
Leaks Hose connection or internal hose wear Drain hose fit, tub-to-pump hose
Loud grinding or agitation issues Drive system wear Clutch, gear case, washplate area
Error codes Load, drain, or fill problems Match the code to the symptom
Parts that commonly solve the problem (when checks don’t)

If your WA55A7300AE is level and loads are balanced but it still shakes hard, these parts are common fixes:

Error codes: use the code to avoid guessing

Samsung washers use error codes to point you toward the system that needs attention (balance, drain, fill, lid, etc.). For code meanings and the best first checks, use Samsung top load washer error codes.

Why it matters

Ignoring repeated out-of-balance banging can damage the tub support, increase wear on the clutch and gear case, and lead to leaks or premature failure. Fixing load habits and leveling first prevents unnecessary part replacement.

For model-specific operating tips (cycle selection, load recommendations, and care), follow the WA55A7300AE user manual.

Last updated: February 2026
