Model #FFET2725PWB Frigidaire wall oven

Here are the diagrams and repair parts for Frigidaire FFET2725PWB wall oven, as well as links to manuals and error code tables, if available.

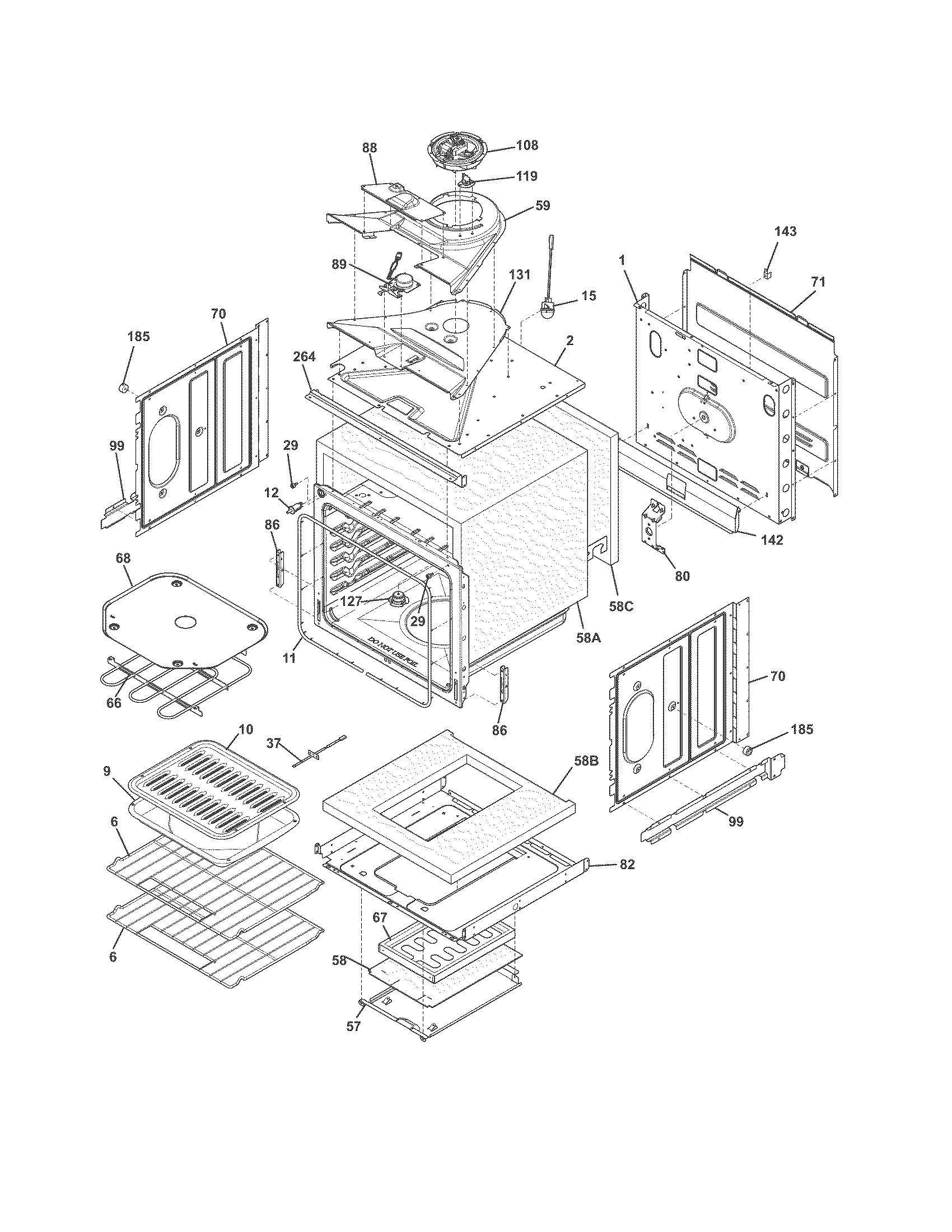

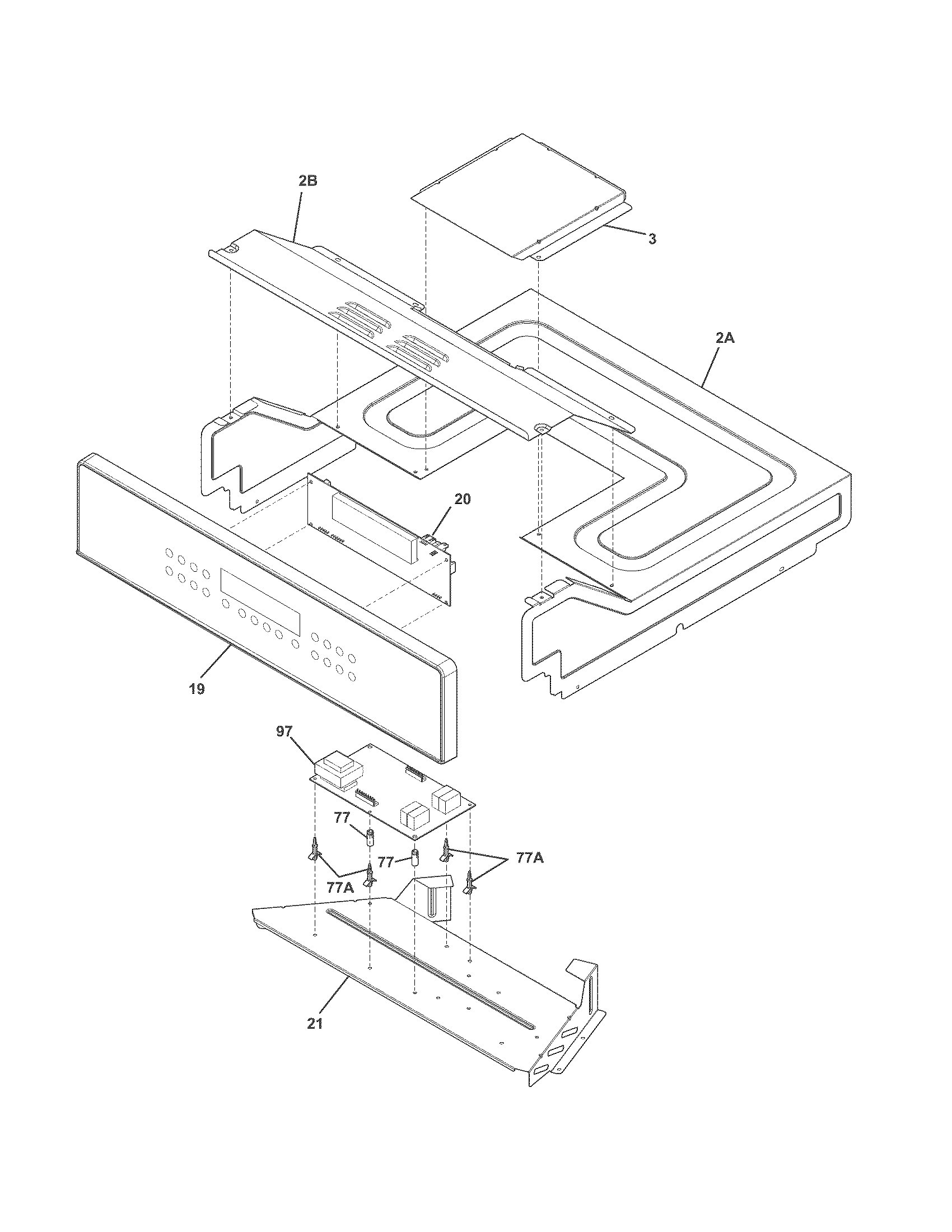

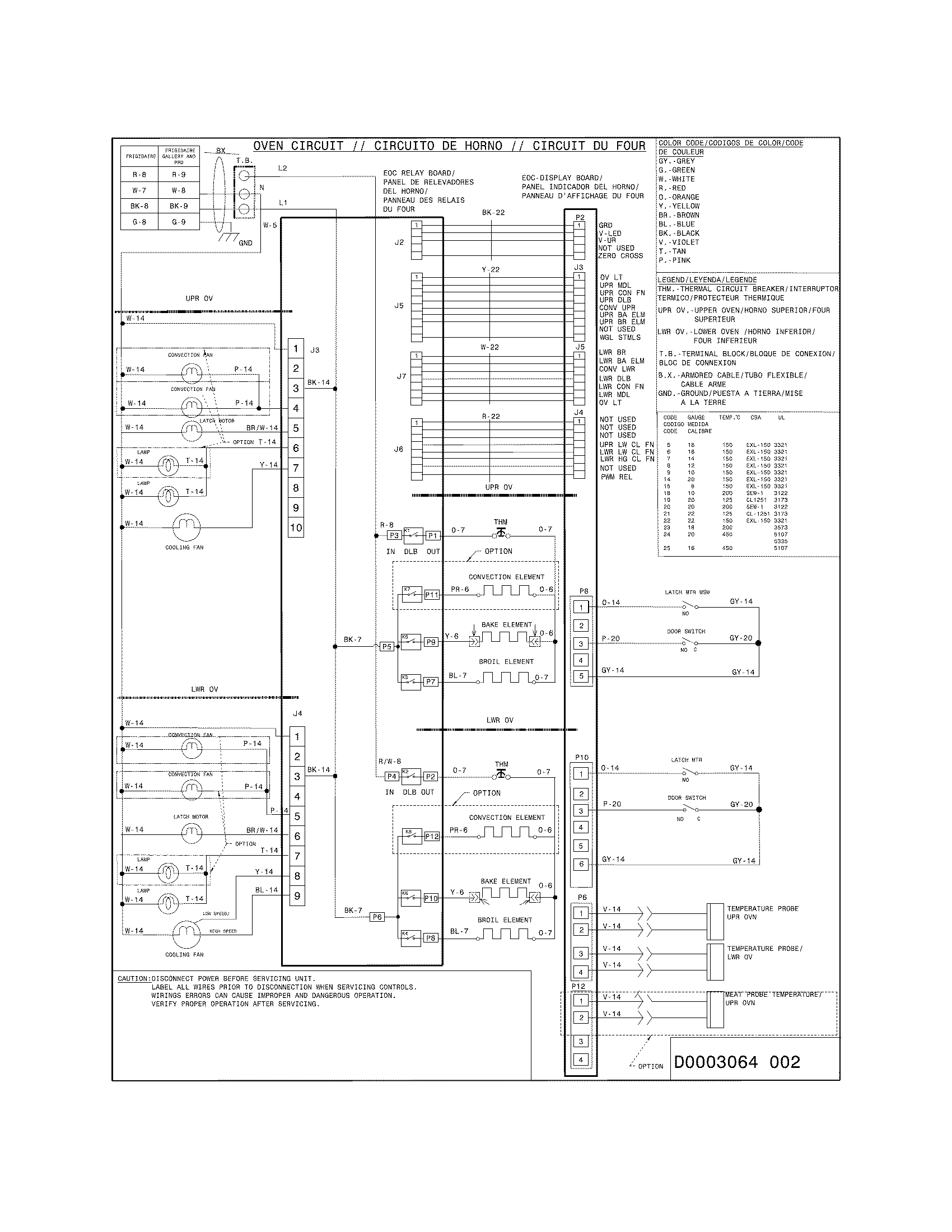

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

    Showing 10 of 107 parts

    Cooking Appliance Oven Temperature Sensor

    See All Related Diagrams

    Range oven temperature sensor

    Part #318562500
    Replaced by #5304504897
    ?
    Manufacturer substitution
    This part replaces 318562500. Substitute parts can look different from the original.
    BEST SELLER
    In Stock
    $35.29
    Range Terminal Block#62

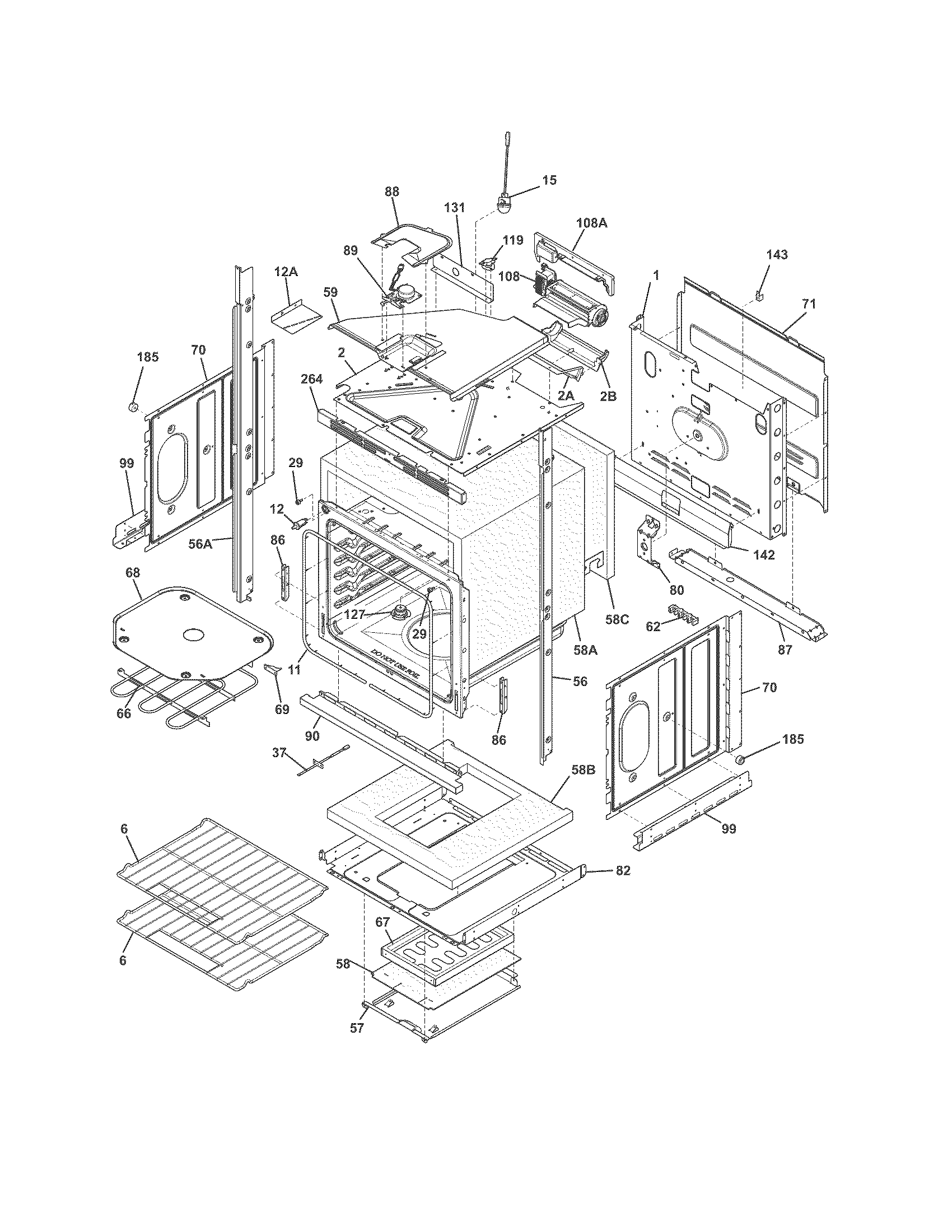

    Lower oven Diagram

    Terminal block

    Part #316056000
    Replaced by #5304409888
    ?
    Manufacturer substitution
    This part replaces 316056000. Substitute parts can look different from the original.
    BEST SELLER
    In Stock
    $8.59
    Range Screw

    Range screw

    Part #316021109
    In Stock
    $12.99
    Range Bake Element

    See All Related Diagrams

    Range bake element

    Part #318902502
    In Stock
    $168.06
    Range Screw

    See All Related Diagrams

    Range screw

    Part #316021110
    Replaced by #316021109
    ?
    Manufacturer substitution
    This part replaces 316021110. Substitute parts can look different from the original.
    In Stock
    $12.99
    Range Screw

    See All Related Diagrams

    Range hex head screw, #8-18 x 3/8-in

    Part #316021105
    Replaced by #316021109
    ?
    Manufacturer substitution
    This part replaces 316021105. Substitute parts can look different from the original.
    In Stock
    $12.99
    Range Oven Door Switch

    See All Related Diagrams

    Range oven door switch

    Part #316445501
    In Stock
    $57.79
    Range Screw

    See All Related Diagrams

    Range screw

    Part #316418900
    This item is not returnable
    Back Order
    $14.00
    Range Oven Light Bulb

    See All Related Diagrams

    Range oven light bulb

    Part #139009000
    Replaced by #5304528790
    ?
    Manufacturer substitution
    This part replaces 139009000. Substitute parts can look different from the original.
    In Stock
    $13.59
    Range Screw#56A

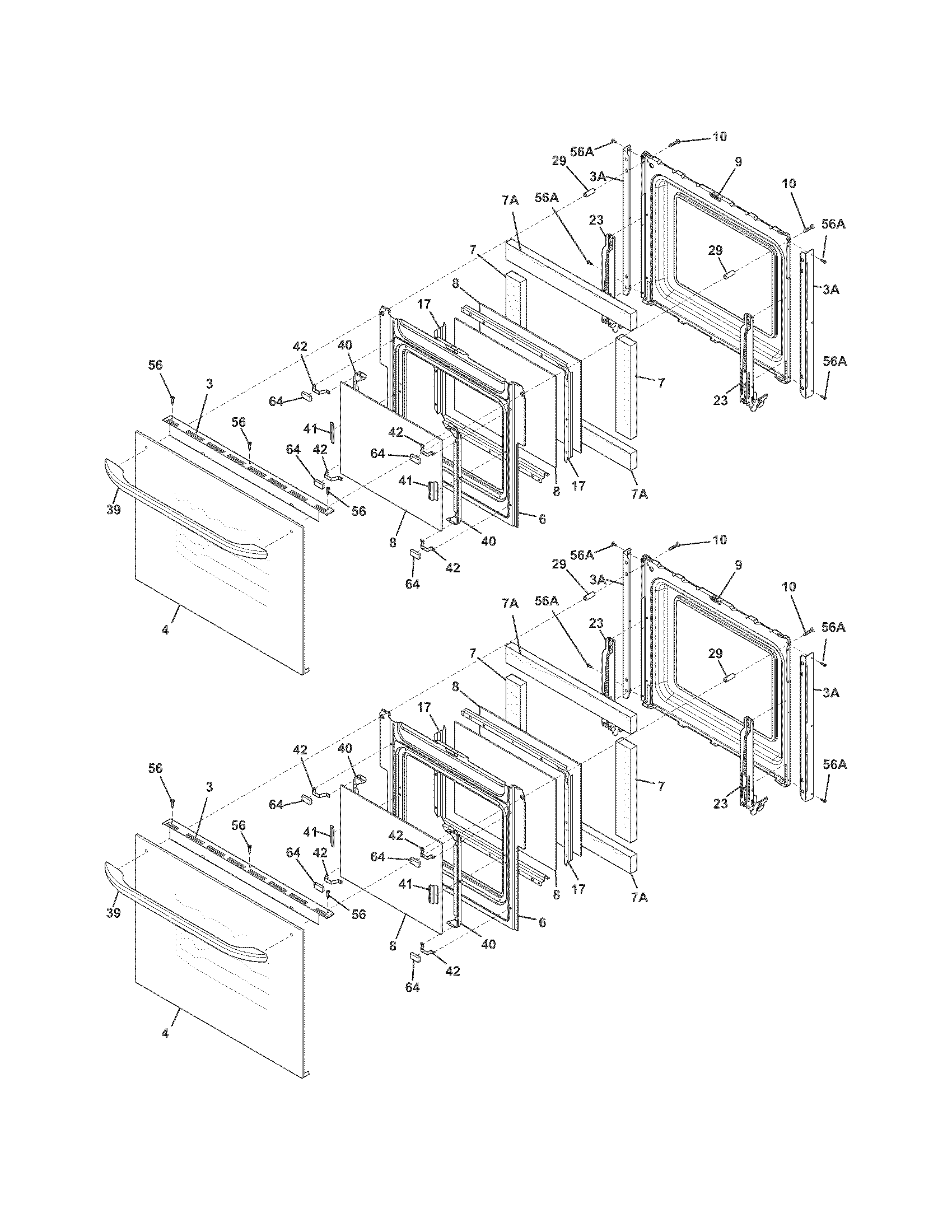

    Doors Diagram

    Range screw

    Part #5303324184
    In Stock
    $9.07
