Kenmore 11170612910 top-mount refrigerator Parts

A fridge with the freezer on top is called a top-freezer refrigerator (also commonly called a top-mount refrigerator). Your Kenmore 11170612910 is this style, with the freezer compartment above the fresh-food compartment and separate doors.

• Top-freezer refrigerator
• Top-mount refrigerator
• Freezer-on-top refrigerator
• Top freezer (shortened name in listings)

Check these quick identifiers (they match the classic top-freezer layout):

• Freezer door is the upper door
• Refrigerator door is the lower door
• Two side-swing doors (not a pull-out freezer drawer)
• Evaporator cooling and airflow typically originate from the freezer section

For model-specific details (features, controls, and specifications), use the 11170612910 owner's manual.

Knowing the style helps you troubleshoot correctly and choose the right repair steps. For example, many cooling complaints on top-freezer models relate to freezer airflow, door sealing, or frost buildup patterns.

Last updated: February 2026

Kenmore model 11170612910 was made for Kenmore by LG. The quickest way to tell on Kenmore appliances is the model prefix: 111 is an LG-built Kenmore refrigerator line.

We recommend verifying the model and prefix on the rating label so you match the right parts and instructions.

• Look for the model tag inside the fresh food compartment (often on a side wall) or near the crisper area
• Confirm the full model number is 11170612910 (not just “111”)
• Note the serial number as well; it helps when comparing revisions
• Use the model number when searching diagrams and troubleshooting steps

These prefixes are commonly used to identify who built a Kenmore appliance.

The manufacturer affects parts compatibility and troubleshooting. For example, error code formats, control board layouts, and ice maker or water system designs can differ by manufacturer even when the appliance is branded Kenmore.

• Use the owner's manual for model-specific operation, features, and specifications.
• If you’re seeing a display or control error, check the Kenmore 111 model top freezer refrigerator error codes guide for common code meanings and next steps.

Last updated: February 2026

For Kenmore model 11170612910, the model number by itself does not reliably encode capacity. The most accurate way is to use the capacity listed in the owner's manual; for this model family, the manual shows capacities such as 14.2 cu ft and 18.2 cu ft depending on the exact variant.

• Check the specifications section in the owner's manual.
• Look for a rating/spec label inside the fresh food compartment (often on a side wall or near the crisper area).
• If you have the carton/spec sheet from purchase, it typically lists “Capacity (cu. ft.)”.
• If you are comparing similar Kenmore 111 top-freezer units, use the manual-listed capacity for the closest matching variant.

If you cannot access the listed capacity, you can estimate interior volume:

• Measure usable interior width, height, and depth (in inches) for the refrigerator section and freezer section.
• Multiply each section: W x H x D.
• Add the two volumes together.
• Convert to cubic feet by dividing by 1,728.

Cubic feet affects how much food you can store and helps you choose correctly sized replacement items (like shelves/bins) and set expectations for cooling recovery after door openings.

Last updated: February 2026

Yes. You can still get replacement parts for Kenmore refrigerators, including the Kenmore 11170612910 top-mount refrigerator; the key is matching parts to your exact model number so the fit and electrical connections are correct. Use the parts list for your model and confirm details in the 11170612910 owner's manual.

• Confirm the full model number from the rating label (use 11170612910, not a partial).
• Identify the symptom first (no cooling, leaking water, ice maker not working, door not sealing).
• Use the model-based parts breakdown to locate the correct section (door, evaporator area, controls, ice maker).
• Compare your original part to the listing (shape, connectors, mounting points).
• If your refrigerator shows an error code, look it up before ordering parts.

Even when the exact part varies by model, these are the most common replacements:

• Refrigerator water filter (if your model uses one)
• Door gasket (door seal)
• Evaporator fan motor
• Defrost heater or defrost thermostat
• Water inlet valve (for ice maker or dispenser models)

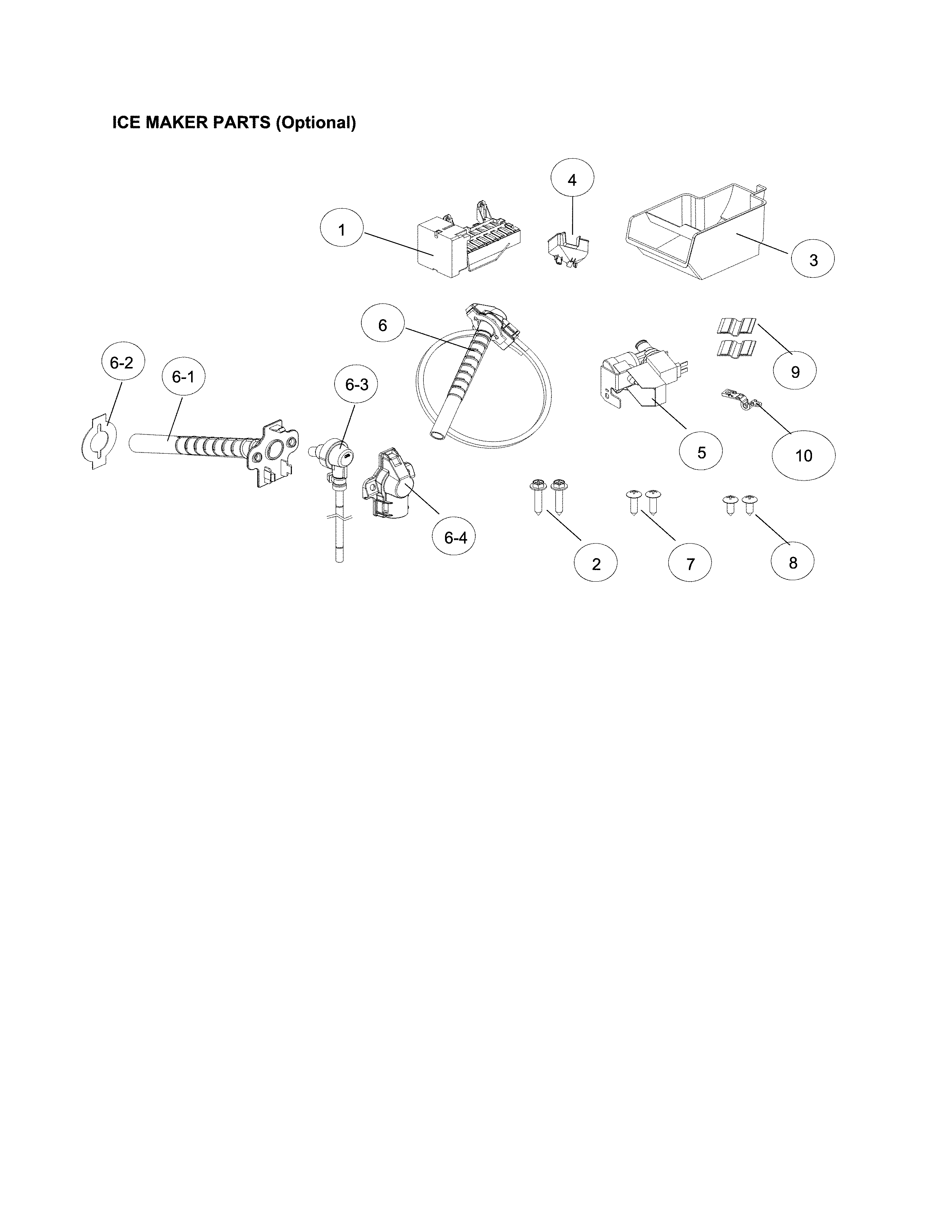

• Ice maker assembly (optional on some models)

For Kenmore model families like yours, we use the model-specific code list to pinpoint the failing circuit or sensor: Kenmore 111 model top freezer refrigerator error codes.

Kenmore parts availability is usually not the problem; incorrect model matching is. Using the exact model number (and verifying specs like optional ice maker water pressure requirements in the manual) prevents returns and repeat repairs.

Last updated: February 2026

Your Kenmore refrigerator’s model number is printed on the appliance’s ID label; once you find it, you can match it to the correct parts list and specifications. For this page, the model is 11170612910, and you can confirm details in the owner's manual.

Check these common locations on Kenmore top-mount refrigerators:

• Inside the fresh food (refrigerator) compartment on a side wall
• On the ceiling area inside the refrigerator compartment
• Behind or beside the crisper drawers (remove drawers to look behind them)
• Along the door frame (open the refrigerator door and inspect the frame)
• Near the bottom front (sometimes behind the kick plate or lower grille)

Record the information exactly as shown on the label.

• Model number (for example, 11170612910) to ensure parts compatibility
• Serial number to identify the production run
• Brand (Kenmore) and type (top-mount refrigerator) to avoid mix-ups

Use these practical steps to capture it accurately:

• Wipe the label gently with a damp cloth and dry it (grease and dust hide characters)
• Use your phone camera with flash, then zoom in on the photo
• Look for a second label on the door frame if the inside label is worn
• Check the model number printed on your paperwork and compare it to the label

Kenmore model numbers determine the correct fit for parts like door gaskets, shelves, evaporator fan components, and optional ice maker water supply parts. Using the exact model number also helps when interpreting display or diagnostic codes; our Kenmore 111 model top freezer refrigerator error codes guide is a fast way to match symptoms to likely causes.
