LG
Electric Range

Model # LRE3083BD/00 Official LG electric range

Here are the diagrams and repair parts for Official LG LRE3083BD-00 electric range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
Error Codes

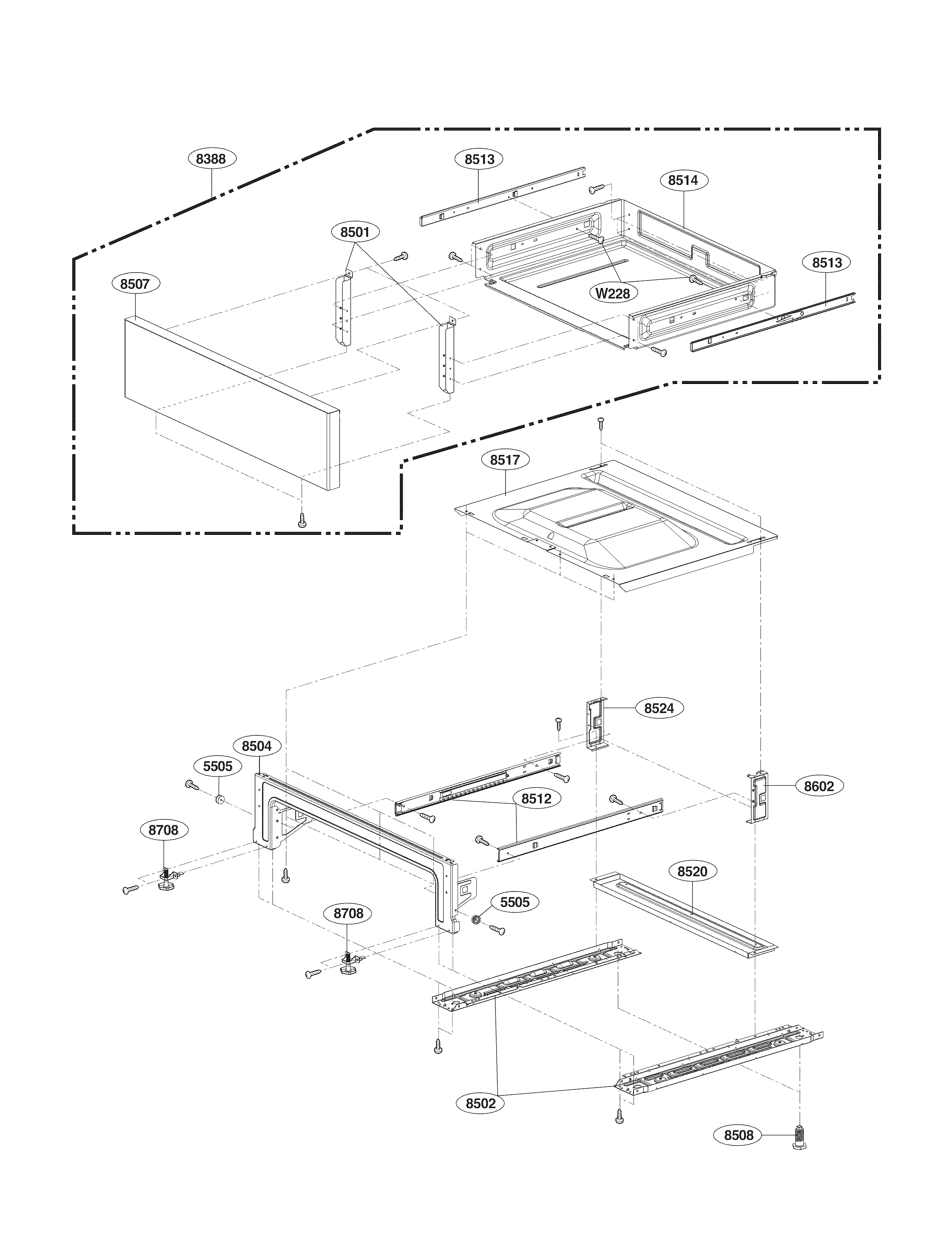

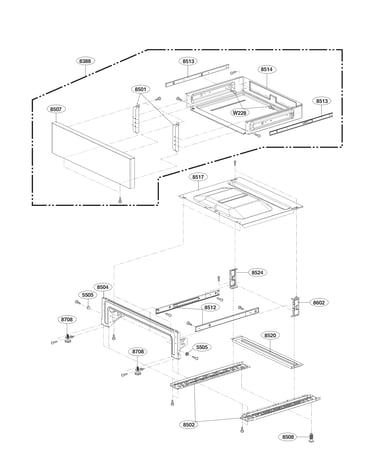

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 110 parts  |
Range Oven Temperature Sensor EBG61305801
#501

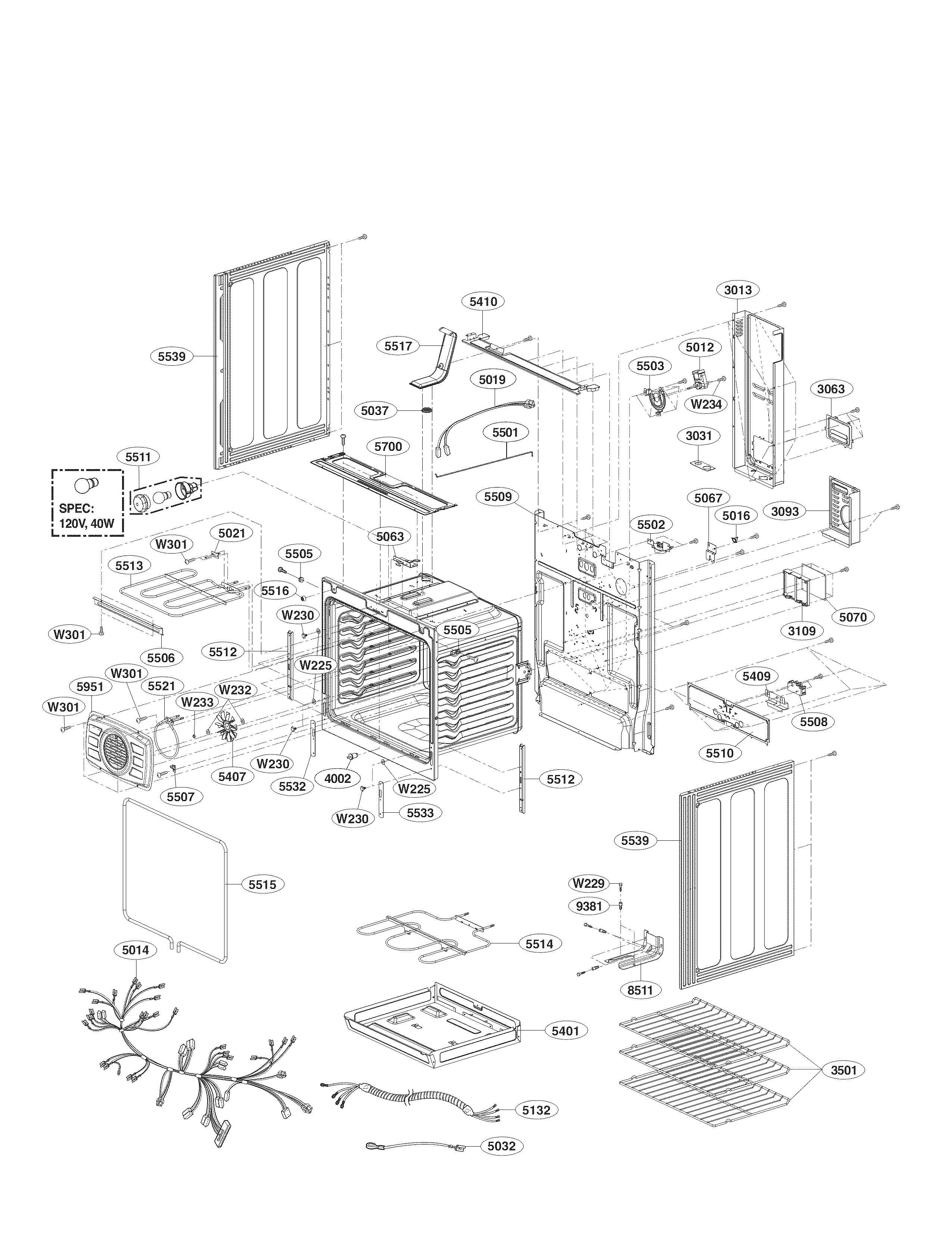

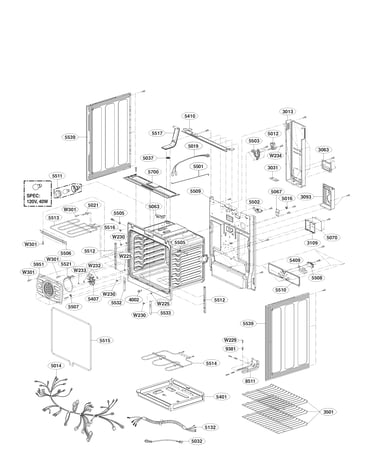

Cavity part diagram

Range oven temperature sensor

Part #EBG61305801

Replaced by #EBG61305805

?
Manufacturer substitution
This part replaces EBG61305801. Substitute parts can look different from the original.
BEST SELLER
$55.60 |
10% OFF Phone Price : $61.60
In Stock
Lg Range Dual Radiant Element (replaces Mee50408702) MEE62385201
#332

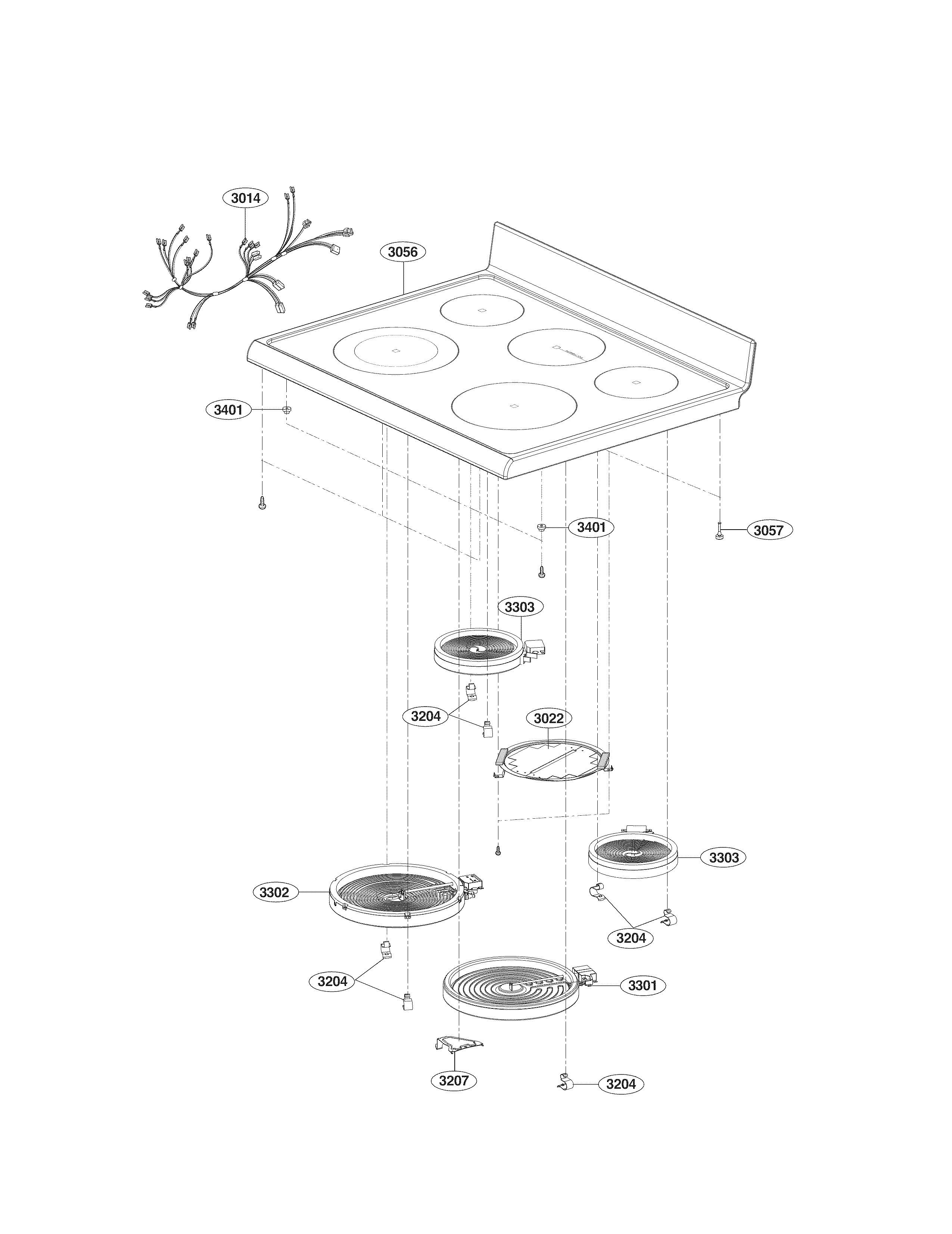

Cooktop parts diagram

Lg range dual radiant element (replaces mee50408702)

Part #MEE62385201

BEST SELLER
$157.38 |
7% OFF Phone Price : $169.38
In Stock
Range Bake Element MEE62306401
#554

Cavity part diagram

Range bake element

Part #MEE62306401

Replaced by #MEE62306405

?
Manufacturer substitution
This part replaces MEE62306401. Substitute parts can look different from the original.
BEST SELLER
$68.89 |
8% OFF Phone Price : $74.89
In Stock
Range Broil Element MEE62306501
#553

Cavity part diagram

Range broil element

Part #MEE62306501

Replaced by #MEE62306504

?
Manufacturer substitution
This part replaces MEE62306501. Substitute parts can look different from the original.
BEST SELLER
$70.93 |
8% OFF Phone Price : $76.93
In Stock
Range Display Control Board EBR77562702
#206

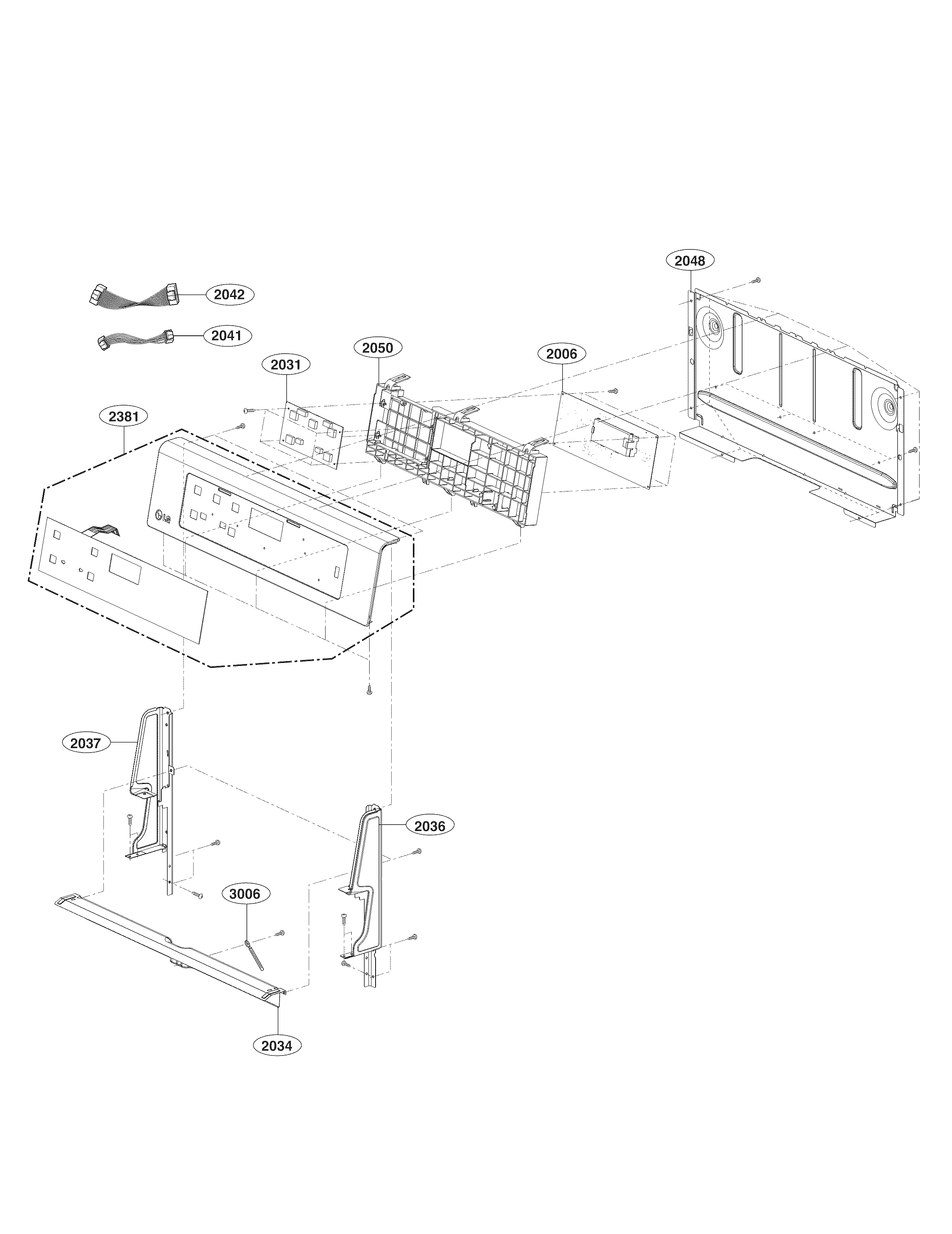

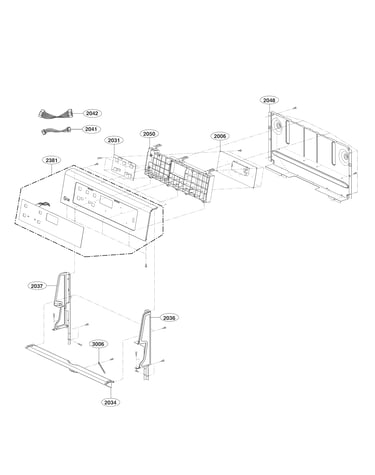

Controller parts diagram

Range display control board

Part #EBR77562702

Replaced by #EBR77562705

?
Manufacturer substitution
This part replaces EBR77562702. Substitute parts can look different from the original.
BEST SELLER
$348.10 |
$12.00 OFF Phone Price : $360.10
In Stock
Range Oven Relay Control Board (replaces Ebr74164804) EBR74164805
#500

Cavity part diagram

Range oven relay control board (replaces ebr74164804)

Part #EBR74164805

BEST SELLER
This item is not returnable
$177.50 |
6% OFF Phone Price : $189.50
In Stock
Range Nut 1NHB0500032
#W23

Cavity part diagram

Range nut

Part #1NHB0500032

BEST SELLER
This item is not returnable
$6.47 |
13% OFF Phone Price : $7.47
In Stock
Range Safety Thermostat 6930W1A003X
#506

Cavity part diagram

Range safety thermostat

Part #6930W1A003X

BEST SELLER
$12.20 |
14% OFF Phone Price : $14.20
In Stock
Range Oven Door Inner Glass 4890W1N005B
#108

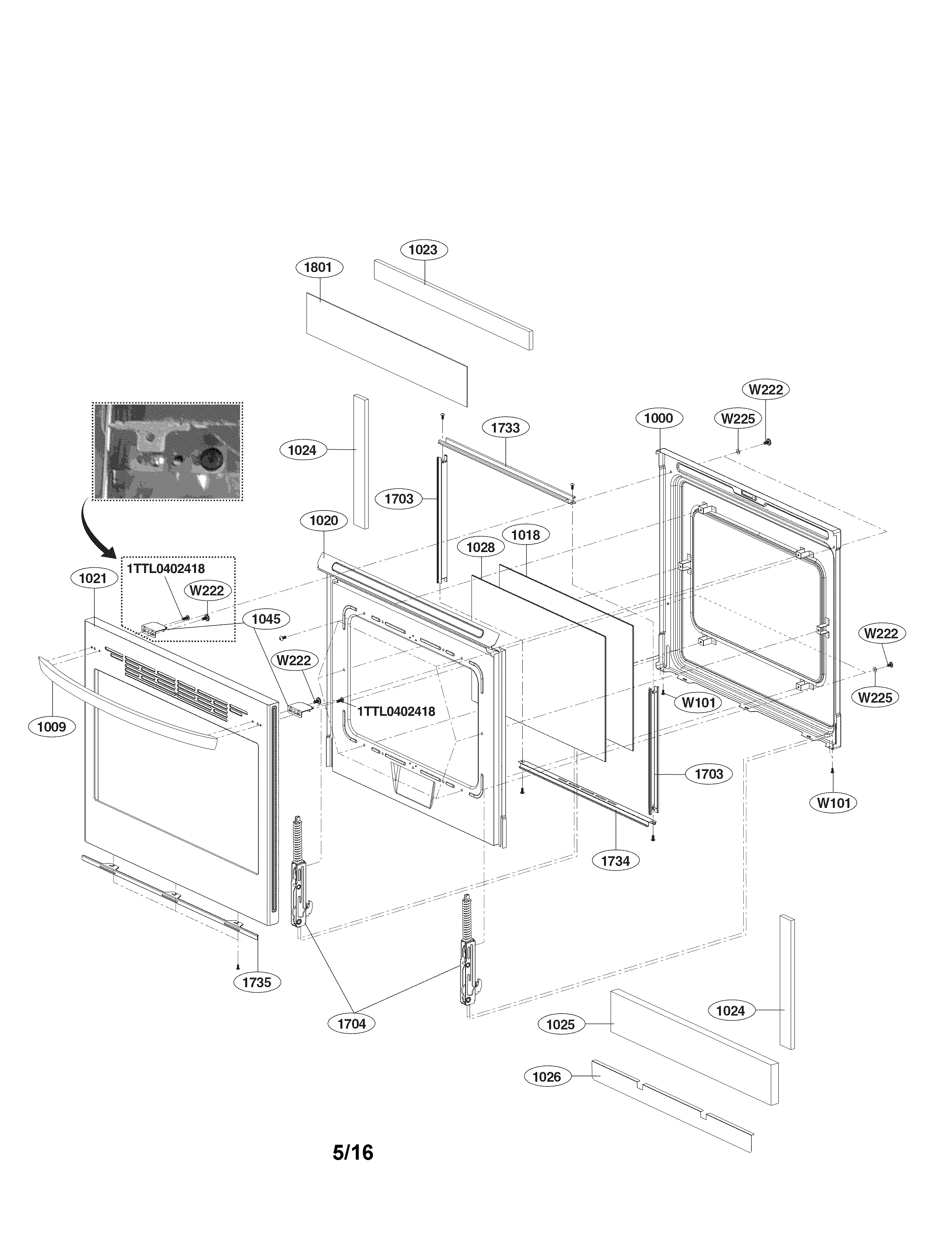

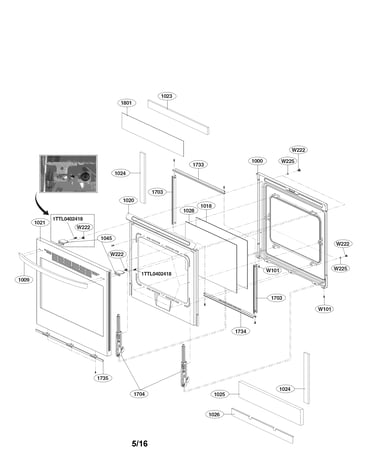

Door parts diagram

Range oven door inner glass

Part #4890W1N005B

Replaced by #4890W1N005L

?
Manufacturer substitution
This part replaces 4890W1N005B. Substitute parts can look different from the original.
BEST SELLER
$99.55 |
11% OFF Phone Price : $111.55
In Stock
Range Oven Door Inner Glass 4890W1N005A
#108

Door parts diagram

Range oven door inner glass

Part #4890W1N005A

$108.52 |
10% OFF Phone Price : $120.52
In Stock
