Kenmore 10651332713 refrigerator Parts

On Kenmore model 10651332713 side-by-side refrigerators, the model number is printed on the appliance identification label (the same label that lists the serial number). We use that label information to match the correct parts, diagrams, and the right Use & Care instructions in the owner's manual.

Common places to check first

Look for a paper or foil label in one of these spots:

• Inside the fresh food (refrigerator) compartment on a side wall near the front
• On the ceiling of the fresh food compartment near the light
• Along the door frame (hinge side) when you open the refrigerator door
• Behind the base grille area (less common, but possible on some designs)

What you are looking for on the label

The label typically includes both a model number and a serial number. Use the model number to ensure parts like an ice maker, water inlet valve, or door switch match your exact build.

Label item	What it’s used for	Example for this unit
Model number	Identifies the exact refrigerator design for parts and manuals	10651332713
Serial number	Identifies the production run and date information	Varies by unit

Tips to read and record it correctly

To avoid ordering the wrong Kenmore refrigerator parts, we recommend:

• Write the model number exactly as shown (include all digits)
• Take a clear photo of the full label before it fades
• If the label shows a color code or suffix, record that too
• Use the model number when selecting parts such as the refrigerator ice maker W10873791

Why it matters

Kenmore side-by-side refrigerators can look similar across multiple model families, but internal components (controls, ice maker parts, water system parts, and door hardware) can differ. Using the exact model number from the ID label is the fastest way to get the correct replacement part from the model parts list or by searching on Sears PartsDirect.

Last updated: February 2026

Your Kenmore side-by-side refrigerator model 10651332713 has its exact cubic-foot capacity listed on the model and serial rating label inside the cabinet and in the specifications section of the owner's manual. Using the rating label is the fastest, most accurate way to match capacity to your exact color/version.

Where to find the cubic-foot capacity on model 10651332713

Check these common locations first:

• Inside the fresh food compartment on a side wall near the top
• On the ceiling of the fresh food compartment near the light housing
• Inside the freezer compartment on a side wall
• Behind the crisper drawers (less common)

Quick steps to confirm capacity (most reliable method)

1. Open the refrigerator door and look for a sticker or metal plate labeled Model/Serial.
2. Look for a line that lists capacity (often shown as “cu. ft.” or “ft³”).
3. If the label is hard to read, use the specs section in the owner's manual.

Model number vs. capacity: what to expect

For Kenmore model numbers like 106.5133* (the series shown in the manual), the model number itself usually does not clearly encode the total cubic feet in a way that is consistent enough to rely on for ordering parts or comparing sizes.

Method	Accuracy	Best for
Rating label inside the refrigerator	Highest	Exact capacity for your specific unit
Specifications in the manual	High	Confirming capacity and other specs
Online “model number decoders”	Medium	Rough comparisons only

Why it matters

Cubic-foot capacity helps when you are comparing refrigerators, planning kitchen space, and estimating storage. For repairs and parts ordering, the exact model number (10651332713) matters more than capacity, because parts fit by model-specific design.

Ordering parts for your model

When you need replacement parts for Kenmore 10651332713, order by model number from the parts list for this refrigerator, or search by model on Sears PartsDirect.

Last updated: February 2026

For Kenmore model 10651332713, the model number format tells you the product family and the manufacturing source; the 106 prefix is the key identifier, and the remaining digits narrow it down to the exact side-by-side refrigerator configuration. For model-specific details, use the 10651332713 owner's manual.

Where to find the model number on a Kenmore refrigerator

On most Kenmore side-by-side refrigerators, the model/serial tag is typically located:

• Inside the fresh food compartment on a side wall
• On the ceiling of the fresh food compartment near the light
• Along the door frame (hinge side) when the door is open
• Occasionally behind the toe grille (kick plate) area

How to break down a Kenmore model number (what the sections mean)

Kenmore model numbers are usually read left to right:

• Prefix (first 3 digits): identifies the manufacturing source and product platform (example: 106)
• Core model digits: identify the design series (cabinet style, control layout, feature set)
• Suffix digits: identify variations such as color, handle style, or minor revisions

Quick example using your model

Section	Example	What it tells you
Prefix	106	Manufacturing source / platform identifier
Remaining digits	51332713	Exact configuration for parts and documentation matching

Why it matters for parts and troubleshooting

Using the full model number (all digits) prevents common fit issues, especially for parts that vary by revision, such as:

• Ice maker assemblies
• Water inlet valves
• Door switches and light switches
• Electronic control boards and user interface parts
• Door bins, gaskets, and door assemblies

If you are ordering parts, match the full model number exactly, then select parts from the list for this model or search by model on Sears PartsDirect.

Last updated: February 2026

The most common problems we see on Kenmore refrigerators like model 10651332713 are poor cooling from restricted airflow or a defrost issue, water leaks from a clogged drain or loose water connections, ice maker and dispenser failures, and unusual noises from a fan or motor. Use the owner's manual troubleshooting section to match symptoms to checks.

Common problems and what to check first

• Not cooling or warm temperatures: confirm vents are not blocked and allow proper air circulation between compartments.
• Frost buildup or freezer icing: points to a defrost system problem (heater, control, or airflow restriction).
• Water leaking or puddles: check the defrost drain area for clogs and inspect water line connections.
• Ice maker not making ice: verify the water supply is on, then test the valve and ice maker.
• Noisy operation: listen for a clicking, grinding, or rattling fan; evaporator fan issues are common.
• Lights not working or door alarms: door and light switches can fail or stick.

Quick symptom-to-part map (model 10651332713)

Symptom	Most likely system	Parts that commonly fix it (examples)

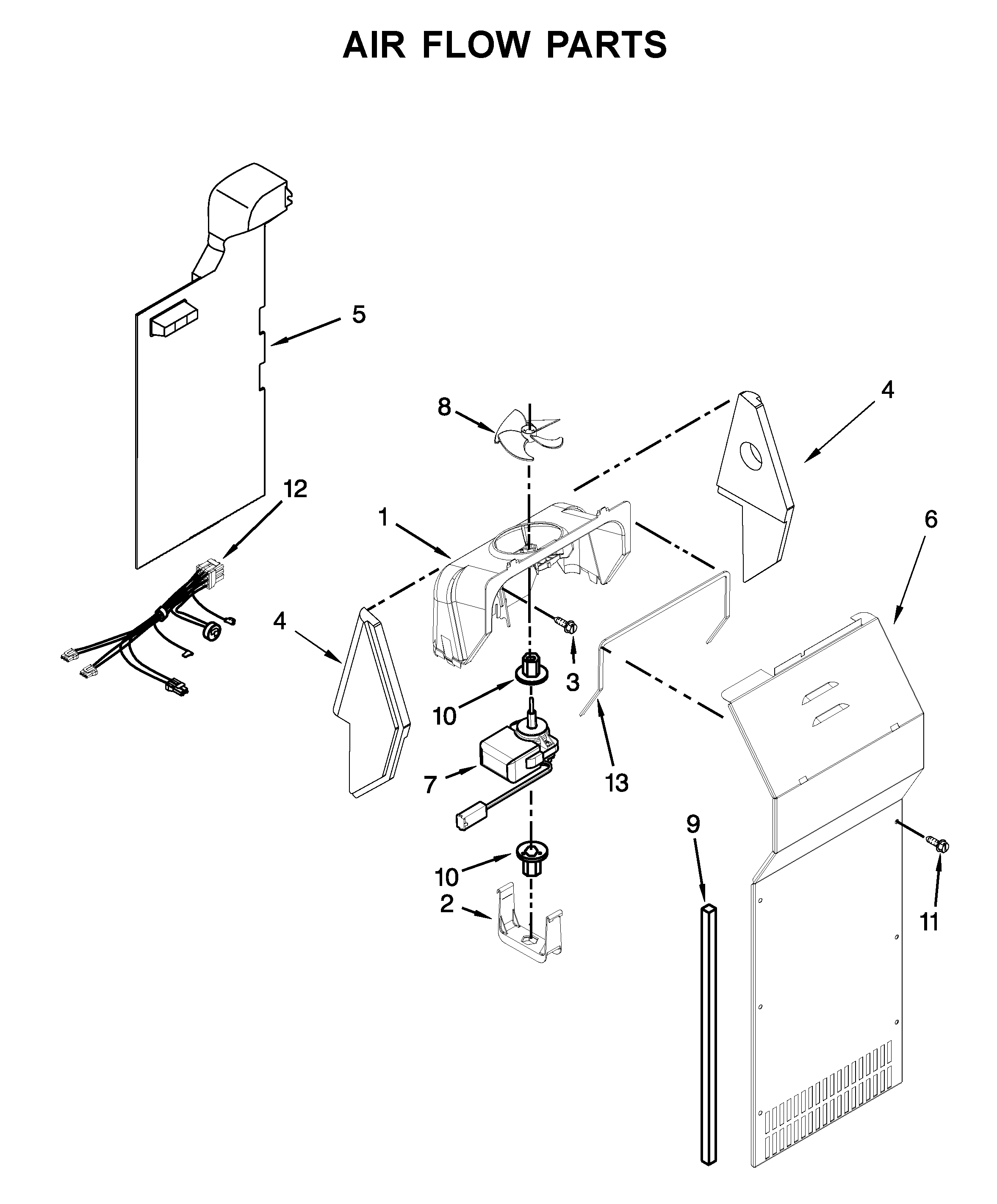

Warm fridge/freezer, poor airflow	Evaporator airflow	Refrigerator evaporator fan motor WP2315549, refrigerator evaporator fan blade WP2169142
Heavy frost, warming after a few days	Defrost system	Refrigerator heater WP2323198
Ice maker not filling, no water to dispenser	Water supply/valve	Refrigerator water inlet valve WPW10179146

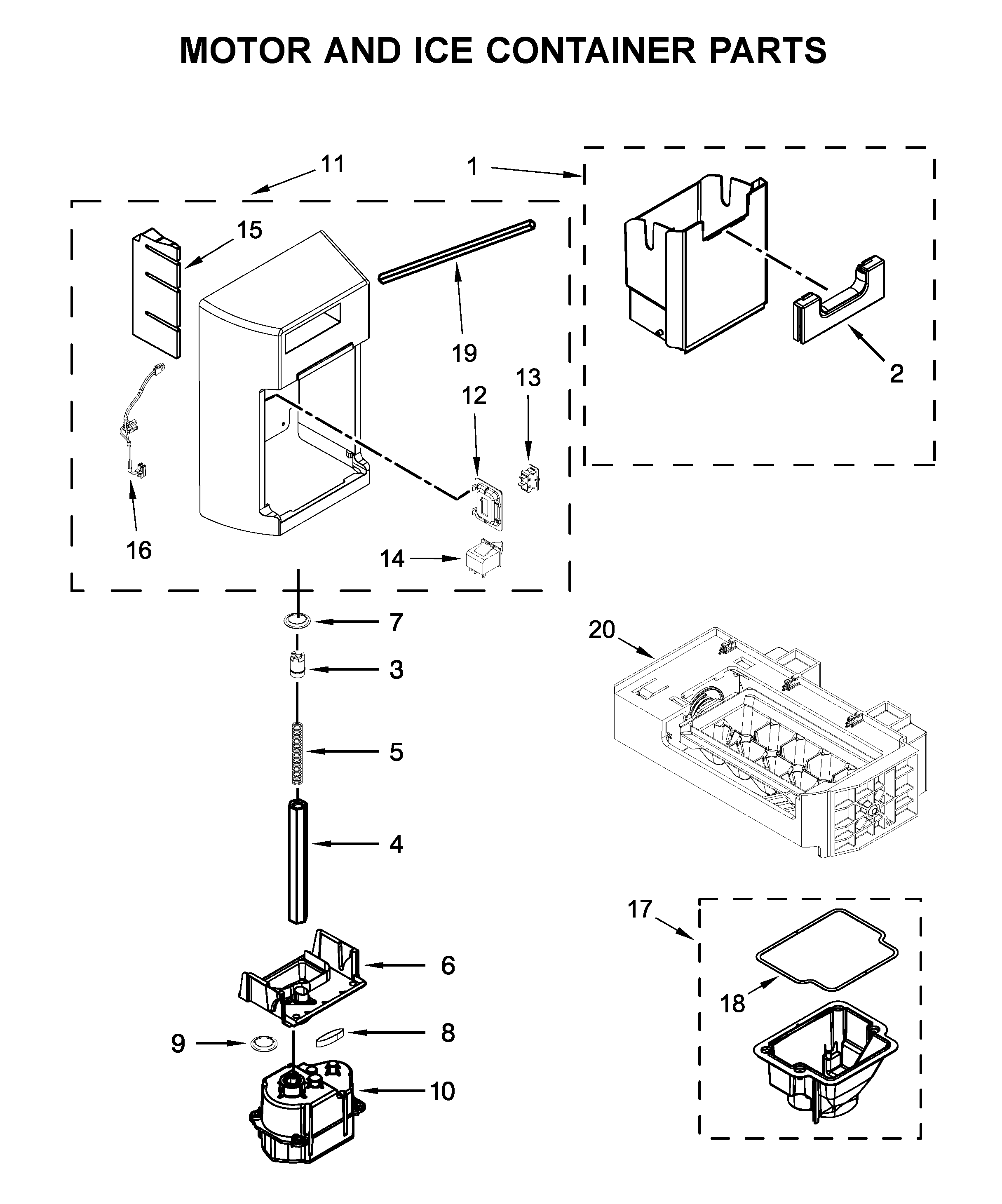

Ice maker not producing ice (mechanical failure)	Ice maker assembly	Refrigerator ice maker W10873791

Why airflow and defrost issues matter

This side-by-side design relies on steady airflow between the freezer and refrigerator sections. When vents are blocked or frost builds up on the evaporator, temperatures rise, food spoils faster, and the compressor can run longer than normal.

Helpful DIY guidance

• Follow the airflow guidance in the owner's manual and keep vents clear of packages.
• If you suspect an ice maker or dispenser issue, use how to prevent water dispenser and ice maker problems to narrow down whether the issue is supply, valve, or the ice maker itself.
• For Kenmore 106-series display or control-related symptoms, use Kenmore 106 model refrigerator error codes to interpret what the refrigerator is reporting.

Ordering the right replacement part

We recommend confirming your full model number (10651332713) and comparing the part photo and description before ordering. You can order model-matched parts from the parts list for this refrigerator, or search by model on Sears PartsDirect.

Last updated: February 2026

A Kenmore side-by-side refrigerator like model 10651332713 usually stops cooling because it is not getting power, the temperature controls are set incorrectly, airflow is blocked at the vents, or a cooling-system component (fan, defrost heater, or control) is not operating correctly. Start with the quick checks in the owner's manual.

Quick checks we recommend first

• Confirm the refrigerator is plugged into a grounded 3-prong outlet (no extension cord).
• Test the outlet with a lamp; reset the breaker or replace a blown fuse if needed.
• Verify both controls are still at the factory recommended mid-setting (typically shown as three illuminated bars).
• Check that interior air vents are not blocked by food packages.
• Make sure both doors close fully and the door seals are making full contact.
• If it is a new install or was just moved, allow 24 hours to cool completely.

Common causes and what they look like

What you notice	Likely cause	What to do next
No lights, no fan noise, no compressor sound	No power to unit/outlet	Restore power; then allow 24 hours to stabilize
Lights on, but temps stay warm	Vents blocked or doors not sealing	Clear vents; reduce door openings; check gasket contact
Freezer cold but fresh food warm	Airflow problem in refrigerator section	Clear vents; listen for evaporator fan operation
Frost buildup, then warming	Defrost problem	Inspect defrost system; consider the refrigerator heater WP2323198 if the heater is open

Parts that commonly relate to “not cooling” symptoms

If the basic checks above do not restore cooling, these model-compatible parts are often involved in airflow or defrost issues:

• Refrigerator evaporator fan motor WP2315549 (moves cold air through the compartments)
• Refrigerator evaporator fan blade WP2169142 (damaged blades reduce airflow)
• Refrigerator heater WP2323198 (helps clear frost during defrost)
• Elec control W11212392 (can affect compressor, fans, and defrost timing)

Why it matters

On model 10651332713, blocked vents, frequent door openings, or incorrect control settings can mimic a major failure. Fixing those first prevents unnecessary parts replacement and helps the refrigerator return to stable temperatures after you make an adjustment (typically within 24 hours).

For model-specific diagrams and troubleshooting steps, use the parts list for 10651332713 on this page, or search by model on Sears PartsDirect.

Last updated: February 2026
