Kenmore 62946969 electric range Parts
Here are the diagrams and repair parts for Kenmore 62946969 electric range, as well as links to manuals and error code tables, if available.
Error Codes
By Schematic
By Part
SELECT DIAGRAM

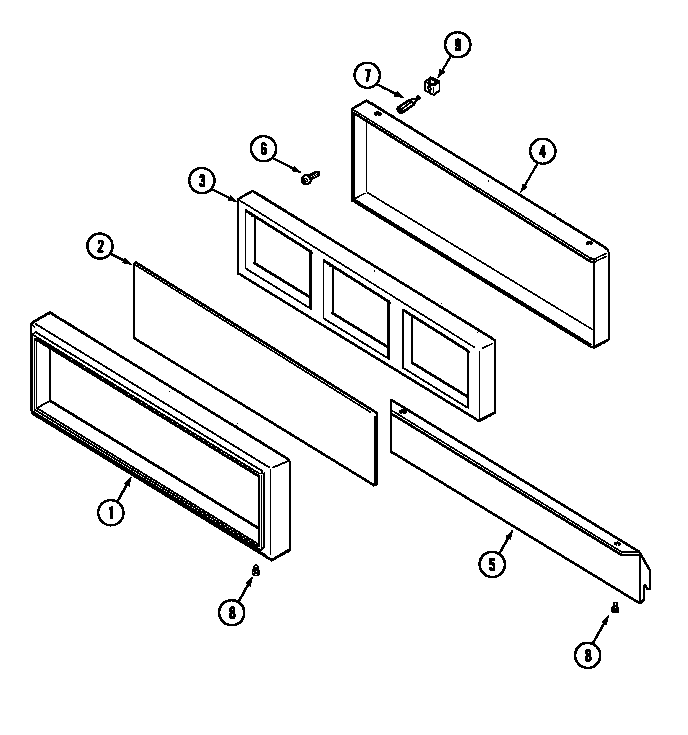

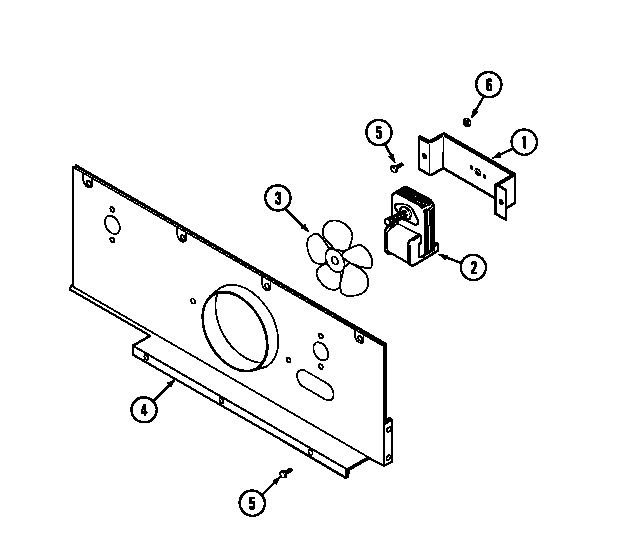

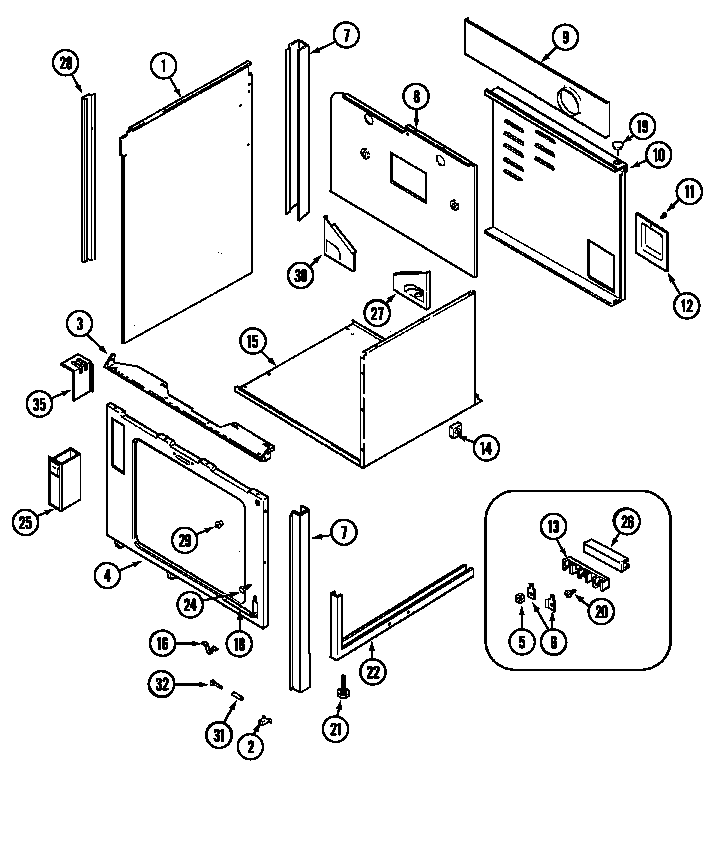

Browse Parts for 62946969 Ranges

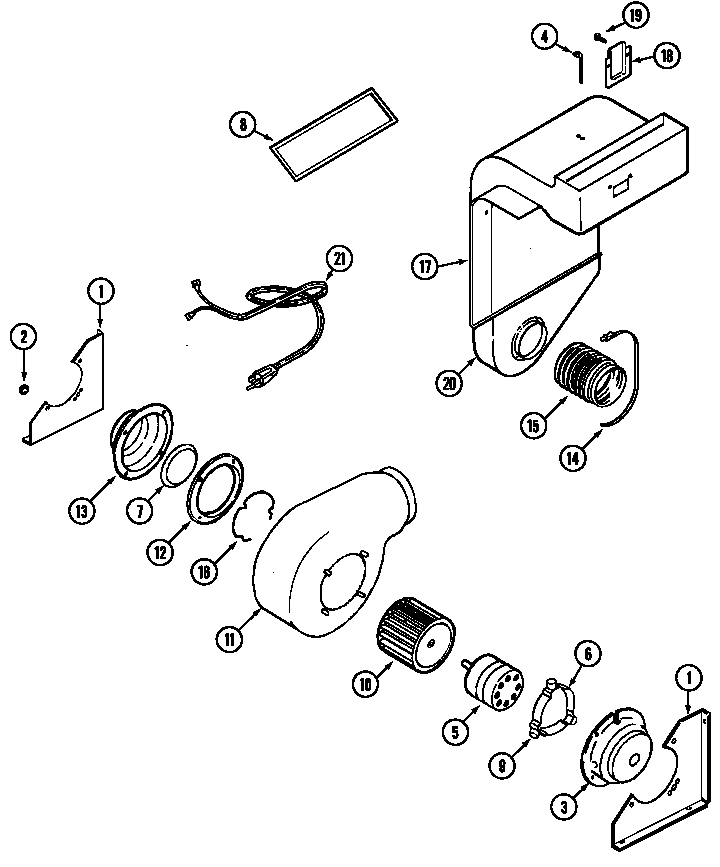

Blower motor-plenum diagram
Grease Filter
Part #715290Replaced by #WP71002111
Manufacturer substitutionThis part replaces 715290. Substitute parts can look different from the original.This item is not returnableIn Stock$22.4821% OFF Phone Price : $28.48
Qty
Screw
Part #700906Replaced by #WPY706189
Manufacturer substitutionThis part replaces 700906. Substitute parts can look different from the original.This item is not returnableIn Stock$5.2116% OFF Phone Price : $6.21QtyBlower motor-plenum diagram
Isolator
Part #708926Replaced by #WP71003558

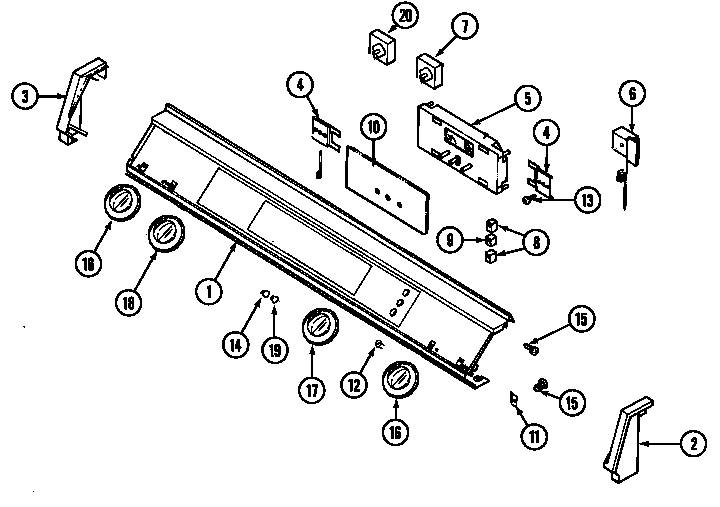

Manufacturer substitutionThis part replaces 708926. Substitute parts can look different from the original.This item is not returnableIn Stock$10.2616% OFF Phone Price : $12.26QtyControl panel diagram
Select Knob
Part #71002501Replaced by #WPY704841

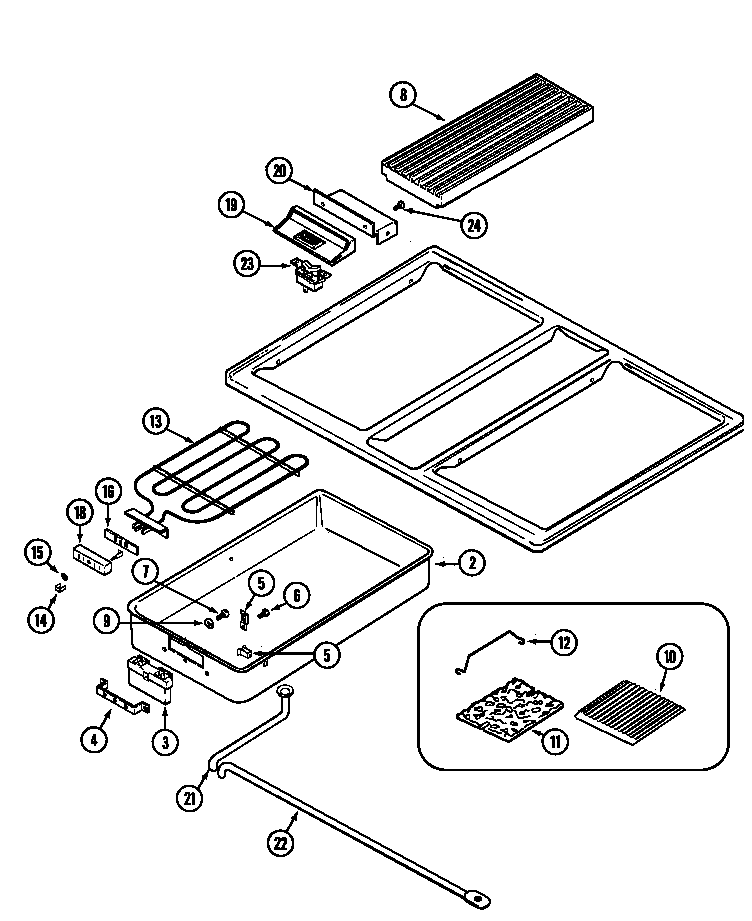

Manufacturer substitutionThis part replaces 71002501. Substitute parts can look different from the original.In Stock$65.27QtyTop assembly diagram
Speed Nut
Part #708862Replaced by #WPY708862
Manufacturer substitutionThis part replaces 708862. Substitute parts can look different from the original.This item is not returnableIn Stock$4.50QtyScrew
Part #712004Replaced by #WP71001171

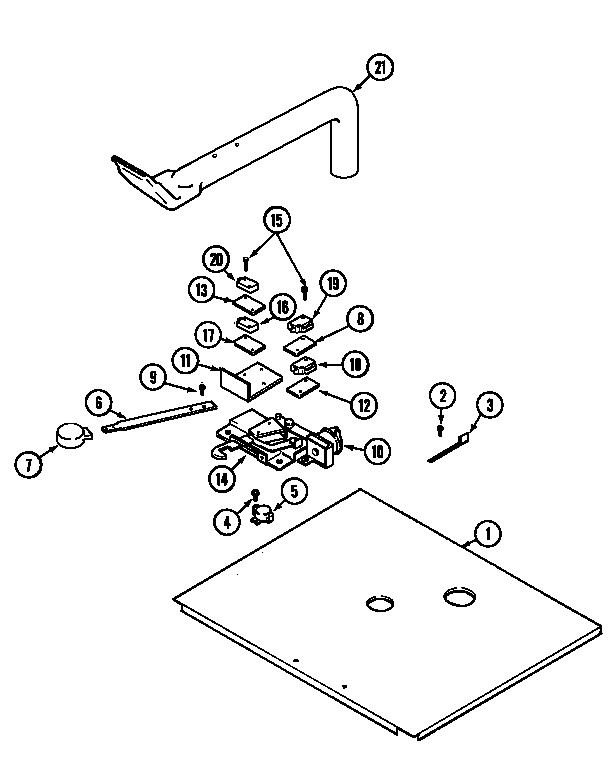

Manufacturer substitutionThis part replaces 712004. Substitute parts can look different from the original.This item is not returnableIn Stock$4.9117% OFF Phone Price : $5.91QtyInternal controls diagram
"switch, Hi-l"
Part #702548Replaced by #WP7403P899-60
Manufacturer substitutionThis part replaces 702548. Substitute parts can look different from the original.In Stock$111.9510% OFF Phone Price : $123.95QtyBlower motor-plenum diagram
Lock Nut
Part #707702Replaced by #WPY707702

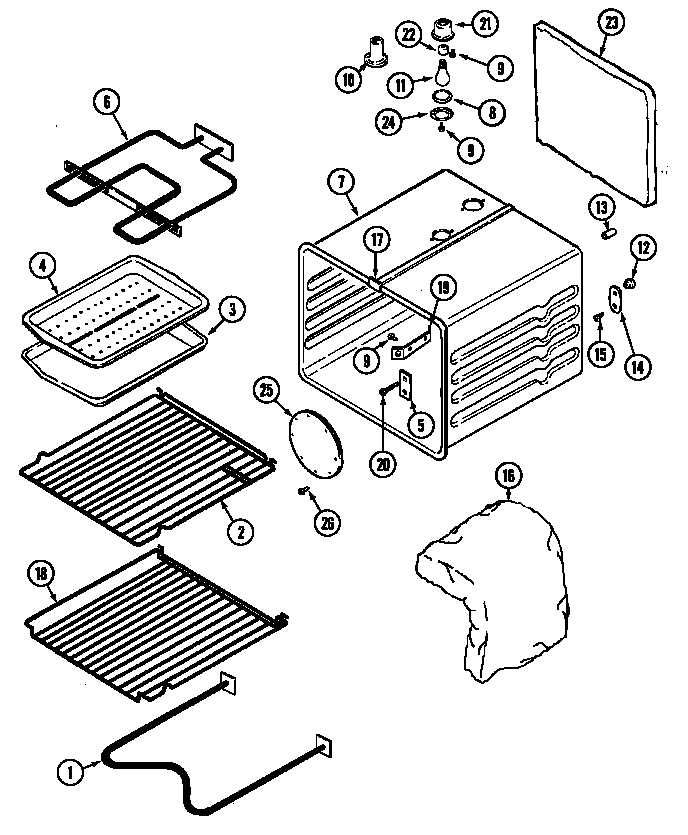

Manufacturer substitutionThis part replaces 707702. Substitute parts can look different from the original.This item is not returnableIn Stock$5.2116% OFF Phone Price : $6.21QtyOven diagram
Broiler Element
Part #704666Replaced by #WPY04100514

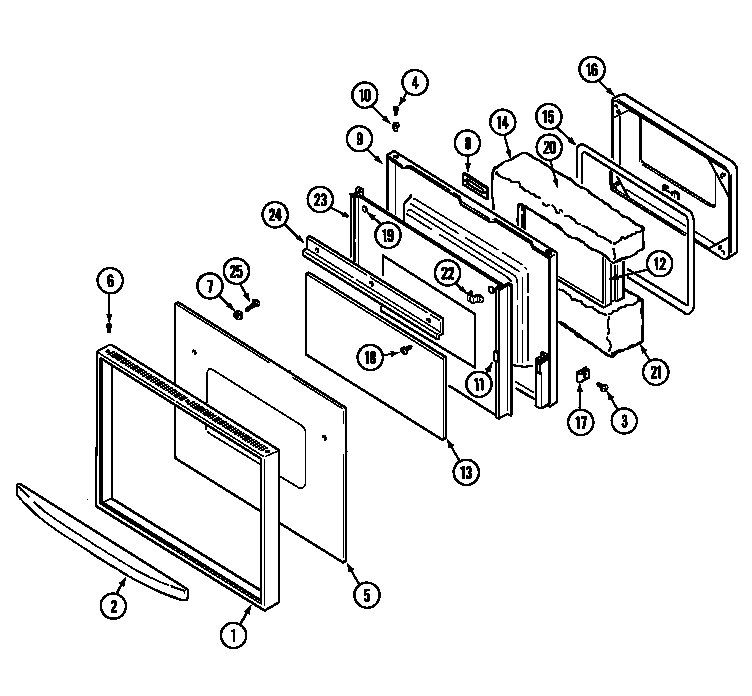

Manufacturer substitutionThis part replaces 704666. Substitute parts can look different from the original.In Stock$98.9211% OFF Phone Price : $110.92QtyDoor diagram
Rivet
Part #701662Replaced by #WP210720
Manufacturer substitutionThis part replaces 701662. Substitute parts can look different from the original.In Stock$18.6110% OFF Phone Price : $20.61Qty
