GE DBXR463GG1WW gas dryer Parts

Here are the diagrams and repair parts for GE DBXR463GG1WW gas dryer, as well as links to manuals and error code tables, if available.

GE DBXR463GG1WW gas dryer
By Schematic
By Part

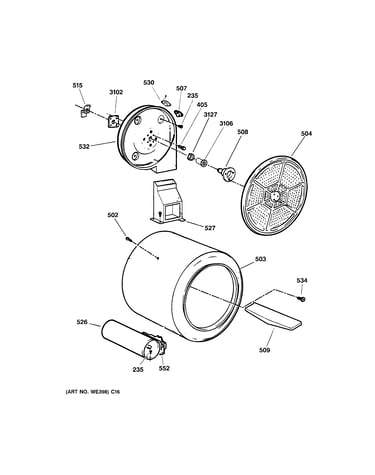

SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for DBXR463GG1WW Gas Dryer

  • Dryer Lp Conversion Kit for GE DBXR463GG1WW - Part WE25X217

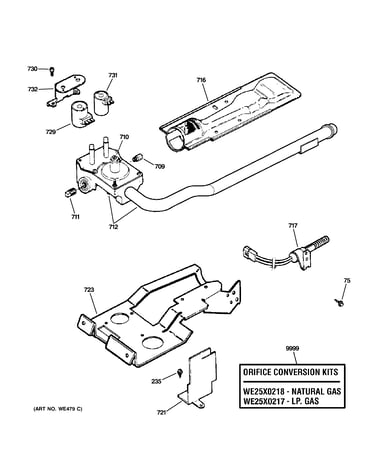

    Gas valve & burner assembly diagram

    Conversion Kit Orifice

    Part #WE25X0217

    Replaced by #WE25X217

    Info Icon
    Manufacturer substitution
    This part replaces WE25X0217. Substitute parts can look different from the original.
    In Stock
    $18.80
    64% OFF Was : $51.74Info Icon
    Minus Item
    Qty
    Plus Item
  • Installation Instructions for GE DBXR463GG1WW - Part 031-16225

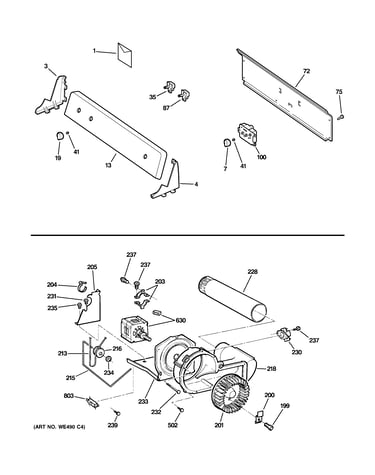

    Backsplash, blower & motor assembly diagram

    Installation Instructions

    Part #31-16139

    Replaced by #031-16225

    Info Icon
    Manufacturer substitution
    This part replaces 31-16139. Substitute parts can look different from the original.
    In Stock
    $21.99
    Minus Item
    Qty
    Plus Item
  • Rca Scr 8-32 Ca for GE DBXR463GG1WW - Part WR01X10317

    Gas valve & burner assembly diagram

    Screw

    Part #WE02X0333

    Replaced by #WR01X10317

    Info Icon
    Manufacturer substitution
    This part replaces WE02X0333. Substitute parts can look different from the original.
    This item is not returnable
    In Stock
    $33.01
    Minus Item
    Qty
    Plus Item
  • Kit Of Servi for GE DBXR463GG1WW - Part WE49X22294

    Backsplash, blower & motor assembly diagram

    End Cap Lh W

    Part #WE19M1474

    Replaced by #WE49X22294

    Info Icon
    Manufacturer substitution
    This part replaces WE19M1474. Substitute parts can look different from the original.
    In Stock
    $69.63
    8% OFF Phone Price : $75.63Info Icon
    Minus Item
    Qty
    Plus Item
  • Haier Refrigerator Door Hole Plug for GE DBXR463GG1WW - Part WR01X21159

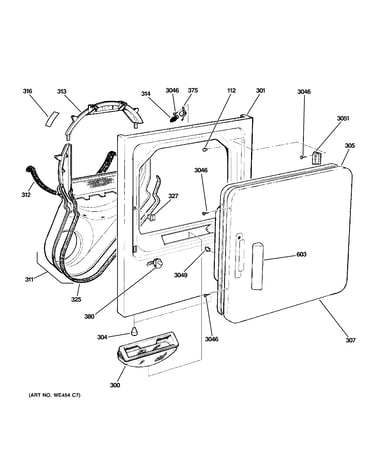

    Front panel & door diagram

    Drive Reversible Plug

    Part #WR02X8693

    Replaced by #WR01X21159

    Info Icon
    Manufacturer substitution
    This part replaces WR02X8693. Substitute parts can look different from the original.
    This item is not returnable
    In Stock
    $10.54
    16% OFF Phone Price : $12.54Info Icon
    Minus Item
    Qty
    Plus Item
  • Appliance Screw for GE DBXR463GG1WW - Part WR2X9260

    Backsplash, blower & motor assembly diagram

    Screw

    Part #WE2M167

    Replaced by #WR2X9260

    Info Icon
    Manufacturer substitution
    This part replaces WE2M167. Substitute parts can look different from the original.
    In Stock
    $31.77
    16% OFF Phone Price : $37.77Info Icon
    Minus Item
    Qty
    Plus Item
  • Panel Side W for GE DBXR463GG1WW - Part WE20M393

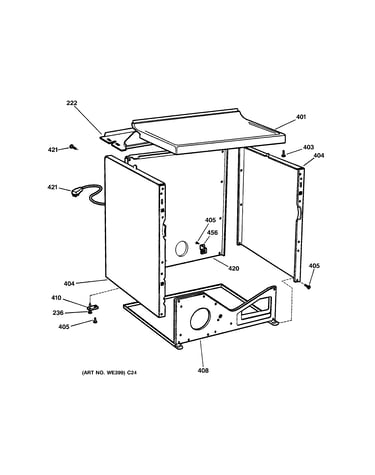

    Cabinet diagram

    Side Pnl W

    Part #WE20M260

    Replaced by #WE20M393

    Info Icon
    Manufacturer substitution
    This part replaces WE20M260. Substitute parts can look different from the original.
    In Stock
    $160.09
    7% OFF Phone Price : $172.09Info Icon
    Minus Item
    Qty
    Plus Item
  • Inner Door for GE DBXR463GG1WW - Part WE10X20578

    Front panel & door diagram

    Door

    Part #WE10M110

    Replaced by #WE10X20578

    Info Icon
    Manufacturer substitution
    This part replaces WE10M110. Substitute parts can look different from the original.
    In Stock
    $98.92
    11% OFF Phone Price : $110.92Info Icon
    Minus Item
    Qty
    Plus Item
  • Bracket Valve for GE DBXR463GG1WW - Part WE13X195

    Gas valve & burner assembly diagram

    Bracket Valve

    Part #WE13X0195

    Replaced by #WE13X195

    Info Icon
    Manufacturer substitution
    This part replaces WE13X0195. Substitute parts can look different from the original.
    In Stock
    $44.64
    Minus Item
    Qty
    Plus Item
  • Dryer Drum Light Bulb for GE DBXR463GG1WW - Part WE05X20431

    Front panel & door diagram

    Dryer Drum Lamp

    Part #WE4M305

    Replaced by #WE05X20431

    Info Icon
    Manufacturer substitution
    This part replaces WE4M305. Substitute parts can look different from the original.
    In Stock
    $12.52
    14% OFF Phone Price : $14.52Info Icon
    Minus Item
    Qty
    Plus Item
