Electric Wall Oven

Model #ZET1038SF2SS GE wall oven

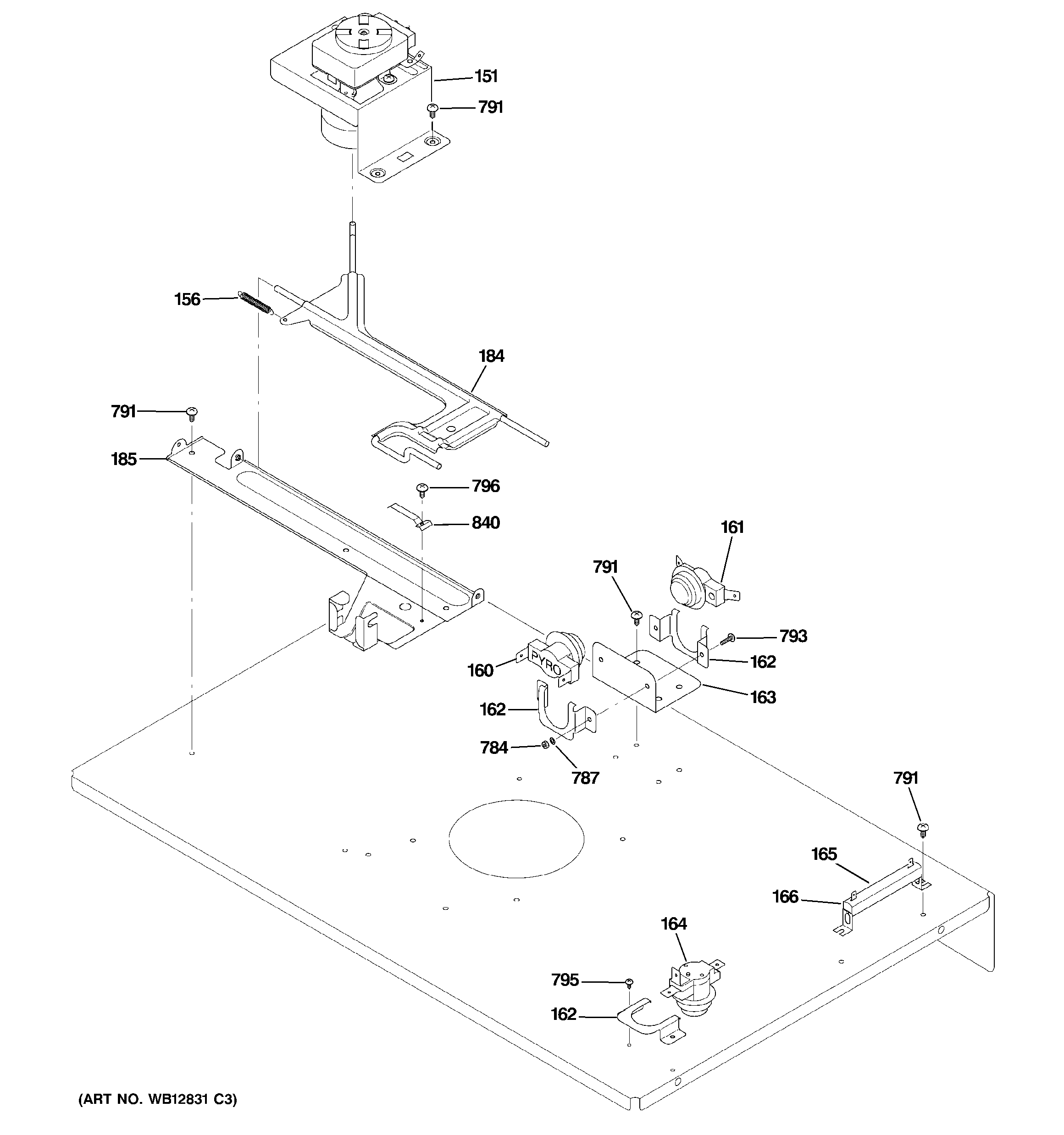

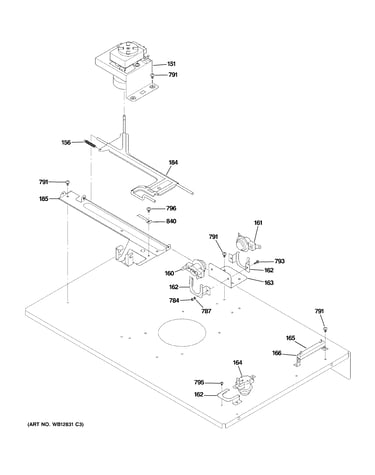

Here are the diagrams and repair parts for GE ZET1038SF2SS wall oven, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

    Showing 10 of 132 parts

    Oven Convection Element#298

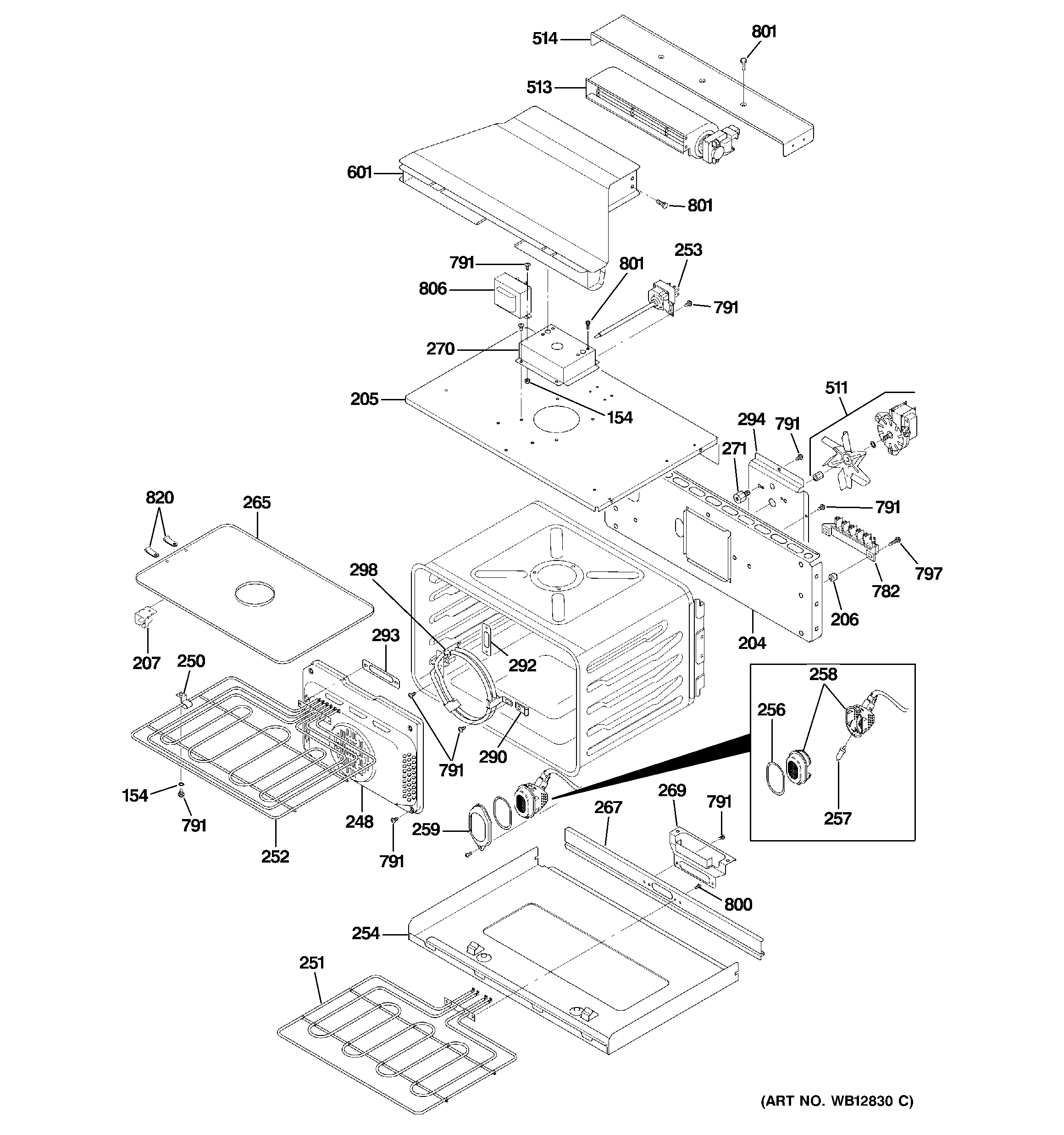

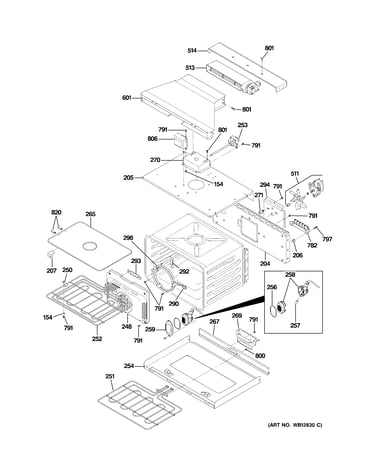

    Body parts (1) Diagram

    Element ring

    Part #WB44X10032
    Replaced by #WB44X10012
    ?
    Manufacturer substitution
    This part replaces WB44X10032. Substitute parts can look different from the original.
    In Stock
    $275.29
    Wall Oven Door Hinge Assembly, Left#280

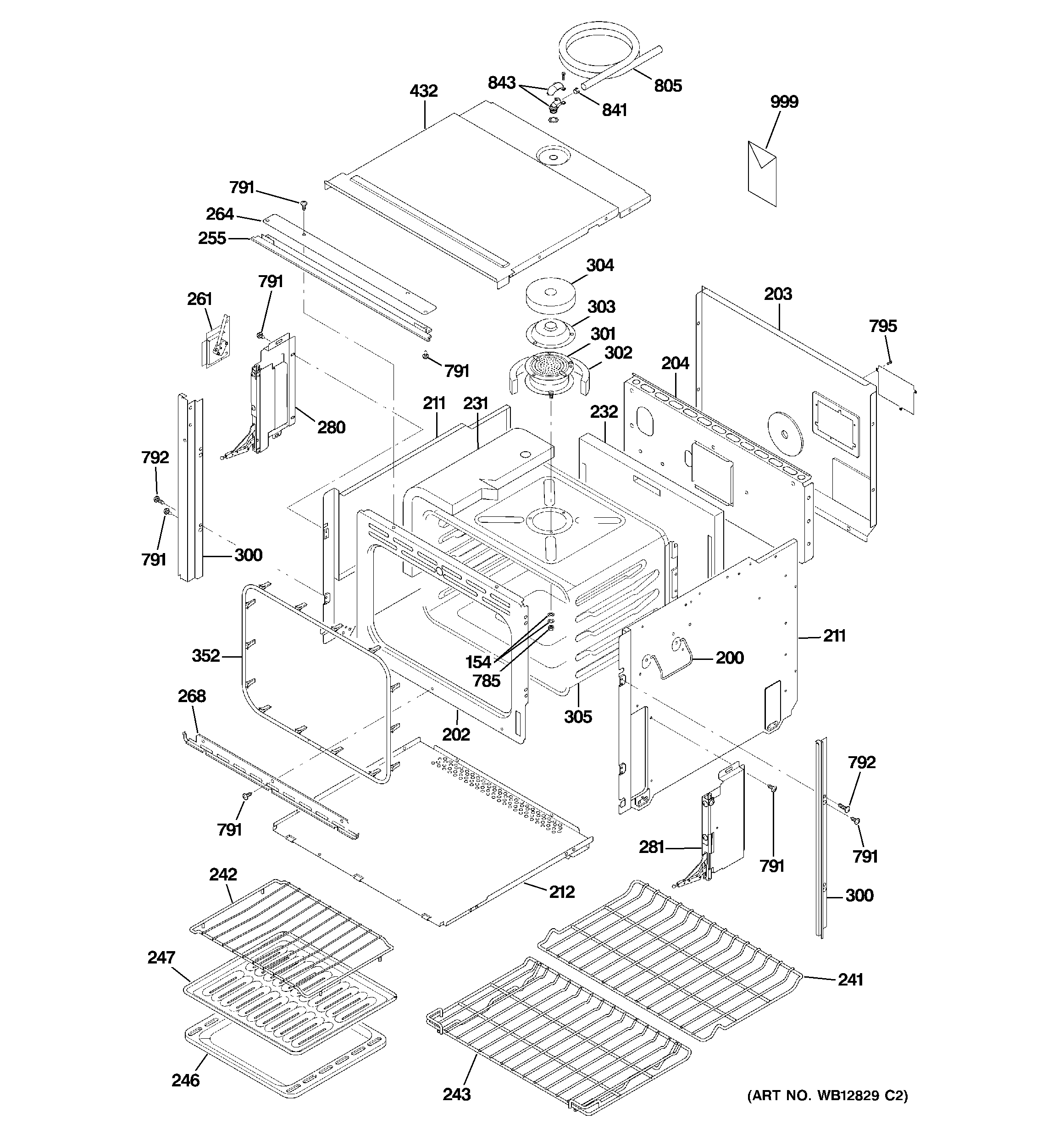

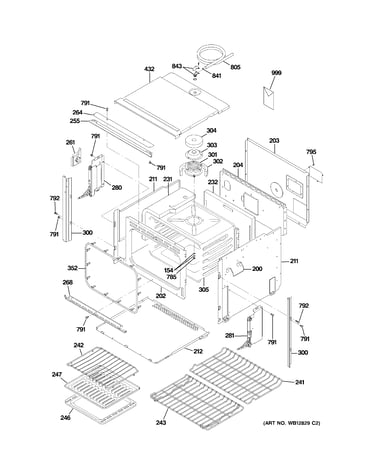

    Body parts (2) Diagram

    In Stock
    $77.89
    Wall Oven Door Hinge#141

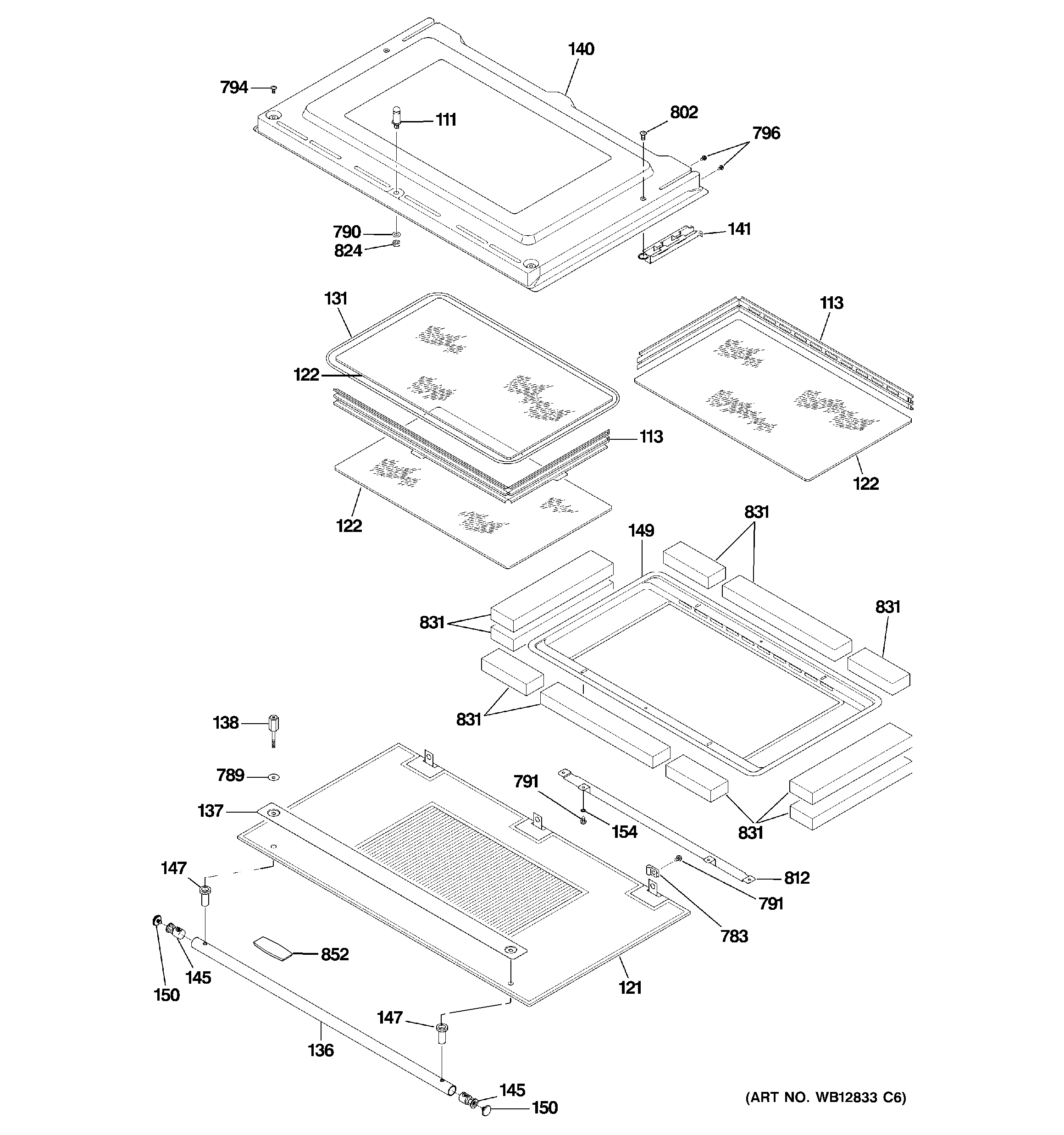

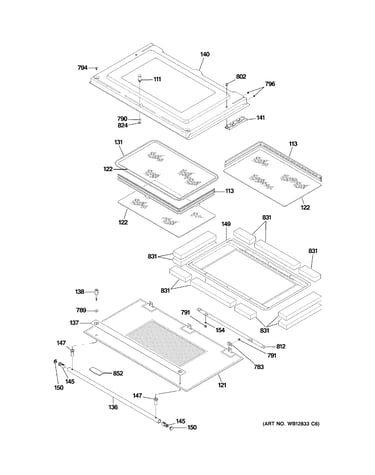

    Door Diagram

    Wall oven door hinge

    Part #WB10X10028
    In Stock
    $28.59
    F Frame Seal#352

    Body parts (2) Diagram

    F frame seal

    Part #WB07X10060
    In Stock
    $138.39
    Cleaning Channel#601

    Body parts (1) Diagram

    Cleaning channel

    Part #WB38X10008
    In Stock
    $170.92
    Convection R#242

    Body parts (2) Diagram

    Convection r

    Part #WB48X10012
    In Stock
    $52.99
    Decal#852

    Door Diagram

    Decal

    Part #WB02X10833
    In Stock
    $42.96
    Cooking Appliance Halogen Light Bulb#257

    Body parts (1) Diagram

    In Stock
    $26.59
    Control Switch Manual#3

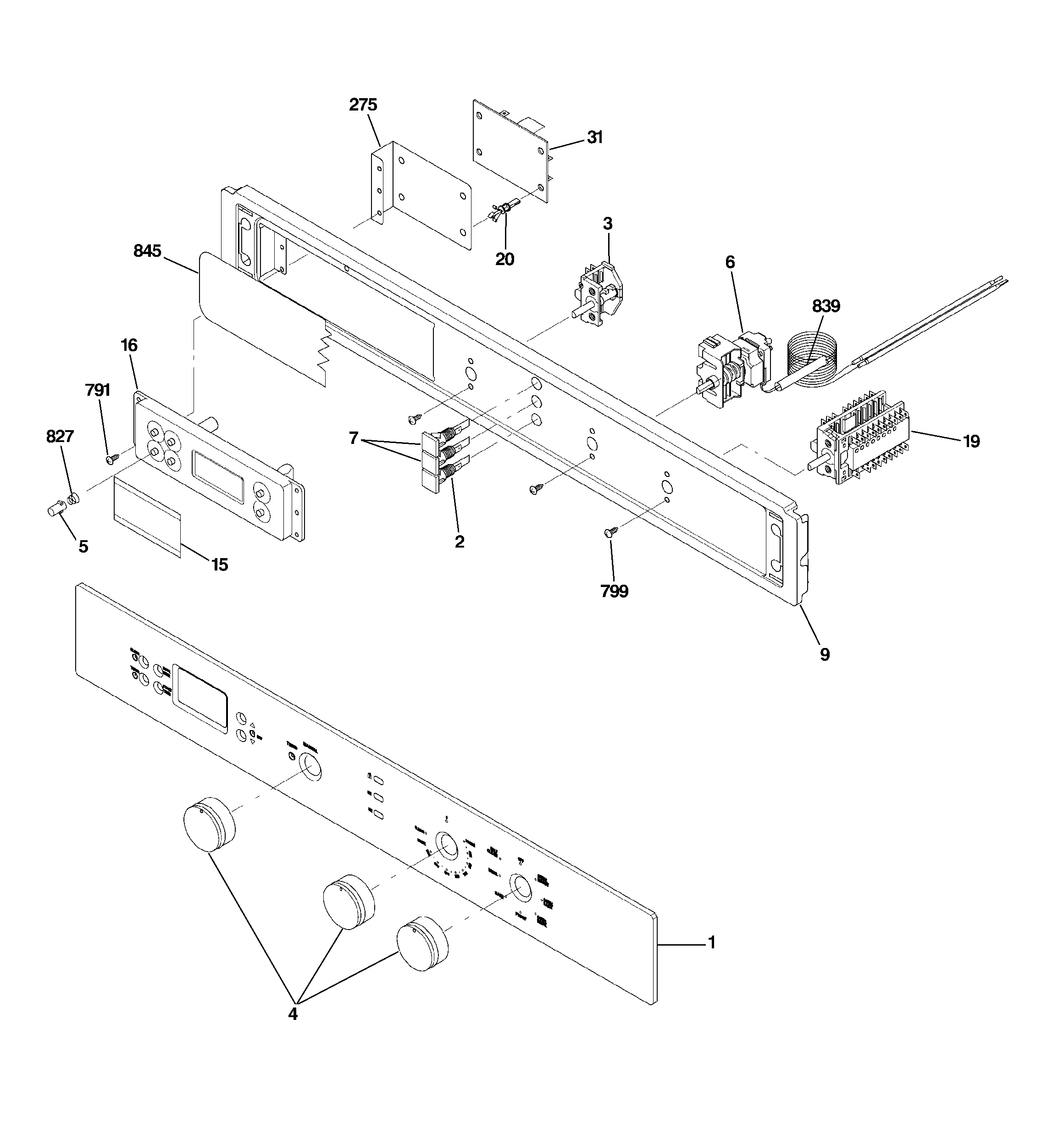

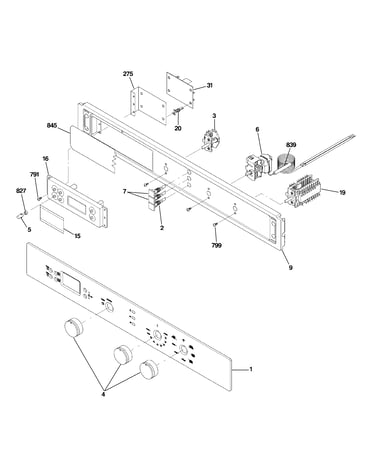

    Control panel Diagram

    Control switch manual

    Part #WB24X10009
    In Stock
    $53.14
    Wall Oven Door Hinge Assembly, Right#281

    Body parts (2) Diagram

    In Stock
    $79.39
