Maytag CWE601 electric wall oven Parts
Here are the diagrams and repair parts for Maytag CWE601 electric wall oven, as well as links to manuals and error code tables, if available.
Error Codes
By Schematic
By Part
SELECT DIAGRAM
Browse Parts for CWE601 Wall Ovens

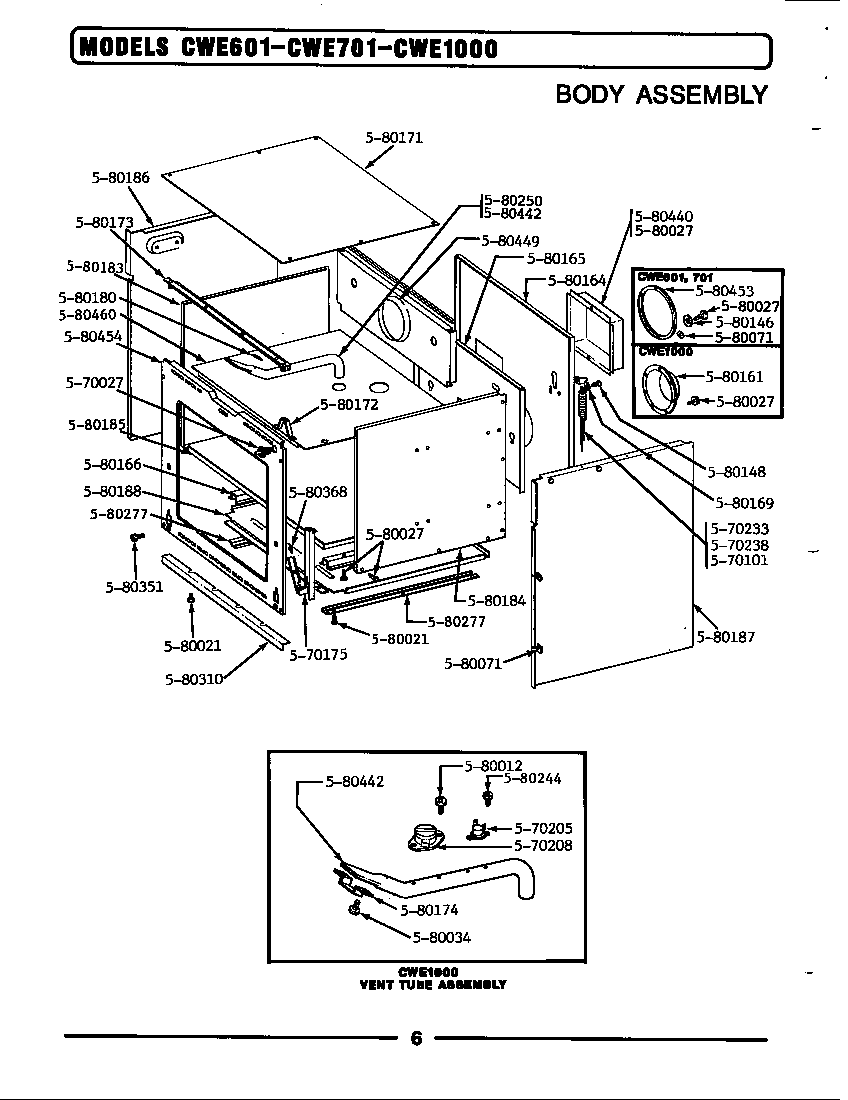

Body assembly diagram
Screw
Part #580244Replaced by #WP355214
Manufacturer substitutionThis part replaces 580244. Substitute parts can look different from the original.This item is not returnableIn Stock$4.9117% OFF Phone Price : $5.91
Qty

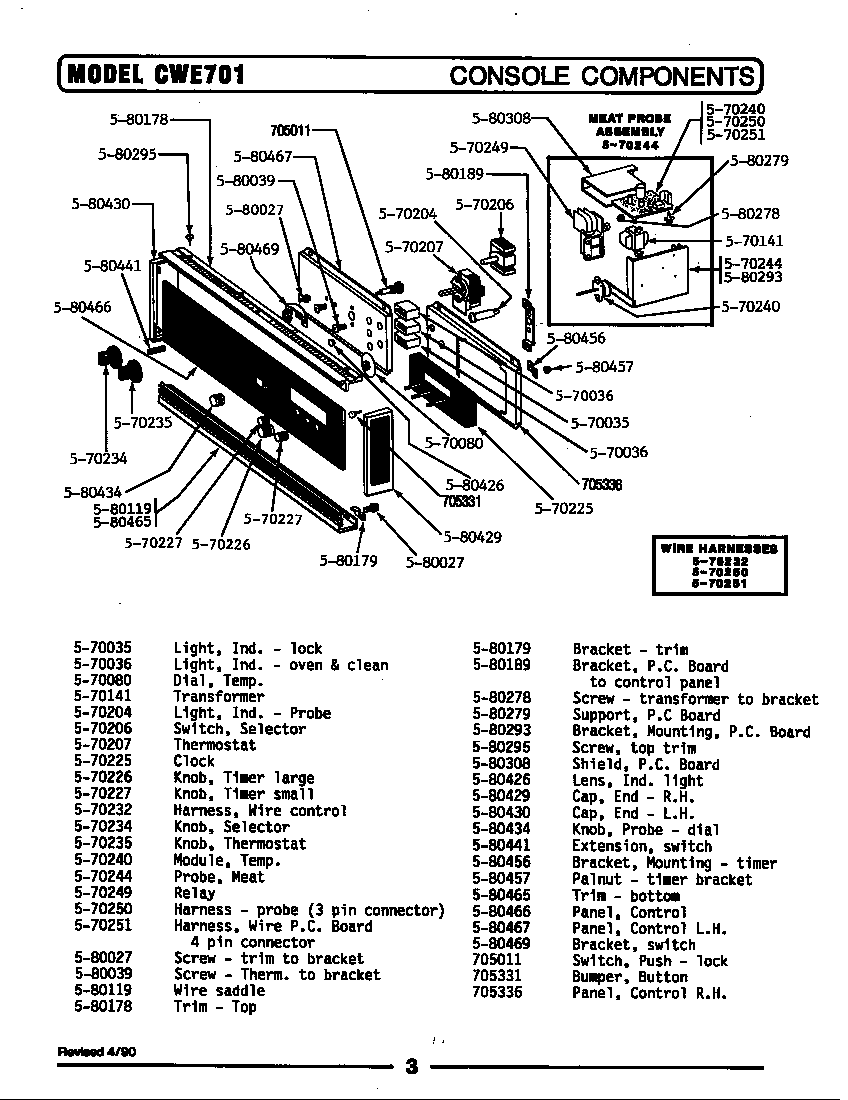

Control panel (cwe701) (cwe701) diagram
Support For
Part #580279
The manufacturer no longer makes this part, and there's no substitute part
Body assembly diagram
Vent Tube
Part #580250
The manufacturer no longer makes this part, and there's no substitute part

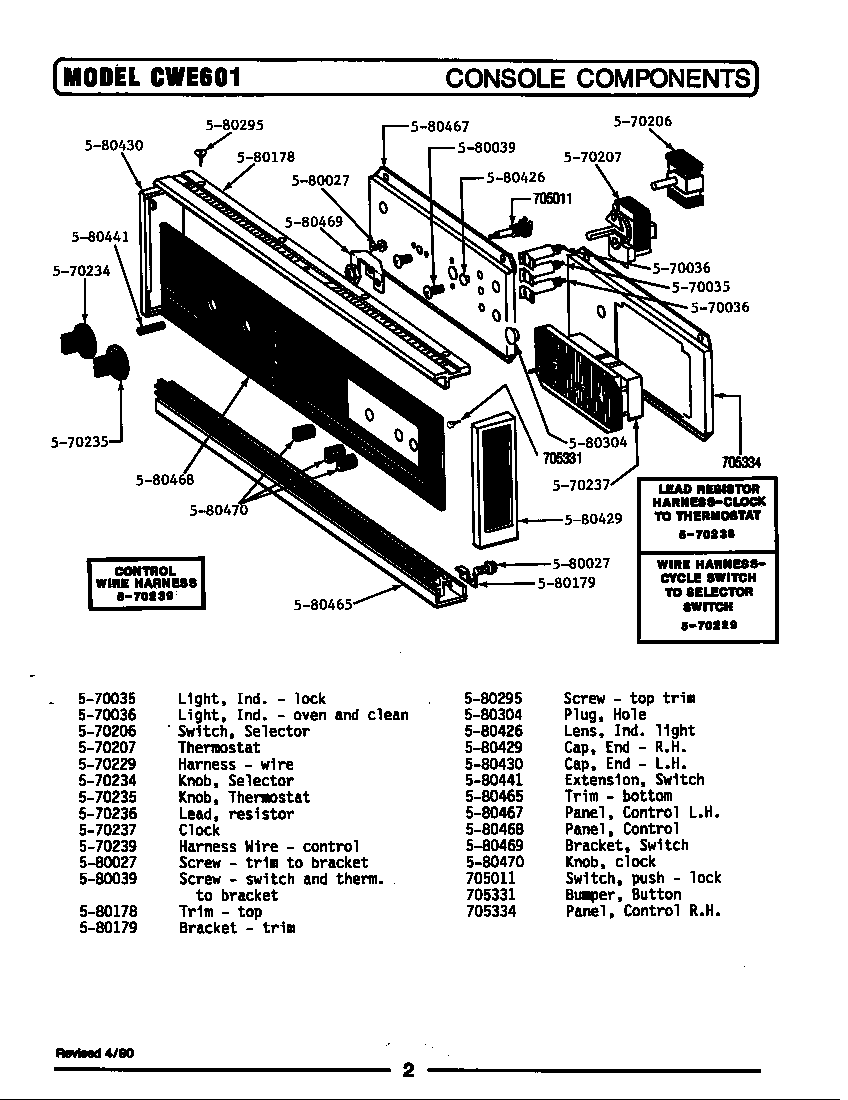

Control panel (cwe601) (cwe601) diagram
Clock
Part #570237
The manufacturer no longer makes this part, and there's no substitute part
Indicator Light
Part #570036
The manufacturer no longer makes this part, and there's no substitute part

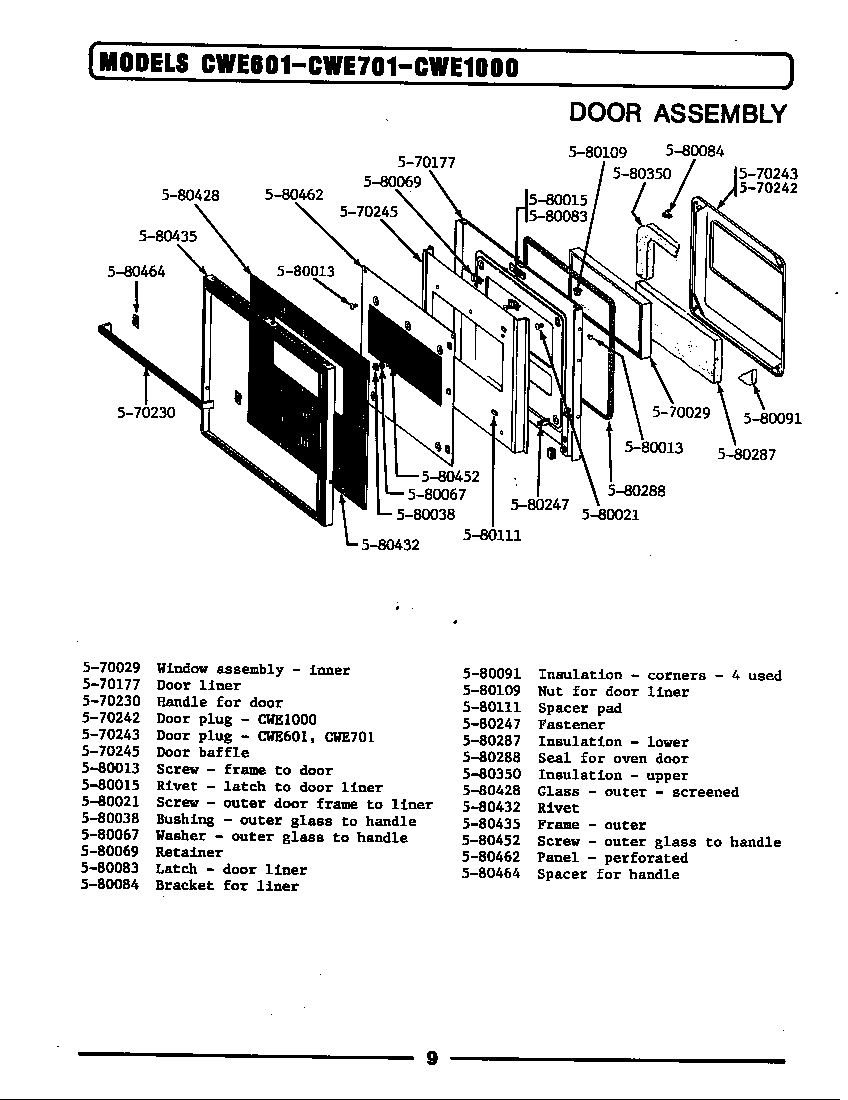

Door assembly diagram
Door Baffle
Part #570245
The manufacturer no longer makes this part, and there's no substitute part
Door assembly diagram
Bushing
Part #580038
The manufacturer no longer makes this part, and there's no substitute part

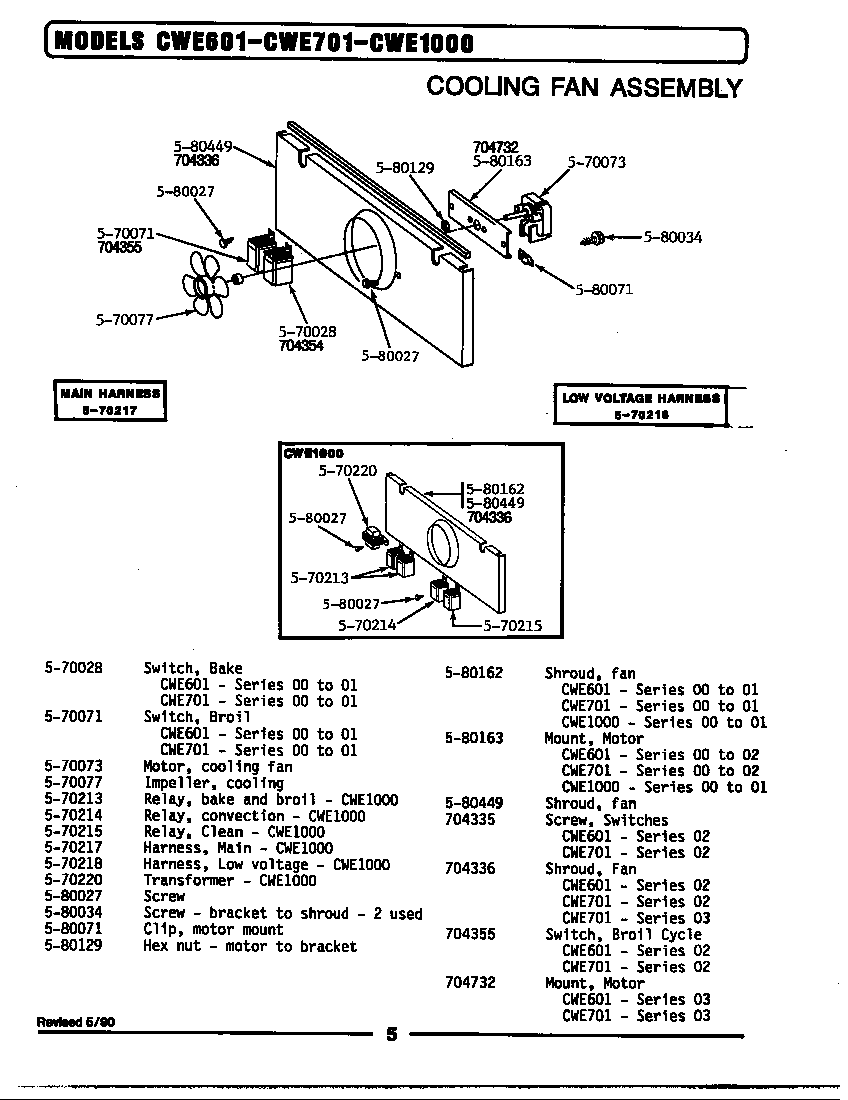

Cooling fan assembly diagram
Relay
Part #570213
The manufacturer no longer makes this part, and there's no substitute part
Thermostat
Part #570235
The manufacturer no longer makes this part, and there's no substitute part

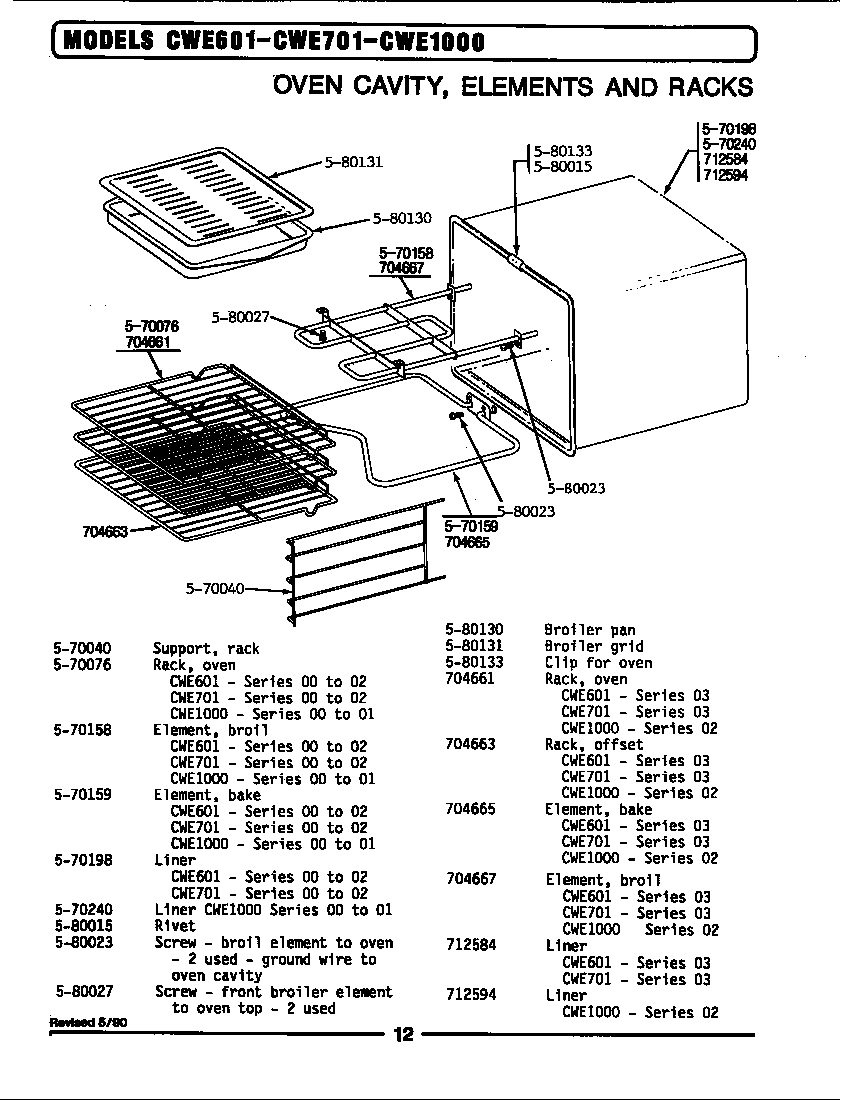

Elements & racks diagram
Oven Broiler Pan
Part #580130
The manufacturer no longer makes this part, and there's no substitute part
