Model # 106175161 Official Craftsman two-stage two-cylinder tank air compressor

Here are the diagrams and repair parts for Official Craftsman 106175161 two-stage two-cylinder tank air compressor, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

Click a diagram to see the parts shown on that diagram.
In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

ALL PARTS

Showing 10 of 110 parts |

#50

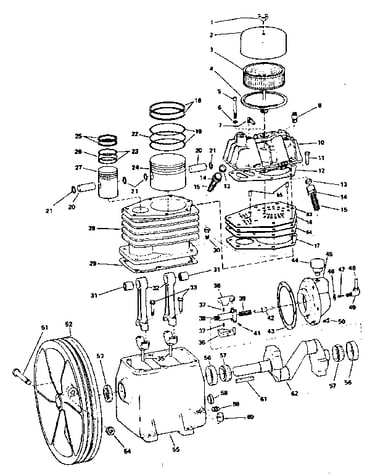

Flywheel and crankcase assembly diagram

Hex screw

Part #ST016000AV

The manufacturer no longer makes this part, and there's no substitute part

#51

Flywheel and crankcase assembly diagram

Screw

Part #ST070652AV

The manufacturer no longer makes this part, and there's no substitute part

#64

Flywheel and crankcase assembly diagram

Lo vlve plte

Part #TF046100AV

The manufacturer no longer makes this part, and there's no substitute part

#65

Flywheel and crankcase assembly diagram

Spring pin

Part #ST070044AV

The manufacturer no longer makes this part, and there's no substitute part

#63

Flywheel and crankcase assembly diagram

Up vlve plte

Part #TF046000AV

The manufacturer no longer makes this part, and there's no substitute part

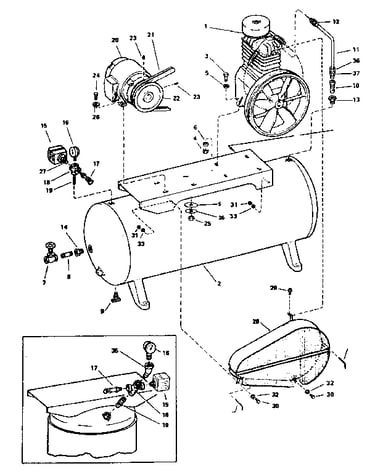

Air compressor diagram

Nipple

Part #ST070303AV

The manufacturer no longer makes this part, and there's no substitute part

#16

Flywheel and crankcase assembly diagram

Air compressor reed gasket

Part #TF022200AV

The manufacturer no longer makes this part, and there's no substitute part

#11

Flywheel and crankcase assembly diagram

Hex screw

Part #ST024300AV

The manufacturer no longer makes this part, and there's no substitute part

Flywheel and crankcase assembly diagram

Replacement filter element

Part #ST073903AV

The manufacturer no longer makes this part, and there's no substitute part

#17

Flywheel and crankcase assembly diagram

Gasket

Part #XA006300AV

The manufacturer no longer makes this part, and there's no substitute part
