Frigidaire FAFW3574KR0 front-loading washer Parts
Here are the diagrams and repair parts for Frigidaire FAFW3574KR0 front-loading washer, as well as links to manuals and error code tables, if available.
Installation guide
Owner’s manual
Error CodesBy Schematic
By Part
SELECT DIAGRAM
Browse Parts for FAFW3574KR0 Front-Loading Washer

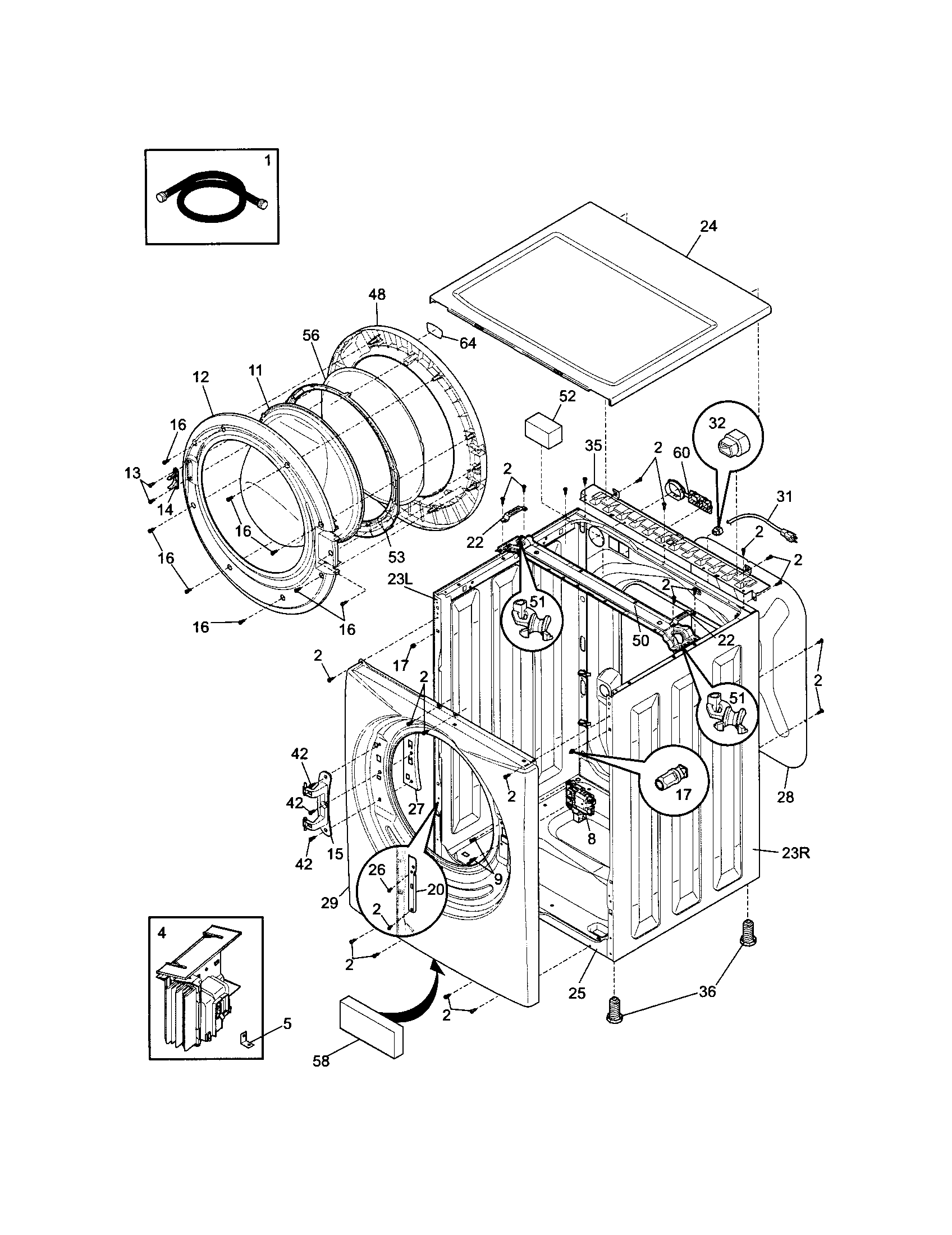

Cabinet/top diagram
Strike
Part #134456602Replaced by #131763302
Manufacturer substitutionThis part replaces 134456602. Substitute parts can look different from the original.This item is not returnableIn Stock$30.1417% OFF Phone Price : $36.14
Qty
Cabinet/top diagram
Door Lock Switch
Part #131763245Replaced by #131763256
Manufacturer substitutionThis part replaces 131763245. Substitute parts can look different from the original.In Stock$124.479% OFF Phone Price : $136.47QtyMotor/tub diagram
Shock Absorber
Part #134560410Replaced by #5304485917
Manufacturer substitutionThis part replaces 134560410. Substitute parts can look different from the original.In Stock$28.8117% OFF Phone Price : $34.81QtyLaundry Appliance Screw, #8-18 X 31/100-in
In Stock$14.0812% OFF Phone Price : $16.08QtyControl panel diagram
Washer Water Inlet Valve
In Stock$38.6713% OFF Phone Price : $44.67QtyMotor/tub diagram
Washer Outer Tub Gasket
Part #134361900Replaced by #5304520351
Manufacturer substitutionThis part replaces 134361900. Substitute parts can look different from the original.In Stock$82.837% OFF Phone Price : $88.83QtyMotor/tub diagram
Bellows
Part #134740900Replaced by #134515300
Manufacturer substitutionThis part replaces 134740900. Substitute parts can look different from the original.In Stock$253.485% OFF Phone Price : $265.48QtyMotor/tub diagram
Washer Shock Absorber Mounting Pin
In Stock$16.7711% OFF Phone Price : $18.77QtyCabinet/top diagram
Washer Motor Control Board
Part #134409905Replaced by #5304504863
Manufacturer substitutionThis part replaces 134409905. Substitute parts can look different from the original.In Stock$207.7029% OFF Was : $290.79QtyControl panel diagram
Washer Dispenser Drawer Insert
In Stock$27.0733% OFF Was : $40.55Qty
Most common symptoms to help you fix your washers
Choose a symptom to see related washer repairs.
Main causes: clogged drain hose, house drain clogged, bad drain pump, water-level pressure switch failure, bad control b…
Main causes: broken lid switch or lid lock, bad pressure switch, broken shifter assembly, faulty control system…
Main causes: worn agitator dogs, bad clutch, broken motor coupler, shifter assembly failure, broken door lock, suspensio…
Main causes: water heater failure, bad water temperature switch, faulty control board, bad water valve, faulty water tem…
Main causes: lack of electrical power, wiring failure, bad power cord, electronic control board failure, bad user interf…
Main causes: no water supply, bad water valves, water-level pressure switch failure, control system failure, bad door lo…
Main causes: unbalanced load, loose spanner nut, worn drive block, broken shock absorber or suspension spring, debris in…
Main causes: leaky water inlet valve, faulty water-level pressure switch, bad electronic control board…
Main causes: bad lid switch or door lock, bad timer or electronic control board, wiring failure, bad water inlet valve a…
