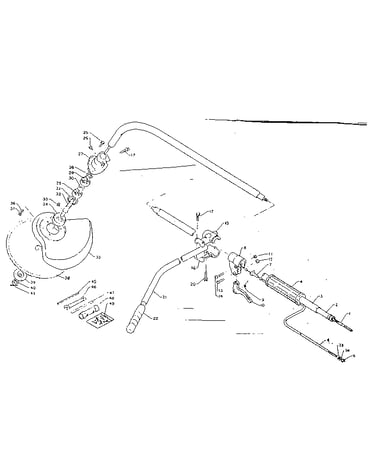

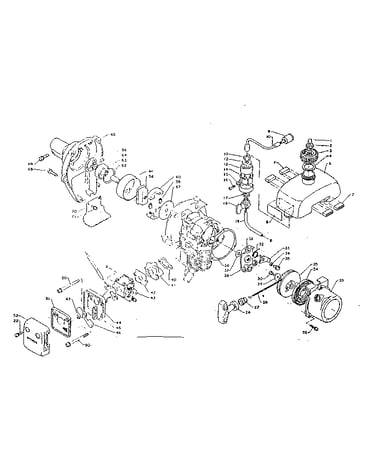

Model #271281711 Craftsman weed & brush cutter

Here are the diagrams and repair parts for Craftsman 271281711 weed & brush cutter, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Save to my profile

    Showing 10 of 190 parts

    Lawn & Garden Equipment Engine Spark Plug

    #27

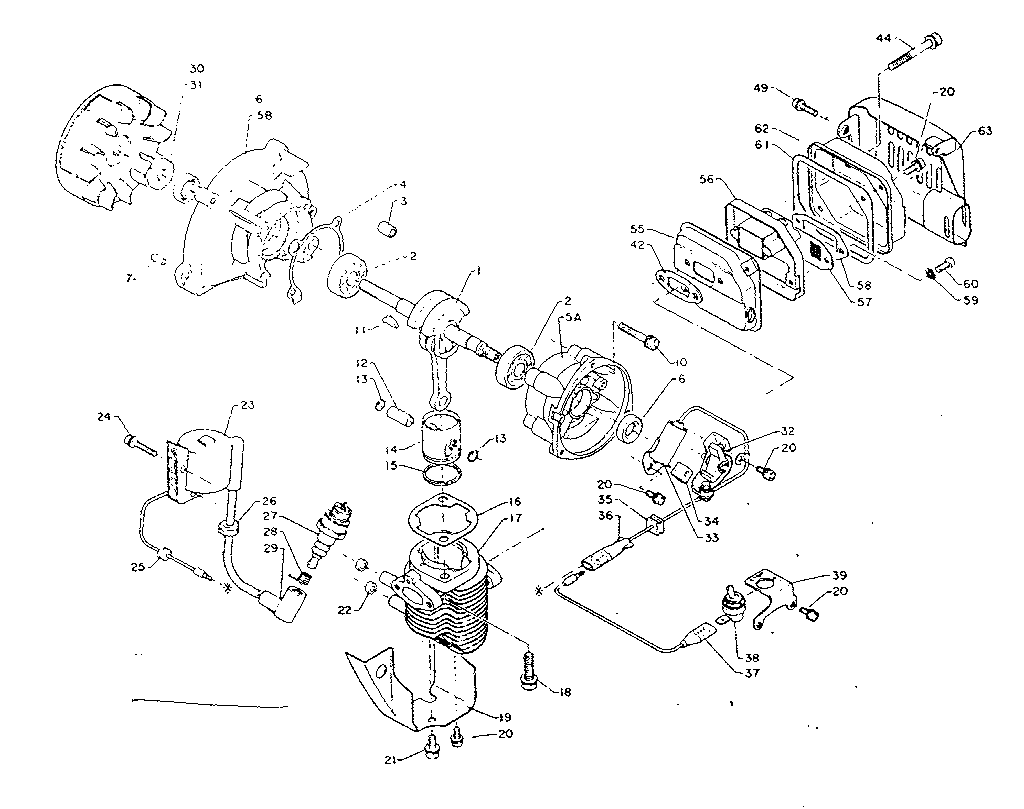

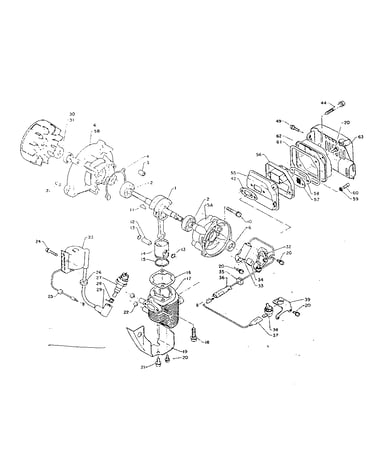

    Power head Diagram

    Lawn & garden equipment engine spark plug

    Part #CJ8
    ?
    Manufacturer substitution
    This part replaces 159010-00330. Substitute parts can look different from the original.
    This part replaces 159010-00330
    This item is not returnable
    $3.09 |
    36% OFF MSRP:$4.80

    In Stock

    Pump Gasket

    #27

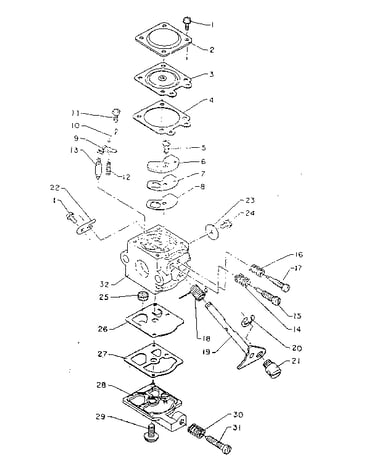

    Carburetor (type: walbro wa) Diagram

    Pump gasket

    Part #123125-03930

    The manufacturer no longer makes this part, and there's no substitute part

    Spring

    #12

    Carburetor (type: walbro wa) Diagram

    Spring

    Part #123122-06530

    The manufacturer no longer makes this part, and there's no substitute part

    Screen

    #25

    Carburetor (type: walbro wa) Diagram

    Screen

    Part #123126-03930

    The manufacturer no longer makes this part, and there's no substitute part

    Screw

    #5

    Carburetor (type: walbro wa) Diagram

    Screw

    Part #123167-05230

    The manufacturer no longer makes this part, and there's no substitute part

    Gasket

    #8

    Carburetor (type: walbro wa) Diagram

    Gasket

    Part #123164-03930

    The manufacturer no longer makes this part, and there's no substitute part

    Screw

    #11

    Carburetor (type: walbro wa) Diagram

    Screw

    Part #123139-03930

    The manufacturer no longer makes this part, and there's no substitute part

    Valve Diaphm

    #7

    Carburetor (type: walbro wa) Diagram

    Valve diaphm

    Part #123165-03930

    The manufacturer no longer makes this part, and there's no substitute part

    Lever

    #9

    Carburetor (type: walbro wa) Diagram

    Lever

    Part #123123-03930

    The manufacturer no longer makes this part, and there's no substitute part

    Lever Pin

    #10

    Carburetor (type: walbro wa) Diagram

    Lever pin

    Part #123138-03930

    The manufacturer no longer makes this part, and there's no substitute part
