Kenmore 25357398600 refrigerator Parts

On the Kenmore 25357398600 side-by-side refrigerator, the water filter is located inside the fresh food (refrigerator) compartment, in the upper right back corner (rear filter style on some models). For the exact placement and removal steps, use the owner's manual.

How to find it quickly

Look for a round filter cup or housing at the back, near the top-right area of the refrigerator section.

• Open the refrigerator door (fresh food side)
• Check the upper right rear corner inside the compartment
• Look for a twist-off filter cup/housing
• If you do not see a filter housing, your unit may be set up to run without a cartridge installed

What to expect when you remove it

Most rear filters remove by twisting the filter cup to the left; a small amount of water can drip during removal.

• Keep a towel under the housing
• Twist the cup left to remove
• The cartridge often comes down with the cup
• If the cartridge stays in the housing, pull down gently while twisting

Filter replacement basics (typical for this design)

The manual guidance for this style is to replace the filter on a schedule and also based on usage.

Replacement trigger	What it means	What to do
Time-based	About every 6 to 9 months	Replace the cartridge
Usage-based	After about 400 gallons	Replace the cartridge
After sitting unused	After moving or long downtime	Replace before using

If you need the correct replacement cartridge for this model, the matching water filter on our parts list is the genuine Kenmore refrigerator water filter WFCB. You can also search by model number on Sears PartsDirect.

Why it matters

A correctly located and properly seated refrigerator water filter helps protect water flow to the dispenser and ice maker, improves taste and odor, and reduces the chance of slow dispensing caused by a clogged cartridge.

Last updated: February 2026

Most Kenmore side-by-side refrigerators are about 32 to 36 inches wide; for your Kenmore 25357398600, the exact cabinet width and required clearance are listed in the installation guide. Use that spec (not the door or handle span) when measuring a cutout.

How to measure width the right way

Use these steps so your opening fits the refrigerator and the doors can swing:

• Measure the cabinet width (main box), not just the doors.
• Add clearance for door swing and handles (often 1 to 2 inches total, depending on setup).
• Leave airflow space at the sides and top (commonly at least 1/8 to 1/2 inch per side; follow the guide for your model).
• Confirm the floor is level; a tilt can change how doors align and seal.
• If the unit has an ice maker and dispenser, plan room for the water line behind the cabinet.

Typical width ranges (what you will usually see)

These ranges help you sanity-check your measurements before you confirm the exact spec in the guide.

Refrigerator type	Typical width	Best for
Compact side-by-side	32 to 33 in.	Tight kitchens, smaller capacity
Standard side-by-side	35 to 36 in.	Most full-size installations
Counter-depth side-by-side	35 to 36 in.	Flusher look with cabinets

Why it matters

Width is only part of fit. If the opening is tight, the doors may not open fully, the toe grille can bind, and poor airflow can reduce cooling performance. The installation guide also covers leveling and door seal checks that prevent warm spots and frost.

Related maintenance tip (helps after moving or reinstalling)

If you reconnect the water supply after installation, we recommend replacing the water filter on schedule and flushing the system. The manual calls out ordering Kenmore replacement cartridge 46 9910, which matches the genuine Kenmore refrigerator water filter WFCB.

You can order replacement parts for your Kenmore 25357398600 from the parts list for this model, or search by model number on Sears PartsDirect.

Last updated: February 2026

On Kenmore side-by-side refrigerator model 25357398600, the model number is printed on the serial plate located inside the refrigerator (fresh food) compartment. Open the refrigerator door and look along the interior walls near the front opening for the rating label.

What to look for on the label

The serial plate typically includes several fields. Use these to identify your exact unit:

• Model number (often starts with 253 on this Kenmore platform)
• Serial number
• Electrical ratings (volts/amps)
• Manufacturing information

Quick steps to find it fast

1. Open the refrigerator (not freezer) door.
2. Scan the inside liner near the front edges (commonly side wall or upper area).
3. Look for a label that lists Model Number and Serial Number.
4. Write the model number exactly as shown so you can match parts correctly.

Cleaning tip (so the print stays readable)

The use and care guide recommends cleaning the serial plate using only mild methods.

• Use soap and water on a soft cloth
• Wipe gently and dry
• Avoid abrasive pads or harsh cleaners

Why it matters

We use the model number to match the correct Kenmore refrigerator parts for your exact configuration (ice maker, water filter system, door bins, gaskets). Even small model differences can change which parts fit.

Model number vs. serial number (at a glance)

Item	What it identifies	Used for
Model number	The design and parts list	Ordering the correct replacement parts
Serial number	Your unit’s unique build	Service history and production details

For model-specific details and diagrams, use the 25357398600 owner's manual. If you are ordering parts, start with the parts list for this model, or search by model number on Sears PartsDirect.

Last updated: February 2026

On Kenmore model 25357398600, the ER 1F (often shown as ER IF) code points to an ice fan problem in the freezer area. That fan pushes cold air through the door ducting to keep the ice maker and ice bin area cold, so ice production and dispensing can be affected.

What you will notice when ER 1F shows up

• Ice maker slows down or stops making ice
• Ice in the bin gets soft, clumps, or melts and refreezes
• Little or no ice dispenses, or the dispenser jams
• Freezer temperature may seem normal, but the ice room is warm
• You may hear unusual fan noise (rubbing, buzzing) from the freezer/door area

Quick checks we recommend (safe, no tools)

1. Power reset: Unplug the refrigerator (or switch off the breaker) for 2 minutes, then restore power.
2. Check for ice jams: If cubes have frozen together, remove the ice bin and shake it to loosen cubes (do not use sharp tools).
3. Confirm doors seal and close fully: Warm air leaks can worsen icing and fan issues.
4. Look for frost buildup: Heavy frost in the freezer can interfere with airflow and fan operation.
5. Review the model-specific steps in the 25357398600 owner's manual.

Parts that commonly relate to ice-room airflow and icing

If the code returns after a reset and the ice area still is not staying cold, these parts are commonly involved in the symptoms around icing and airflow:

Symptom	Common cause	Example part on this model page
Ice clumps, poor airflow	Frost/defrost issue	Refrigerator defrost bi-metal thermostat 5303918214
Door not sealing, moisture intrusion	Worn door gasket	Refrigerator freezer gasket 241786014
Ice maker area not staying cold	Ice-room airflow issue	(Often tied to the ice fan circuit and airflow path)

Why it matters

The ice fan is what keeps the ice maker compartment cold. When it is not moving air correctly, the ice maker can stop producing, cubes can melt and refreeze into a solid mass, and the dispenser mechanism can jam.

Last updated: February 2026

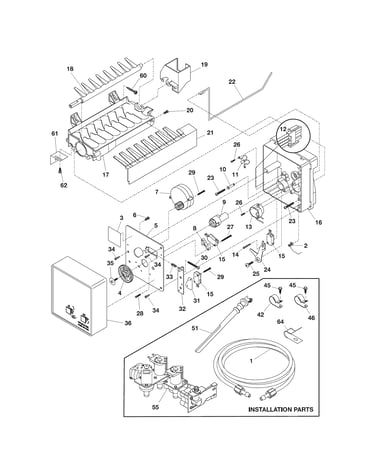

To replace the ice maker in your Kenmore 25357398600 side-by-side refrigerator, we cut power, turn the ice maker OFF, remove the ice bin, swap the ice maker assembly, then restore power and verify it fills and harvests. Use the 25357398600 owner's manual for model-specific access details.

Before you start

• Unplug the refrigerator or switch off the breaker.
• Lift the wire signal arm to OFF (up).
• Remove the ice container by lifting up and out.
• Put towels down to catch melting ice.
• Do not rotate the auger when removing or reinstalling the ice bin.

Replacement steps (typical side-by-side)

1. Remove the ice bin and clear ice chips from the shelf and chute area.
2. Remove the ice maker mounting screws.
3. Unplug the wiring harness connector (pull on the connector, not the wires).
4. Install the replacement ice maker and tighten mounting screws.
5. Reconnect the harness, reinstall the ice bin, and lower the wire arm to ON (down).

Water supply checks (prevents “no ice” after install)

The manual calls for 30 to 100 psi water pressure and a 1/4-inch (6.4 mm) OD supply line.

• Fully open the shutoff valve.
• Flush the supply line into a bucket until water runs clear.
• At the inlet valve connection, finger-tighten the compression nut, then tighten about a half turn more; do not overtighten.

After replacement	Most likely issue	What we do
No water fill	Valve closed, kinked line, low pressure	Open valve, straighten line, confirm 30 to 100 psi
Ice bin will not seat	Auger misaligned	Turn auger in 90° steps until it fits

Why it matters

A new ice maker will not make ice reliably unless the bin seats correctly and the water supply is set up for proper pressure and a leak-free compression fitting.

You can order model-matched parts from the parts list for Kenmore 25357398600, or search by model on Sears PartsDirect.

Last updated: February 2026
