Model # ZISS480DHBSS Official GE refrigerator

Here are the diagrams and repair parts for Official GE ZISS480DHBSS refrigerator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

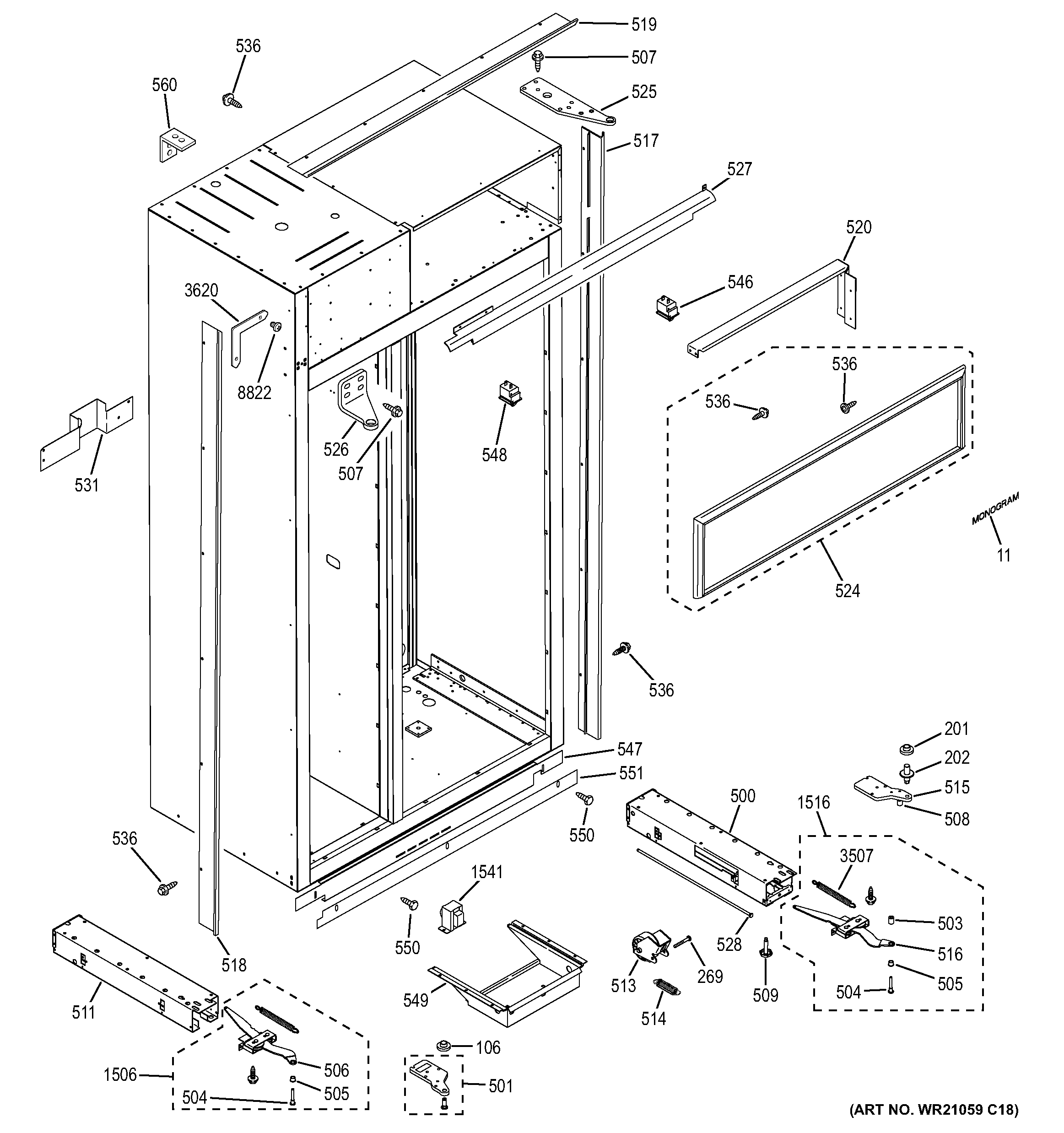

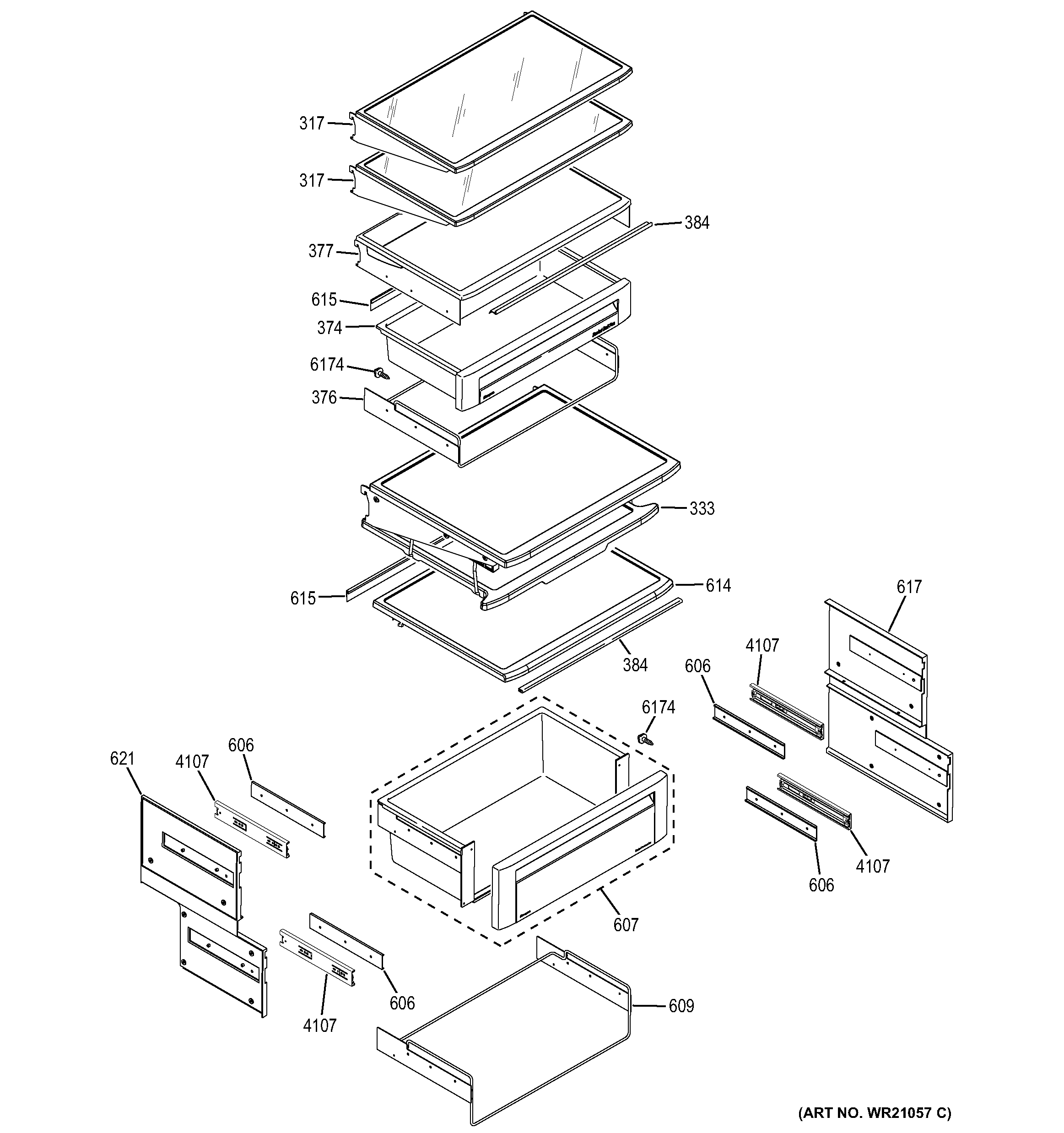

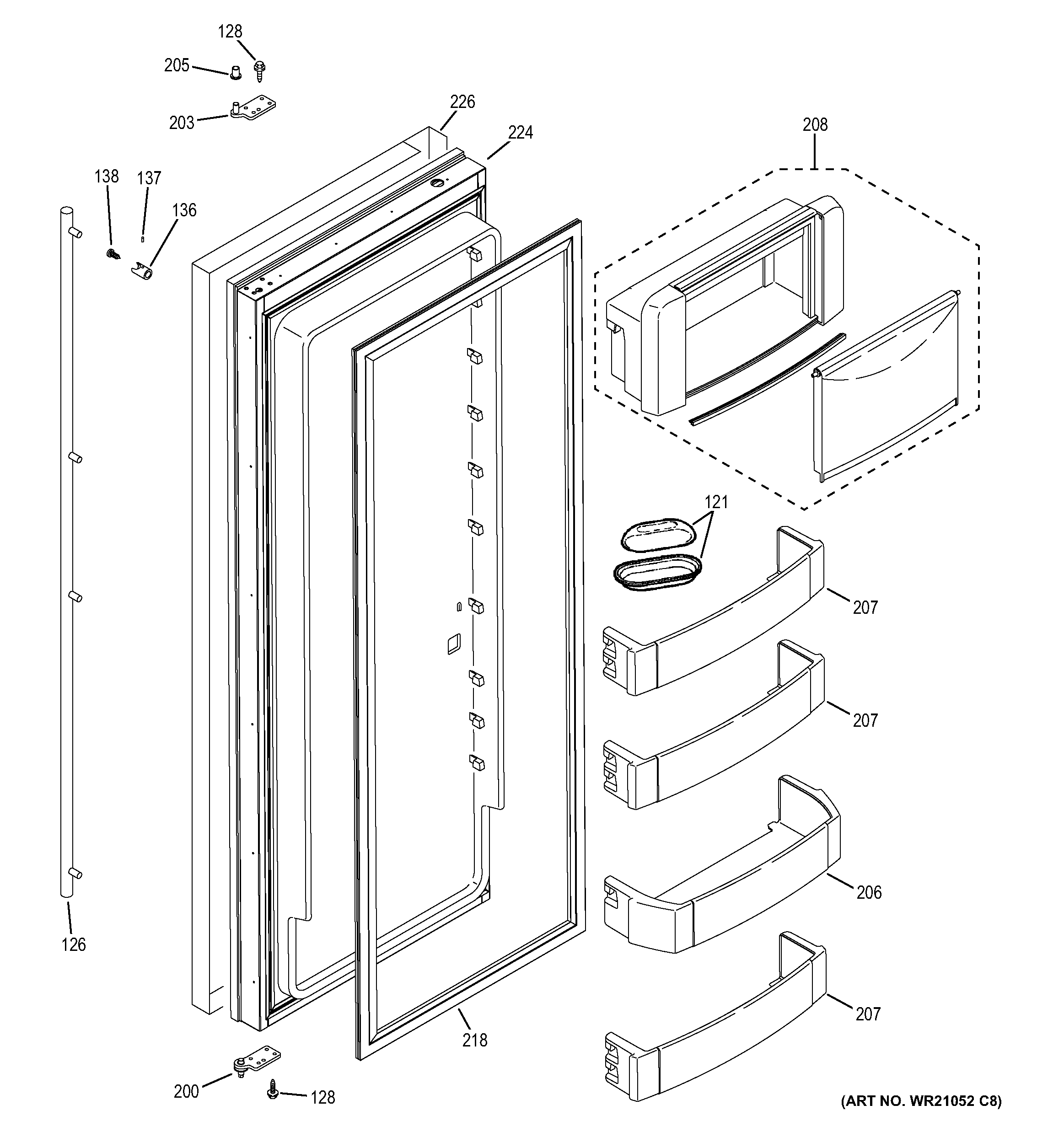

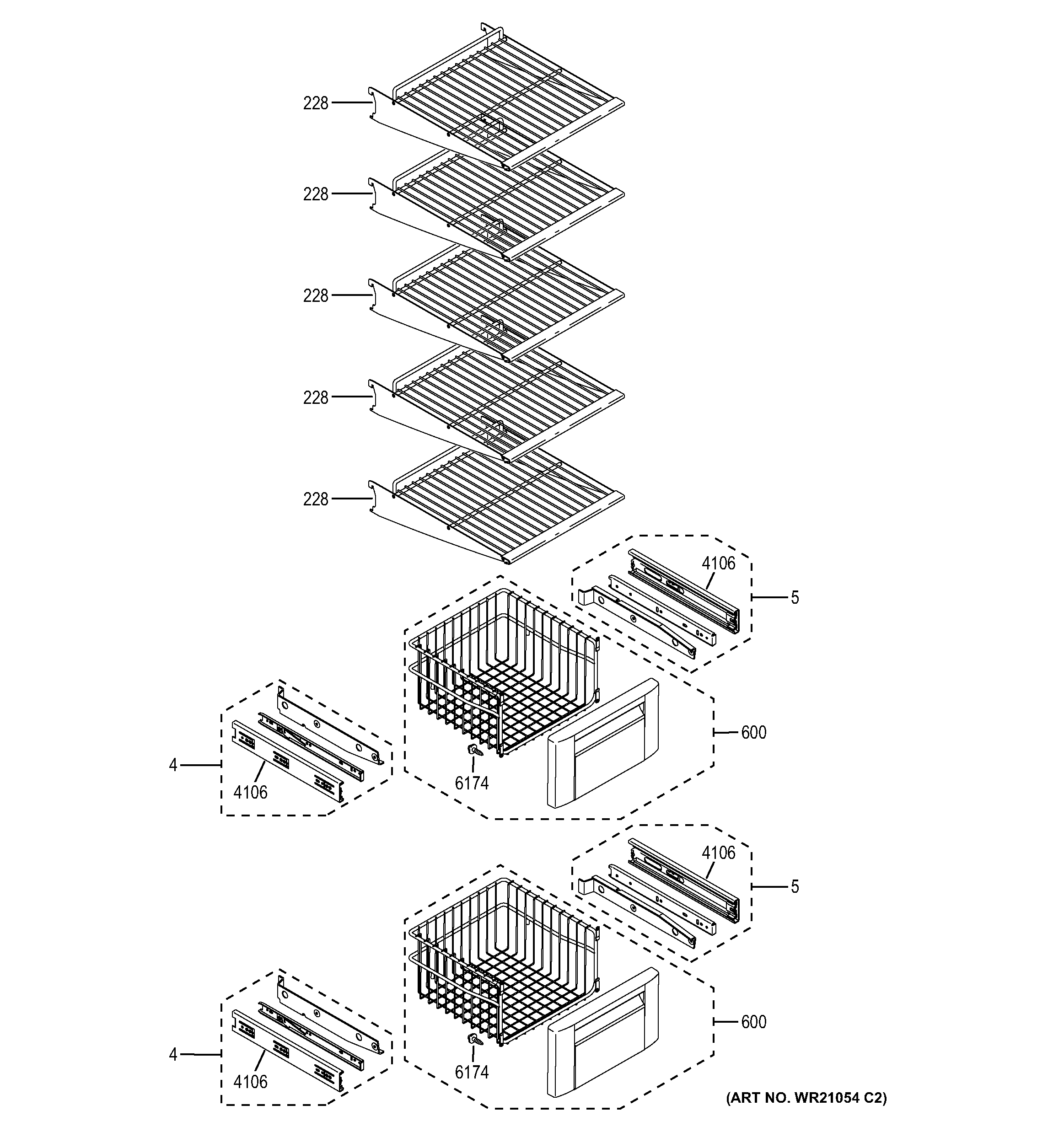

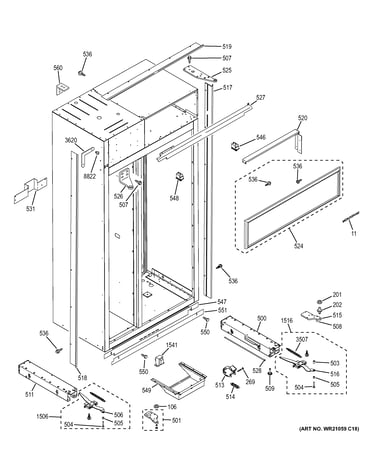

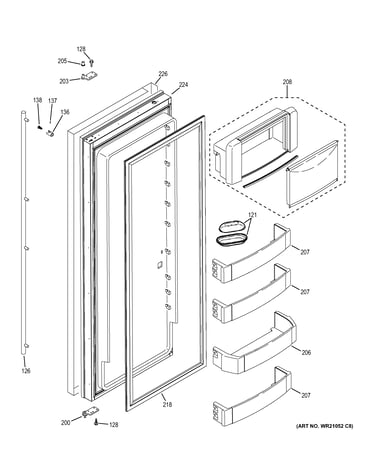

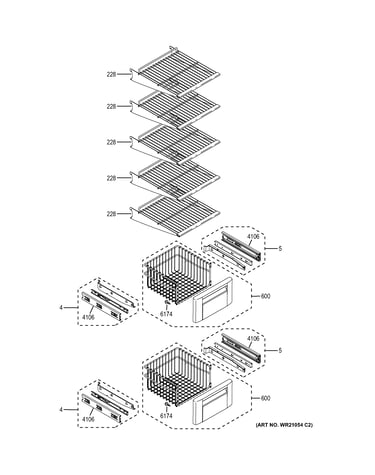

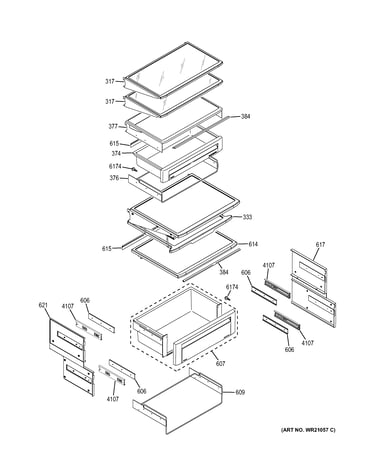

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 223 parts  |
Refrigerator Water Filter MWFP
#303

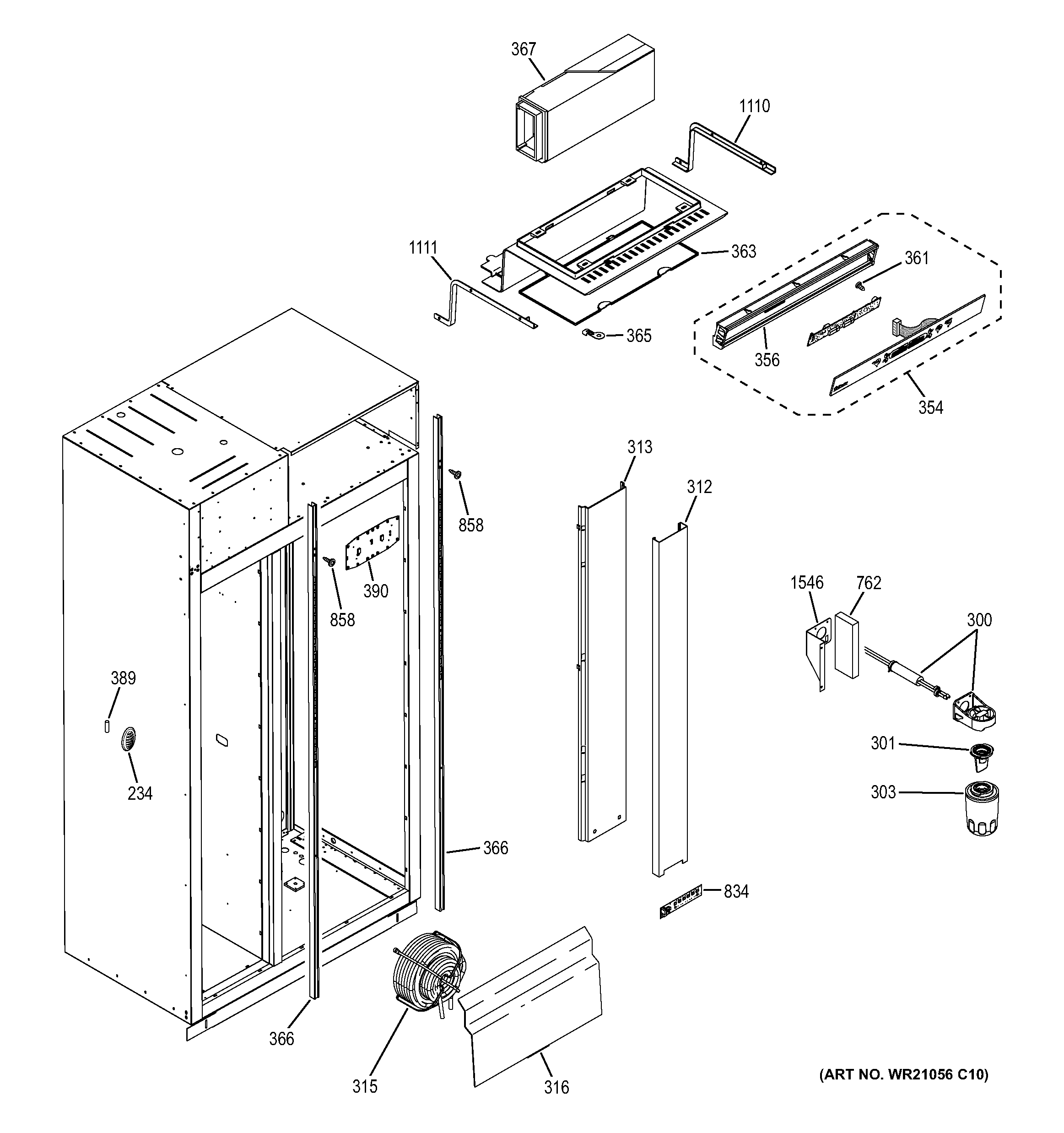

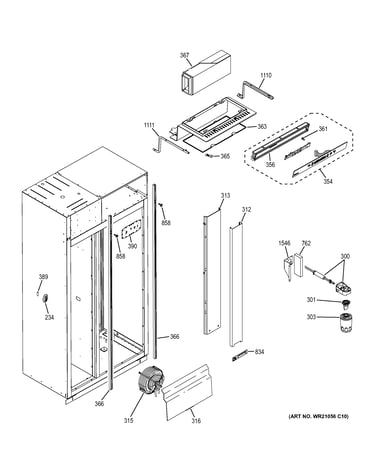

Fresh food section diagram

Refrigerator water filter

Part #MWFP

Replaced by #MWF

?
Manufacturer substitution
This part replaces MWFP. Substitute parts can look different from the original.
BEST SELLER

Get free shipping with Automatic Reorder

$49.99
In Stock
Refrigerator Temperature Sensor WR55X10025
Refrigerator temperature sensor

Part #WR55X10025

BEST SELLER
$21.10 |
19% OFF Phone Price : $26.10
In Stock
Refrigerator Ice Maker Assembly WR29X20949
#810

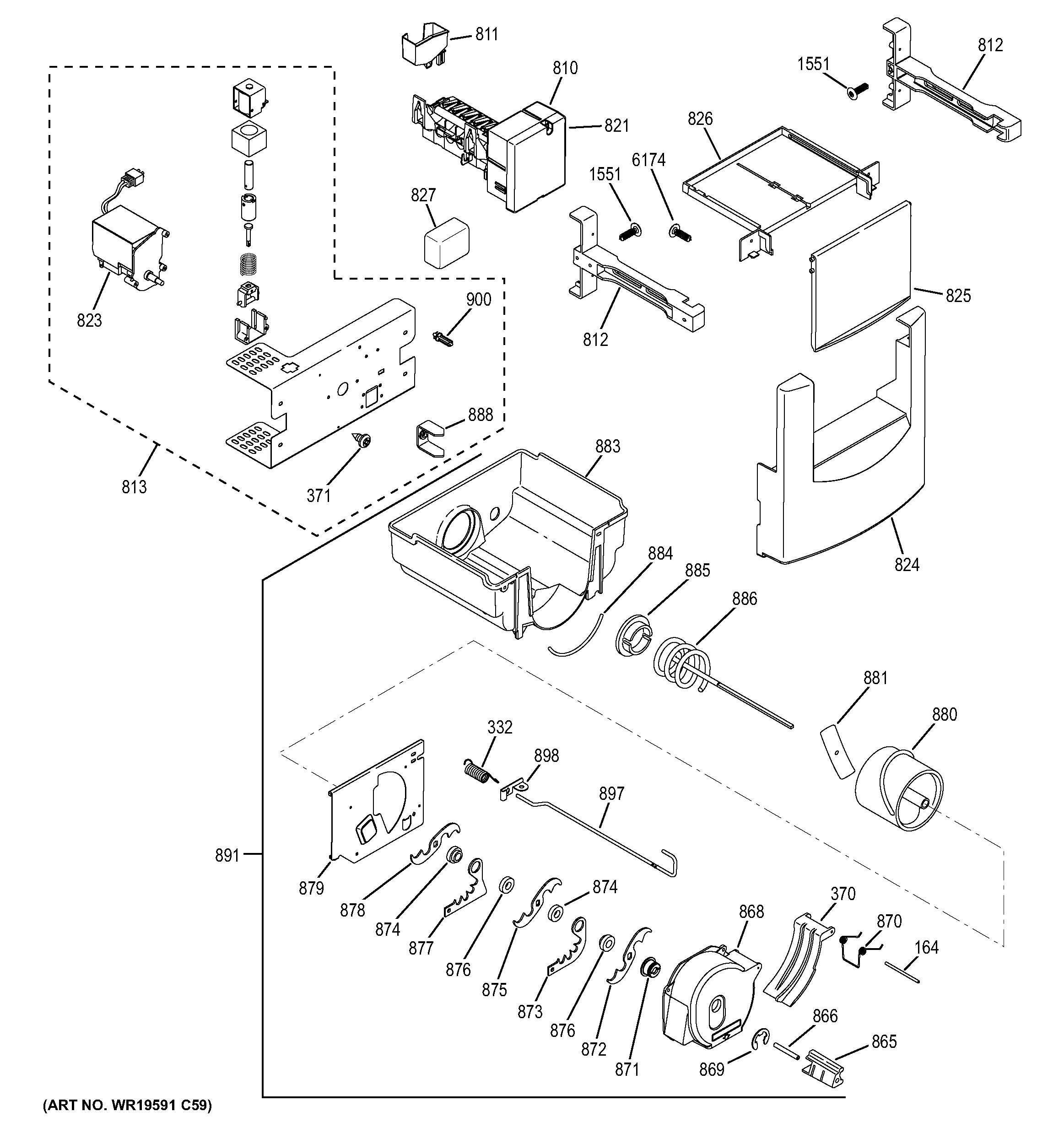

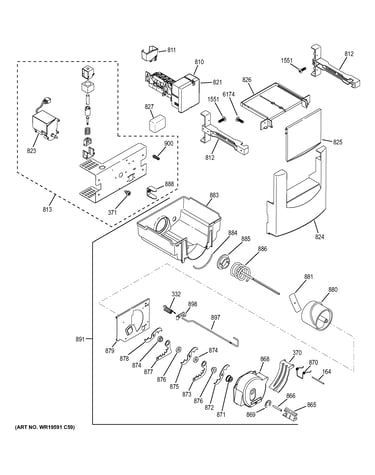

Ice maker & dispenser diagram

Refrigerator ice maker assembly

Part #WR29X20949

The manufacturer no longer makes this part, and there's no substitute part

Toe Kick WR74X10125
#706

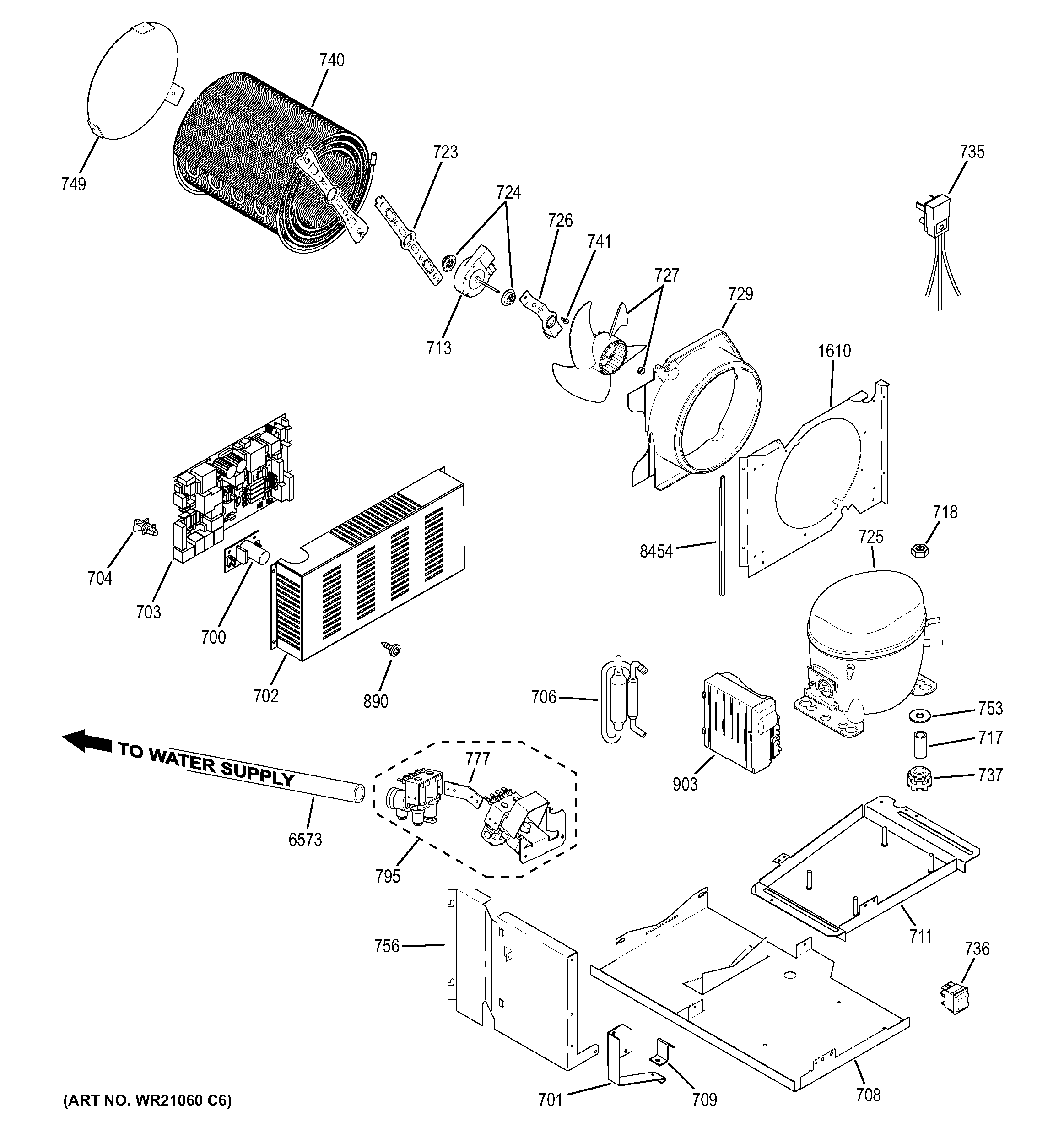

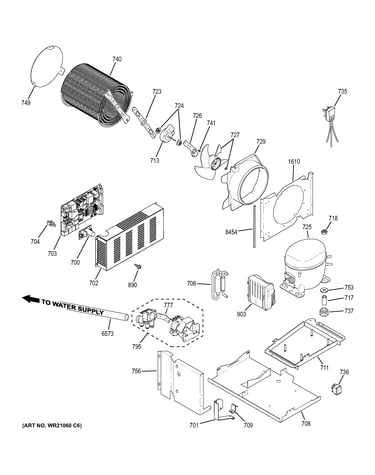

Machine compartment diagram

Toe kick

Part #WR74X10125

Replaced by #WR86X25269

?
Manufacturer substitution
This part replaces WR74X10125. Substitute parts can look different from the original.
BEST SELLER
$79.18 |
6% OFF Phone Price : $84.18
In Stock
Refrigerator Evaporator Fan Motor (replaces Wr60x10059, Wr60x10154) WR60X10185
#860

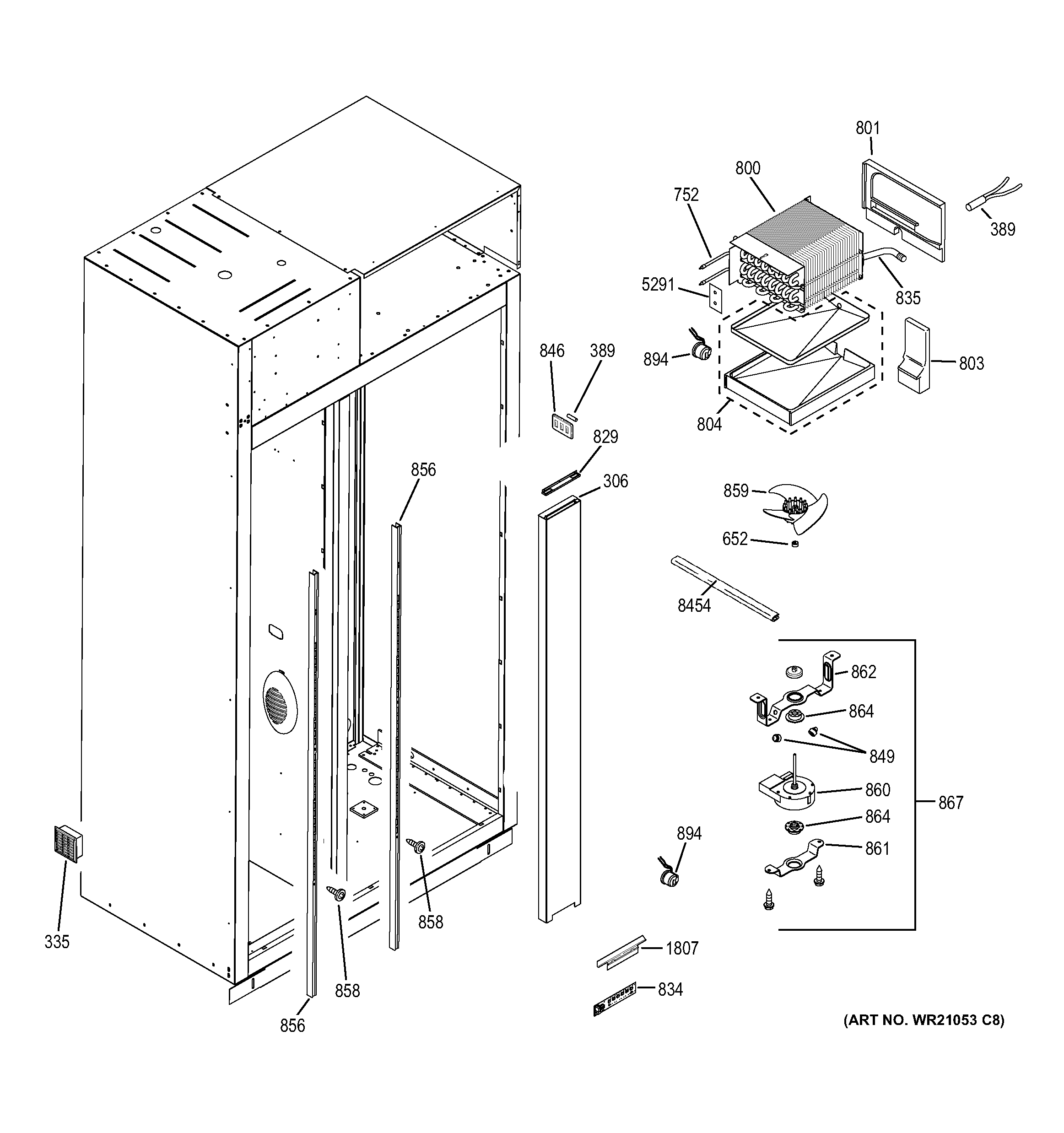

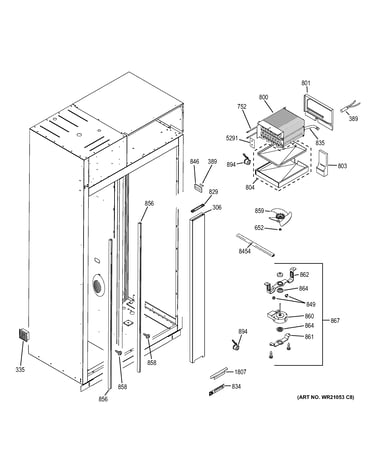

Freezer section diagram

Refrigerator evaporator fan motor (replaces wr60x10059, wr60x10154)

Part #WR60X10185

BEST SELLER
$97.69 |
9% OFF Phone Price : $107.69
In Stock
Refrigerator Dispenser Ice Chute Door Crank WR17X10706
#67

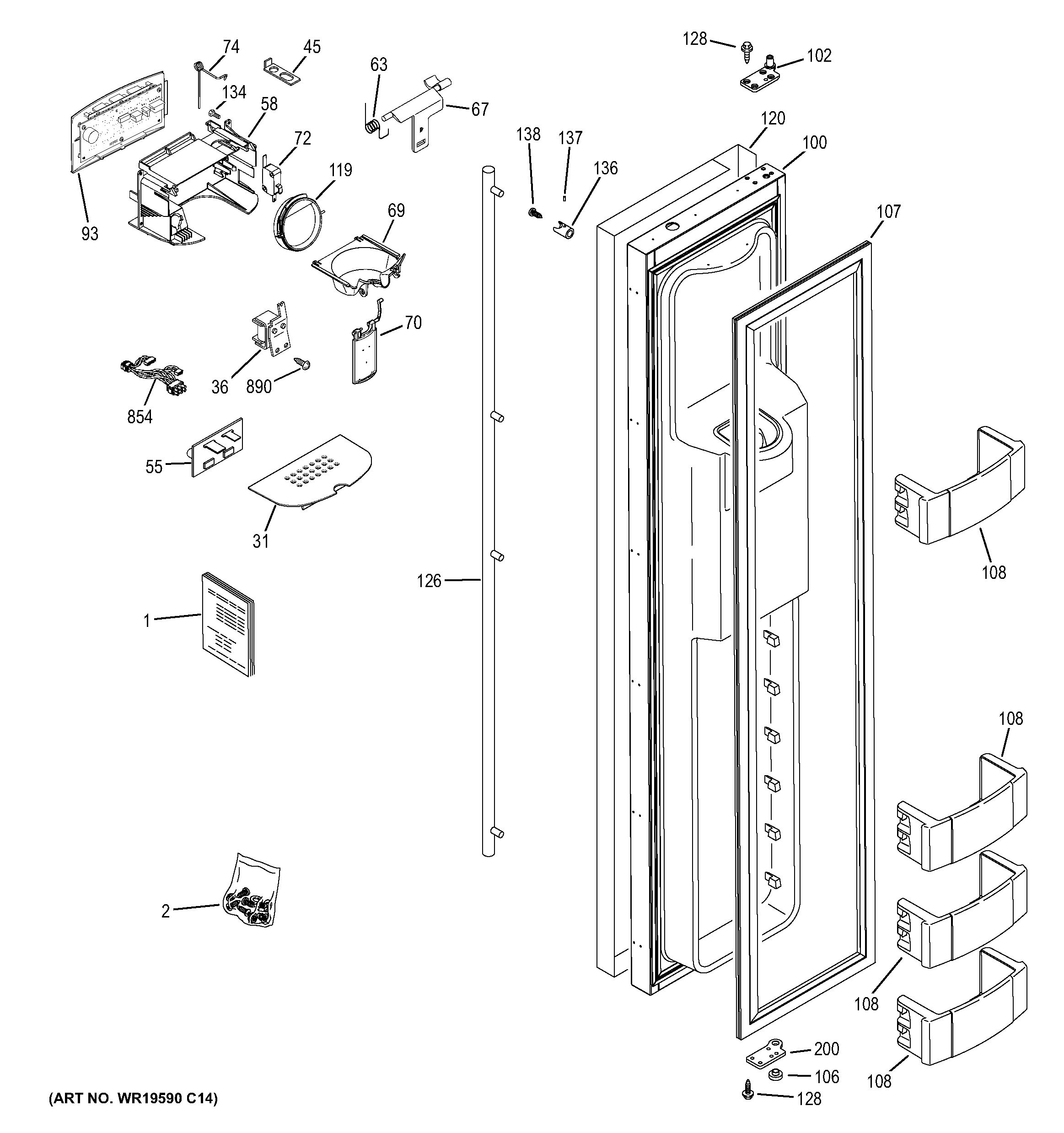

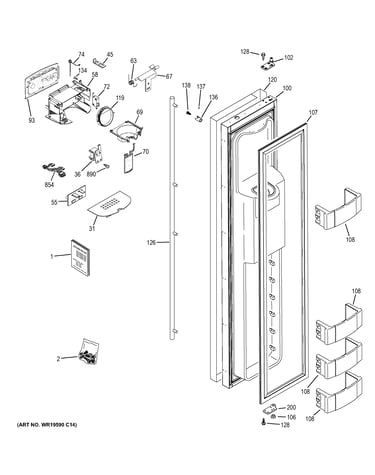

Freezer door diagram

Refrigerator dispenser ice chute door crank

Part #WR17X10706

BEST SELLER
This item is not returnable
$6.86 |
13% OFF Phone Price : $7.86
In Stock
Damper Kit WR31X20918
#328

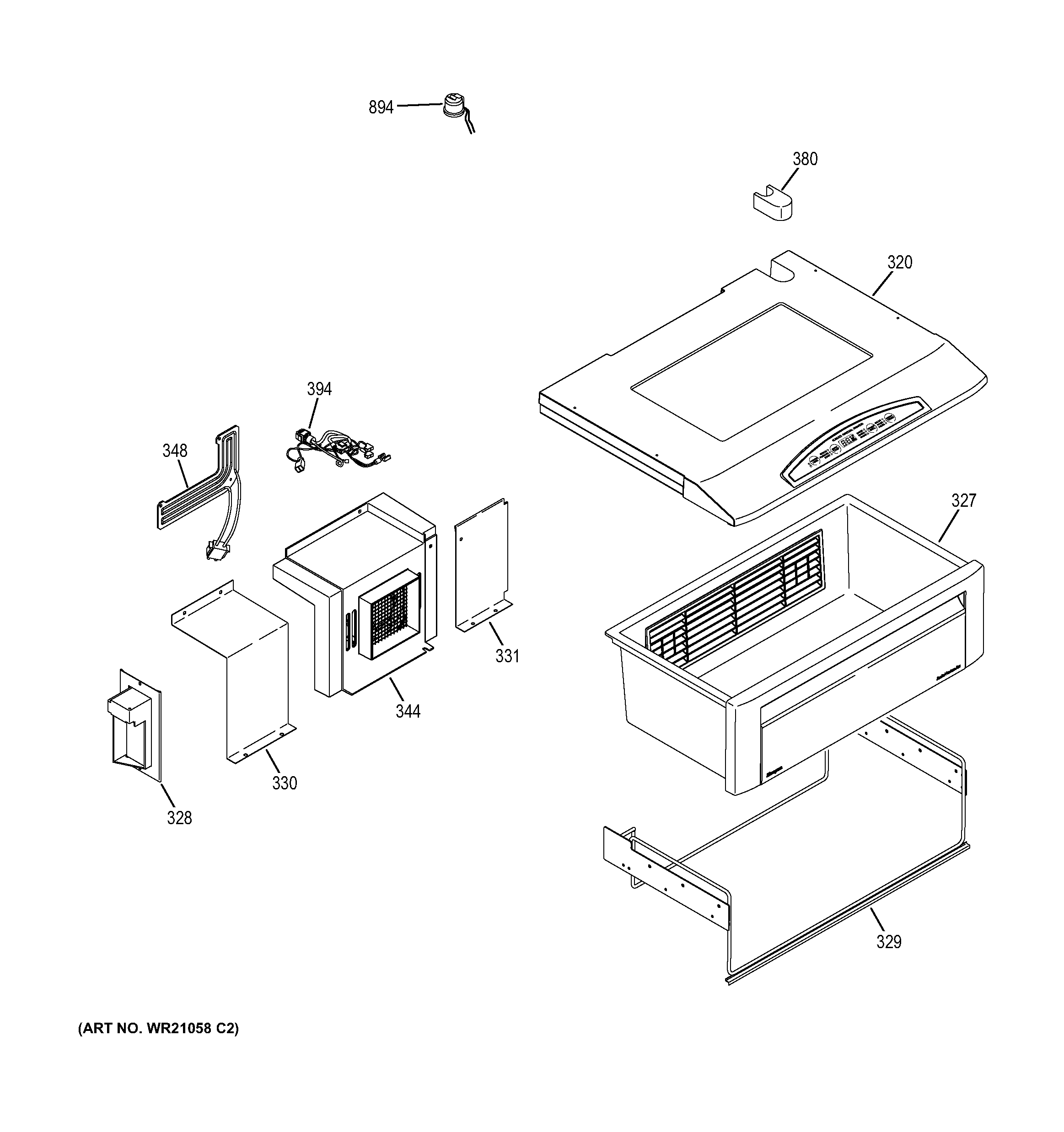

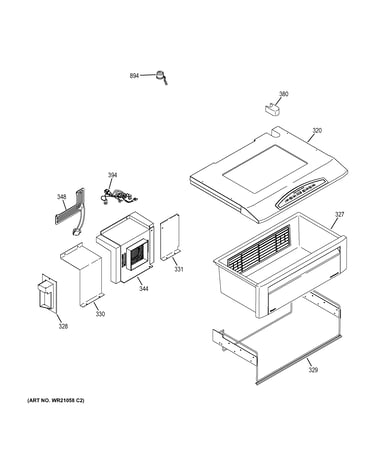

Quick chill diagram

Damper kit

Part #WR31X20918

Replaced by #WR60X27396

?
Manufacturer substitution
This part replaces WR31X20918. Substitute parts can look different from the original.
BEST SELLER
$118.81 |
8% OFF Phone Price : $128.81
In Stock
Refrigerator Water Filter Bypass WR02X11705
#301

Fresh food section diagram

Refrigerator water filter bypass

Part #WR02X11705

Replaced by #WR17X22070

?
Manufacturer substitution
This part replaces WR02X11705. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$7.57 |
12% OFF Phone Price : $8.57
In Stock
Refrigerator Defrost Bi-metal Thermostat WR50X10088
Refrigerator defrost bi-metal thermostat

Part #WR50X10088

Replaced by #WR50X29776

?
Manufacturer substitution
This part replaces WR50X10088. Substitute parts can look different from the original.
BEST SELLER
$54.62 |
8% OFF Phone Price : $59.62
In Stock
Refrigerator Condenser Coil (replaces Wr49x10151, Wr84x10065, Wr84x10071, Wr84x10072, Wr84x10074, Wr84x10078, Wr84x37865, Wr87x37966) WR84X10022
#740

Machine compartment diagram

Refrigerator condenser coil (replaces wr49x10151, wr84x10065, wr84x10071, wr84x10072, wr84x10074, wr84x10078, wr84x37865, wr87x37966)

Part #WR84X10022

$466.13 |
$10.00 OFF Phone Price : $476.13
In Stock
