Model # 572826122 Official Craftsman battery operated backup sump pump

Here are the diagrams and repair parts for Official Craftsman 572826122 battery operated backup sump pump, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

Click a diagram to see the parts shown on that diagram.
In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

ALL PARTS

Showing 10 of 14 parts |

#NI

All parts diagram

Battery case

Part #PS17-100

$65.27

In Stock

Qty

#12

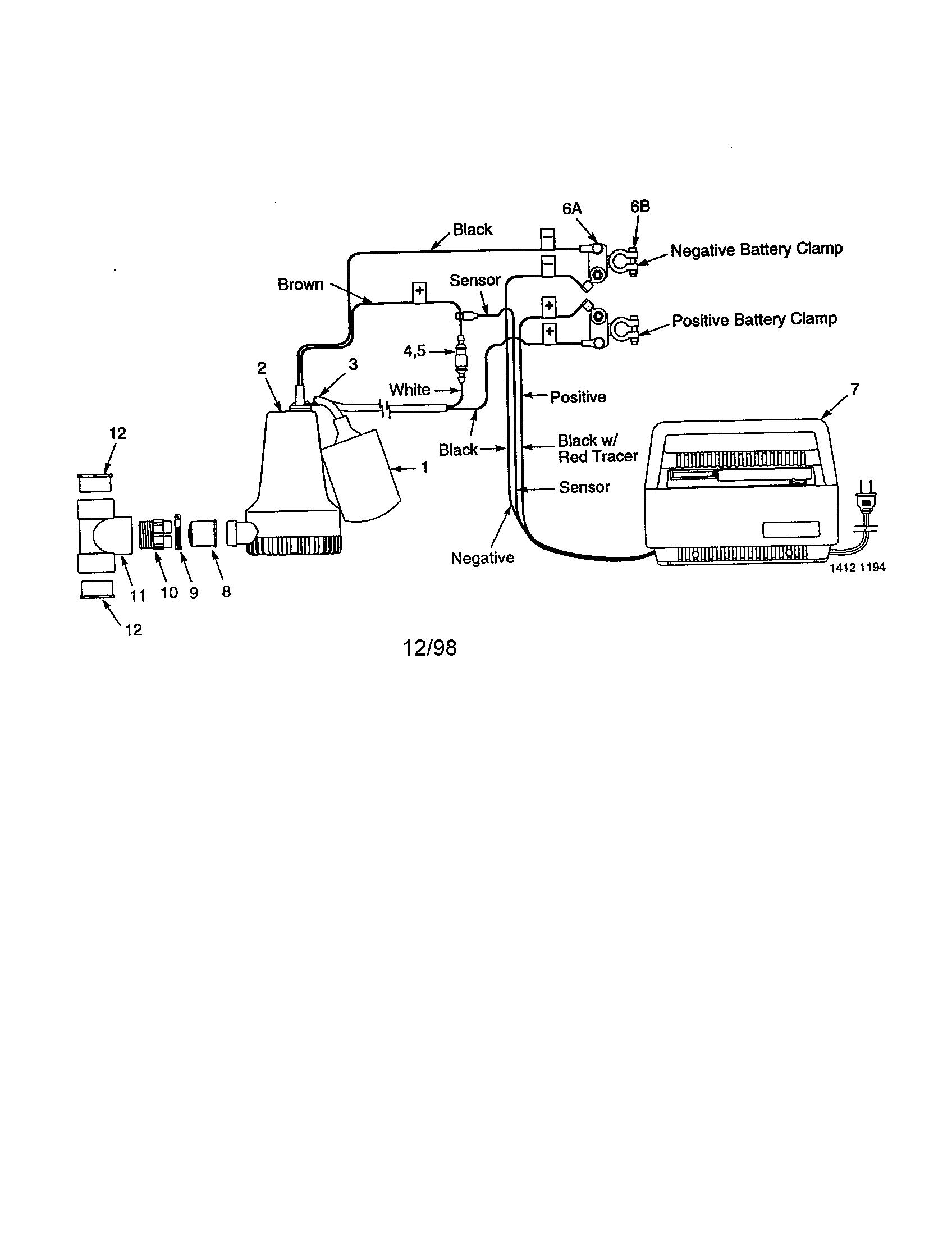

Battery backup sump pump diagram

Bushing

Part #U78-876P

$13.62

In Stock

Qty

#11

Battery backup sump pump diagram

Tee

Part #U78-846P

$39.27

In Stock

Qty

#10

Battery backup sump pump diagram

Pipe adapter

Part #PS78-3P

$28.33

In Stock

Qty

Battery backup sump pump diagram

Pump cable clamp

Part #CC0030-13

This item is not returnable

$4.04

In Stock

Qty

Battery backup sump pump diagram

Charger

Part #PS117-77A

The manufacturer no longer makes this part, and there's no substitute part

Battery backup sump pump diagram

Switch assembly (when ordering, also oreder key nos. 4 (fuse holder) and 5 (fuse) required for installation.)

Part #PS217-5E

The manufacturer no longer makes this part, and there's no substitute part

Battery Terminal Clamps (2 Req.) (standard Hardware Item; Purchase Locally.) UNAV

#6B

Battery backup sump pump diagram

Battery terminal clamps (2 req.) (standard hardware item; purchase locally.)

Part #UNAV

The manufacturer no longer makes this part, and there's no substitute part

#NI

All parts diagram

Owner's manual

Part #F642-9511

The manufacturer no longer makes this part, and there's no substitute part

Battery backup sump pump diagram

Pump complete (no component parts available for pump or battery charger.)

Part #PS17-41

The manufacturer no longer makes this part, and there's no substitute part
