Model # 4441ATV Official Eureka upright vacuum

Here are the diagrams and repair parts for Official Eureka 4441ATV upright vacuum, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 72 parts  |

Vacuum Screw, 10-pack 54669-2
Vacuum screw, 10-pack

Part #54669-2

The manufacturer no longer makes this part, and there's no substitute part

Gasket 38613
#6

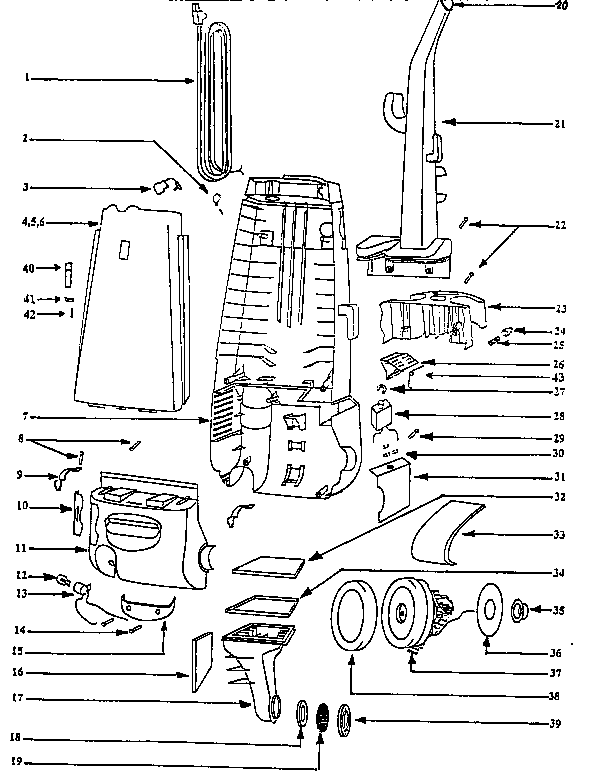

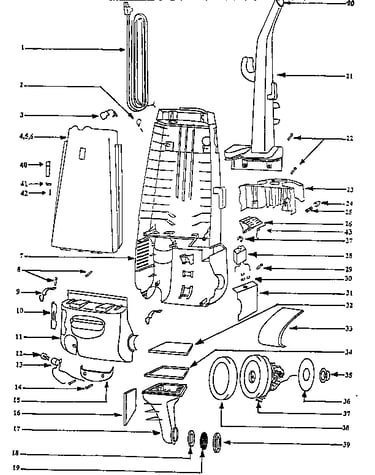

Handle and bag housing diagram

Gasket

Part #38613

The manufacturer no longer makes this part, and there's no substitute part

Gasket 27492
#38

Handle and bag housing diagram

Gasket

Part #27492

The manufacturer no longer makes this part, and there's no substitute part

Plunger 38678-119N
#24

Handle and bag housing diagram

Plunger

Part #38678-119N

The manufacturer no longer makes this part, and there's no substitute part

Bag Level Indicator 37761-2
#40

Handle and bag housing diagram

Bag level indicator

Part #37761-2

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Furniture Guard 15234-288N
#13

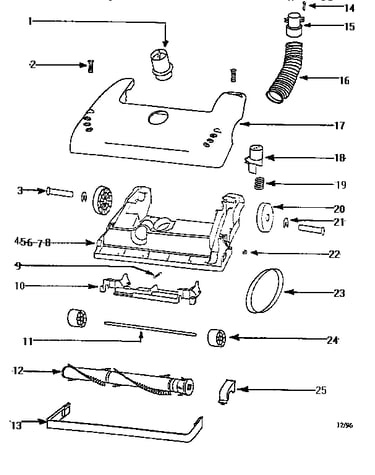

Base assembly diagram

Vacuum furniture guard

Part #15234-288N

The manufacturer no longer makes this part, and there's no substitute part

Lens 15072-313N
#15

Handle and bag housing diagram

Lens

Part #15072-313N

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Filter, 1-pack 38755
#16

Handle and bag housing diagram

Vacuum filter, 1-pack

Part #38755

The manufacturer no longer makes this part, and there's no substitute part

Motor Shield 38688
#36

Handle and bag housing diagram

Motor shield

Part #38688

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Twist-on Wire Connector, 5-pack 60192-1
#30

Handle and bag housing diagram

Vacuum twist-on wire connector, 5-pack

Part #60192-1

The manufacturer no longer makes this part, and there's no substitute part
