GE
Top-Mount Refrigerator

Model # GTH21GBEBCC Official GE top-mount refrigerator

Here are the diagrams and repair parts for Official GE GTH21GBEBCC top-mount refrigerator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 124 parts  |

Refrigerator Lamp Assembly WR02X12530
#110

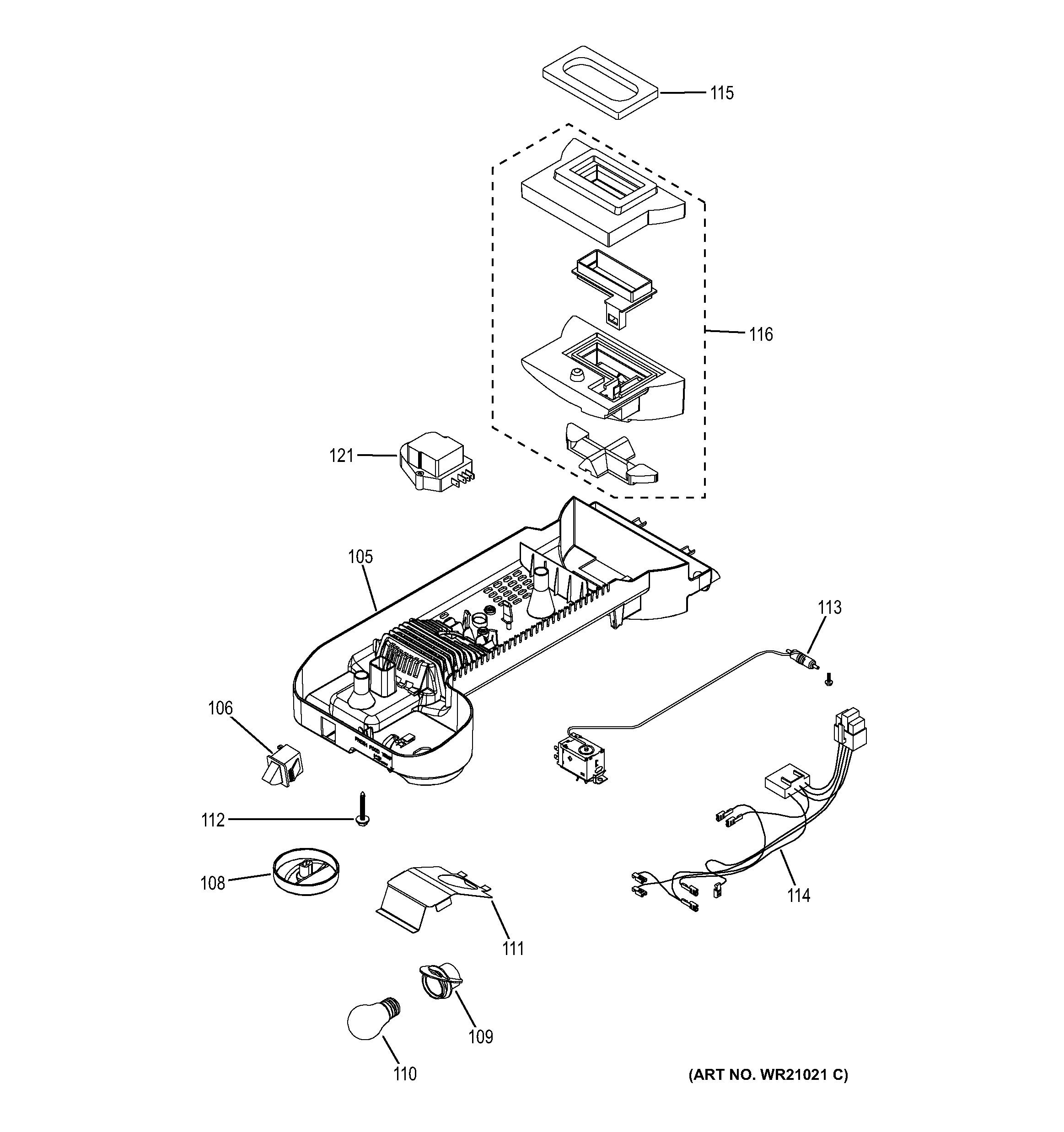

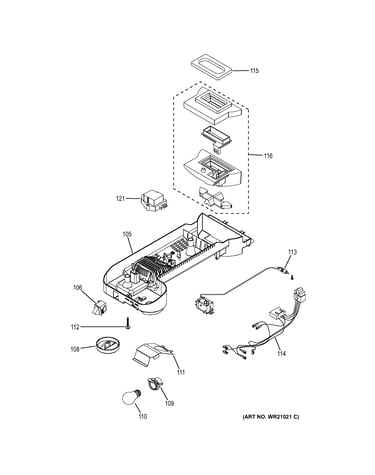

Fresh food section diagram

Refrigerator lamp assembly

Part #WR02X12530

Replaced by #40A15

?
Manufacturer substitution
This part replaces WR02X12530. Substitute parts can look different from the original.
BEST SELLER
$15.39
12% OFF Phone Price : $17.39
In Stock
Comp. Repl. WR87X10098
#725

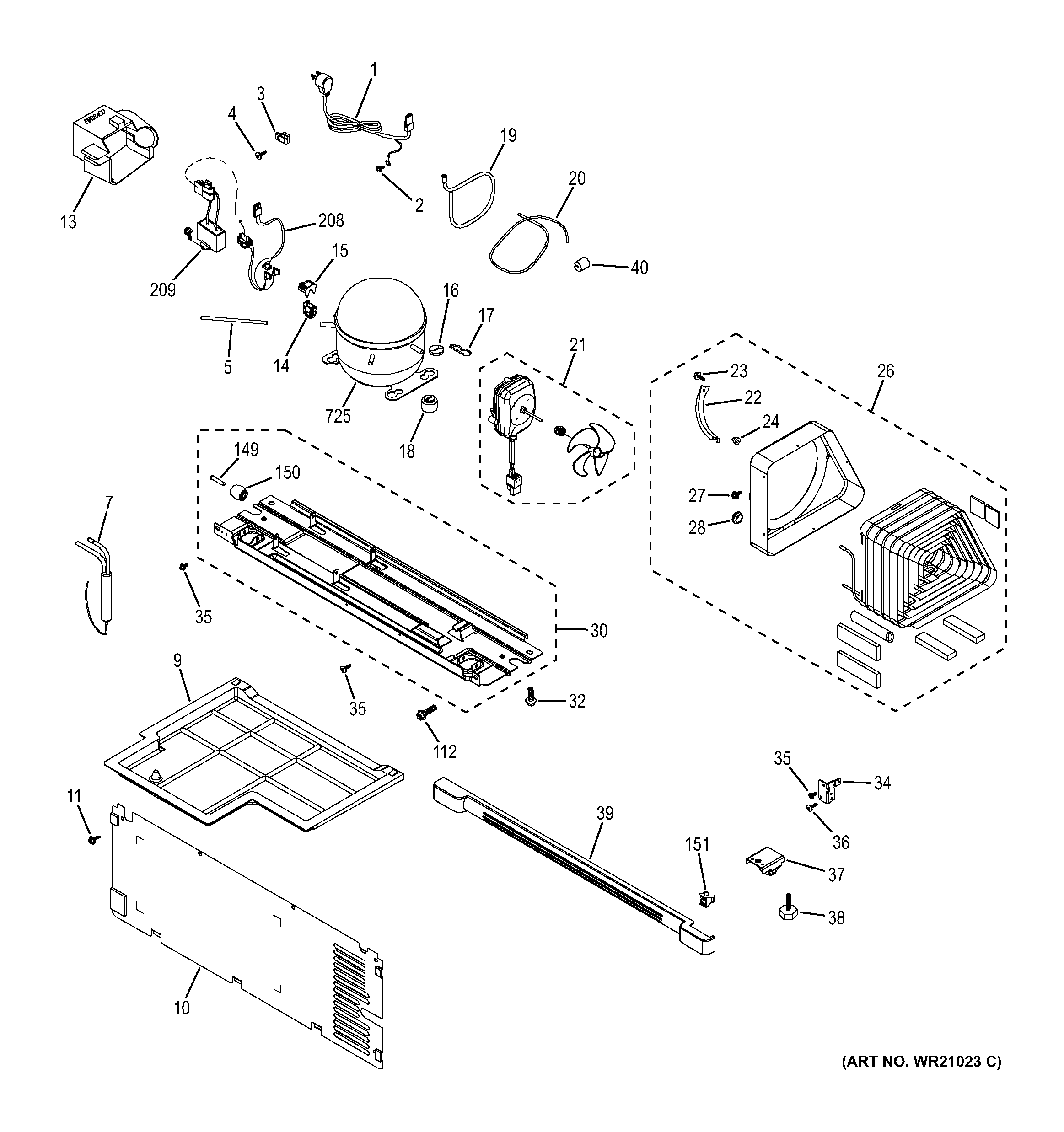

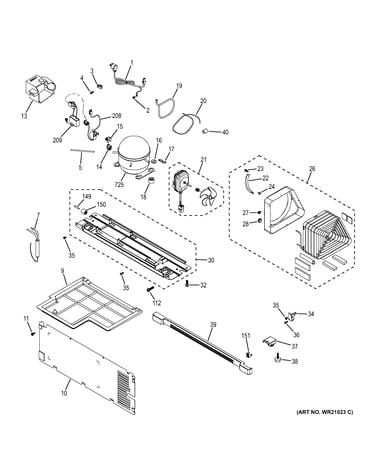

Unit parts diagram

Comp. repl.

Part #WR87X10098

Replaced by #WR87X20798

?
Manufacturer substitution
This part replaces WR87X10098. Substitute parts can look different from the original.
BEST SELLER
$437.35
$10.00 OFF Phone Price : $447.35
In Stock
Refrigerator Special Screw WR01X10717
#199

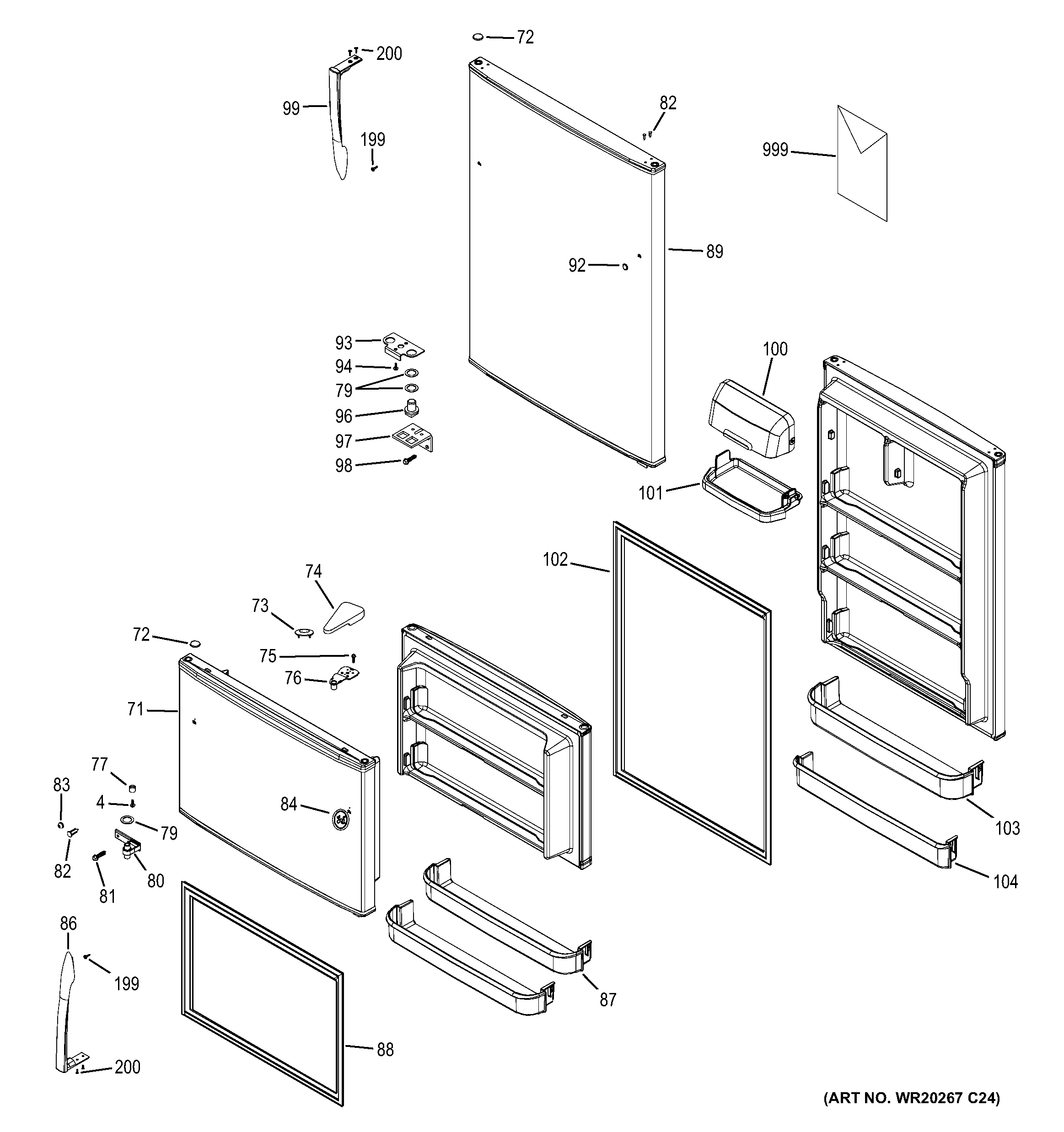

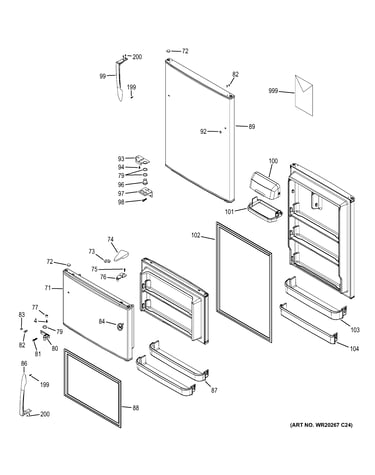

Doors diagram

Refrigerator special screw

Part #WR01X10717

Replaced by #WR01X10450

?
Manufacturer substitution
This part replaces WR01X10717. Substitute parts can look different from the original.
This item is not returnable
$7.88
11% OFF Phone Price : $8.88
In Stock
Gasket Louve WR14X10241
#201

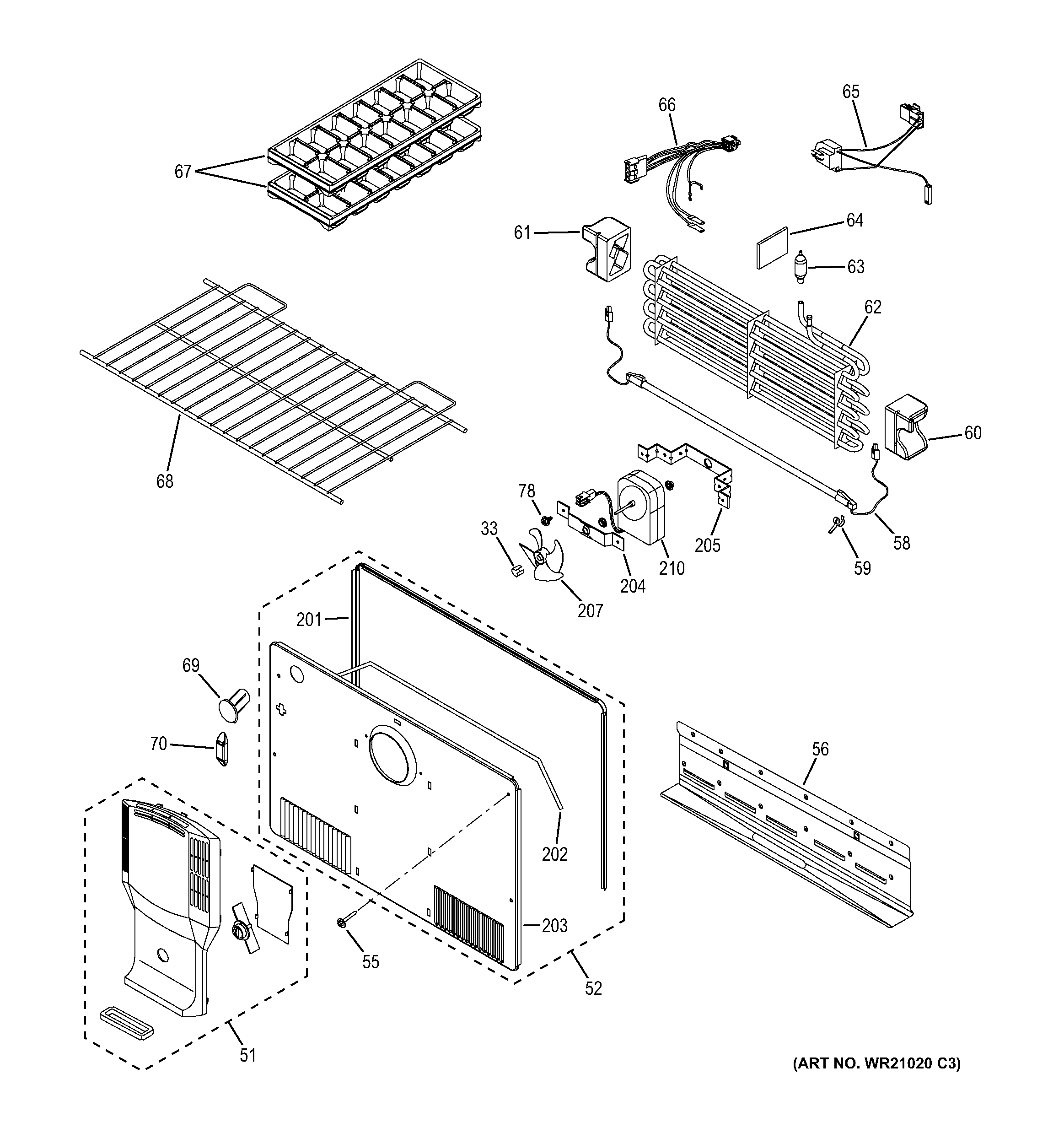

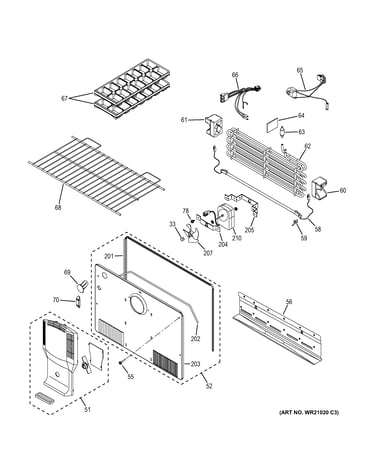

Freezer section diagram

Gasket louve

Part #WR14X10241

$35.25
12% OFF Phone Price : $40.25
In Stock
Appliance Nameplate WR04X10222
#84

Doors diagram

Appliance nameplate

Part #WR04X10222

$41.91
11% OFF Phone Price : $46.91
In Stock
Special Grip WR01X10716
#200

Doors diagram

Special grip

Part #WR01X10716

This item is not returnable
In Stock
Refrigerator Temperature Control Thermostat (replaces Wr50x10083) WR50X10104
#113

Fresh food section diagram

Refrigerator temperature control thermostat (replaces wr50x10083)

Part #WR50X10104

$80.66
6% OFF Phone Price : $85.66
In Stock
Refrigerator Freezer Caster WR02X12541
#150

Unit parts diagram

Refrigerator freezer caster

Part #WR02X12541

This item is not returnable
$7.09
12% OFF Phone Price : $8.09
In Stock
Special Hi B WR01X10713
#81

Doors diagram

Special hi b

Part #WR01X10713

In Stock
Refrigerator Crisper Drawer Cover Frame WR32X10645
#43

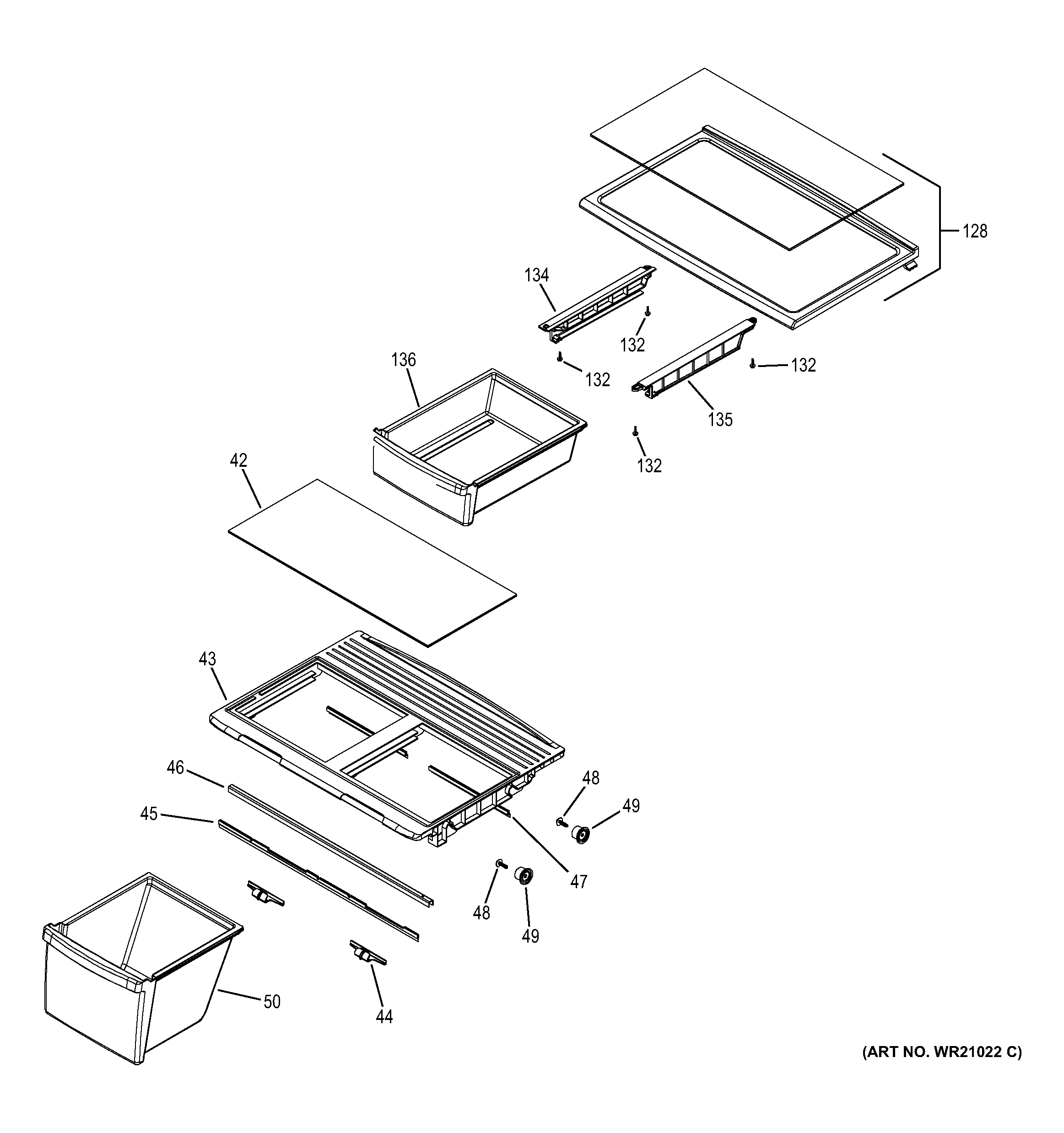

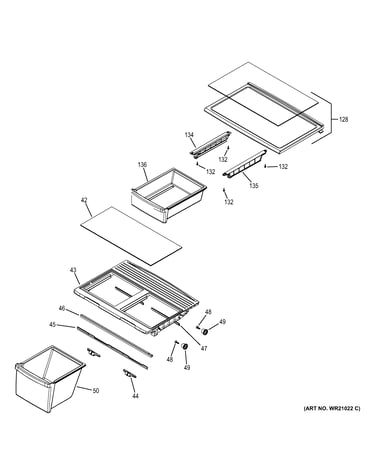

Fresh food shelves diagram

Refrigerator crisper drawer cover frame

Part #WR32X10645

$112.12
8% OFF Phone Price : $122.12
In Stock

Most common symptoms to help you fix your refrigerators

Choose a symptom to see related refrigerator repairs.

Main causes: control board or cold control failure, broken compressor start relay, compressor motor failure, defrost tim…

Main causes: jammed ice cubes, broken ice maker assembly, dirty water filter, kinked water line, bad water valve, freeze…

Main causes: damaged door seal, faulty defrost sensor or bi-metal thermostat, broken defrost heater, bad defrost timer o…

Things to do: clean condenser coils, replace the water filter, clean the interior, adjust doors to prevent air leaks, cl…

Main causes: blocked air vents, compressor problems, condenser or evaporator fan not working, control system failure, se…

Main causes: water valve leaking, frozen or broken defrost drain tube, overflowing drain pan, cracked water system tubin…

Main causes: leaky door gasket, defrost system failure, evaporator fan not running, dirty condenser coils, condenser fan…

Main causes: blocked vents, defrost system problems, evaporator fan failure, dirty condenser coils, bad sensors, condens…
