KitchenAid KIRD862VSS1 downdraft vent system Parts
Here are the diagrams and repair parts for KitchenAid KIRD862VSS1 downdraft vent system, as well as links to manuals and error code tables, if available.
By Schematic
SELECT DIAGRAM
Browse Parts for KIRD862VSS1 Downdraft Vent System

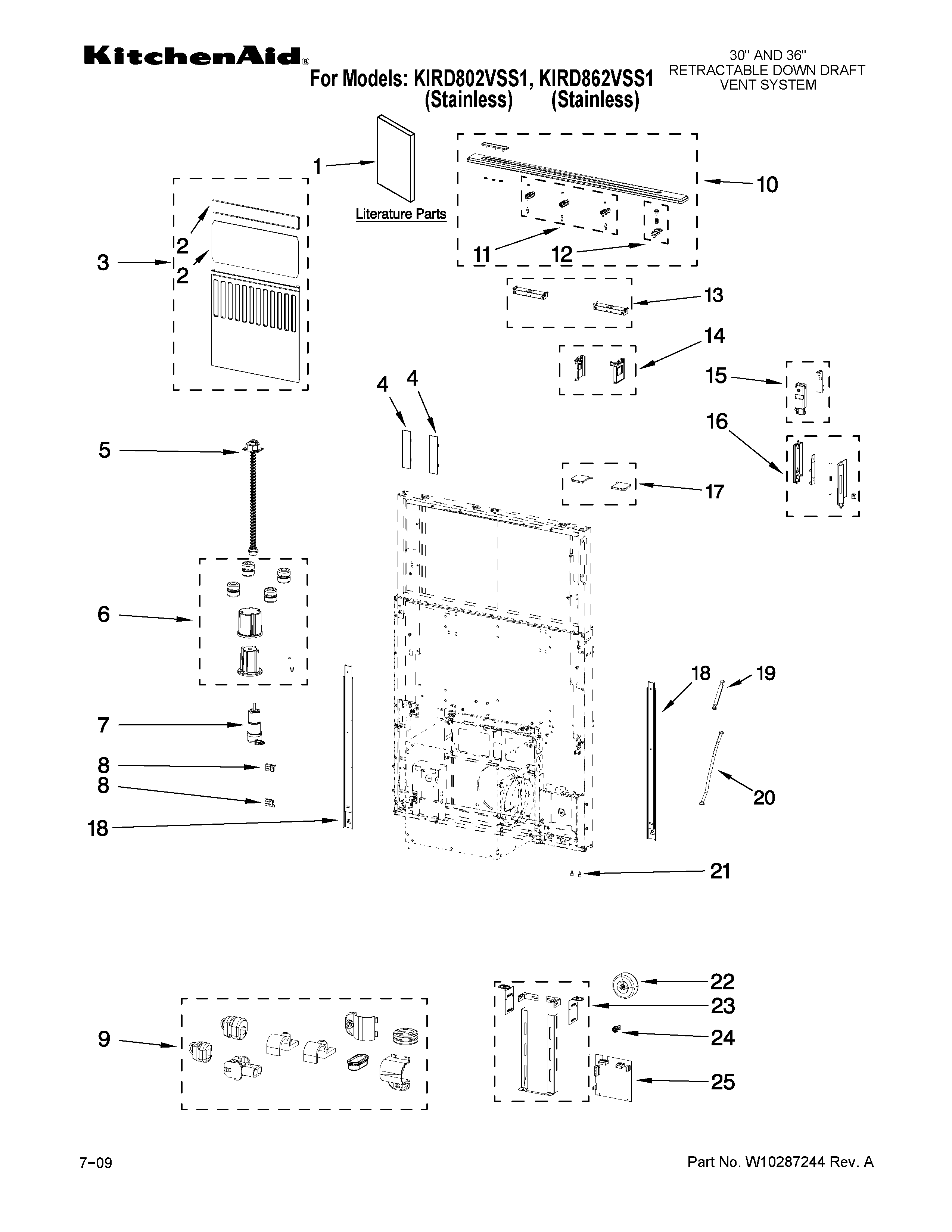

Ventilation parts diagram
Downdraft Vent Up/down Switch Button
In Stock$71.148% OFF Phone Price : $77.14
Qty
Ventilation parts diagram
Downdraft Vent Gear Motor Start Switch
In Stock$166.577% OFF Phone Price : $178.57QtyVentilation parts diagram
Downdraft Vent Filter Switch Kit
In Stock$191.366% OFF Phone Price : $203.36QtyVentilation parts diagram
Range Hood Fuse
Part #W10235651Replaced by #WPW10235651
Manufacturer substitutionThis part replaces W10235651. Substitute parts can look different from the original.In Stock$64.279% OFF Phone Price : $70.27QtyVentilation parts diagram
Oven Switch
Part #4360362Replaced by #WPW10240604
Manufacturer substitutionThis part replaces 4360362. Substitute parts can look different from the original.In Stock$110.9321% OFF Was : $140.16QtyVentilation parts diagram
Guide
Part #4360173
The manufacturer no longer makes this part, and there's no substitute part
Ventilation parts diagram
Downdraft Vent Control Panel Cover
Part #W10235667
The manufacturer no longer makes this part, and there's no substitute part
Ventilation parts diagram
Transformer
Part #W10235650
The manufacturer no longer makes this part, and there's no substitute part
Ventilation parts diagram
Control Housing
Part #W10235660
The manufacturer no longer makes this part, and there's no substitute part
Ventilation parts diagram
Screw-elvt
Part #W10235656
The manufacturer no longer makes this part, and there's no substitute part
Most common symptoms to help you fix your downdraft ventilation systems
Choose a symptom to see related downdraft vent repairs.
Main causes: lack of electrical power, up/down activation switch failure, bad vent gear motor…
Main causes: clogged grease filters, air duct problems, fan motor failure, broken blower wheel…
Main causes: electrical power failure, up/down activation switch problems, vent gear motor failure…
Main causes: fan control switch failure, bad blower fan motor, broken blower wheel, wiring failure…
Main causes: problems with the vent limit switches, up/down activation switch failure…
Most common repair guides to help fix your downdraft ventilation systems
These step-by-step repair guides will help you safely fix what’s broken on your downdraft vent.
How to replace a downdraft vent up/down switch
The up/down switch starts the gear motor to raise and lower the air vent. Replace the up/down switch if defective.…
Repair time and Difficulty
15 minutes or less
How to replace a downdraft vent gear motor
The gear motor raises and lowers the air vent when you push the activating switch. Replace the gear motor if defective.…
Repair time and Difficulty
15 minutes or less
How to replace a downdraft vent fan control switch
The fan control switch activates the blower motor and controls the fan speed. Replace the fan control switch if it's not…
Repair time and Difficulty
15 minutes or less
Effective articles & videos to help repair your downdraft ventilation systems
Use the advice and tips in these articles to get the most out of your downdraft vent.
Learn about all the convenient features on our Sears PartsDirect website that make your parts purchases easier.…
Learn some of the most common symbols found in a wiring diagram and what they mean.…
Learn how to use a multimeter to check for wiring problems in an appliance that's not working…
