Troubleshooting tips for a rectractable downdraft vent

By Sears PartsDirect staff
What to check if a retractable downdraft vent isn't working.
What to check if a retractable downdraft vent isn't working.

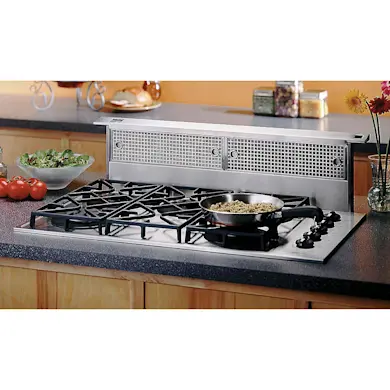

A retractable downdraft vent is a great space-saving solution in a kitchen where an over-the-range vent hood is not practical. This is especially true for kitchen island installations. The retractable vent sits neatly behind the cooktop, and stays level with the countertop when not in use. Here are the most common problems with retractable downdraft vents and possible solutions.

Not working at all

If the vent isn’t working at all, follow these steps to resolve the issue:

  1. Make sure there’s not a problem with the power cord. Unplug the power cord and check its wiring connections. Reconnect any loose wires.

  2. Check the house circuit box for a tripped breaker or blown fuse. Reset the vent circuit breaker if it's tripped. Replace the vent's fuse if it's blown.

  3. If the power supply looks okay, the issue may be the power switch. Replace the power switch it doesn't send current to the fan motor and drive motor when you turn on the vent.

Telescopic vent travel problems

If the vent comes on but will not raise, lower all the way or lower at all, look for an obstruction in the path of the intake area. Unplug the unit before removing the obstruction. Some retractable vents have a switch that is activated by the filter–the vent will not work if the filter is not installed correctly. If the filter looks okay, there may be a problem with the drive motor or drive arm.

Cooktop spills going down into the vent

If a spill occurs on the cooking surface and seeps down into the vent system, immediately turn the vent off. Damage could occur if water gets inside the vent while it’s operating. Unplug the vent and let it dry naturally. Do not open the vent system to remove the water. Once the unit is dry, clean the vent’s exposed surfaces following the instructions in your owner's manual.

Symptoms common to all downdraft ventilation systems

Choose a symptom to see related downdraft vent repairs.

Main causes: lack of electrical power, up/down activation switch failure, bad vent gear motor
Main causes: fan control switch failure, bad blower fan motor, broken blower wheel, wiring failure
Main causes: problems with the vent limit switches, up/down activation switch failure
Main causes: clogged grease filters, air duct problems, fan motor failure, broken blower wheel
Main causes: electrical power failure, up/down activation switch problems, vent gear motor failure
