Modern Maid FDU158 electric range - 1986 Parts
Here are the diagrams and repair parts for Modern Maid FDU158 electric range - 1986, as well as links to manuals and error code tables, if available.
Error CodesBy Schematic
By Part

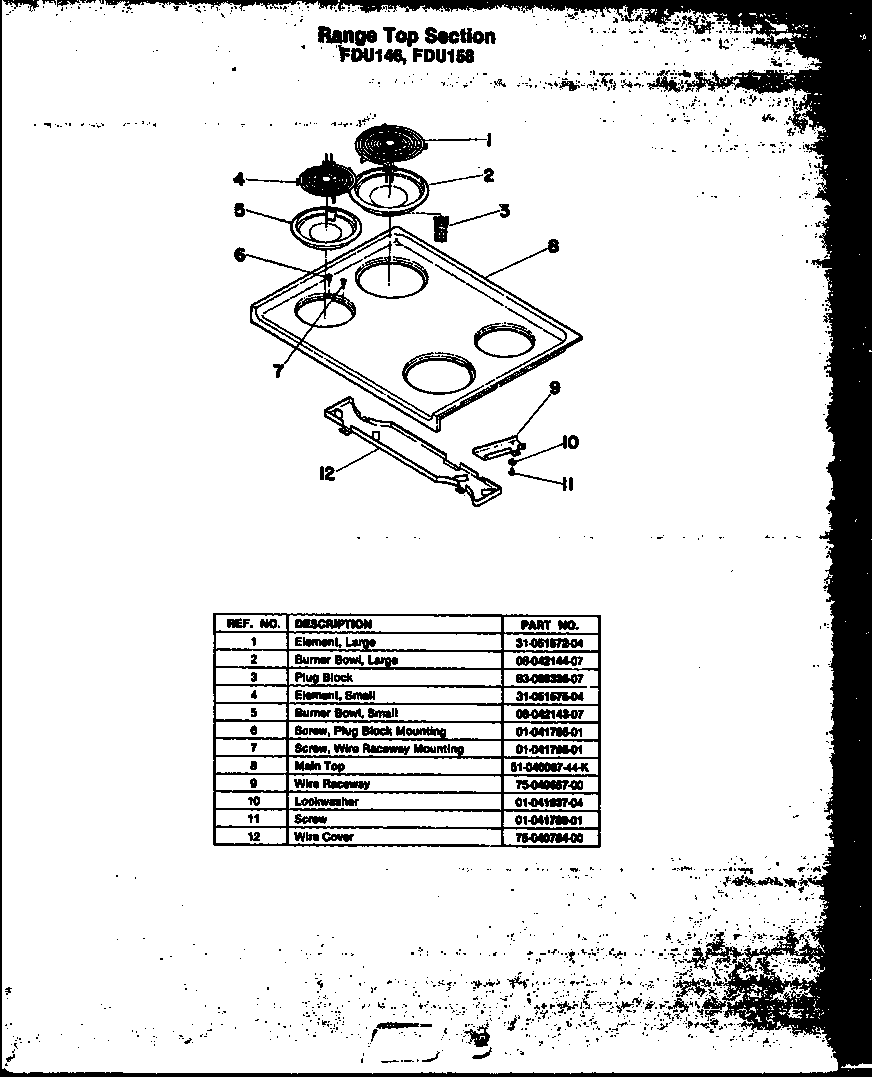

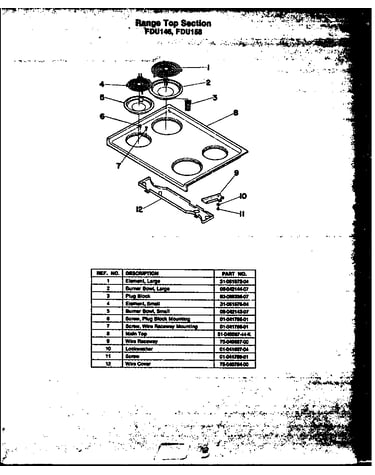

SELECT DIAGRAM

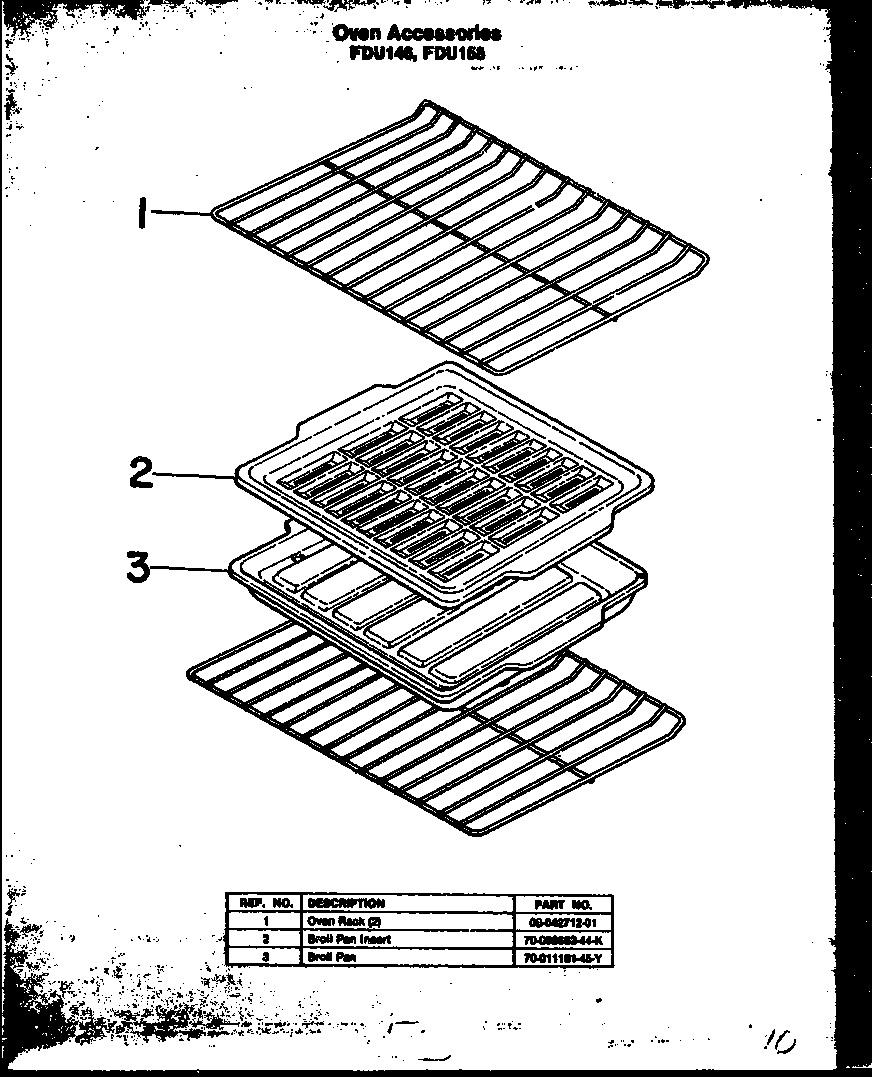

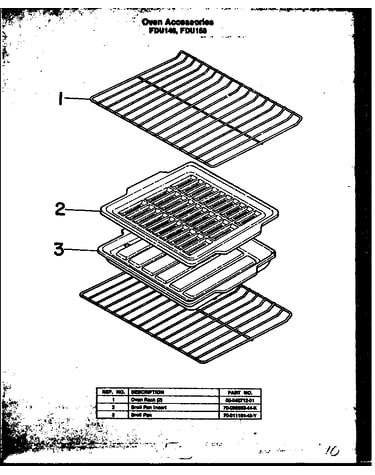

Browse Parts for FDU158 Ranges
Bake Element
Part #31-042146-04
The manufacturer no longer makes this part, and there's no substitute part

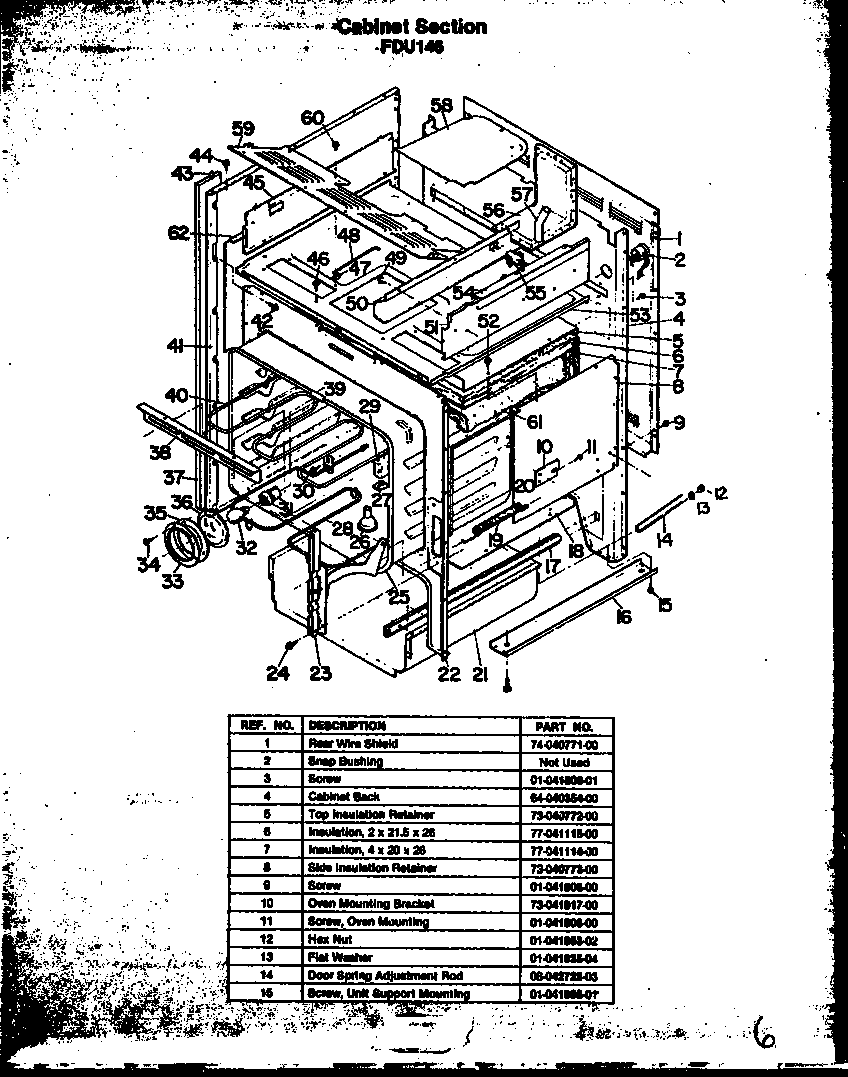

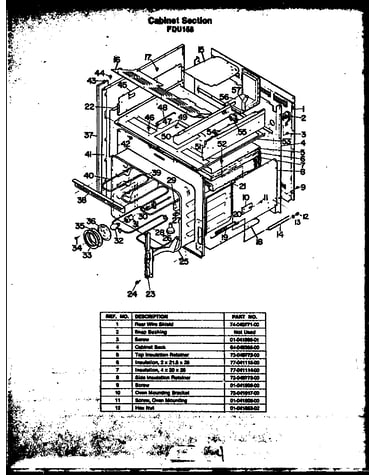

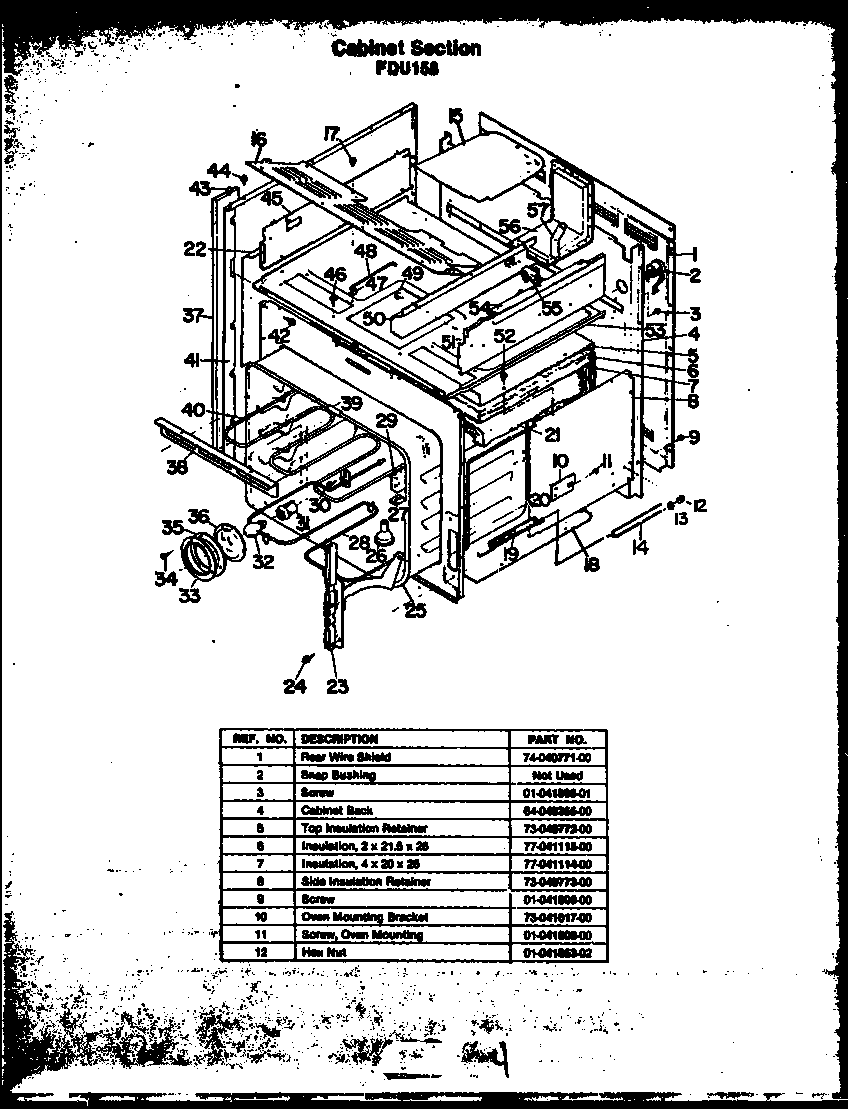

Cabinet section (fdu146) diagram
Bottom Support
Part #63-041023-00
The manufacturer no longer makes this part, and there's no substitute part

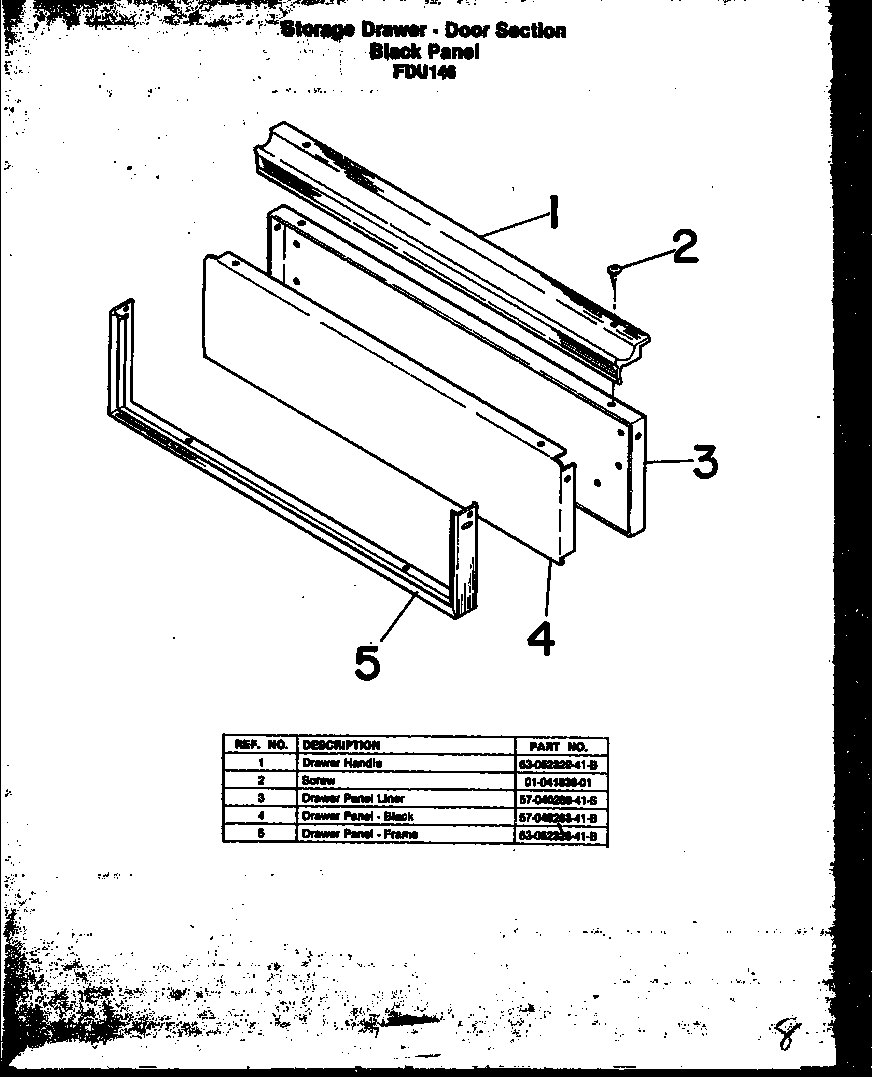

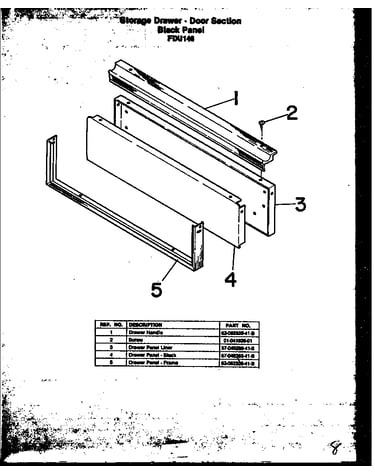

Storage drawer-door section (fdu146) diagram
Drawer Panel Liner
Part #57-040269-41-S
The manufacturer no longer makes this part, and there's no substitute part

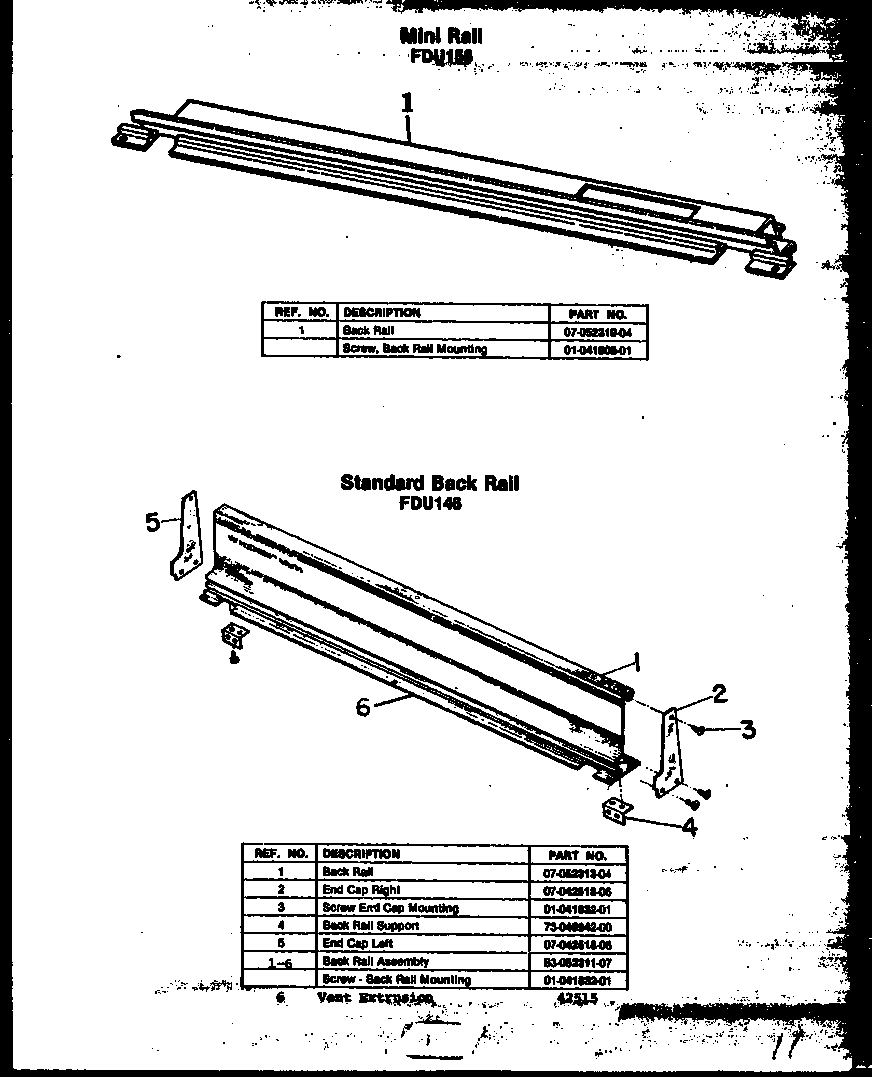

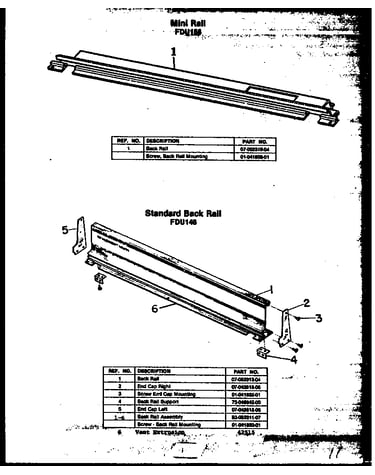

Standard back rail diagram
Vent Extrusion
Part #42515
The manufacturer no longer makes this part, and there's no substitute part

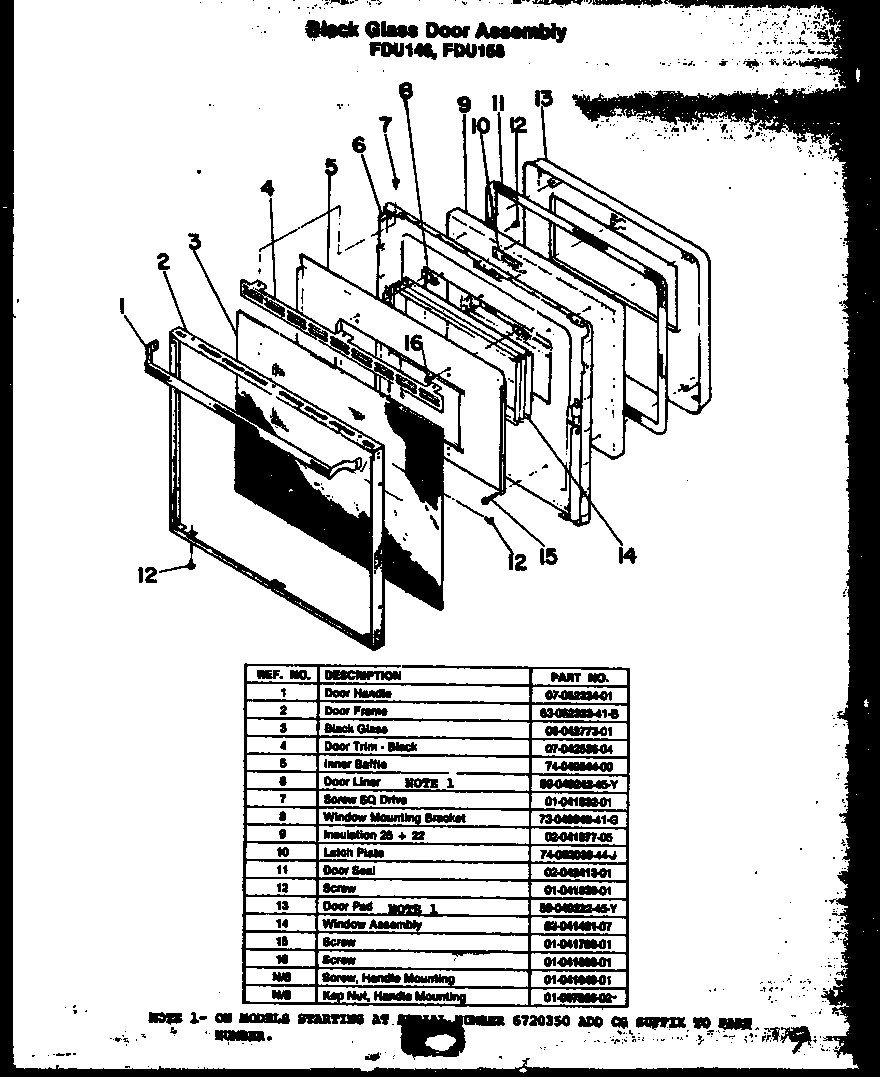

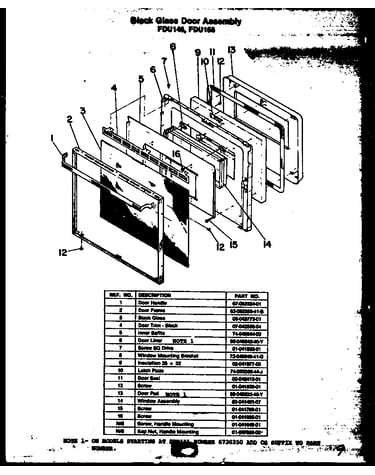

Black glass door assembly diagram
Window Mounting Bracket
Part #73-040949-41-G
The manufacturer no longer makes this part, and there's no substitute part

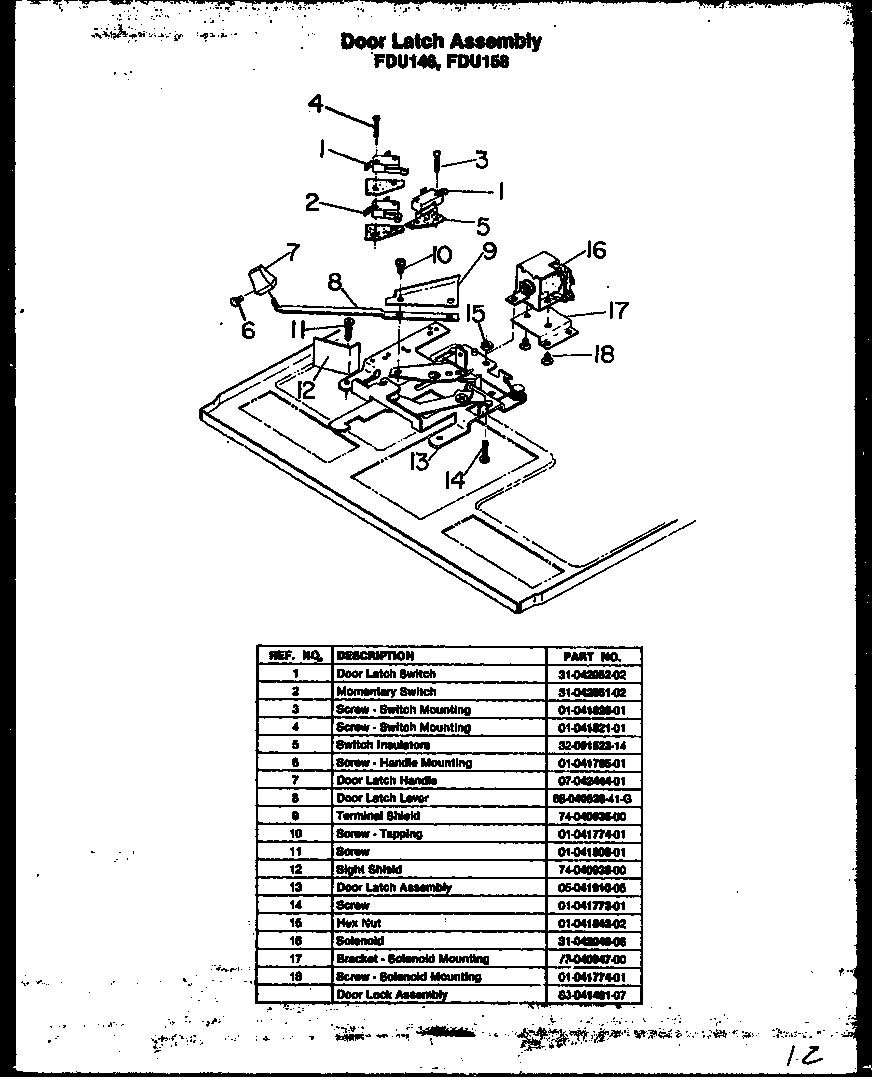

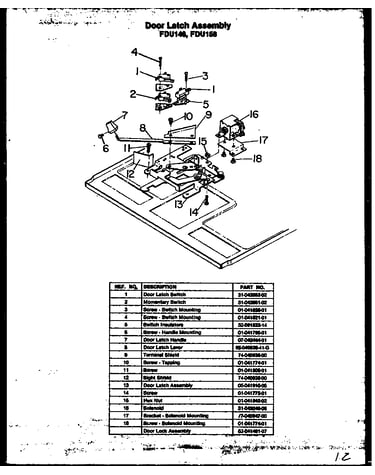

Door latch assembly diagram
Solenoid
Part #31-042049-06
The manufacturer no longer makes this part, and there's no substitute part

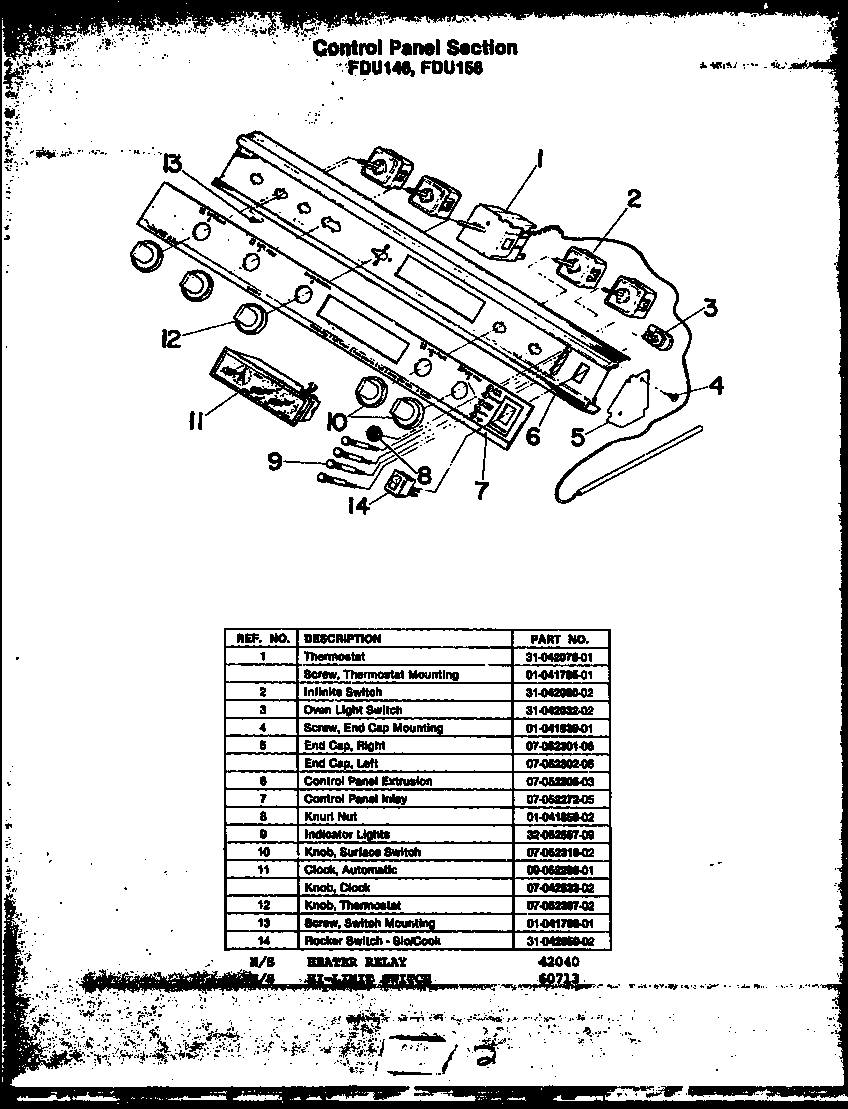

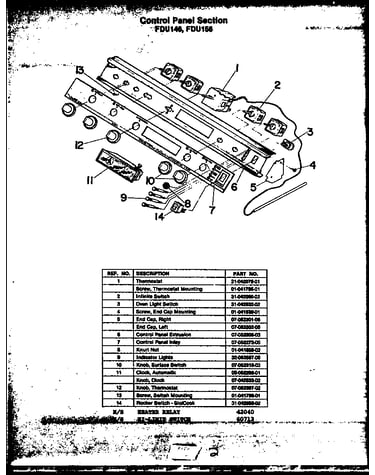

Control diagram
Rocker Switch-slo/cook
Part #31-042050-02
The manufacturer no longer makes this part, and there's no substitute part
Smoke Eliminator (on Model Starting At Serial Number 672
Part #02-042230-09
The manufacturer no longer makes this part, and there's no substitute part
Cabinet section (fdu146) diagram
Storage Drawer (on Models Starting At Serial Number 5959
Part #57-040270-41-S
The manufacturer no longer makes this part, and there's no substitute part
Screw, Element Mounting
Part #01-041817-01
The manufacturer no longer makes this part, and there's no substitute part
