Amana ADW650RAW-PADW650RAW1 dishwasher Parts
Here are the diagrams and repair parts for Amana ADW650RAW-PADW650RAW1 dishwasher, as well as links to manuals and error code tables, if available.
Error CodesBy Schematic
By Part
SELECT DIAGRAM
Browse Parts for ADW650RAW-PADW650RAW1 Dishwasher

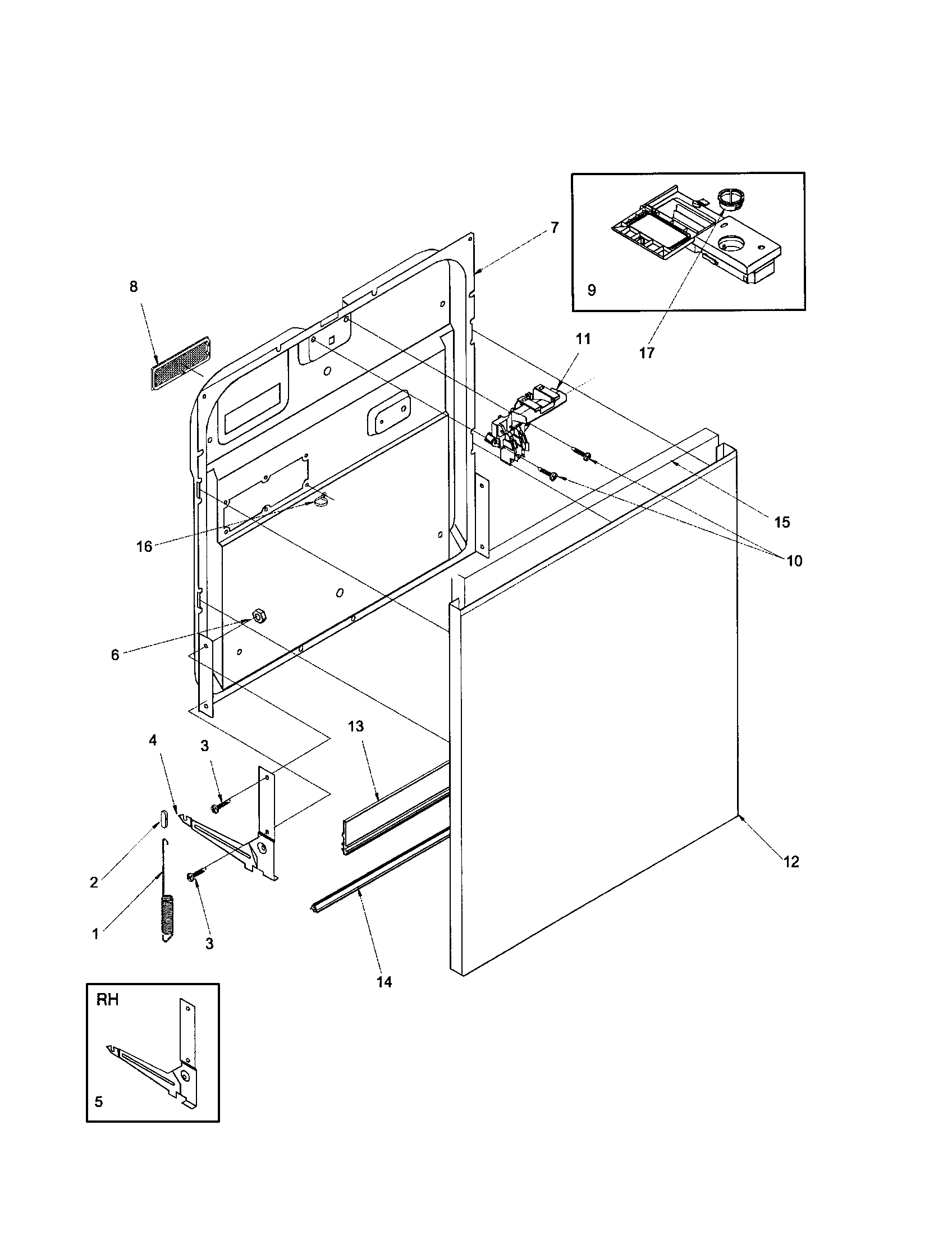

Door diagram
Dispenser
Part #R9800117Replaced by #WPW10247183
Manufacturer substitutionThis part replaces R9800117. Substitute parts can look different from the original.In Stock$300.28
Qty

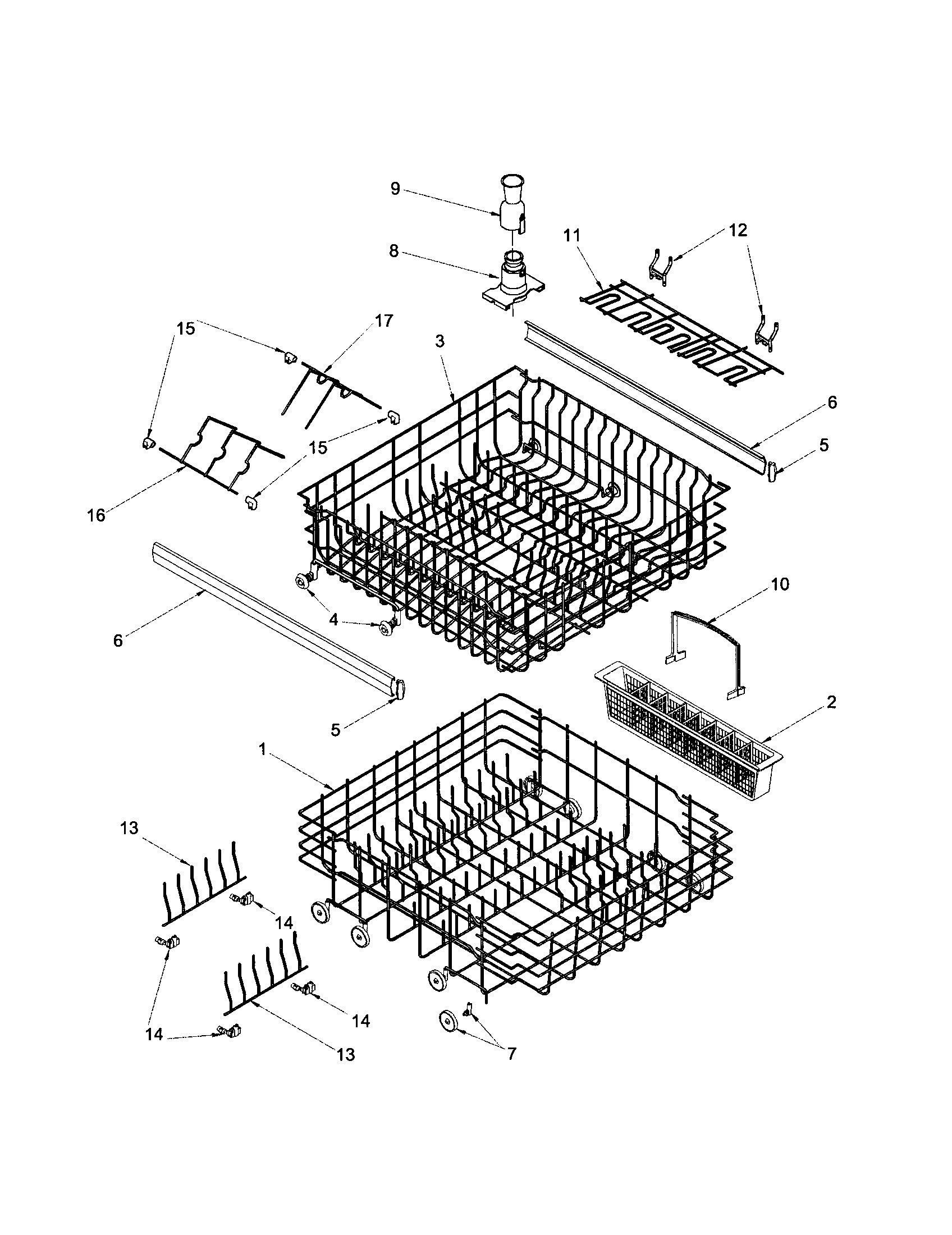

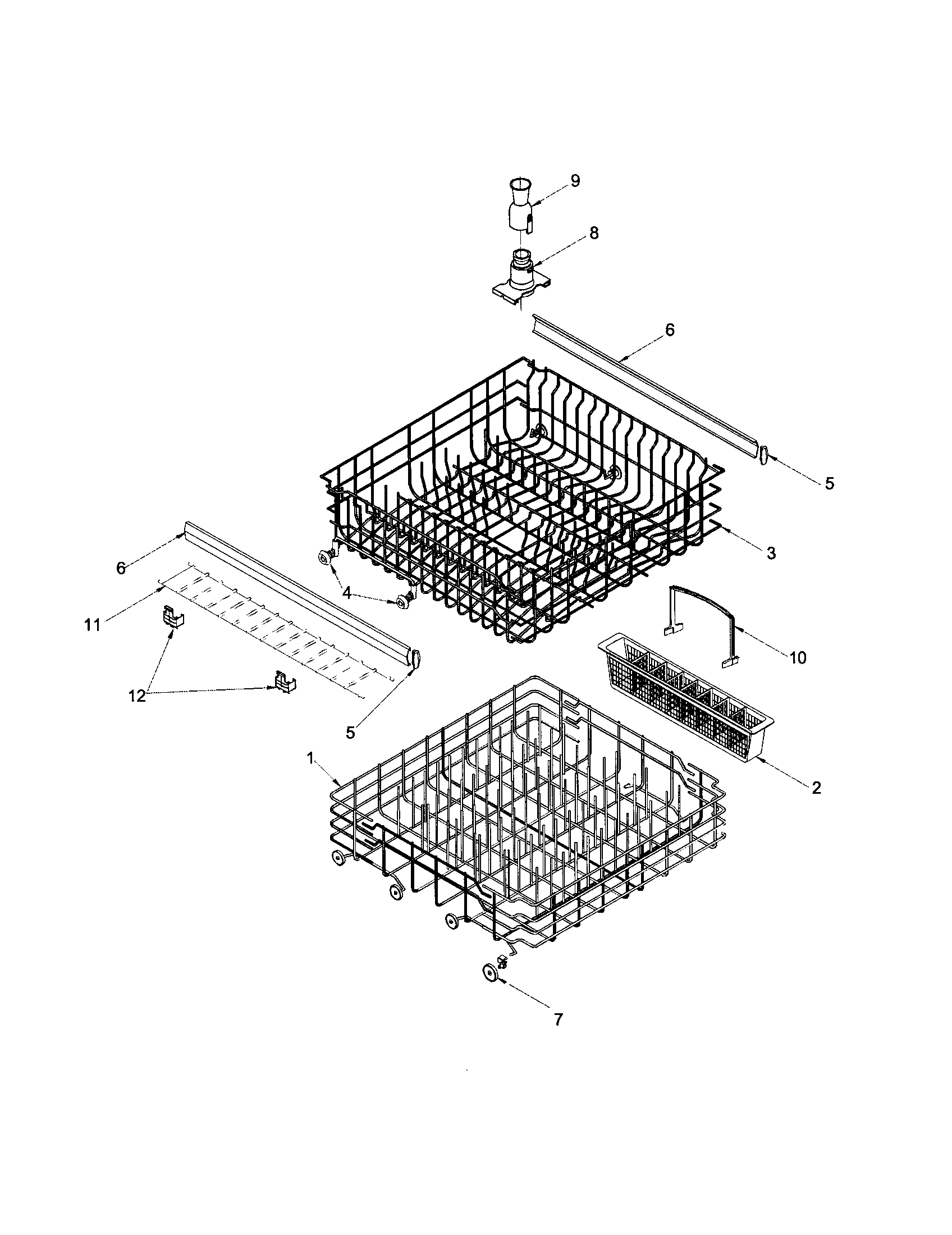

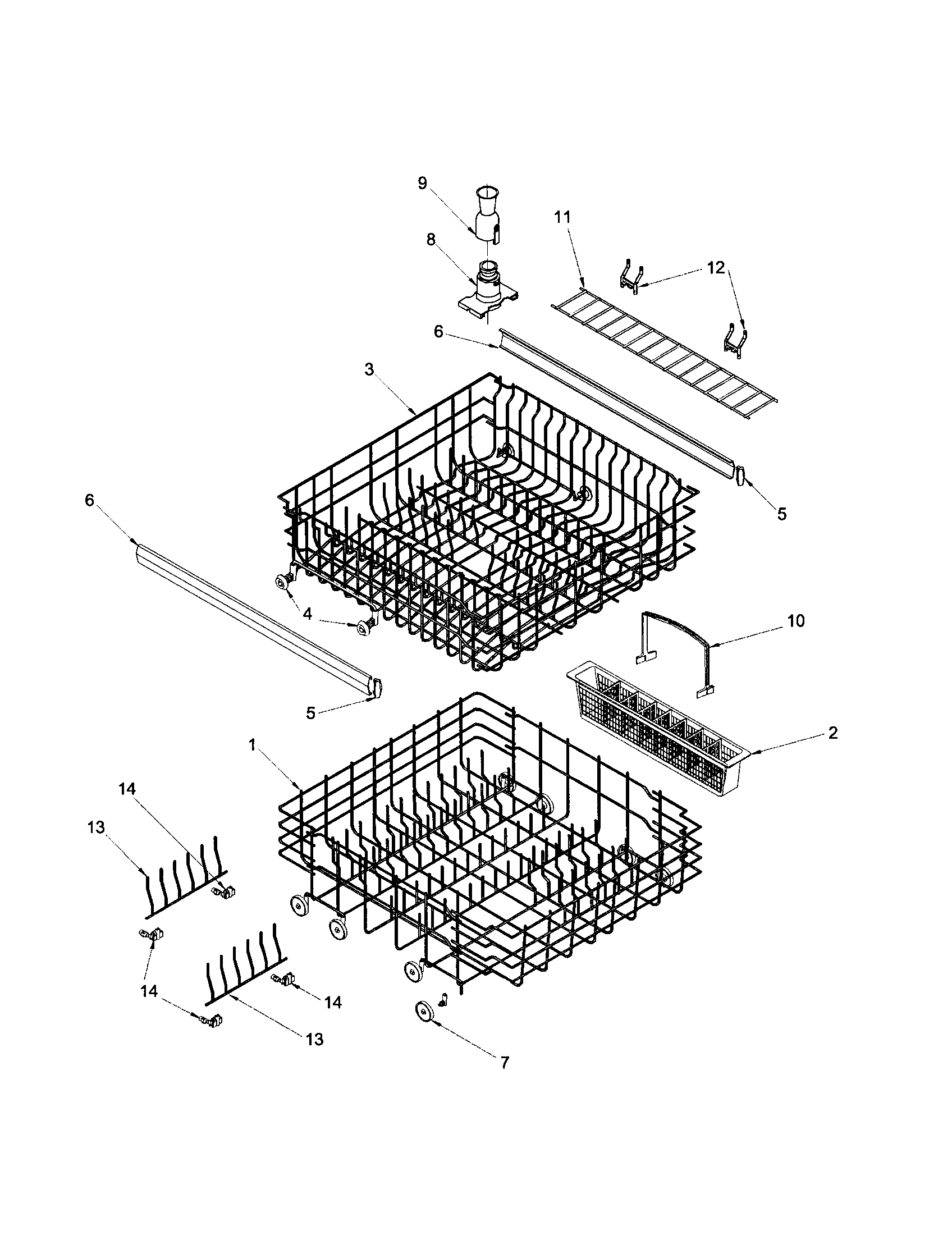

Fence Fold Down Wht Lower Rack (padw750eaw2, Padw750eab2, Padw750eac2)(qty Ar)
Part #R9800093
The manufacturer no longer makes this part, and there's no substitute part
Vent Gasket
Part #R9800188
The manufacturer no longer makes this part, and there's no substitute part
Base Funnel (padw650raw1,rab1,rac1)
Part #R9800189
The manufacturer no longer makes this part, and there's no substitute part

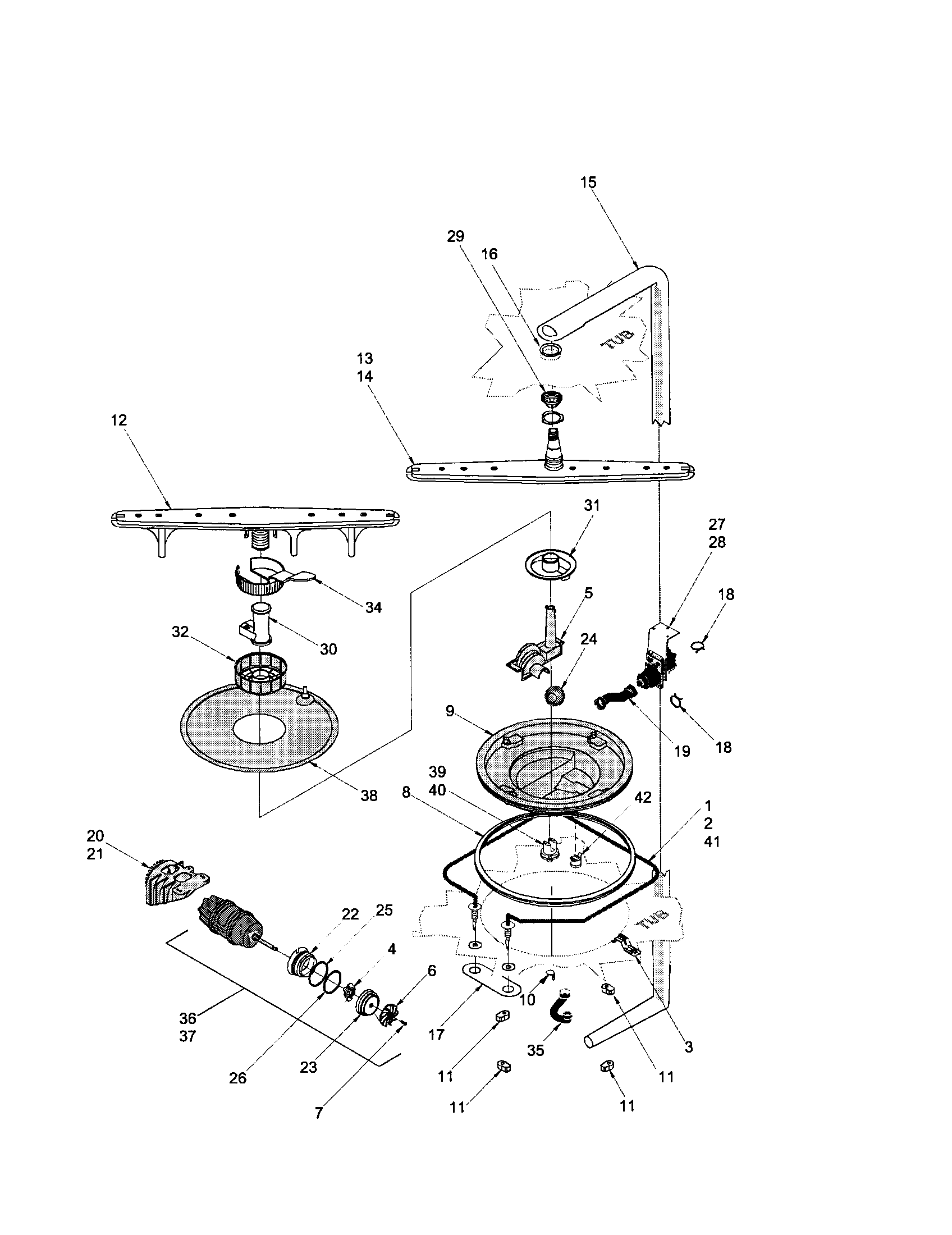

Motor diagram
Thermistor
Part #R9800111
The manufacturer no longer makes this part, and there's no substitute part
Door diagram
Screw-latch (2)
Part #R9800065
The manufacturer no longer makes this part, and there's no substitute part

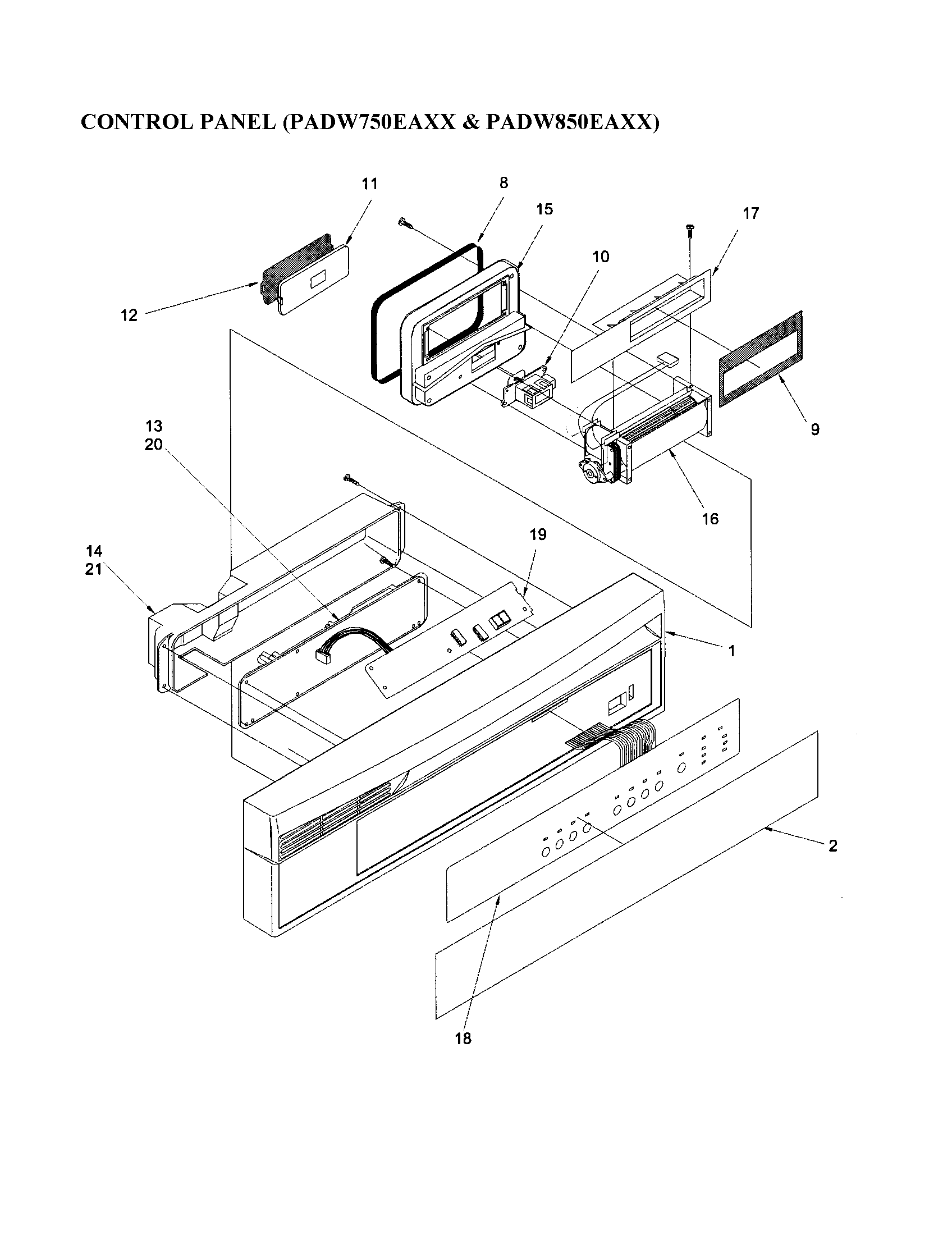

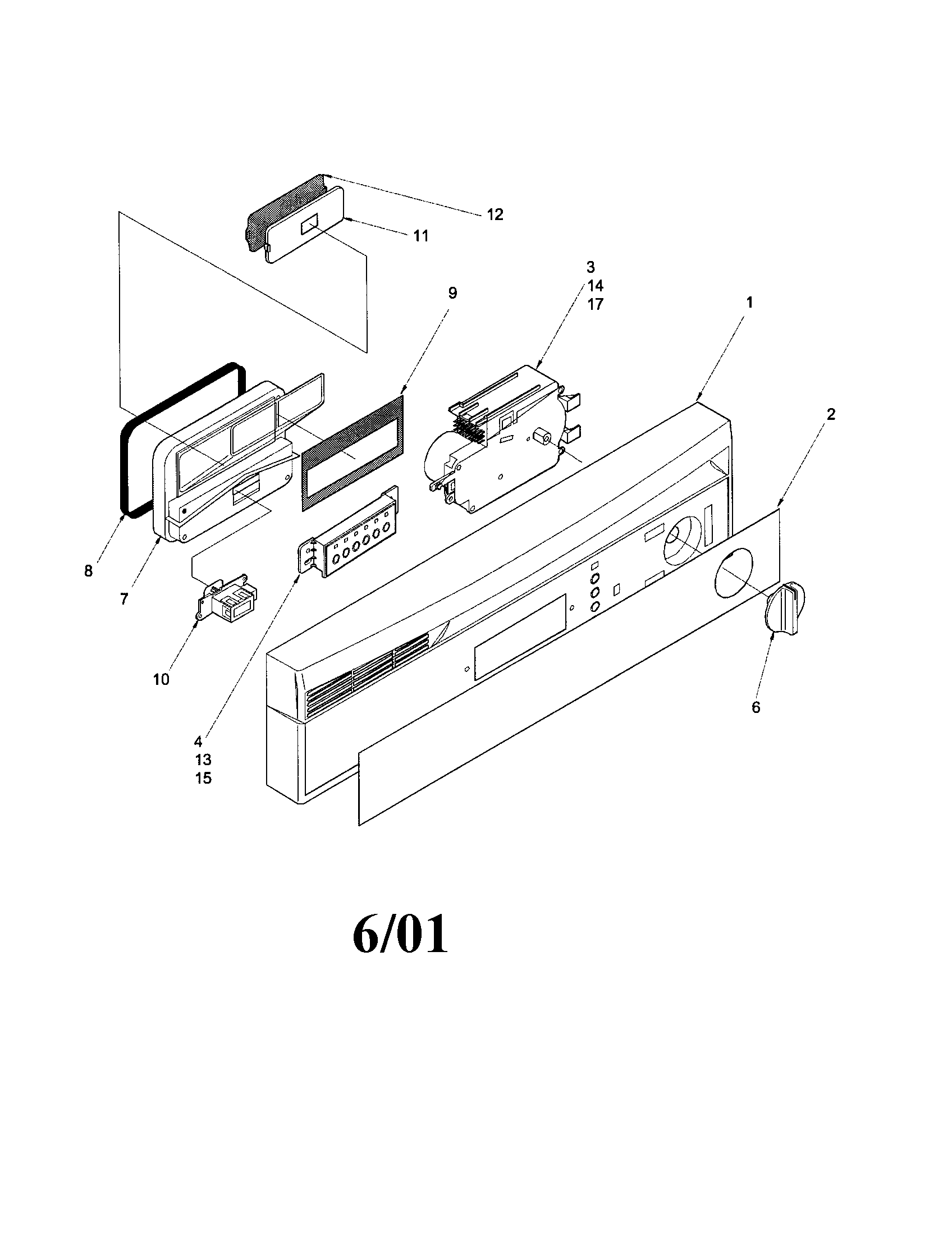

Control panel (padw750eaxx/850eaxx) diagram
Keypad 9 Pad (padw750eaw2, Padw750eab2, Padw750eac2)
Part #R0000492
The manufacturer no longer makes this part, and there's no substitute part
Door diagram
Rh Arm Asm
Part #R9800212
The manufacturer no longer makes this part, and there's no substitute part

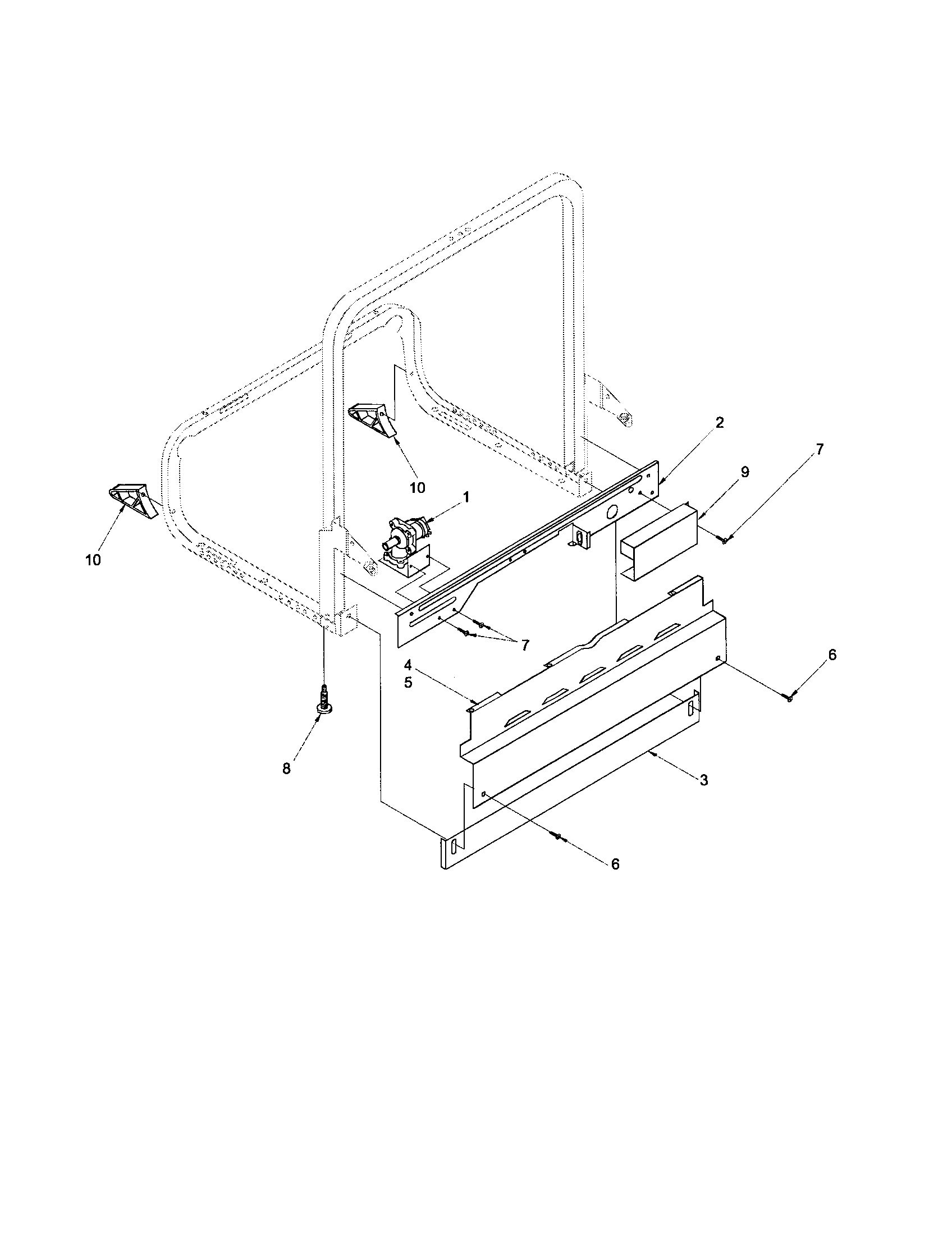

Frame diagram
Screw -leveling (qty Ar)
Part #R9800081
The manufacturer no longer makes this part, and there's no substitute part

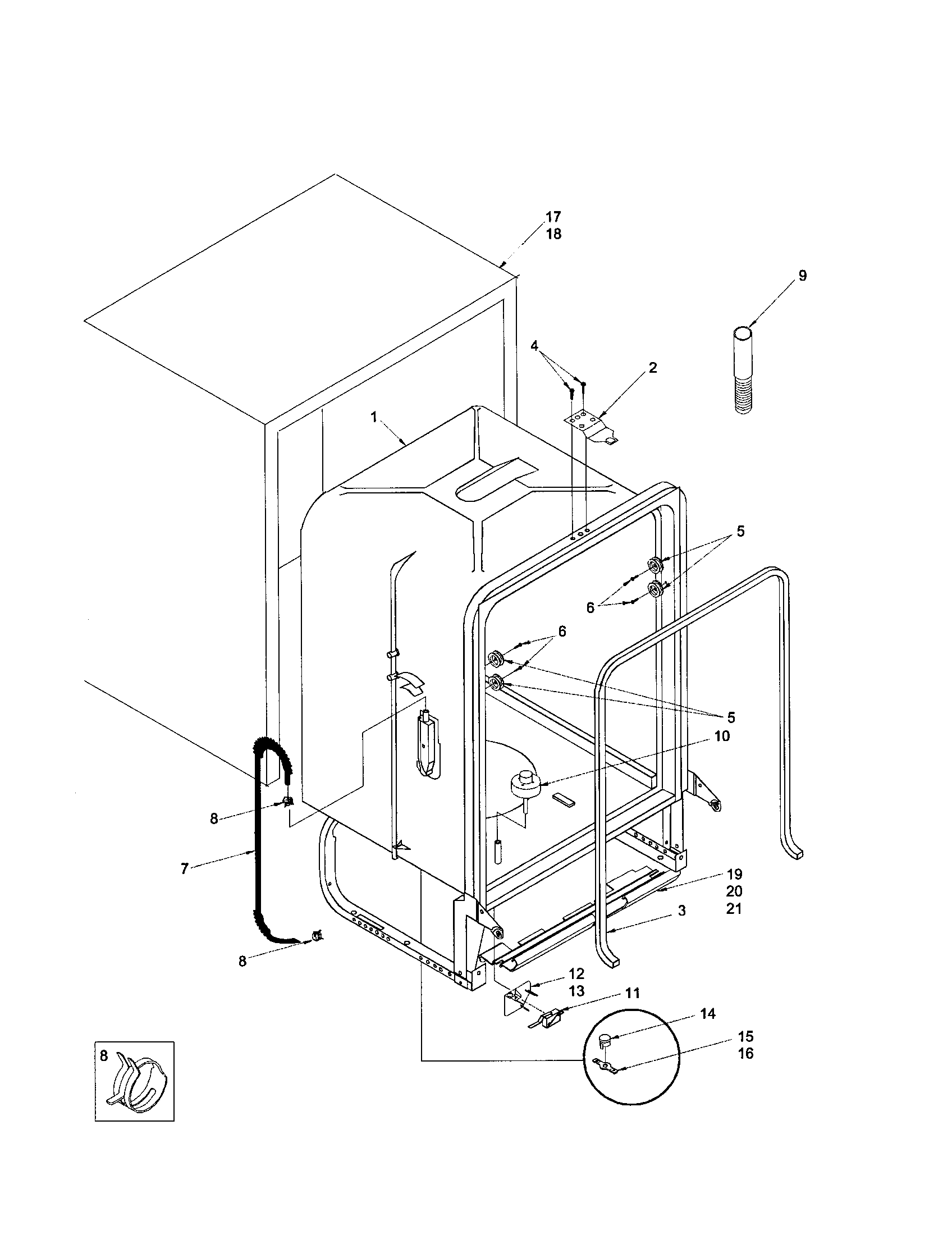

Tub diagram
Tub Insulation
Part #R9800126
The manufacturer no longer makes this part, and there's no substitute part
