Model #113170200 Craftsman wet/dry vacuum

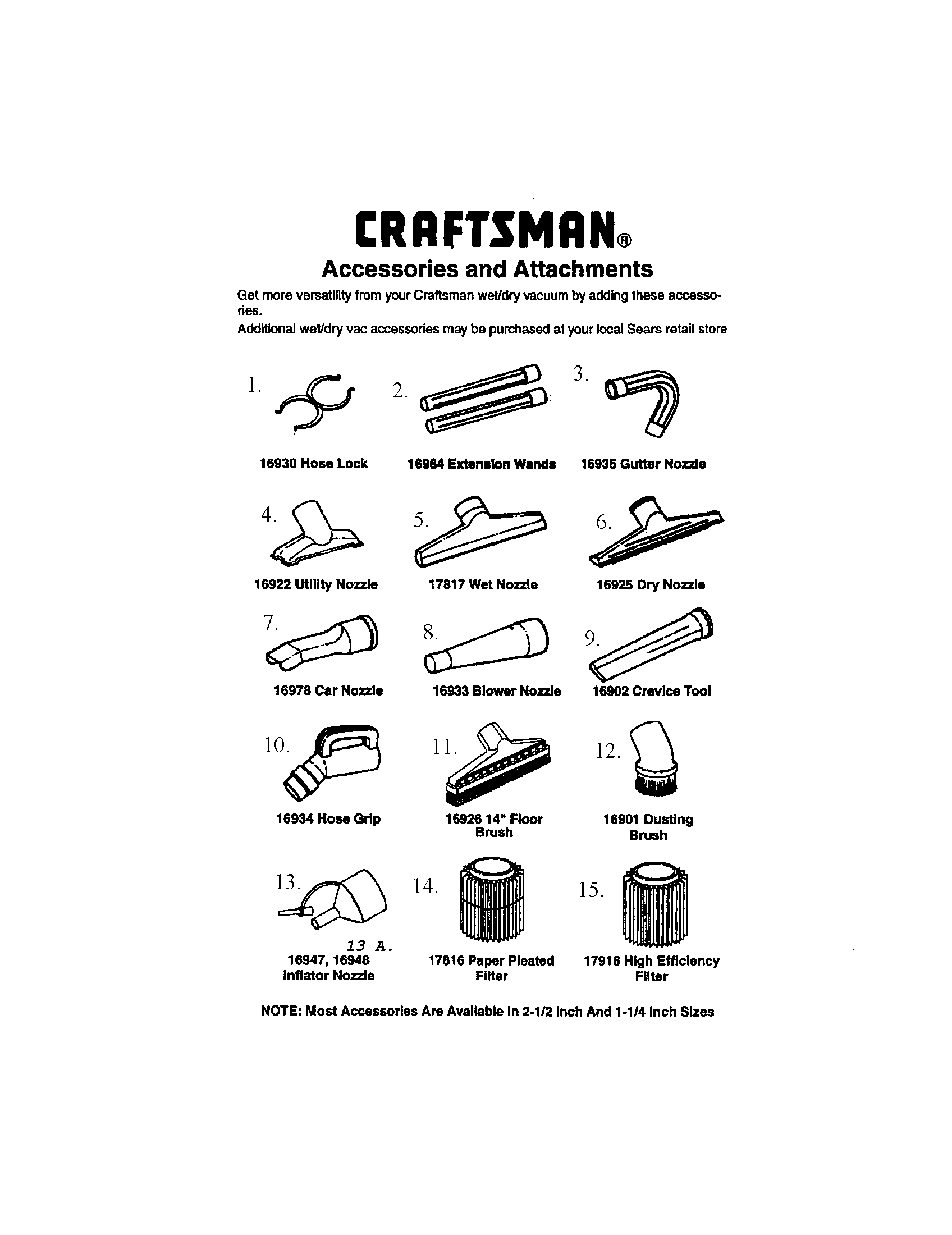

Here are the diagrams and repair parts for Craftsman 113170200 wet/dry vacuum, as well as links to manuals and error code tables, if available.


There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Save to my profileOwner’s manual

    Showing 10 of 48 parts

    Shop Vacuum Hose Adapter

    #27

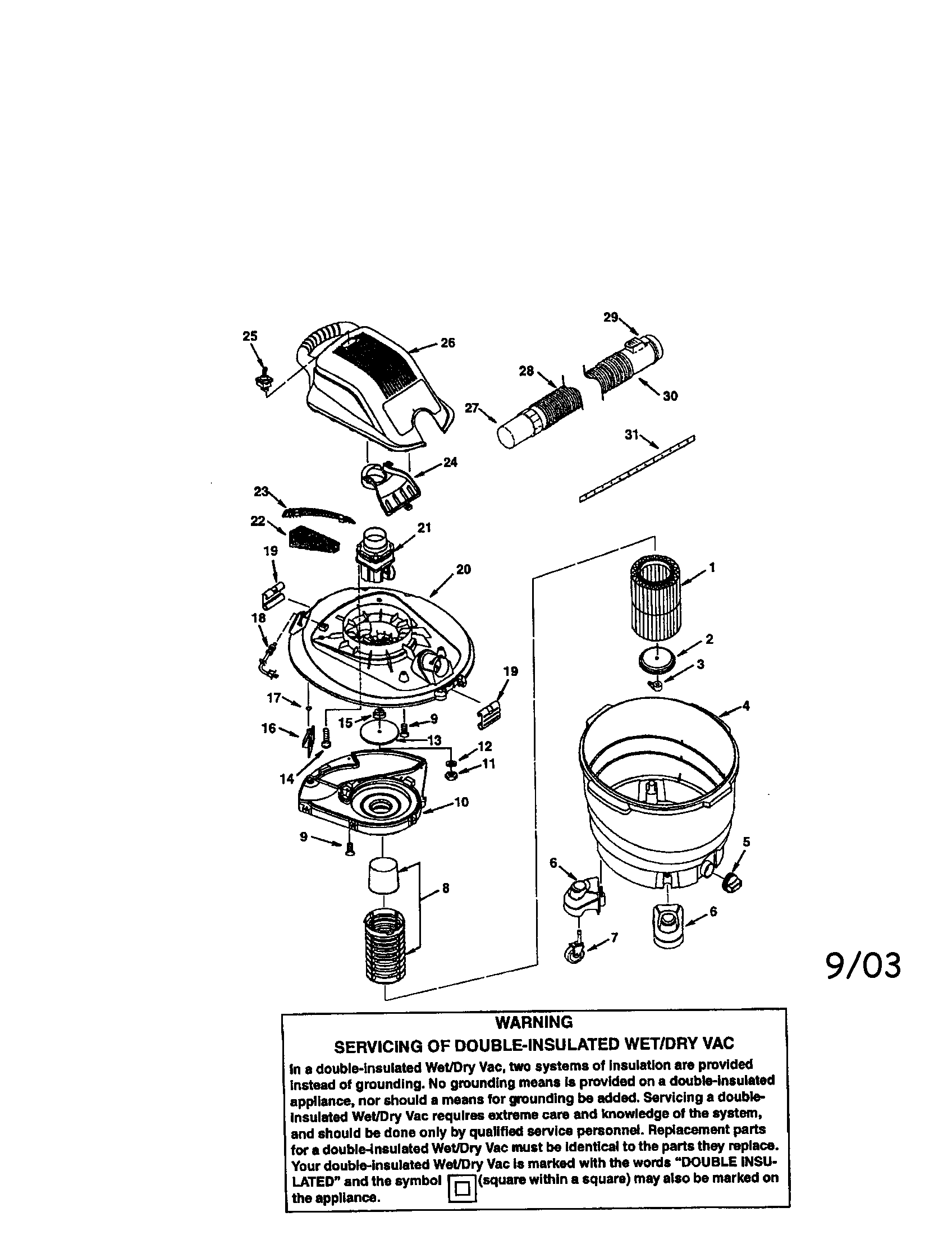

    Canister/ wheel blower/drum Diagram

    Shop vacuum hose adapter

    Part #815096

    The manufacturer no longer makes this part, and there's no substitute part

    Drum Latch

    #19

    Canister/ wheel blower/drum Diagram

    Drum latch

    Part #826387

    The manufacturer no longer makes this part, and there's no substitute part

    Foot Caster

    #6

    Canister/ wheel blower/drum Diagram

    Foot caster

    Part #826771

    The manufacturer no longer makes this part, and there's no substitute part

    Shop Vacuum Blower Wheel Spacer

    #15

    Canister/ wheel blower/drum Diagram

    Shop vacuum blower wheel spacer

    Part #818961

    The manufacturer no longer makes this part, and there's no substitute part

    Shop Vacuum On/Off Switch

    #25

    Canister/ wheel blower/drum Diagram

    Shop vacuum on/off switch

    Part #73180

    The manufacturer no longer makes this part, and there's no substitute part

    Shop Vacuum Hose End Interlock

    #30

    Canister/ wheel blower/drum Diagram

    Shop vacuum hose end interlock

    Part #826775

    The manufacturer no longer makes this part, and there's no substitute part

    Shop Vacuum Nut

    #11

    Canister/ wheel blower/drum Diagram

    Shop vacuum nut

    Part #826817

    The manufacturer no longer makes this part, and there's no substitute part

    Shop Vacuum Exhaust Vent Filter

    #22

    Canister/ wheel blower/drum Diagram

    Shop vacuum exhaust vent filter

    Part #826809

    The manufacturer no longer makes this part, and there's no substitute part

    Shop Vacuum Drain Cap

    #5

    Canister/ wheel blower/drum Diagram

    Shop vacuum drain cap

    Part #73185

    The manufacturer no longer makes this part, and there's no substitute part

    Shop Vacuum Squeegee

    #31

    Canister/ wheel blower/drum Diagram

    Shop vacuum squeegee

    Part #822256

    The manufacturer no longer makes this part, and there's no substitute part
