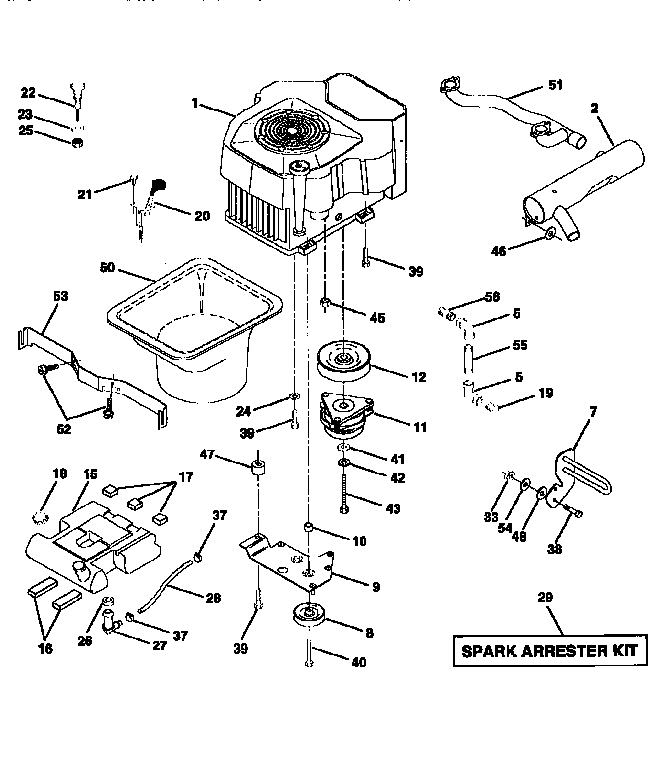

View engine
How to identify a lawn mower engine?
On your Craftsman lawn tractor model 917251511, you identify the engine by locating the engine model/type code and serial number stamped or printed on the engine itself (not the tractor frame). This ID is usually on the blower housing (sheet metal shroud) near the muffler or air cleaner.
Where to look on the engine
Check these common locations first (wipe dirt and grass off so you can read the stamp):
- On the sheet metal shroud directly above or near the muffler (right or left side)
- On the front of the engine near the air cleaner housing
- On the valve cover area or nearby flat metal surface
- On a sticker or stamped pad on the engine block (often near the starter)
- Near the spark plug wire routing area (on the shroud)
What information to write down
For correct parts matching, record the engine ID exactly as shown.
| What to record | Example format | Why it matters |
|---|---|---|
| Model / type code | Letters and numbers | Identifies the exact engine family |
| Spec / trim code | Short code or “Type” | Matches carburetor, ignition, and governor parts |
| Serial number | Numbers (sometimes with letters) | Helps confirm production run |
Why it matters
The tractor model number (917251511) identifies the mower chassis and deck, but the engine ID is what we use to match engine-specific parts like ignition components, fuel system parts, and starting system pieces.
If you are troubleshooting a no-start or no-crank
If the engine clicks or will not turn over, the starting circuit is a common place to begin. For example, a failing starter solenoid can cause a click with no crank; see the solenoid 532146154 if you are diagnosing that circuit.
For step-by-step help, use our DIY video: riding lawn mower engine clicks but doesnt turn over video.
Last updated: February 2026
Is it worth replacing a lawn mower engine?
Yes, replacing the engine on your Craftsman 917251511 front-engine lawn tractor is worth it when the tractor is otherwise in good shape (solid deck, good transmission, straight frame) and the engine is the main failure. In that case, an engine swap usually costs less than replacing the entire tractor.
When an engine replacement makes sense
We recommend replacing the engine when these conditions are true:
- The mower deck and spindles are in good condition (no major cracks or severe rust-through)
- The transmission drives normally (no slipping, no loss of forward or reverse)
- Steering and front axle are tight enough to use safely
- The engine has a confirmed major failure (low compression, thrown rod, heavy smoking, metal in oil)
- You plan to keep the tractor for several more seasons
Quick cost-benefit checklist
| What you find | What it usually means | Best next step |
|---|---|---|
| Engine is worn out but tractor drives and cuts well | Good candidate for engine replacement | Price an engine and compare to a new tractor |
| Engine is bad and transmission is also failing | Costs stack up fast | Consider replacing the tractor |
| Engine won’t crank but rest of tractor is fine | Often electrical, not engine | Diagnose starting circuit first |
Before you buy an engine, rule out common “engine failure” look-alikes
A no-start or no-crank problem is often a battery, switch, or solenoid issue, not a bad engine.
- If you hear a click but the starter does not turn, check the battery cables and starter circuit; the solenoid 532146154 is a common failure point
- If nothing happens when you turn the key, check safety interlocks and the ignition key; a worn key can cause intermittent contact (see molded ignition key 532140403)
- If the engine cranks but will not start, focus on fuel delivery, spark, and air filter condition
For step-by-step troubleshooting, we use the guide in riding lawn mower engine clicks but doesnt turn over video.
Why it matters
An engine replacement is a big job and a big spend. Confirming the tractor’s drivetrain and safety systems are solid first helps you avoid putting a new engine into a machine that still will not be reliable.
Last updated: February 2026
What engine does Craftsman riding mower use?
The Craftsman front-engine lawn tractor model 917251511 uses a gas, single-cylinder riding mower engine, but the exact engine brand and horsepower vary by the tractor’s build configuration. We match the correct engine parts by using your model number and the engine’s ID numbers on the engine label.
How to identify the exact engine on model 917251511
Look for an engine label (usually on the blower housing, valve cover area, or near the starter). Record these items:
- Engine manufacturer name (commonly Briggs & Stratton, Kohler, or Tecumseh on tractors of this era)
- Engine model number
- Type/spec number (or “spec”)
- Code/date number
- Any serial number shown
Quick checks that help narrow it down
These checks do not require disassembly and help confirm you are ordering the right parts:
- Deck size and drive type: gear drive vs. hydrostatic often correlates with engine family
- Starter system: if you get a click but no crank, the starting circuit (battery, solenoid, cables) is the first place to test
- Fuel system layout: tank location and fuel line routing can differ by engine family
- Ignition key style: a worn key can cause intermittent no-start symptoms
| What you see | What it usually points to | What to do next |
|---|---|---|
| Single click when turning key | Weak battery, bad solenoid, poor cable connection | Test voltage; inspect and tighten connections |
| Engine cranks but will not start | Fuel delivery or ignition issue | Check fresh fuel, spark, and air filter |
| No click, no crank | Safety interlock or ignition switch issue | Verify brake/clutch and PTO switch position |
Parts that commonly relate to engine starting on this tractor
If your issue is starting or cranking, these model-matched parts are common fixes:
- Solenoid 532146154 (starter solenoid)
- Molded ignition key 532140403 (key wear can cause poor contact)
- Switch 582107601 (PTO switch; must be in the off position to start)
Why it matters
The same Craftsman model series can be built with different engines over time. Using the engine label numbers prevents ordering the wrong carburetor, ignition parts, or tune-up items.
Last updated: February 2026
What year did Craftsman make the 917251511?
Craftsman model 917251511 is a 1996-era front-engine lawn tractor. To confirm the exact build date for your specific unit, we use the manufacturing date code on the tractor’s ID/serial label; that label ties your tractor to the correct parts diagrams and revisions.
Where to find the ID/serial label
Check these common locations on Craftsman riding tractors:
- Under the seat (lift the seat and look on the seat pan)
- On the rear fender pan near the seat
- On the frame rail near the engine or battery
- Near the transaxle area on the frame
How to read the date information
Once you find the label, write down everything exactly as printed:
- Model number (should be 917251511)
- Serial number
- Any date code or manufacturing code
Many tractors use a 6-digit date-style code that reads like MMDDYY.
| Example code | How to read it | What it tells you |
|---|---|---|
| 031596 | 03/15/96 | Built March 15, 1996 |
| 112096 | 11/20/96 | Built November 20, 1996 |
Why it matters
Even within the same model year, parts can change by production run. Confirming the build date helps us match the right electrical and deck-drive components for your 917251511.
Parts that commonly vary by production run
- PTO switch and wiring (see switch 582107601)
- Starter solenoid and starting circuit parts (see solenoid 532146154)
- Deck and ground drive belts
- Mandrel/spindle hardware and deck components
If you are also diagnosing a click-no-crank symptom while you’re checking the label, use riding lawn mower engine clicks but doesnt turn over video to narrow it down to battery, solenoid, or safety interlock issues.
Last updated: February 2026
