White-Westinghouse RS192GCF4 refrigerator - lw30587160 Parts
Here are the diagrams and repair parts for White-Westinghouse RS192GCF4 refrigerator - lw30587160, as well as links to manuals and error code tables, if available.
Error CodesBy Schematic
By Part
SELECT DIAGRAM
Browse Parts for RS192GCF4 Refrigerators

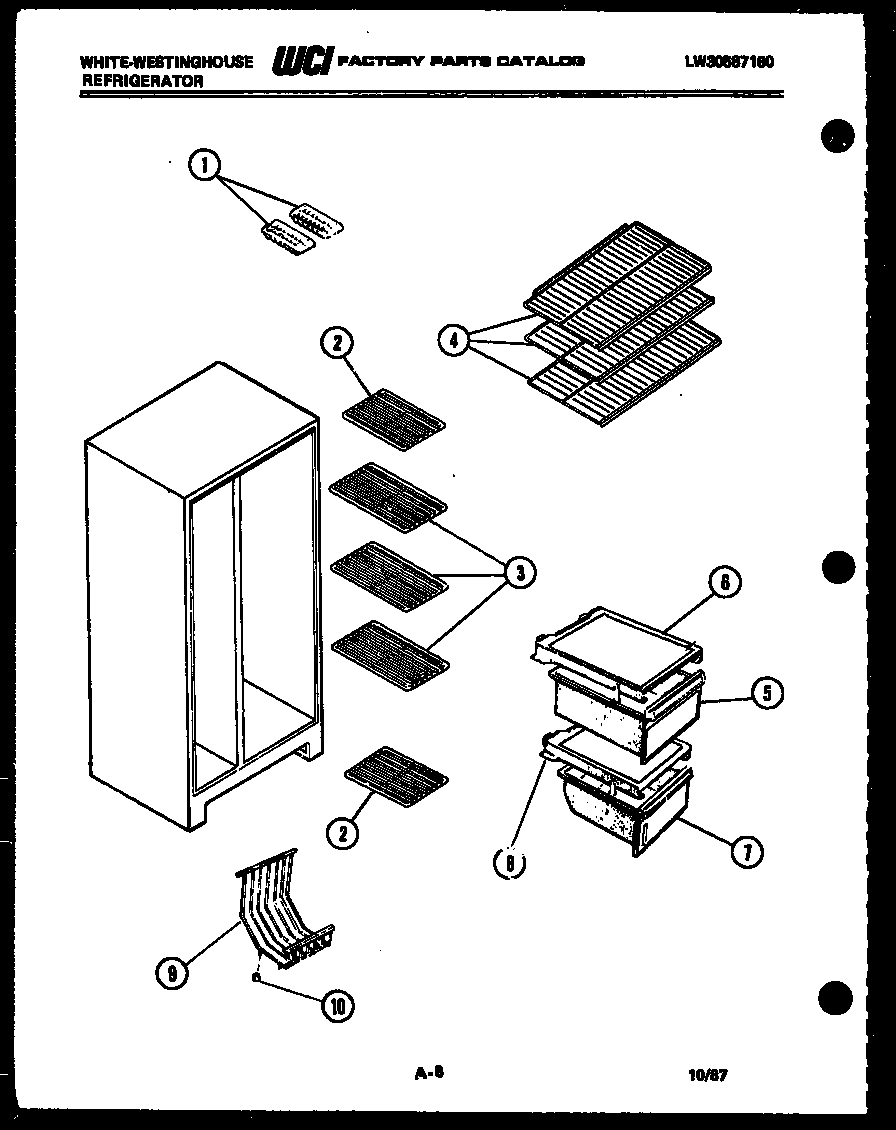

Shelves and supports diagram
Trivet Basket
Part #G167018Replaced by #3006453
Manufacturer substitutionThis part replaces G167018. Substitute parts can look different from the original.In Stock$58.61
Qty

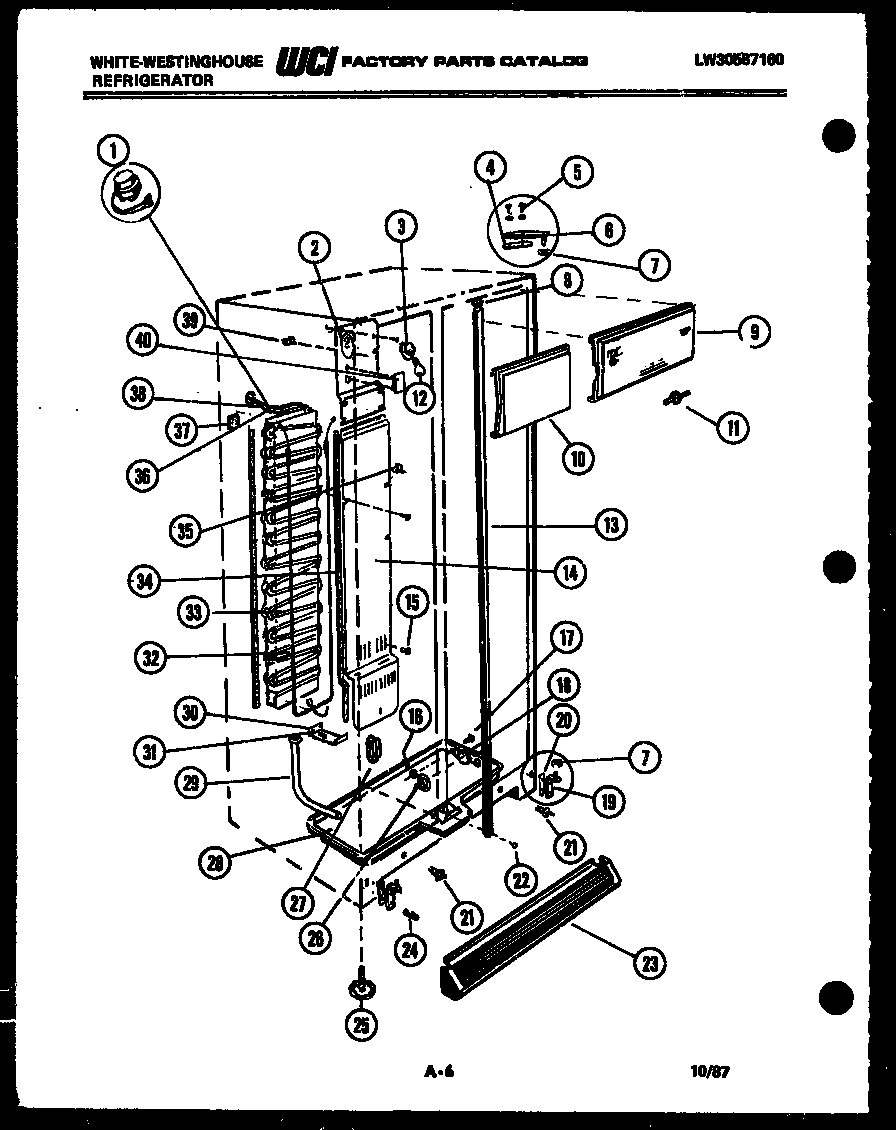

Cabinet parts diagram
Light Switch
Part #G149762Replaced by #5303289051

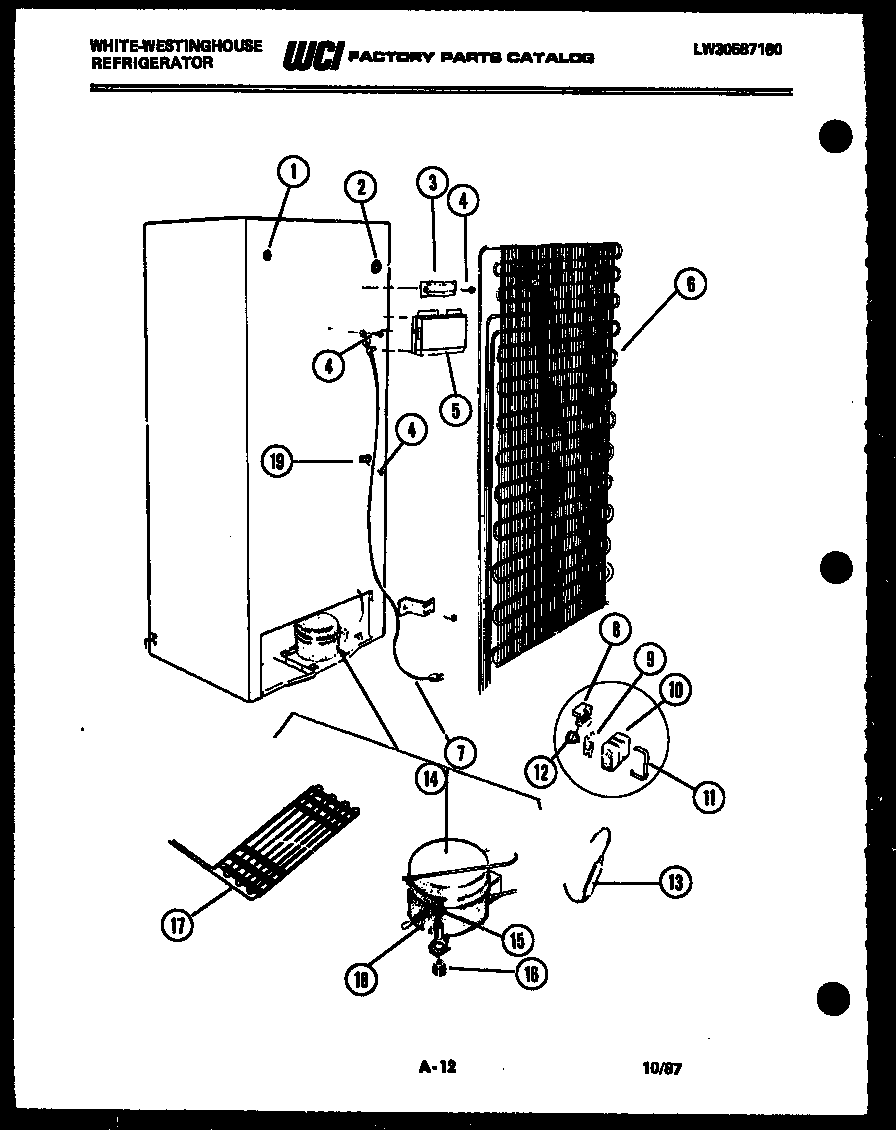

Manufacturer substitutionThis part replaces G149762. Substitute parts can look different from the original.In Stock$48.24QtySystem and automatic defrost parts diagram
Wiring Cover
Part #G183584
The manufacturer no longer makes this part, and there's no substitute part
Cabinet parts diagram
Refrigerator Grommet
Part #G163952Replaced by #08009611
Manufacturer substitutionThis part replaces G163952. Substitute parts can look different from the original.In Stock$25.31QtySystem and automatic defrost parts diagram
Bracket
Part #G164637Replaced by #5308000296
Manufacturer substitutionThis part replaces G164637. Substitute parts can look different from the original.In Stock$31.0216% OFF Phone Price : $37.02
QtyCabinet parts diagram
Bracket-uppe
Part #G183716Replaced by #5303001062
Manufacturer substitutionThis part replaces G183716. Substitute parts can look different from the original.In Stock$138.96QtyCabinet parts diagram
Refrigerator Ferrule
Part #G166801Replaced by #5308000809
Manufacturer substitutionThis part replaces G166801. Substitute parts can look different from the original.In Stock$26.31QtyCabinet parts diagram
Decorative Plug
Part #G165416-02Replaced by #08012270
Manufacturer substitutionThis part replaces G165416-02. Substitute parts can look different from the original.In Stock$26.71QtyCabinet parts diagram
Meat Damper
Part #G164912-03Replaced by #5316491203
Manufacturer substitutionThis part replaces G164912-03. Substitute parts can look different from the original.In Stock$39.01QtyCabinet parts diagram
Block Coil
Part #G169493Replaced by #5308000828
Manufacturer substitutionThis part replaces G169493. Substitute parts can look different from the original.In Stock$27.57Qty
