KitchenAid KUDD03STWH2 drawer dishwasher Parts
Here are the diagrams and repair parts for KitchenAid KUDD03STWH2 drawer dishwasher, as well as links to manuals and error code tables, if available.
Installation guide
Error CodesBy Schematic
By Part
SELECT DIAGRAM
Browse Parts for KUDD03STWH2 Drawer Dishwasher

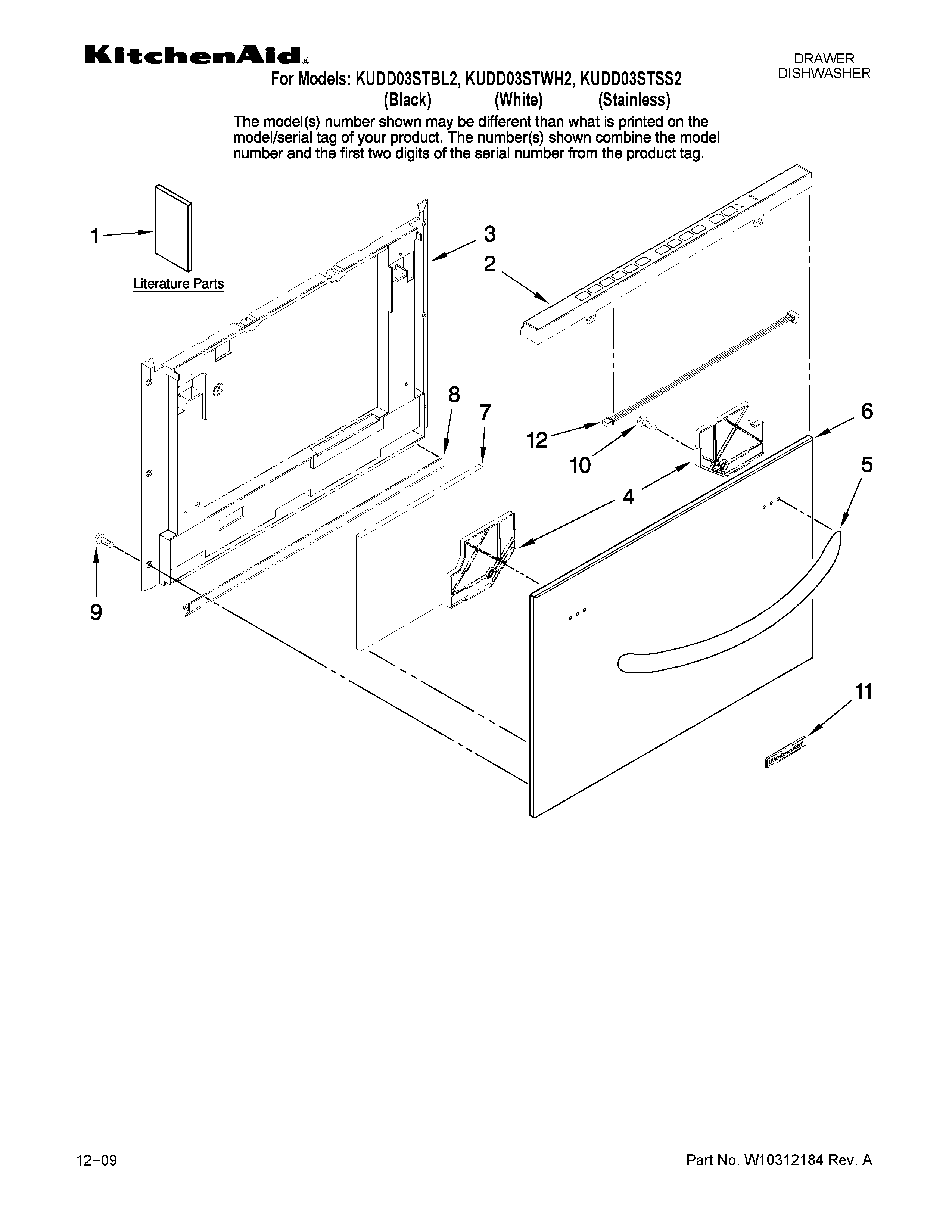

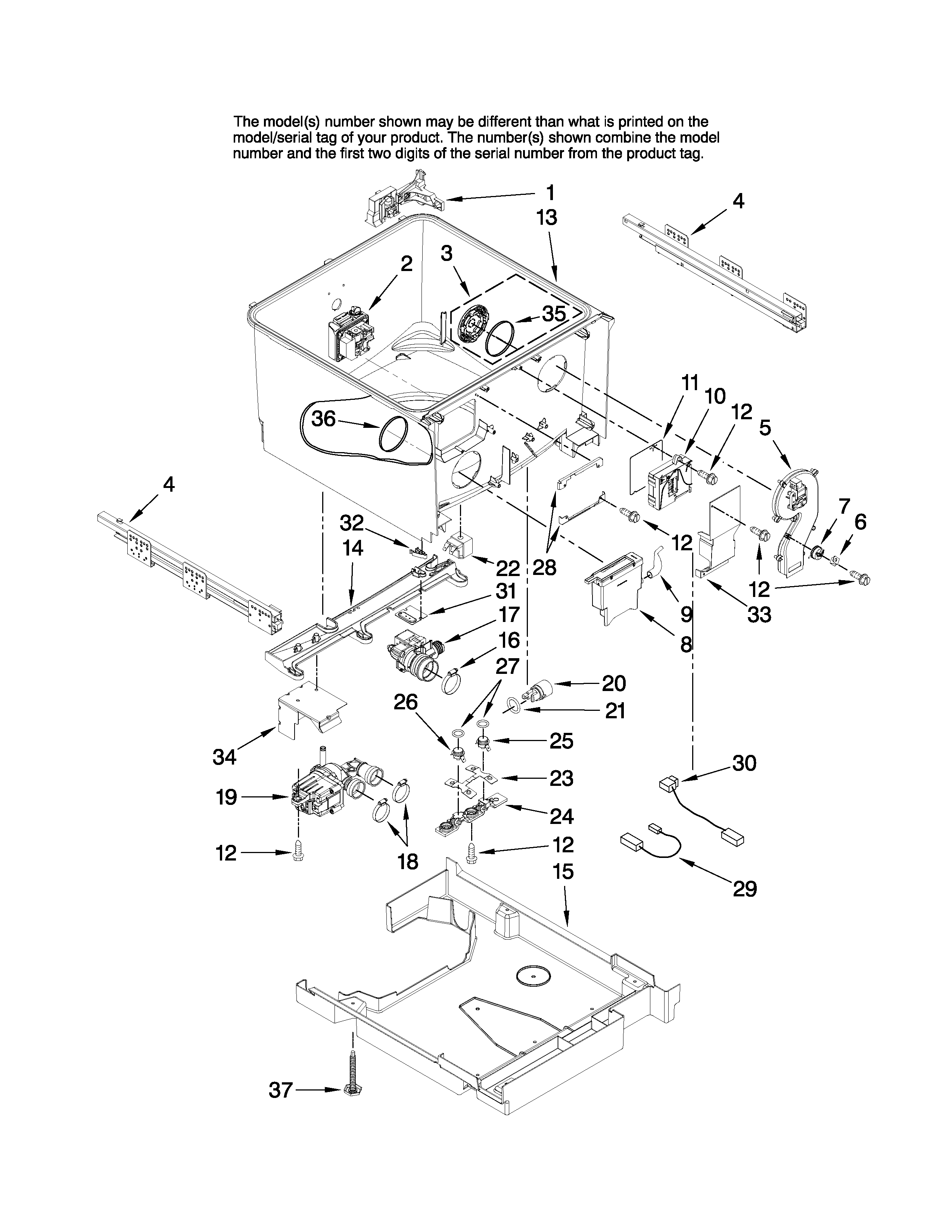

Tub parts diagram
Dishwasher Air Duct Bezel
Part #99003605Replaced by #WP99003605
Manufacturer substitutionThis part replaces 99003605. Substitute parts can look different from the original.In Stock$22.2121% OFF Phone Price : $28.21
Qty

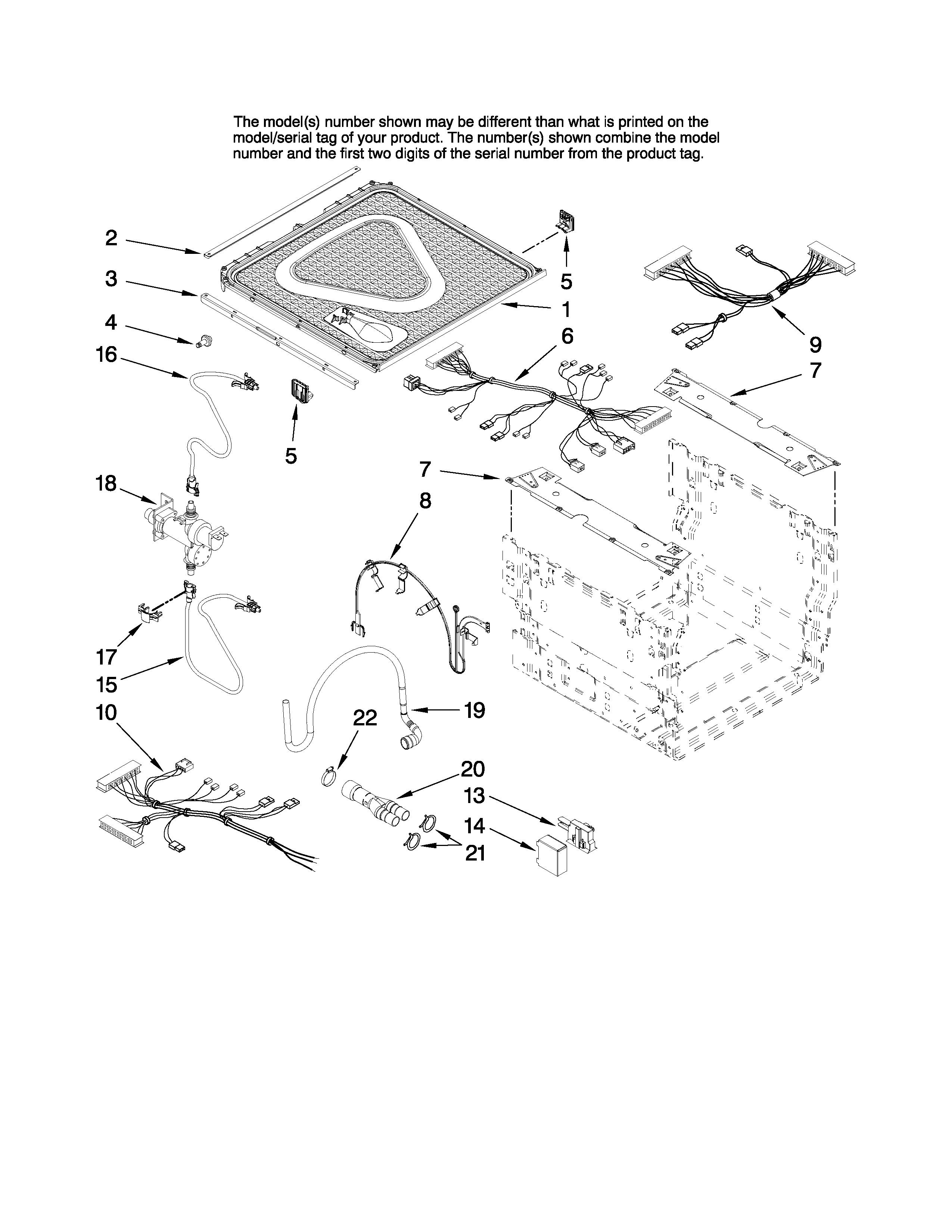

Frame and lid parts diagram
Dishwasher Drain Hose Clamp
Part #99003633Replaced by #WP616099
Manufacturer substitutionThis part replaces 99003633. Substitute parts can look different from the original.In Stock$29.19QtyTub parts diagram
Dishwasher Drain Hose Clamp
Part #99003631Replaced by #WP616099
Manufacturer substitutionThis part replaces 99003631. Substitute parts can look different from the original.In Stock$29.19QtyTub parts diagram
Inlet Seal
Part #99003602Replaced by #WPW10286124
Manufacturer substitutionThis part replaces 99003602. Substitute parts can look different from the original.This item is not returnableIn Stock$10.2616% OFF Phone Price : $12.26QtyTub parts diagram
Dishwasher Vent Fan Motor Assembly
Part #W10155595Replaced by #WPW10155595

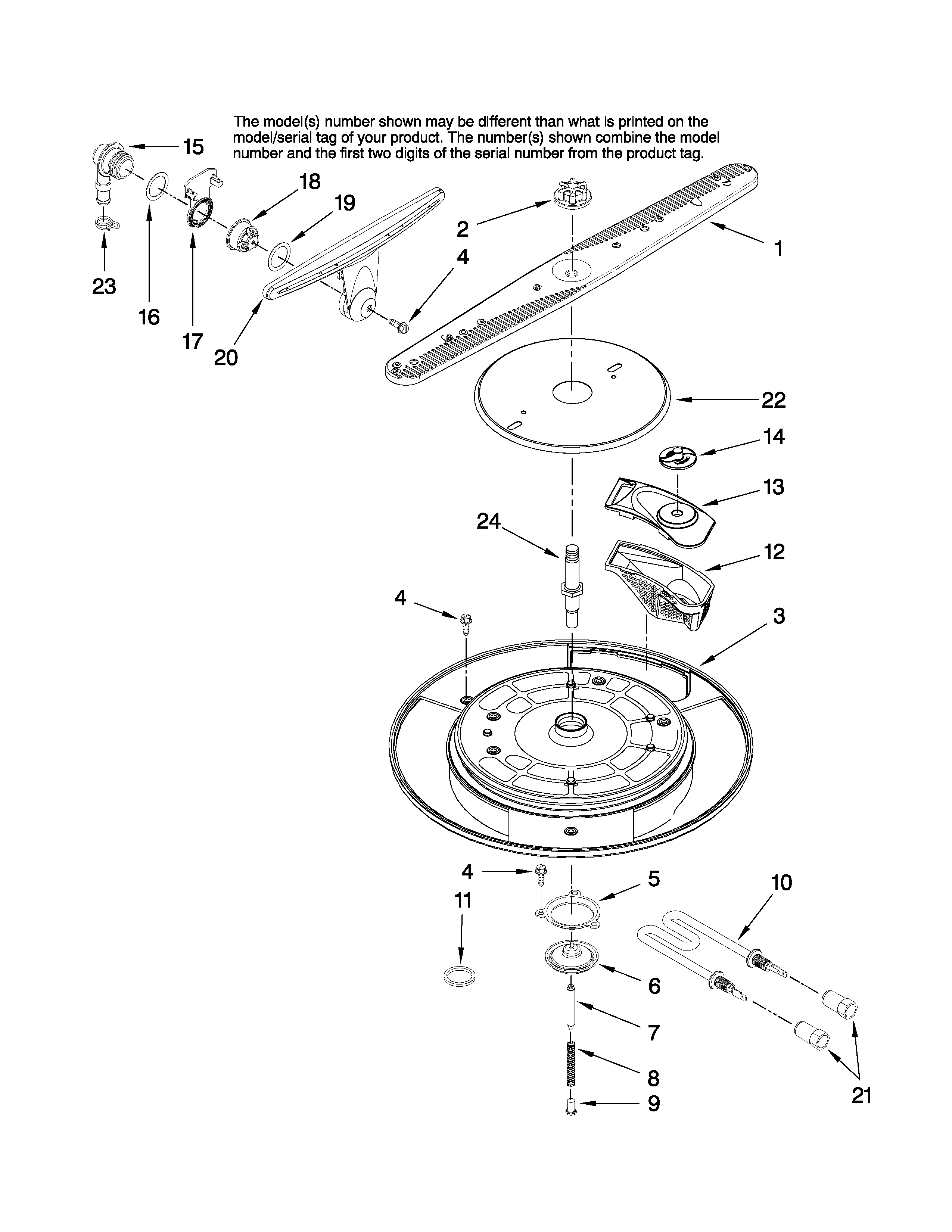

Manufacturer substitutionThis part replaces W10155595. Substitute parts can look different from the original.In Stock$151.447% OFF Phone Price : $163.44QtyWash system parts diagram
Dishwasher Spray Arm, Lower

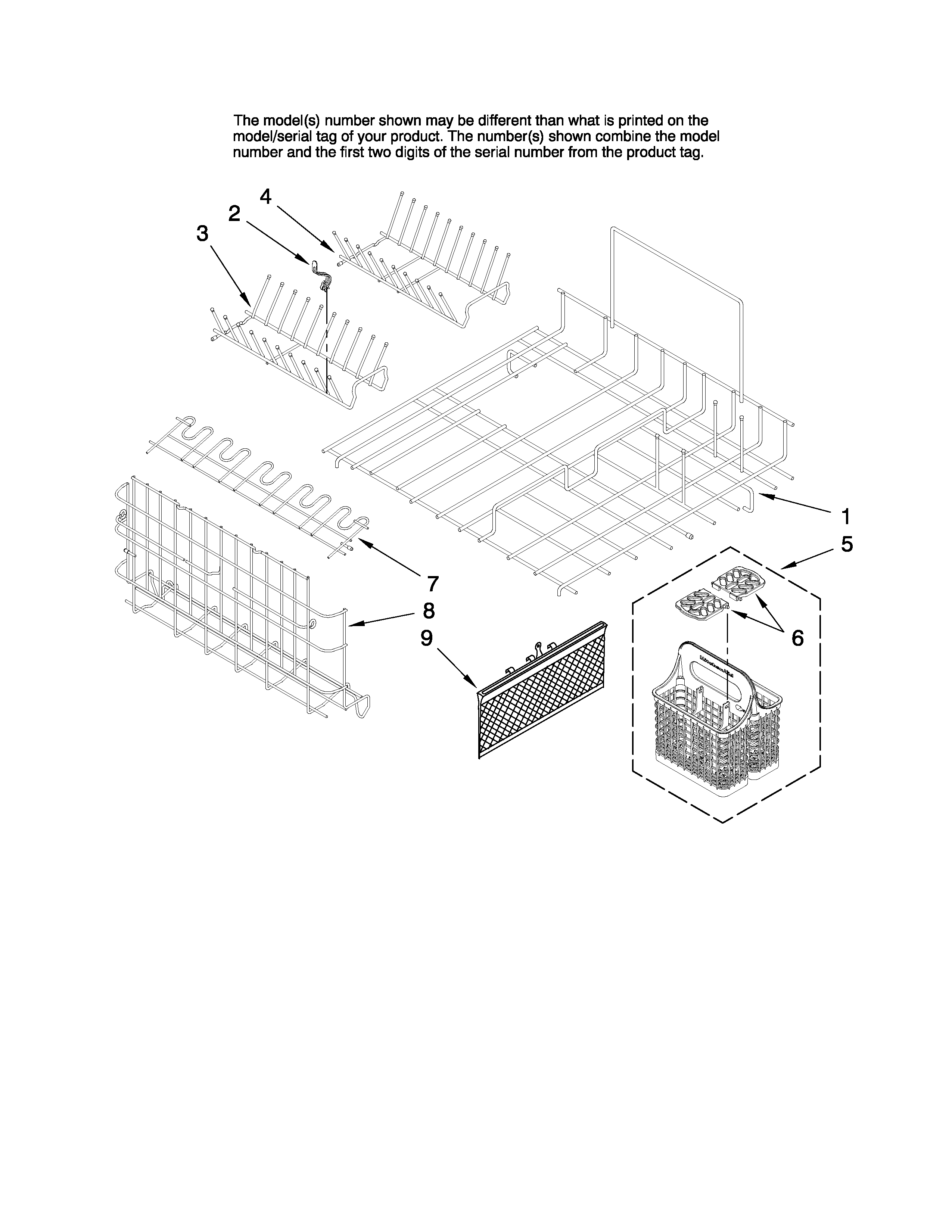

In Stock$182.40QtyUpper and lower dishrack parts diagram
Dishwasher Dishrack Tine Row Clip
Part #W10077844Replaced by #WPW10077844

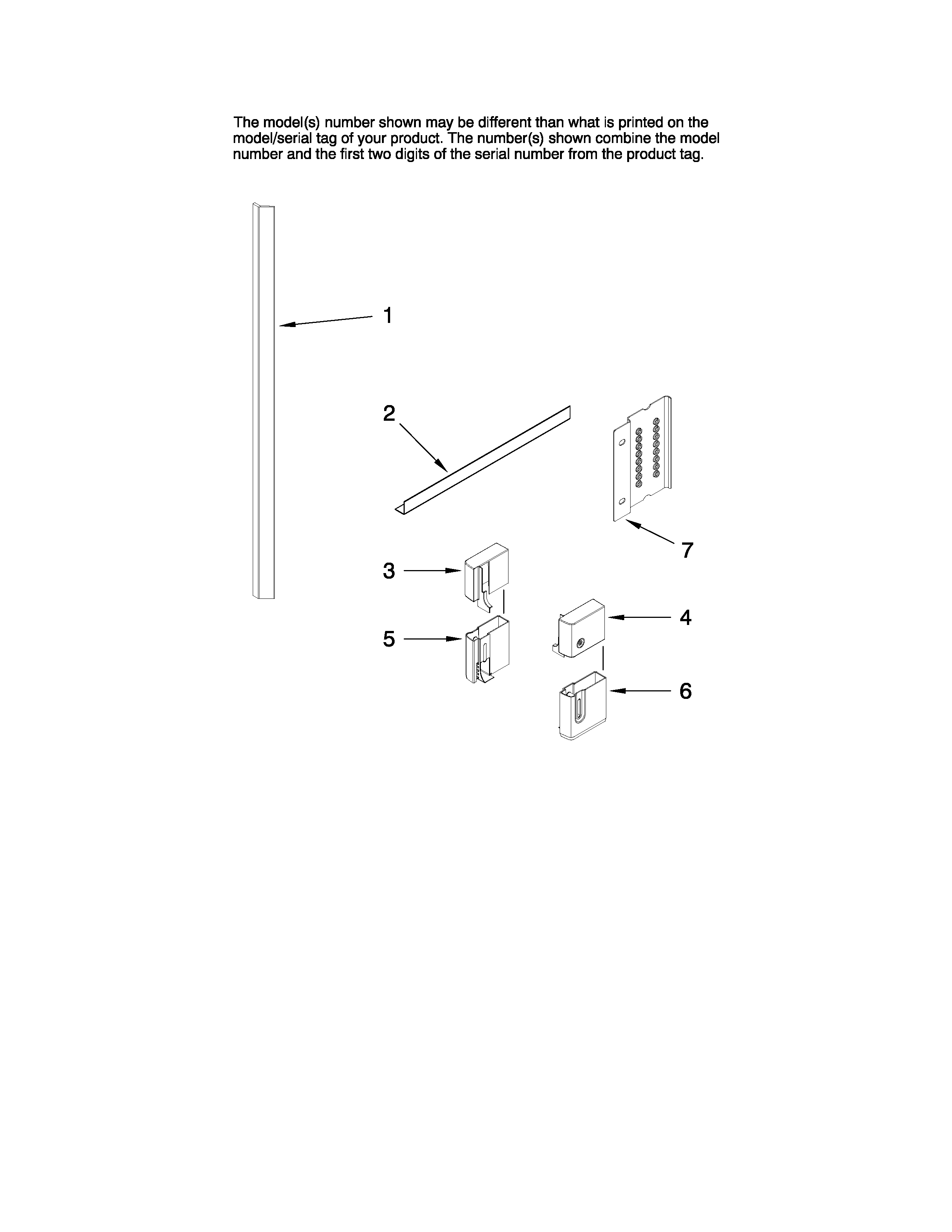

Manufacturer substitutionThis part replaces W10077844. Substitute parts can look different from the original.This item is not returnableIn Stock$9.689% OFF Phone Price : $10.68QtyAccessory parts diagram
Kick Bracket
In Stock$94.51QtyWash system parts diagram
Dishwasher Fine Filter
In Stock$34.62QtyWash system parts diagram
Bracket
In Stock$27.79Qty
