Yard-Man
Gas Walk-Behind Mower

Model # 11A-503E755 Official Yard-Man rotary lawn mower

Here are the diagrams and repair parts for Official Yard-Man 11A-503E755 rotary lawn mower, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 47 parts  |
Bell Support 736-0524A
#26

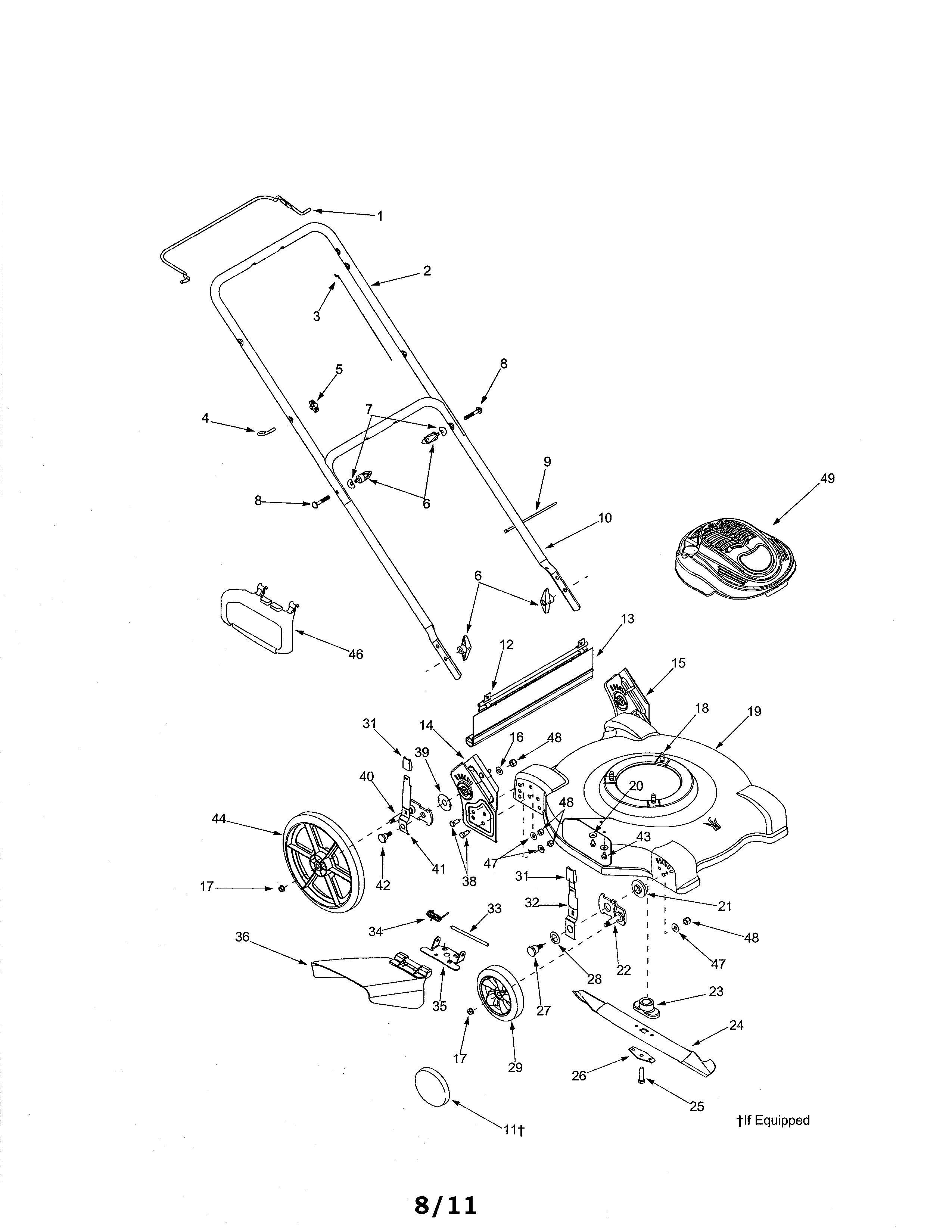

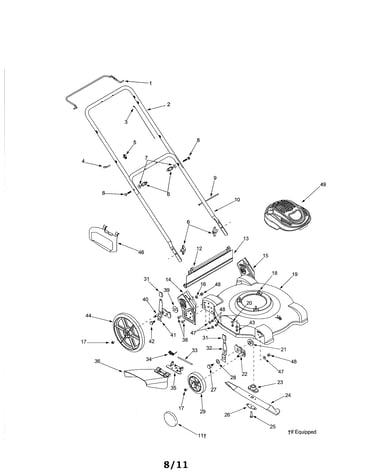

Mower parts diagram

Bell support

Part #736-0524A

Replaced by #736-0524B-1

?
Manufacturer substitution
This part replaces 736-0524A. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable

Get free shipping with Automatic Reorder

$6.11 |
23% OFF Was : $7.90
Back Order
Yard Machines Lawn & Garden Equipment Hex Bolt, 3/8-24 X 1-1/2-in (replaces 910-1044) 710-1044
#25

Mower parts diagram

Yard machines lawn & garden equipment hex bolt, 3/8-24 x 1-1/2-in (replaces 910-1044)

Part #710-1044

BEST SELLER
This item is not returnable
$4.98 |
22% OFF Was : $6.40
In Stock
Lawn Tractor Screw (replaces 01000628, 01000865, 1186307, 1186308, 791-180288, 791-683298, 910-0599) 710-0599
#43

Mower parts diagram

Lawn tractor screw (replaces 01000628, 01000865, 1186307, 1186308, 791-180288, 791-683298, 910-0599)

Part #710-0599

BEST SELLER
This item is not returnable
$4.91 |
17% OFF Phone Price : $5.91
In Stock
Hinge Pin 747-0710
#33

Mower parts diagram

Hinge pin

Part #747-0710

Replaced by #747-0710A

?
Manufacturer substitution
This part replaces 747-0710. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$4.42 |
22% OFF Was : $5.70
In Stock
Lawn & Garden Equipment Cable Tie 725-0157
#9

Mower parts diagram

Lawn & garden equipment cable tie

Part #725-0157

Replaced by #726-0178

?
Manufacturer substitution
This part replaces 725-0157. Substitute parts can look different from the original.
This item is not returnable
$2.16
In Stock
Yard Machines Lawn & Garden Equipment Cupped Washer 736-0270
#20

Mower parts diagram

Yard machines lawn & garden equipment cupped washer

Part #736-0270

This item is not returnable
$5.10 |
16% OFF Phone Price : $6.10
In Stock
Yard Machines Lawn & Garden Equipment Bolt 710-1174
#8

Mower parts diagram

Yard machines lawn & garden equipment bolt

Part #710-1174

This item is not returnable
$10.97 |
15% OFF Phone Price : $12.97
In Stock
Bail 747-1161A
#1

Mower parts diagram

Bail

Part #747-1161A

Replaced by #747-1161A-0637

?
Manufacturer substitution
This part replaces 747-1161A. Substitute parts can look different from the original.
This item is not returnable
$19.52 |
10% OFF Was : $21.69
In Stock
Upper Handle 749-1092A
#2

Mower parts diagram

Upper handle

Part #749-1092A

Replaced by #749-1092A-0637

?
Manufacturer substitution
This part replaces 749-1092A. Substitute parts can look different from the original.
$61.19 |
9% OFF Phone Price : $67.19
In Stock
Lawn Mower Wheel 734-04086
#29

Mower parts diagram

Lawn mower wheel

Part #734-04086

Replaced by #734-1988

?
Manufacturer substitution
This part replaces 734-04086. Substitute parts can look different from the original.
This item is not returnable
$21.64 |
23% OFF Was : $28.00
In Stock
