Model # MAT20PDAGW0 Official Maytag commercial laundry

Here are the diagrams and repair parts for Official Maytag MAT20PDAGW0 commercial laundry, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

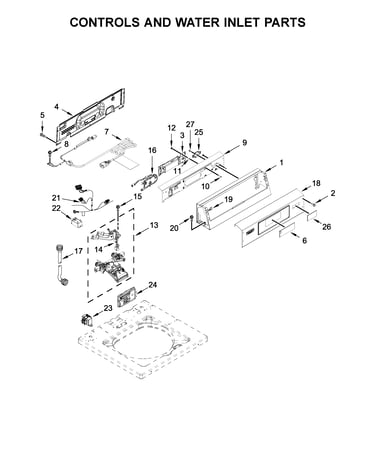

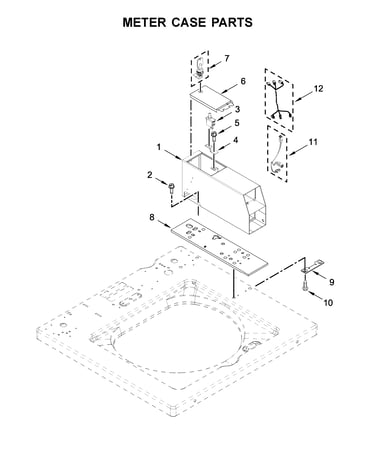

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 146 parts  |

Affresh Washer Cleaner, 3-pack (replaces 18001080, 77109, W10135699a) W10135699
#NI

Optional parts (not included) diagram

Affresh washer cleaner, 3-pack (replaces 18001080, 77109, w10135699a)

Part #W10135699

BEST SELLER

Get free shipping with Automatic Reorder

$11.56
47% OFF MSRP : $22.00
In Stock
Washer Spanner Nut 21366
#9

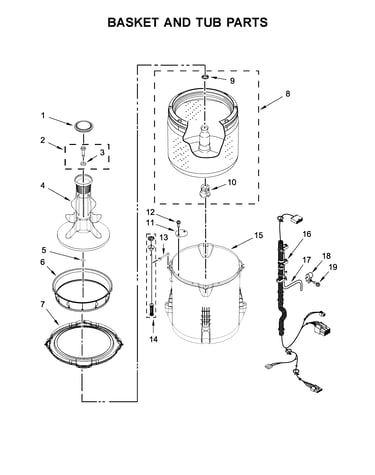

Basket and tub parts diagram

Washer spanner nut

Part #21366

Replaced by #WP21366

?
Manufacturer substitution
This part replaces 21366. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$6.49
62% OFF MSRP : $17.00
In Stock
Washer Screw W10003790
#2

Basket and tub parts diagram

Washer screw

Part #W10003790

Replaced by #W10772621

?
Manufacturer substitution
This part replaces W10003790. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$4.89
67% OFF MSRP : $15.00
In Stock
Hose W10531633
#17

Basket and tub parts diagram

Hose

Part #W10531633

Replaced by #WP353244

?
Manufacturer substitution
This part replaces W10531633. Substitute parts can look different from the original.
BEST SELLER
$43.73
19% OFF MSRP : $54.00
In Stock
Washer Door Strike W10240513
#8

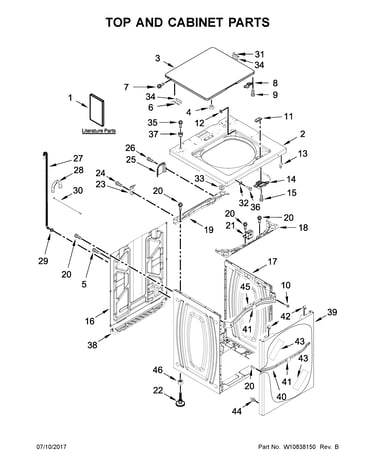

Top and cabinet parts diagram

Washer door strike

Part #W10240513

Replaced by #WPW10240513

?
Manufacturer substitution
This part replaces W10240513. Substitute parts can look different from the original.
BEST SELLER
$42.36
11% OFF Phone Price : $47.36
In Stock
Appliance Touch-up Paint, 0.6-oz (white) (replaces 21020, 72017r, 8006, W10813125, Y058028) 72017
#NI

Optional parts (not included) diagram

Appliance touch-up paint, 0.6-oz (white) (replaces 21020, 72017r, 8006, w10813125, y058028)

Part #72017

BEST SELLER
$8.29
11% OFF Phone Price : $9.29
In Stock
Washing Machine Washer 3949550
#3

Basket and tub parts diagram

Washing machine washer

Part #3949550

Replaced by #WP3949550

?
Manufacturer substitution
This part replaces 3949550. Substitute parts can look different from the original.
BEST SELLER
$10.69
16% OFF Phone Price : $12.69
In Stock
Outer Tub W10238320
#15

Basket and tub parts diagram

Outer tub

Part #W10238320

Replaced by #W10371566

?
Manufacturer substitution
This part replaces W10238320. Substitute parts can look different from the original.
BEST SELLER
$217.61
13% OFF MSRP : $250.00
In Stock
Hose Clamp 356138
#29

Top and cabinet parts diagram

Hose clamp

Part #356138

The manufacturer no longer makes this part, and there's no substitute part

Hose Asm - D W10763078
#3

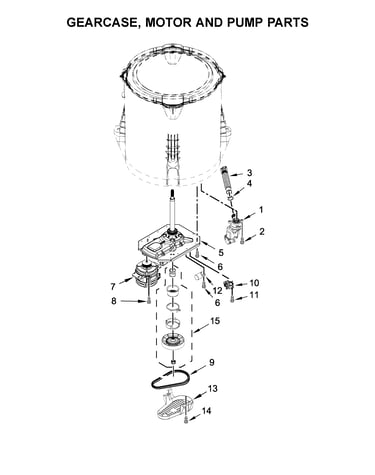

Gearcase, motor and pump parts diagram

Hose asm - d

Part #W10763078

Replaced by #W10899966

?
Manufacturer substitution
This part replaces W10763078. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$28.43
15% OFF Phone Price : $33.43
In Stock
