Model # JB860DJ8WW Official GE free standing electric range

Here are the diagrams and repair parts for Official GE JB860DJ8WW free standing electric range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

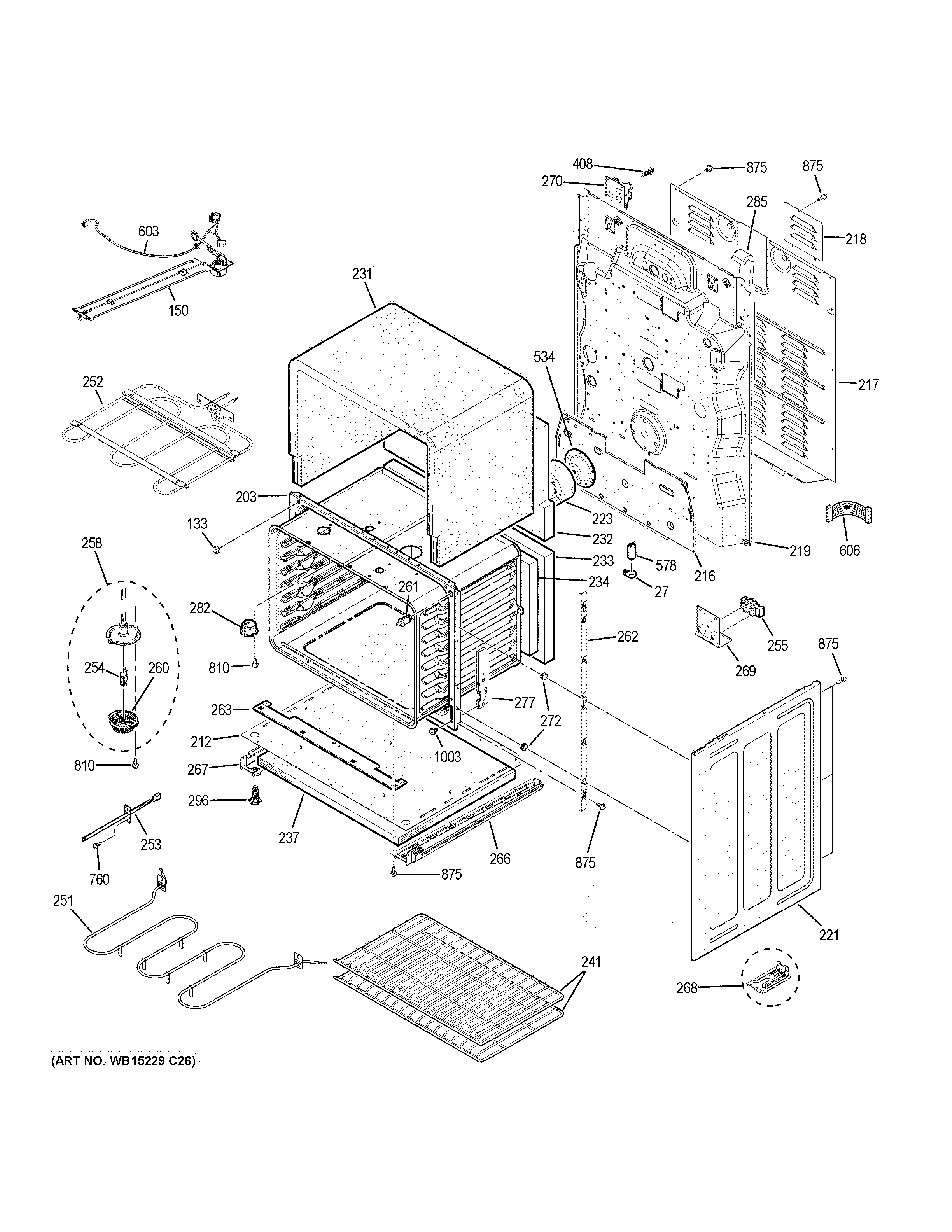

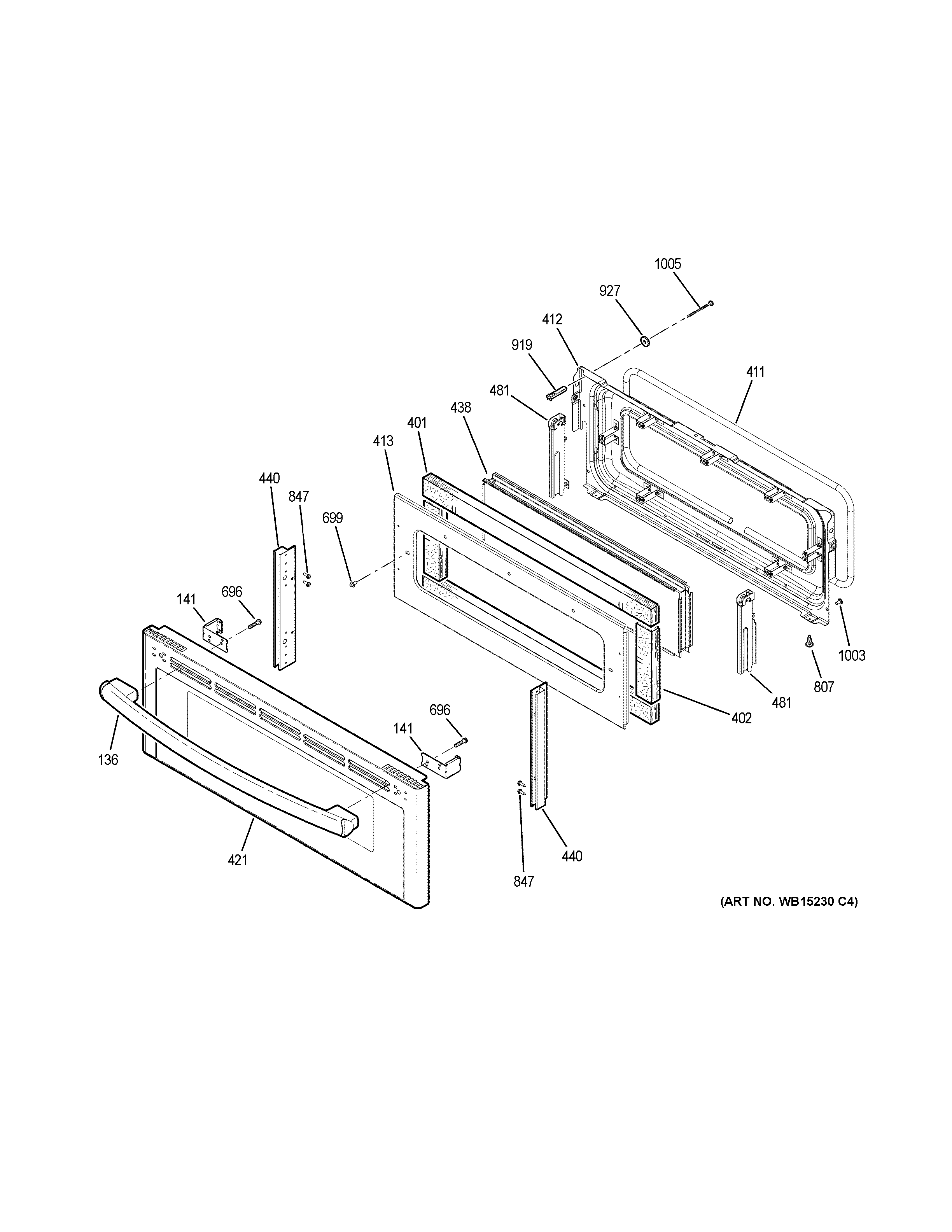

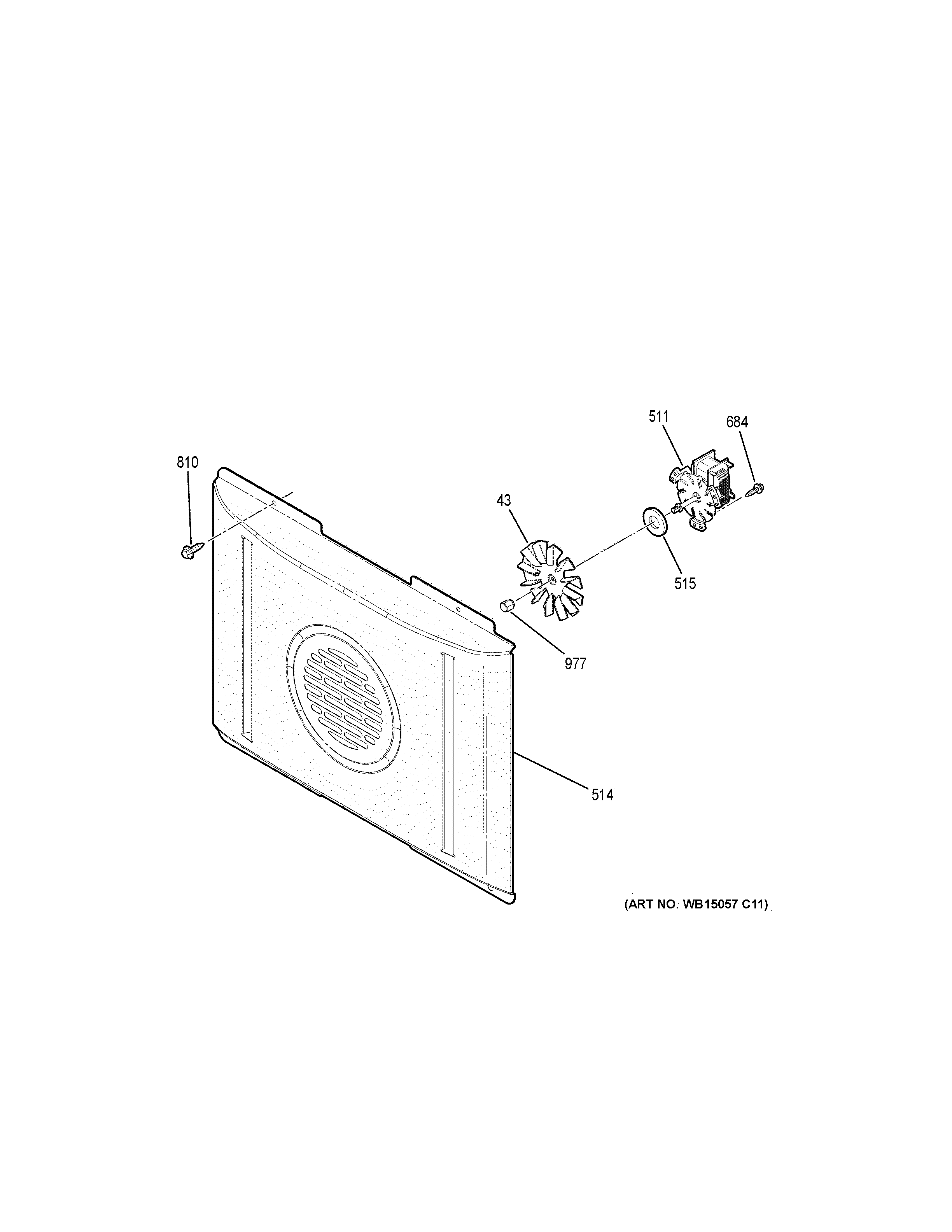

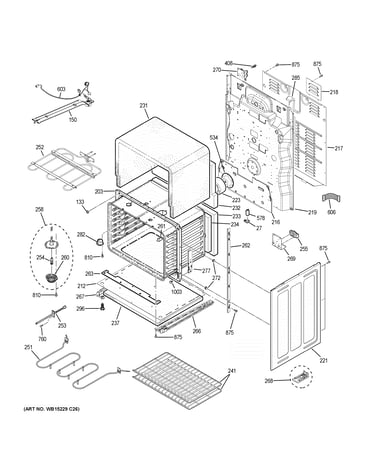

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 145 parts  |

Oven Lamp WB08T10022
#257

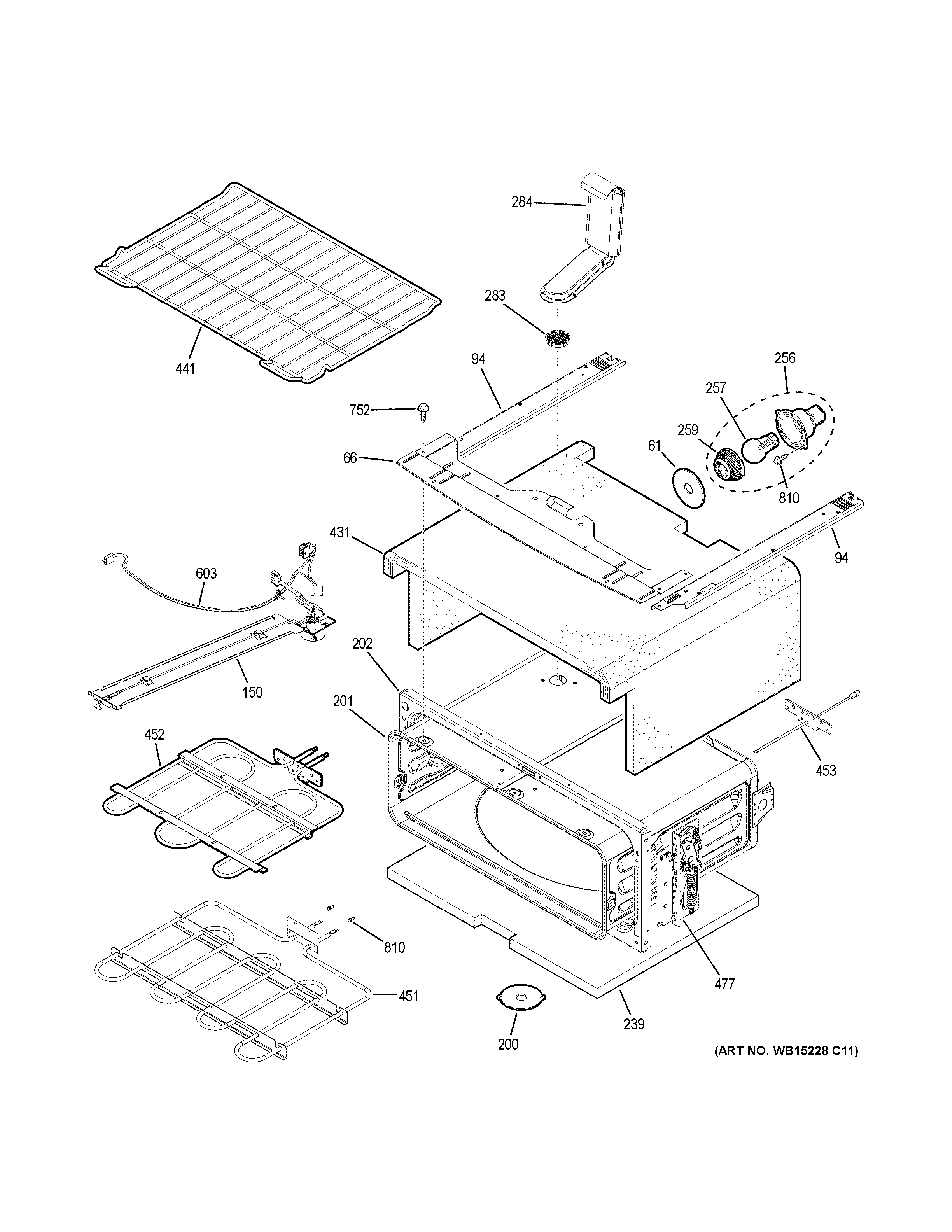

Upper oven diagram

Oven lamp

Part #WB08T10022

Replaced by #40A15

?
Manufacturer substitution
This part replaces WB08T10022. Substitute parts can look different from the original.
BEST SELLER
$15.39
12% OFF Phone Price : $17.39
In Stock
Range Surface Element Control Switch WB24X25013
#19

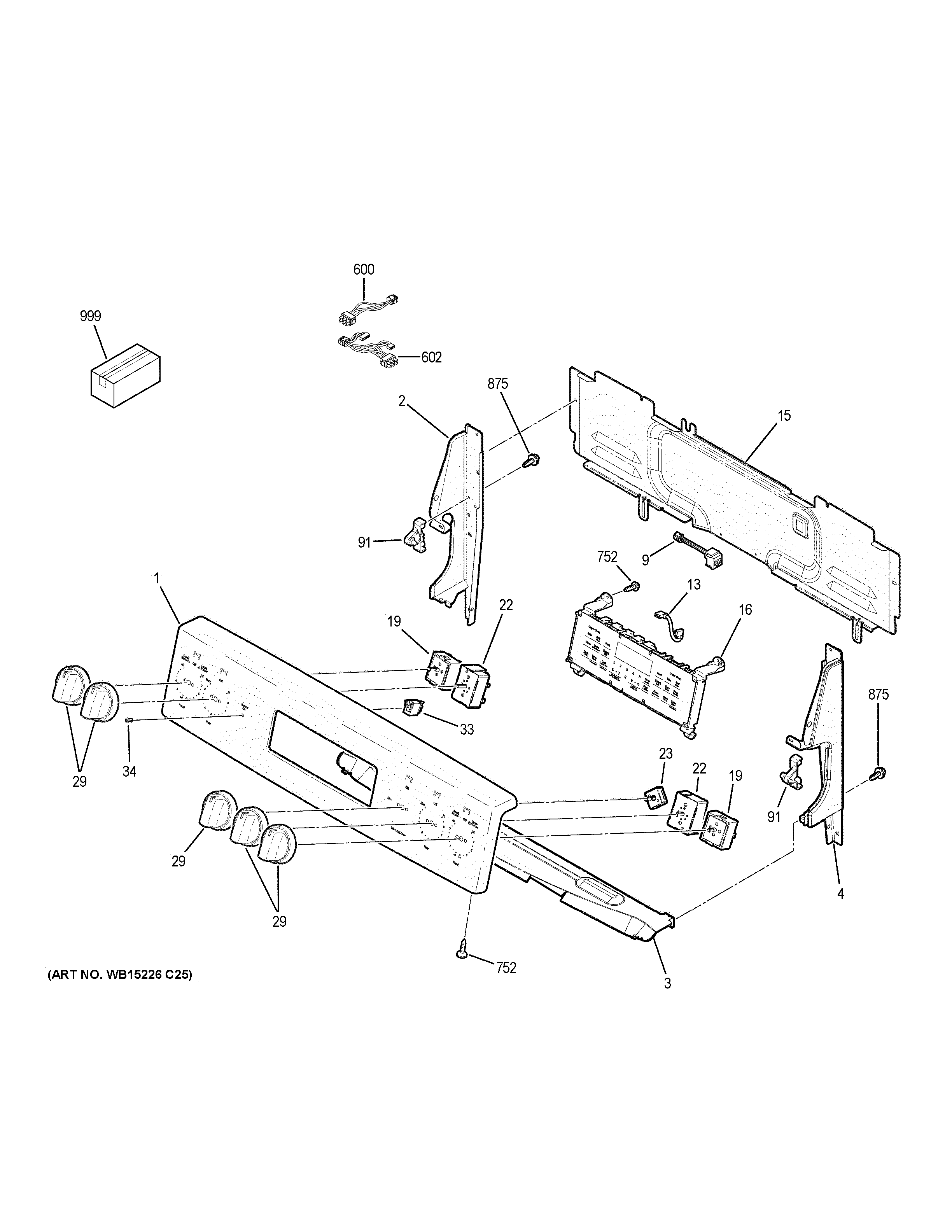

Control panel diagram

Range surface element control switch

Part #WB24X25013

BEST SELLER
$38.91
11% OFF Phone Price : $43.91
In Stock
Range Dual Radiant Surface Element, 6 To 9-in WB30X24111
#57

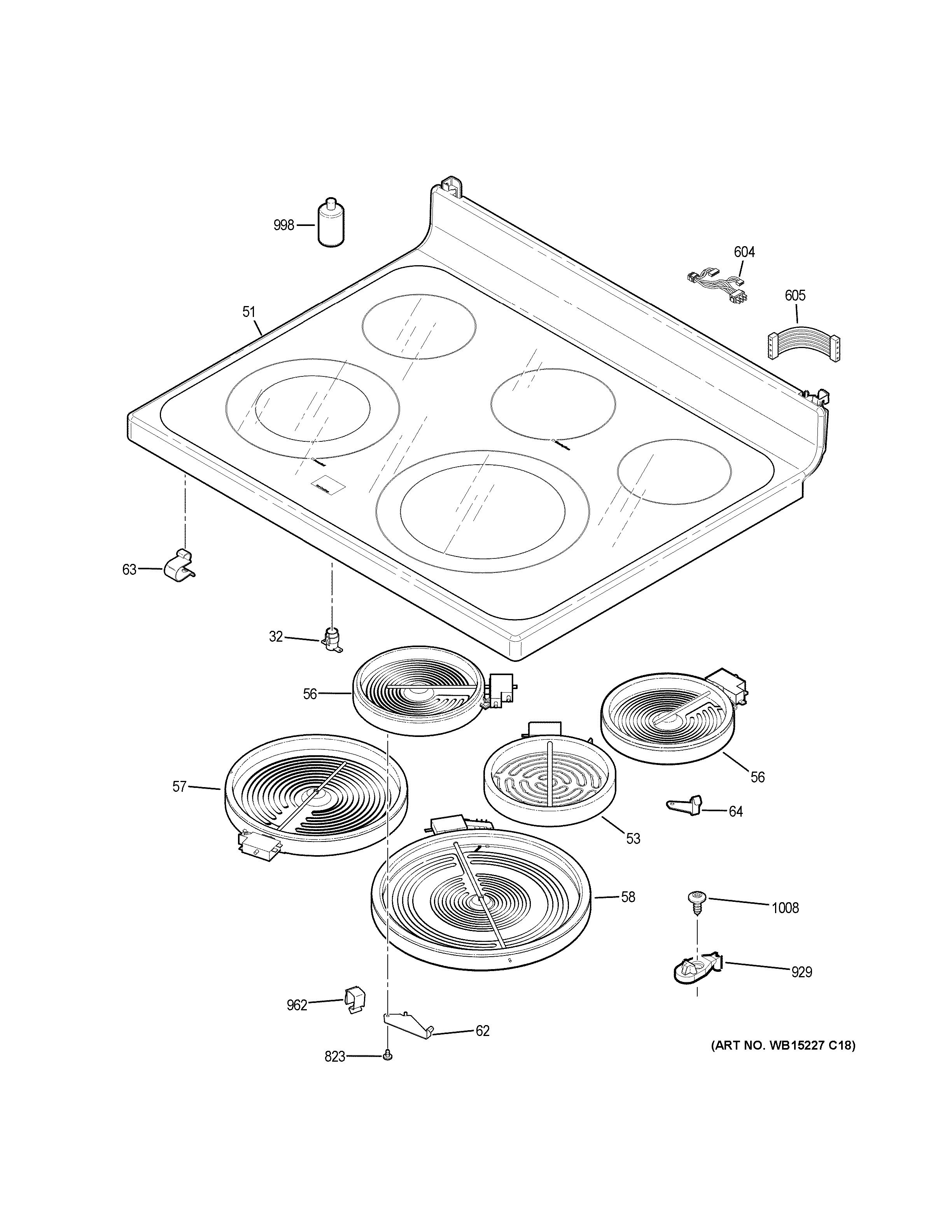

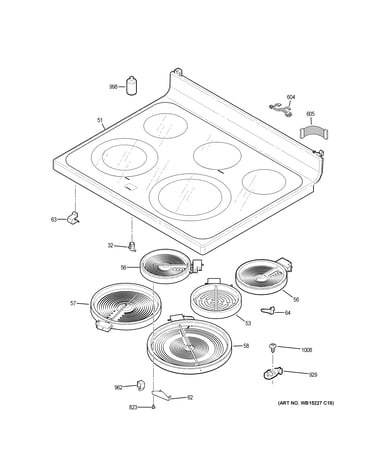

Cooktop diagram

Range dual radiant surface element, 6 to 9-in

Part #WB30X24111

BEST SELLER
$106.85
9% OFF Phone Price : $116.85
In Stock
Range Halogen Surface Element WB30T10130
#58

Cooktop diagram

Range halogen surface element

Part #WB30T10130

BEST SELLER
$137.76
7% OFF Phone Price : $147.76
In Stock
Range Surface Element Control Switch, 1,500-watt WB24T10029
#22

Control panel diagram

Range surface element control switch, 1,500-watt

Part #WB24T10029

BEST SELLER
$44.54
10% OFF Phone Price : $49.54
In Stock
Range Radiant Surface Element, 5-1/2-in (replaces Wb30t10127) WB30T10145
#56

Cooktop diagram

Range radiant surface element, 5-1/2-in (replaces wb30t10127)

Part #WB30T10145

$106.94
9% OFF Phone Price : $116.94
In Stock
Range Main Top (white) (replaces Wb62x20856) WB62X25977
#51

Cooktop diagram

Range main top (white) (replaces wb62x20856)

Part #WB62X25977

$568.58
$10.00 OFF Phone Price : $578.58
In Stock
Range Oven Door Inner Glass (replaces Wb55t10154, Wb56t10152, Wb56x26391) WB56X22160
#338

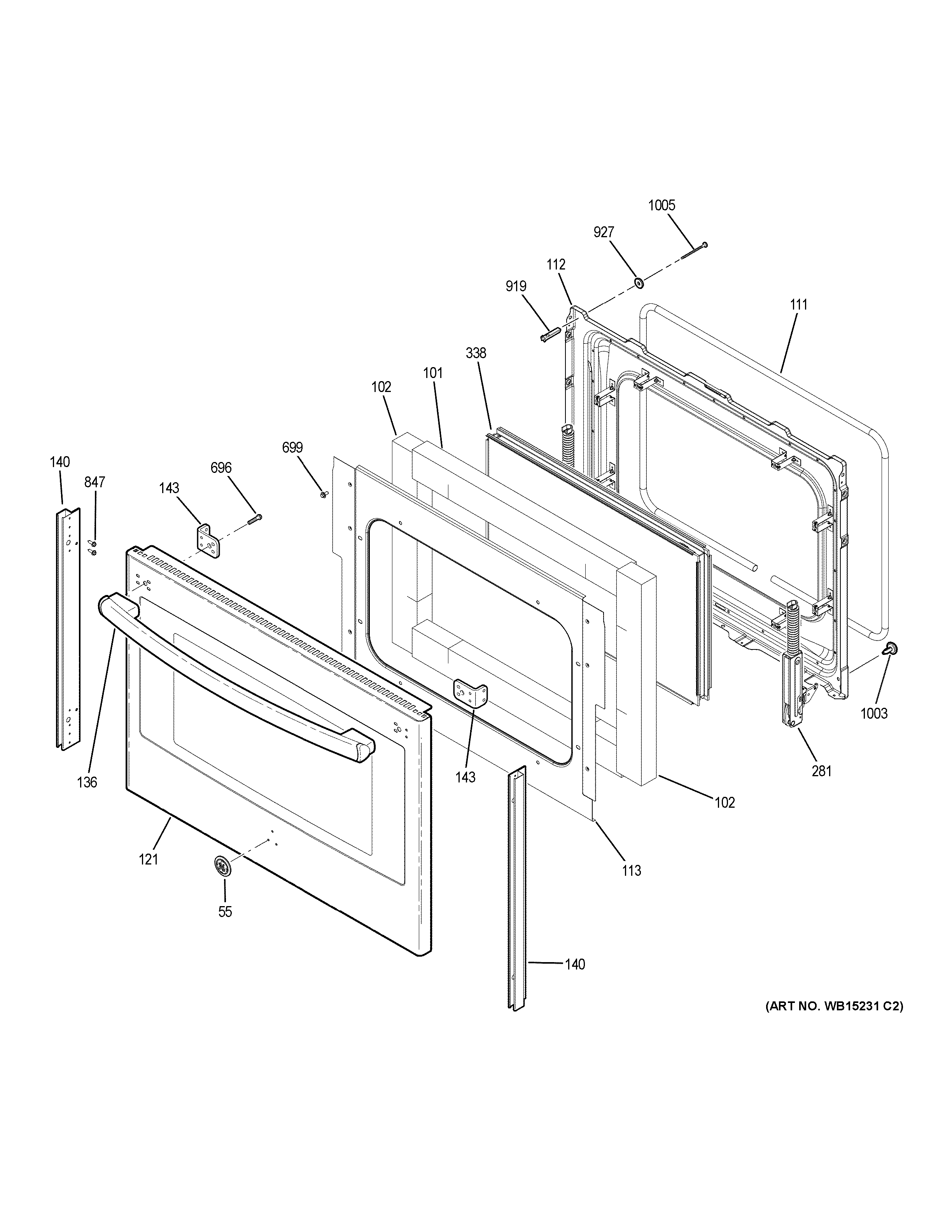

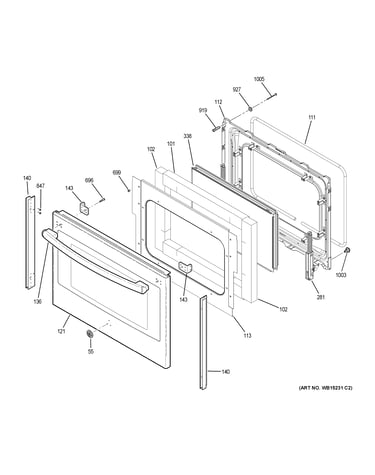

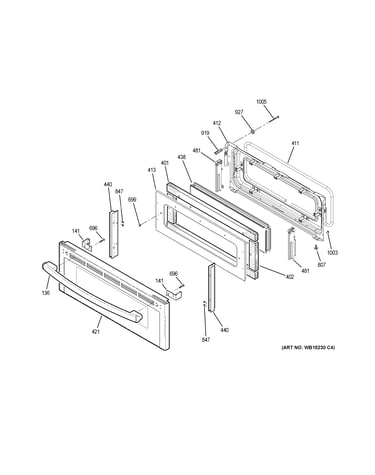

Lower door diagram

Range oven door inner glass (replaces wb55t10154, wb56t10152, wb56x26391)

Part #WB56X22160

$346.68
$10.00 OFF Phone Price : $356.68
In Stock
Screw WH02X0930
Screw

Part #WH02X0930

Replaced by #WH2X930

?
Manufacturer substitution
This part replaces WH02X0930. Substitute parts can look different from the original.
This item is not returnable
$7.88
11% OFF Phone Price : $8.88
In Stock
Lens WB25X24023
#34

Control panel diagram

Lens

Part #WB25X24023

This item is not returnable
$7.88
11% OFF Phone Price : $8.88
In Stock
