Kenmore 9114658815 electric freestanding range Parts
Here are the diagrams and repair parts for Kenmore 9114658815 electric freestanding range, as well as links to manuals and error code tables, if available.
Error Codes
By Schematic
By Part
SELECT DIAGRAM

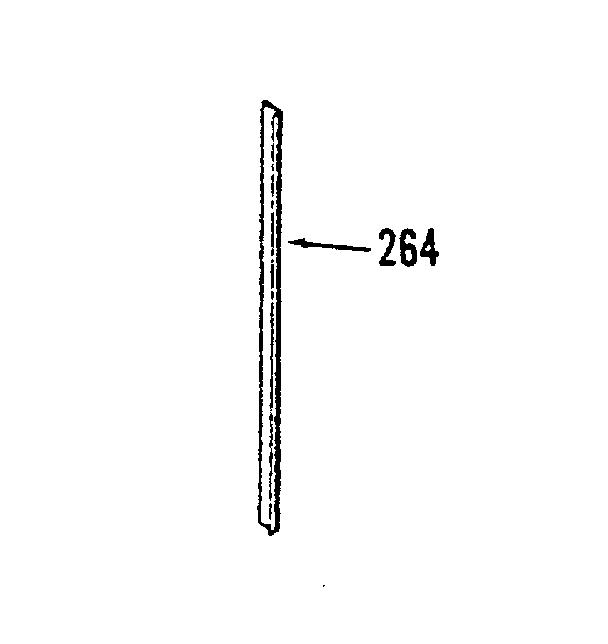

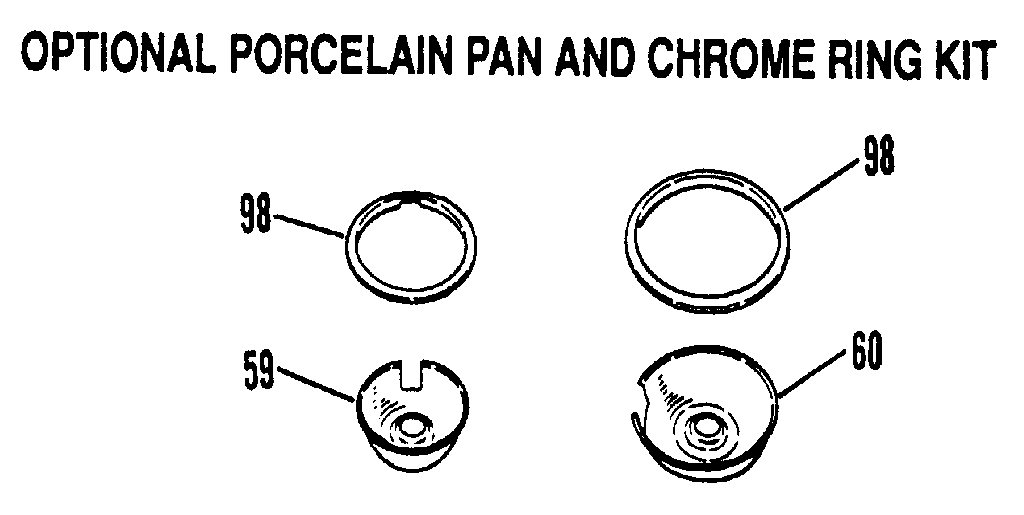

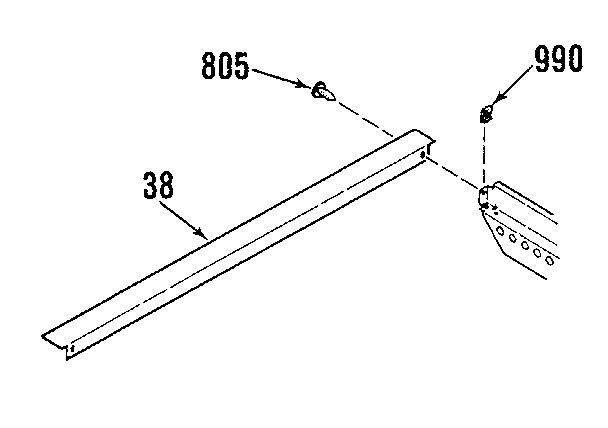

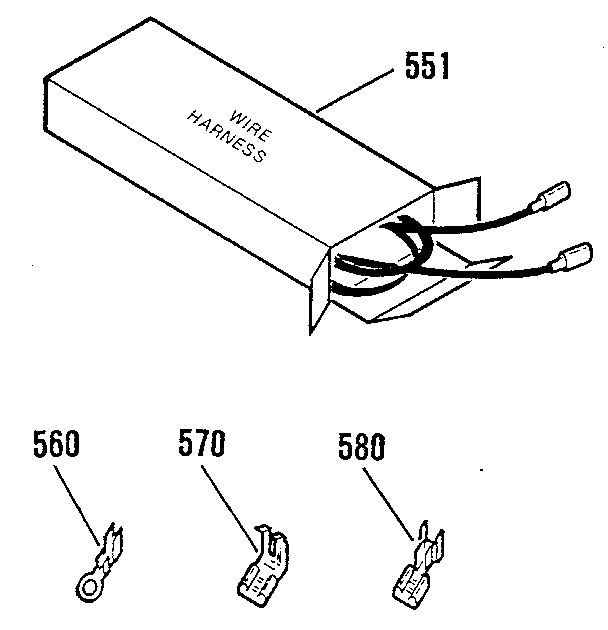

Browse Parts for 9114658815 Ranges

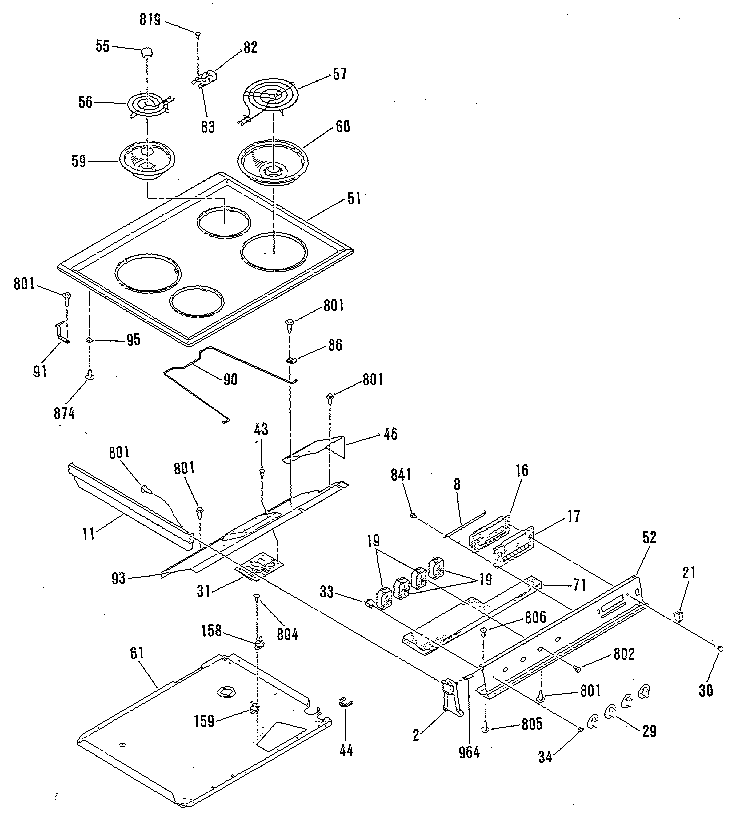

Main top section diagram
Screw
Part #286628Replaced by #WB1X1162
Manufacturer substitutionThis part replaces 286628. Substitute parts can look different from the original.In Stock$27.95
Qty
Felt Washer
Part #335945Replaced by #WB1X1159D
Manufacturer substitutionThis part replaces 335945. Substitute parts can look different from the original.In Stock$48.17QtyMain top section diagram
Support Rod Clamp
Part #346674Replaced by #WB2M87
Manufacturer substitutionThis part replaces 346674. Substitute parts can look different from the original.In Stock$31.92QtyOven door section diagram
Door Glass (black)
Part #332067Replaced by #WB56X1902
Manufacturer substitutionThis part replaces 332067. Substitute parts can look different from the original.In Stock$285.71$12.00 OFF Phone Price : $297.71

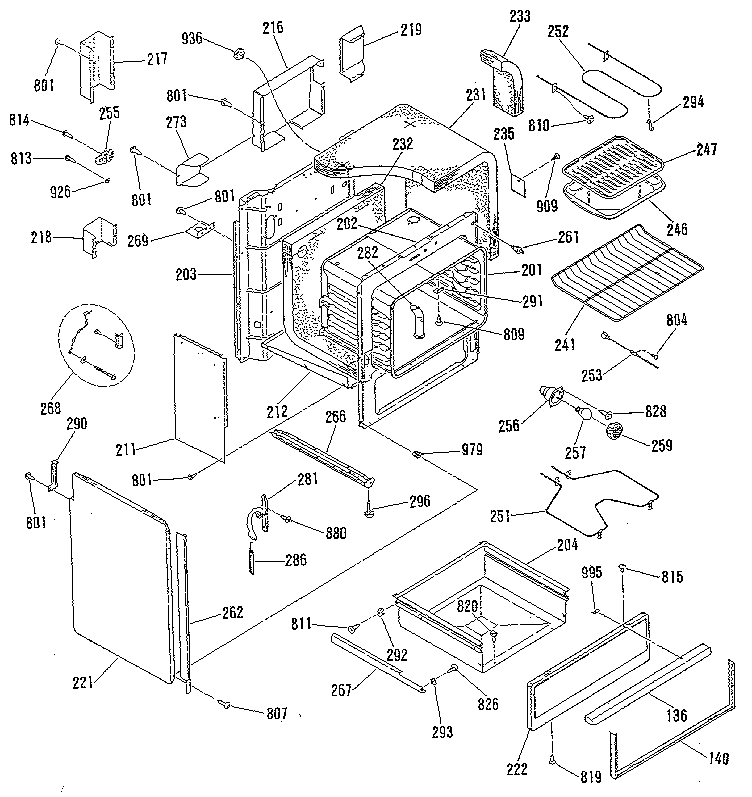

QtyBody section diagram
Trim
Part #330341Replaced by #WB7X1584
Manufacturer substitutionThis part replaces 330341. Substitute parts can look different from the original.In Stock$119.74QtyBody section diagram
Screw
Part #102428Replaced by #WB1X1130
Manufacturer substitutionThis part replaces 102428. Substitute parts can look different from the original.In Stock$9.869% OFF Phone Price : $10.86QtyScrew
Part #337857Replaced by #WB1X1118
Manufacturer substitutionThis part replaces 337857. Substitute parts can look different from the original.In Stock$8.3811% OFF Phone Price : $9.38QtyMain top section diagram
Side Exten
Part #341638Replaced by #WB64M8
Manufacturer substitutionThis part replaces 341638. Substitute parts can look different from the original.In Stock$48.44QtyMain top section diagram
6 In Tp Unit
Part #325510Replaced by #WB30X256
Manufacturer substitutionThis part replaces 325510. Substitute parts can look different from the original.In Stock$71.348% OFF Phone Price : $77.34QtyOven door section diagram
Insulation
Part #335782Replaced by #WB35M2
Manufacturer substitutionThis part replaces 335782. Substitute parts can look different from the original.In Stock$137.50Qty
