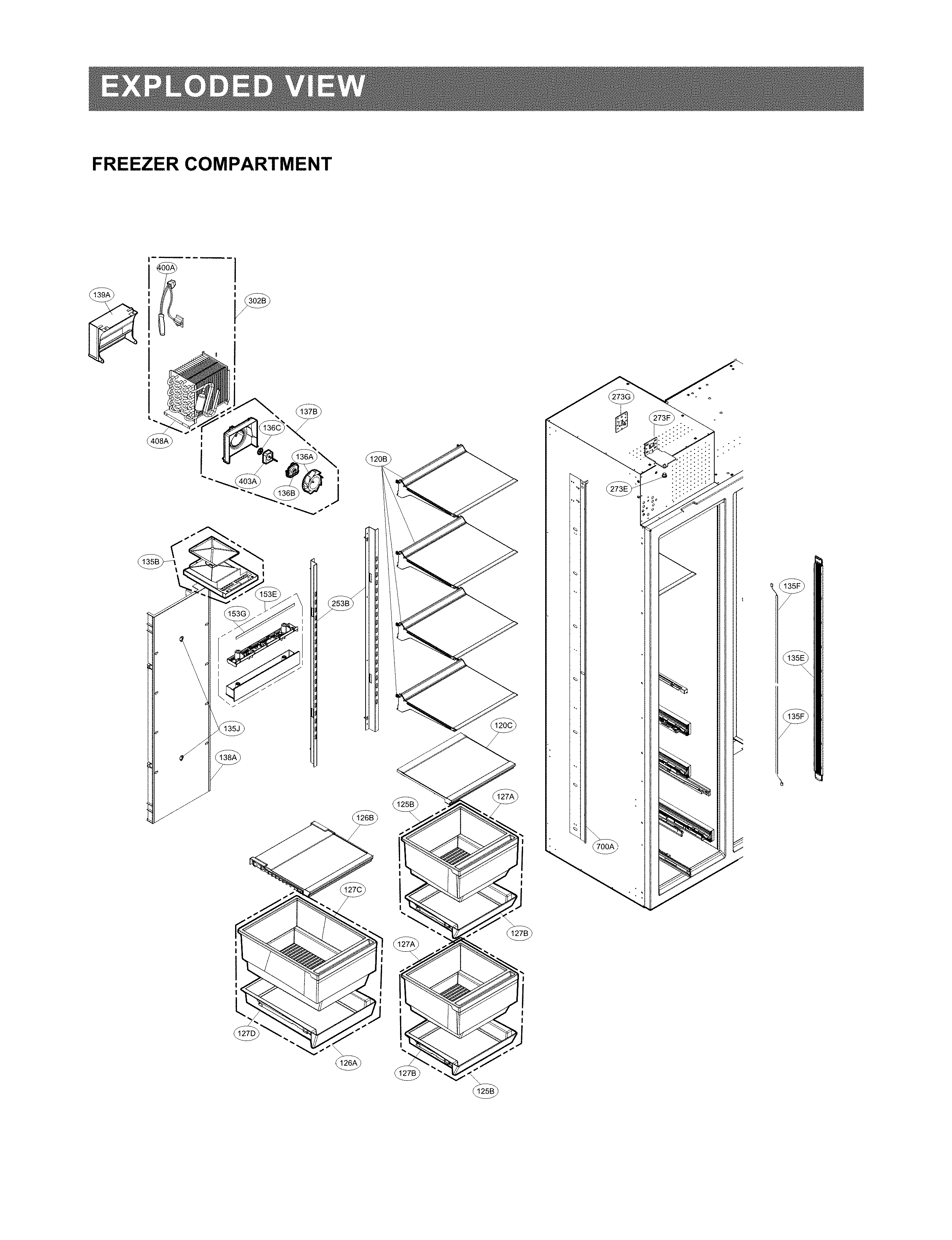

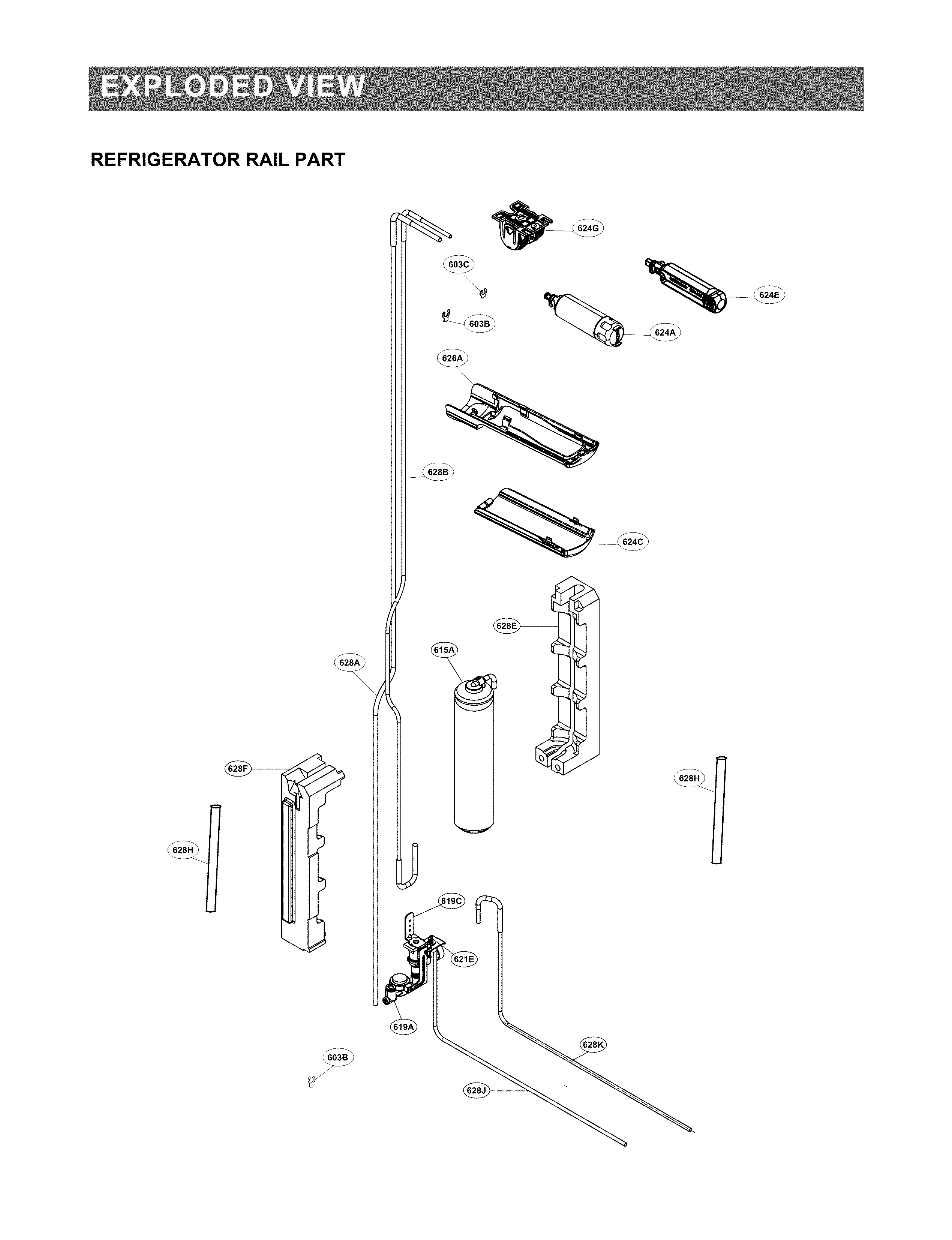

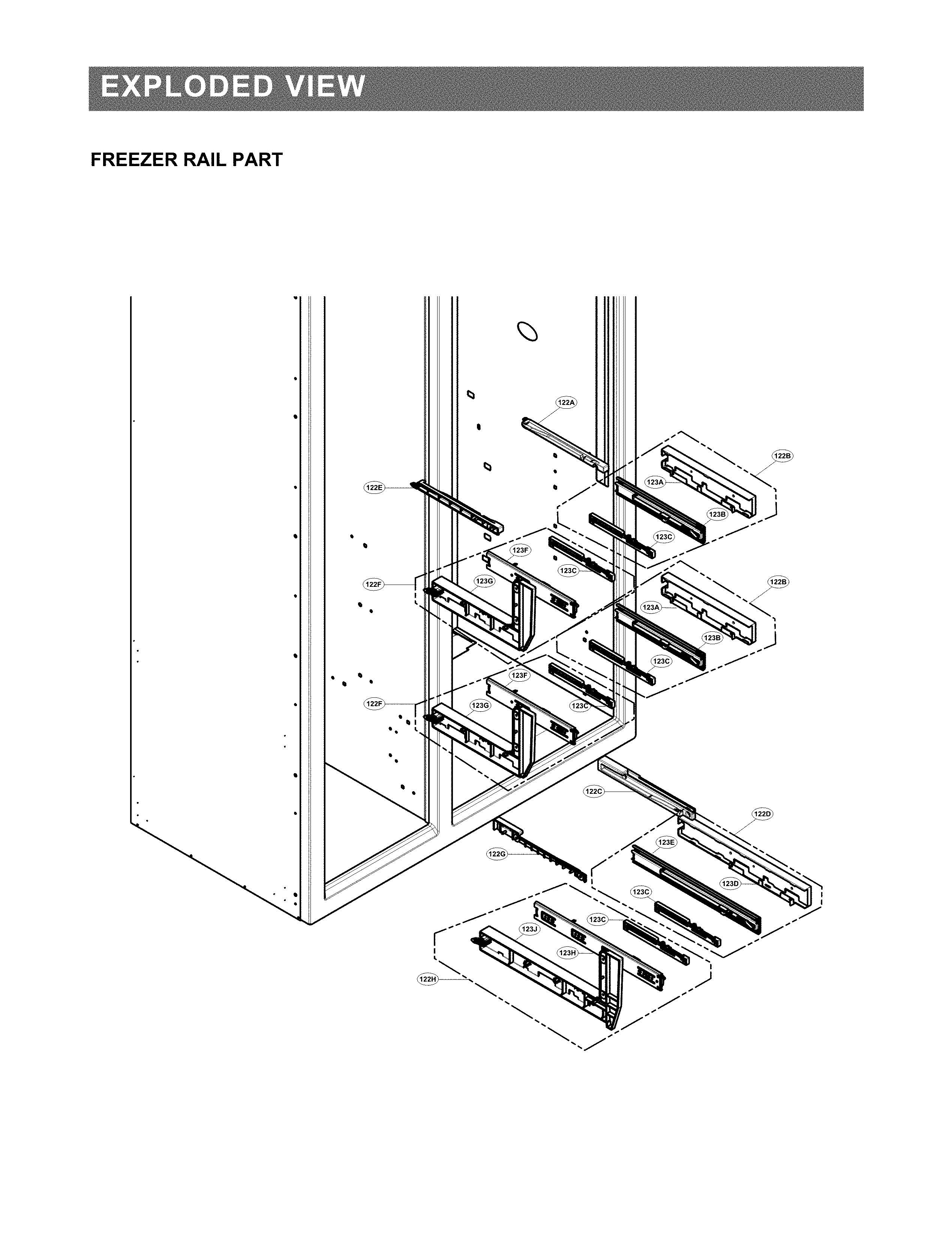

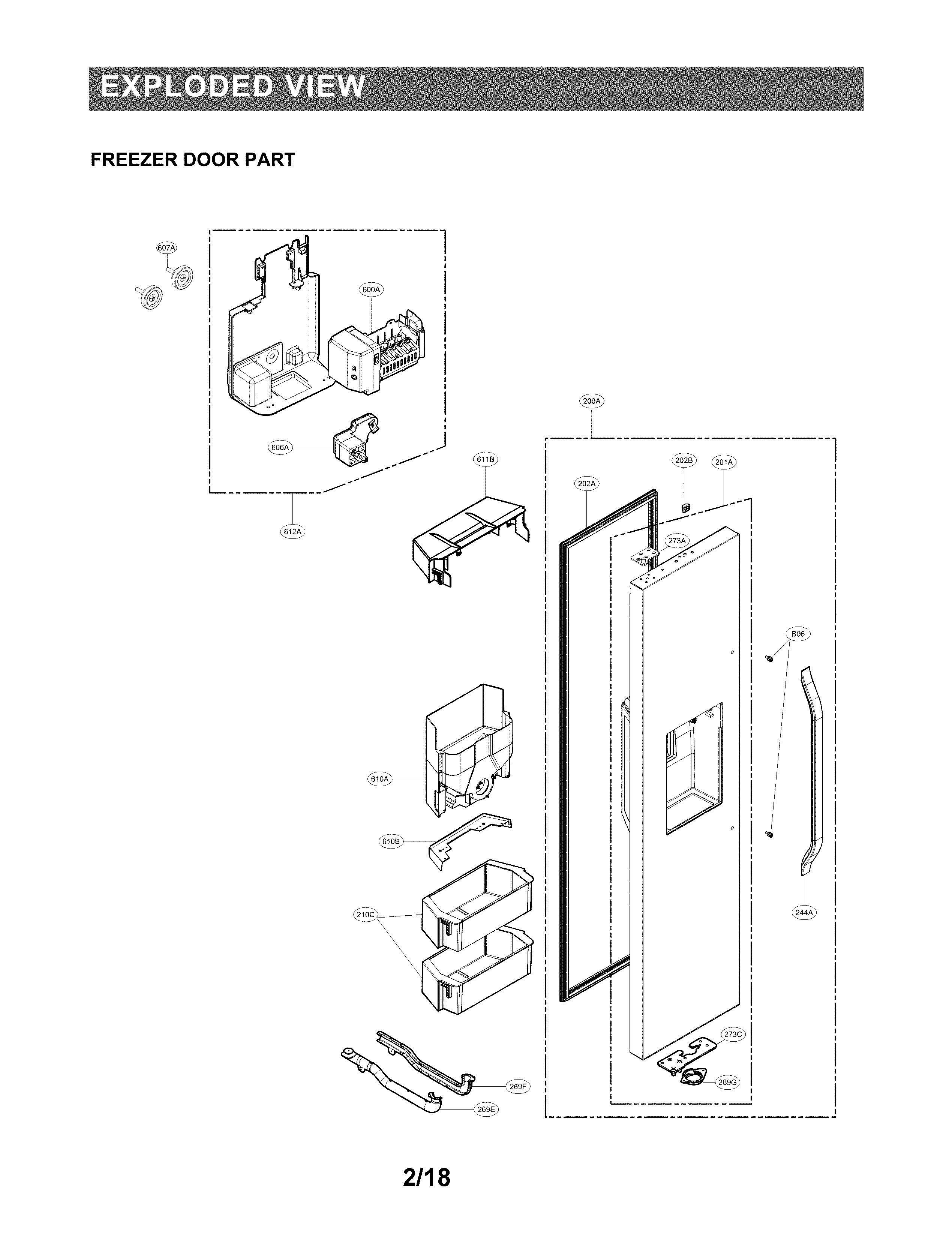

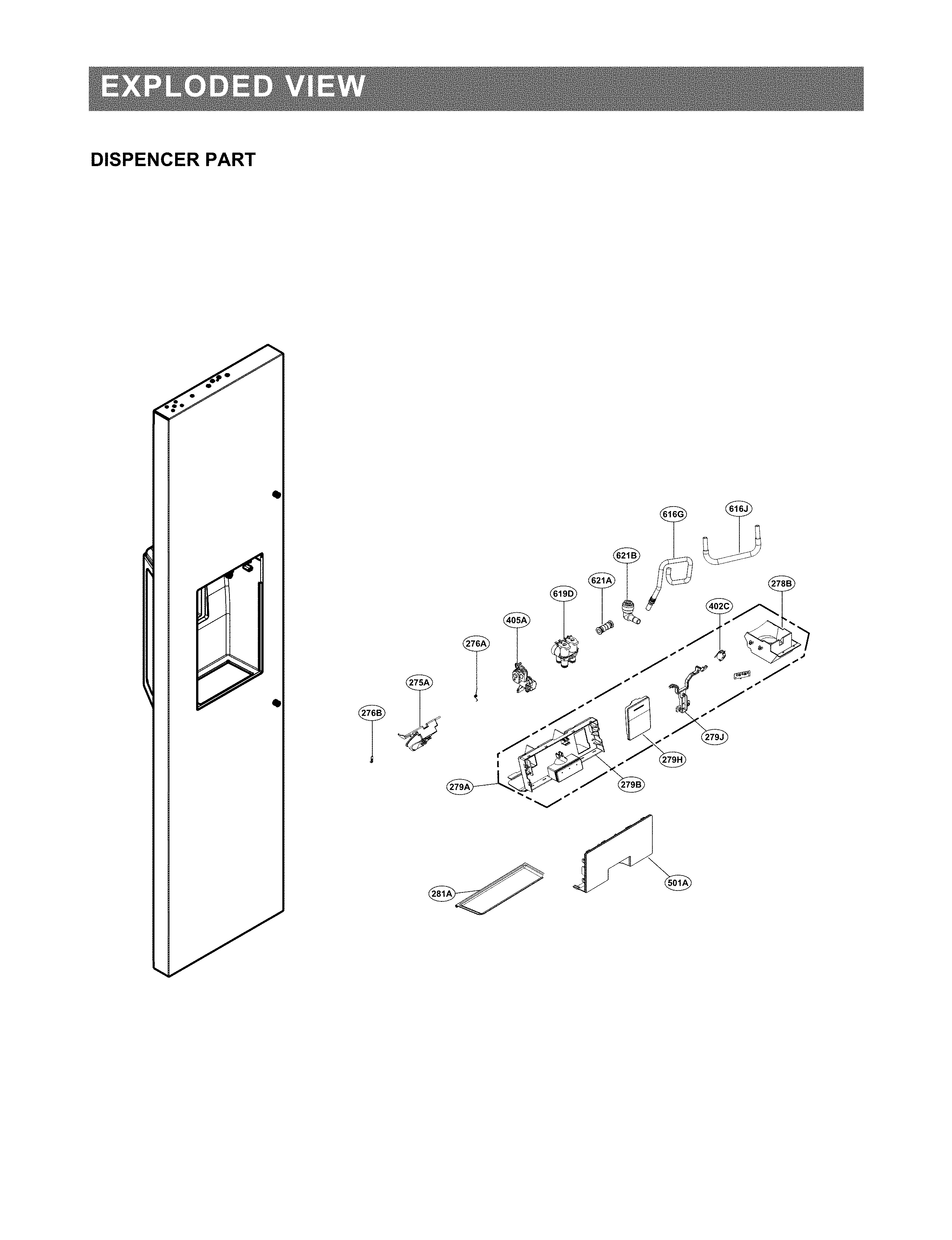

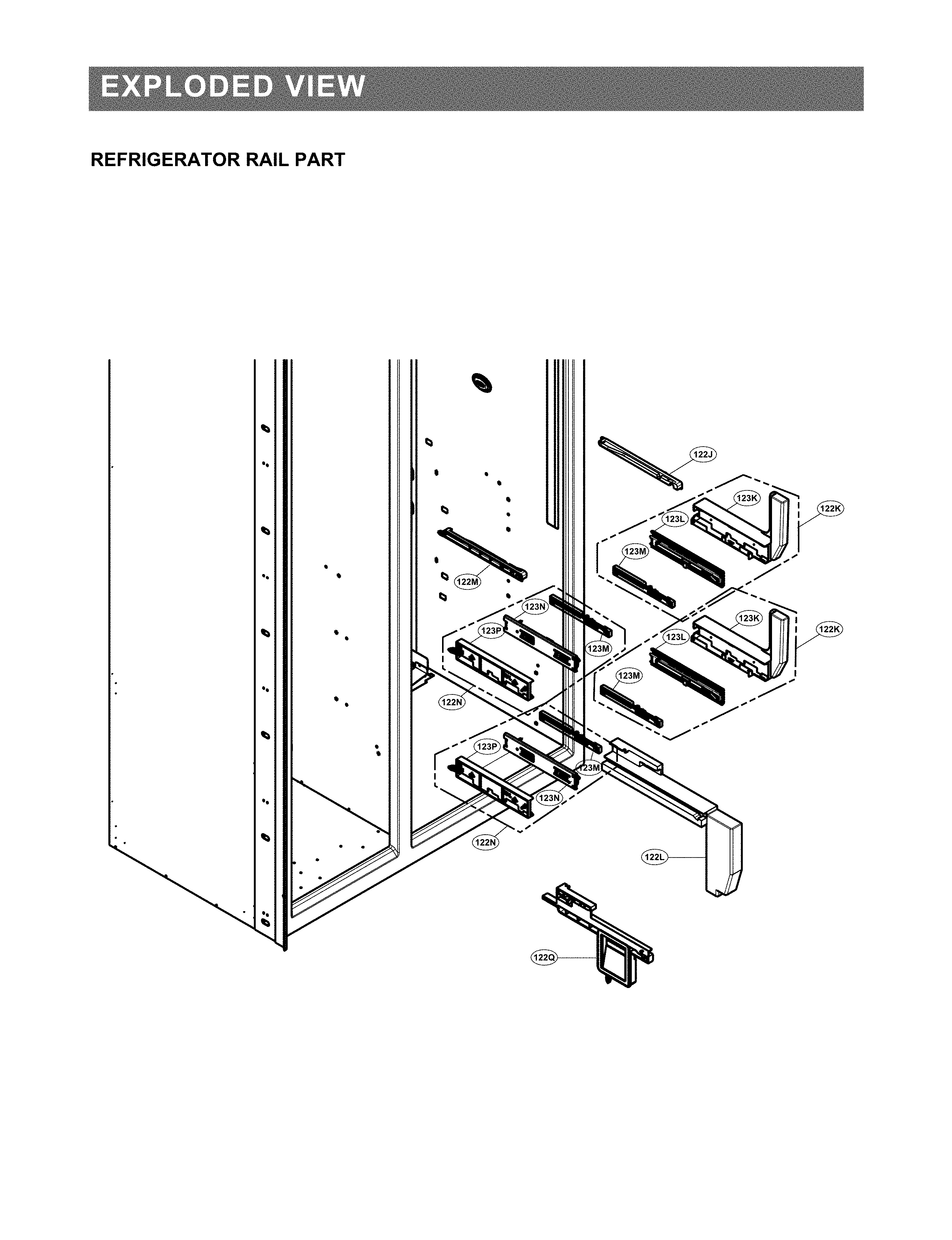

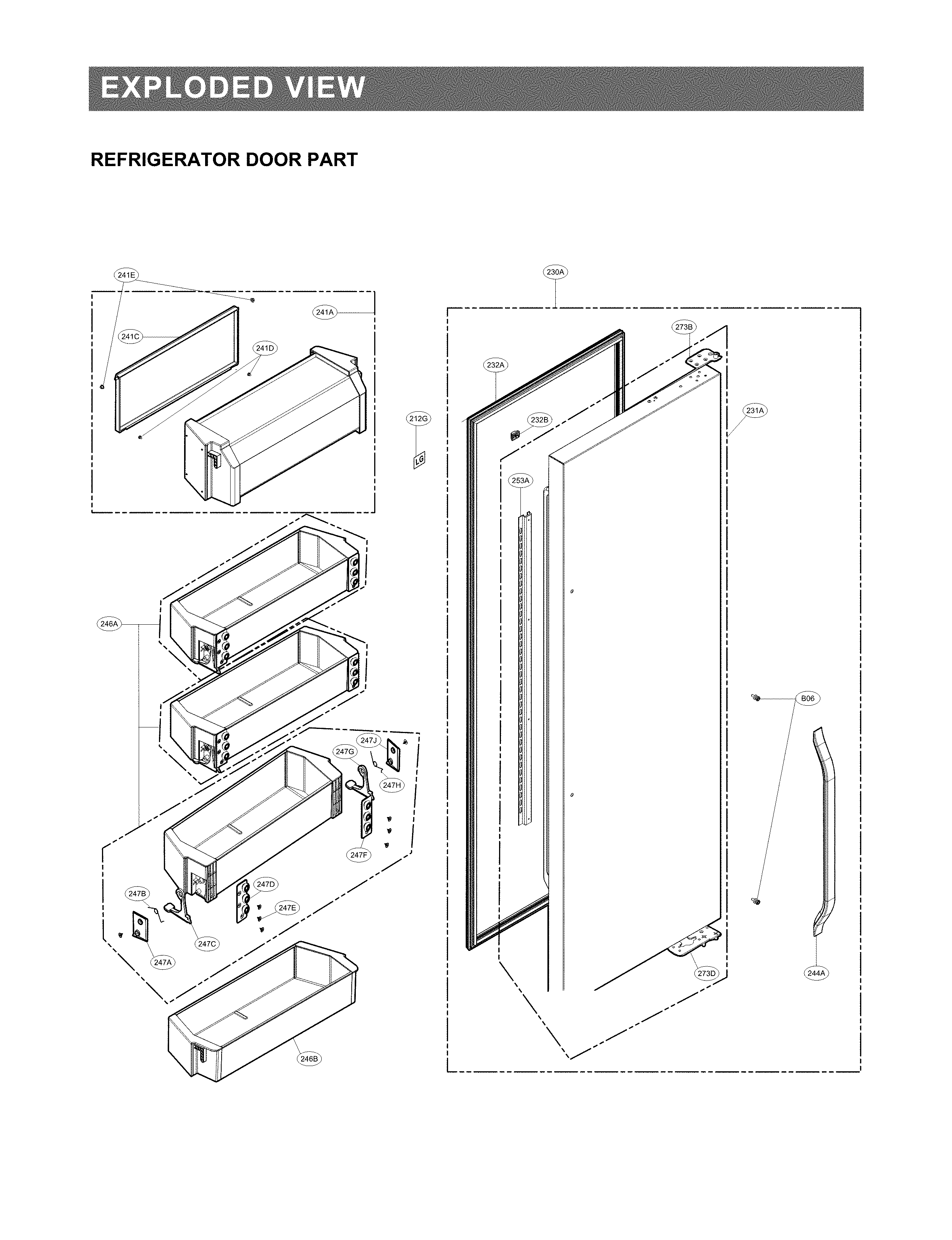

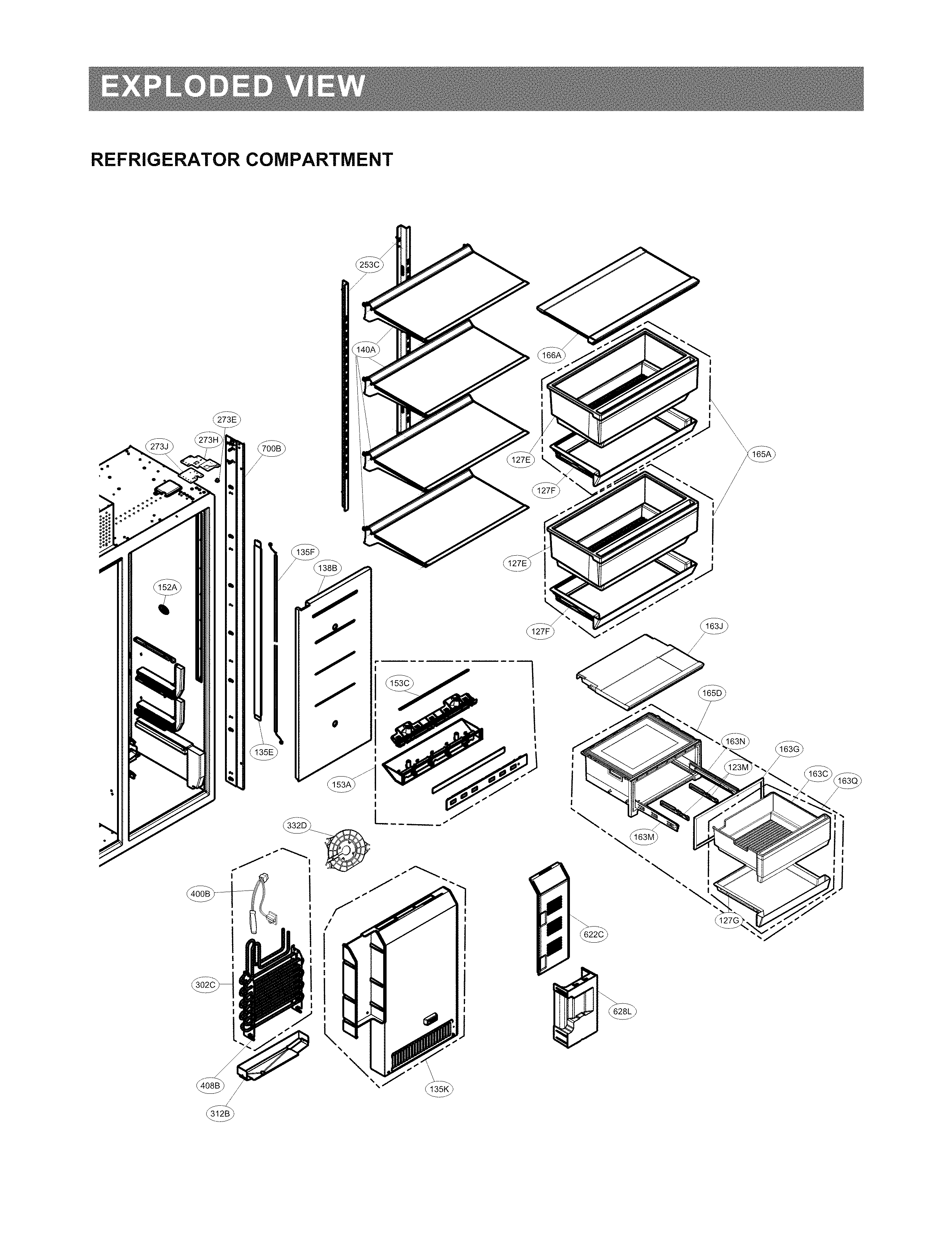

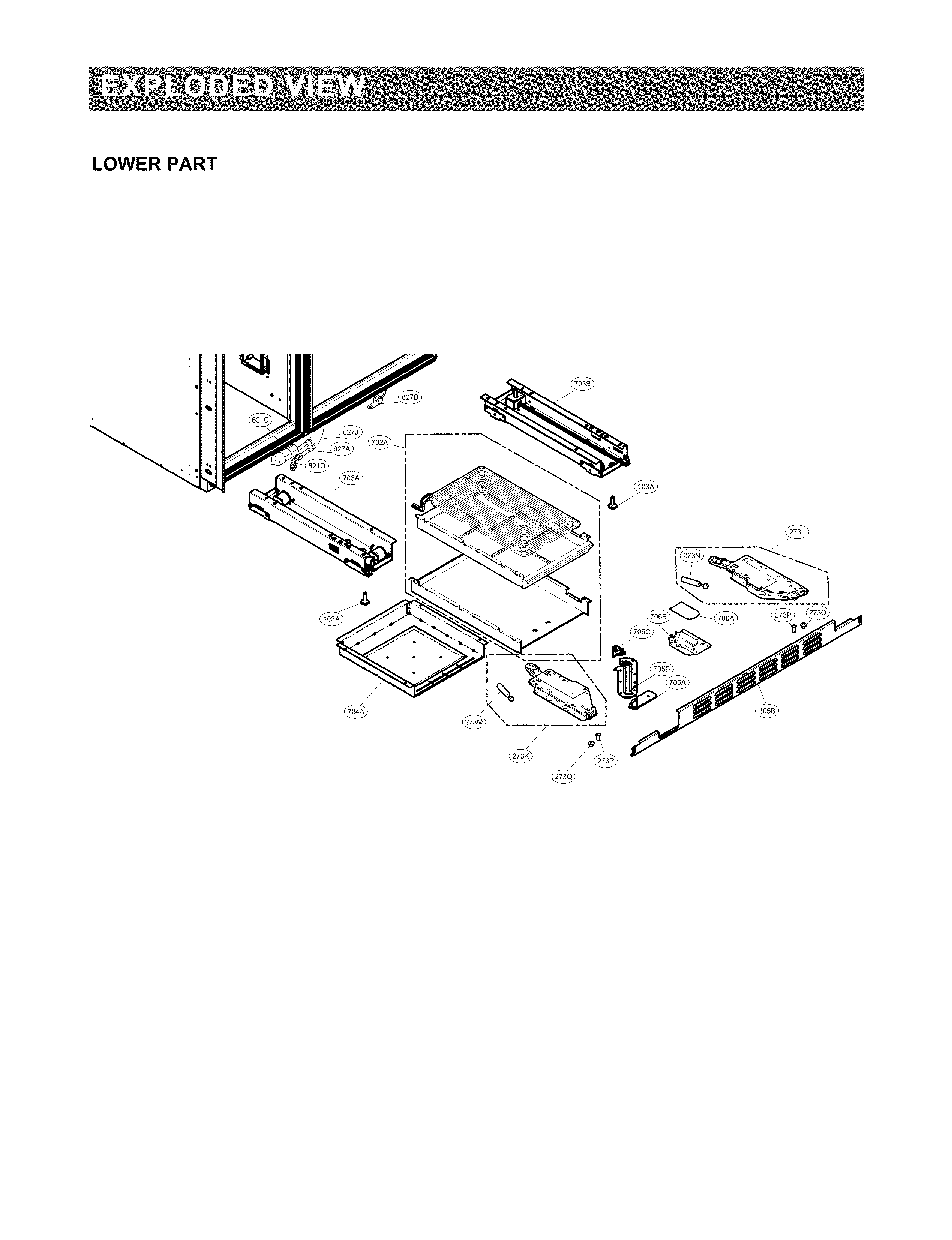

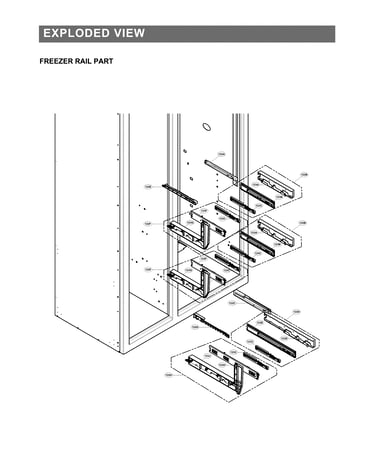

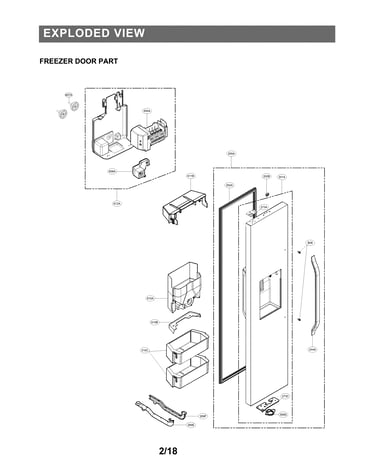

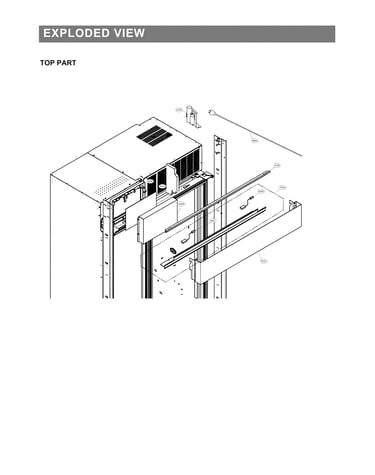

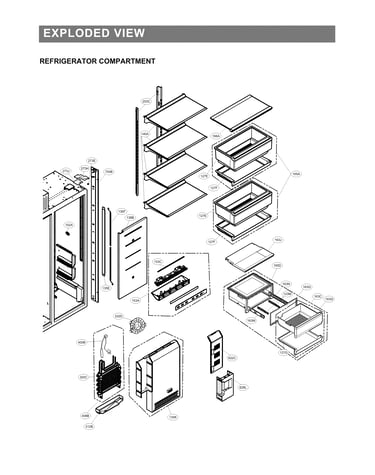

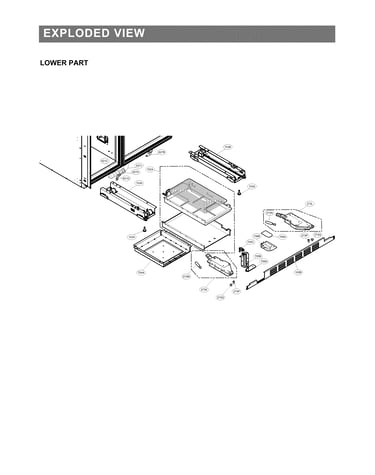

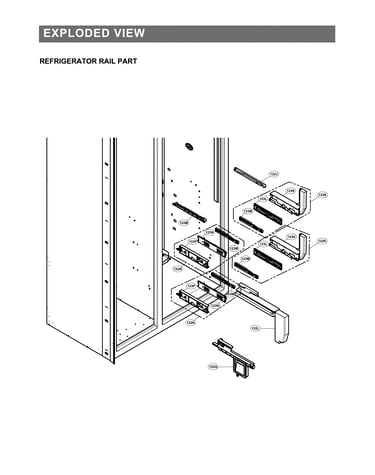

Model #LSSB2692ST/00 LG refrigerator

Here are the diagrams and repair parts for LG LSSB2692ST-00 refrigerator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manualError Codes
?
This is the number corresponding to the part on the diagram / schematic

    Showing 10 of 189 parts

    LG LT700P Refrigerator Water Filter

    #624A

    All parts Diagram

    Lg lt700p refrigerator water filter

    Part #ADQ36006101
    BEST SELLER

    Get free shipping with Automatic Reorder

    In Stock
    $59.98

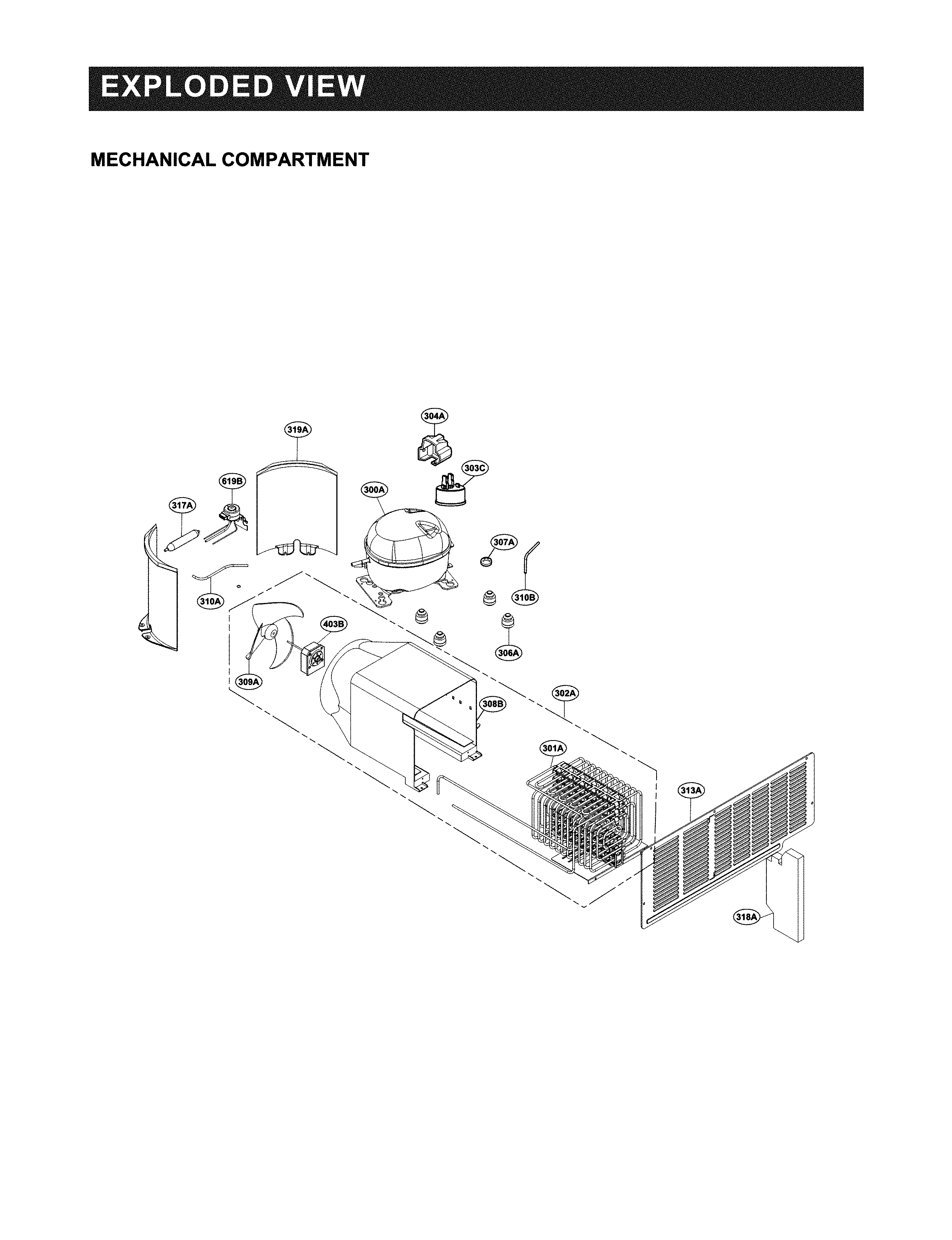

    Refrigerator Compressor

    #300A

    All parts Diagram

    Refrigerator compressor

    Part #TCA35911902
    Replaced by #TCA38151706
    ?
    Manufacturer substitution
    This part replaces TCA35911902. Substitute parts can look different from the original.
    BEST SELLER
    In Stock
    $307.89
    Refrigerator Water Filter Bypass

    #624E

    All parts Diagram

    Refrigerator water filter bypass

    Part #ABN73019101
    BEST SELLER
    In Stock
    $18.49 |
    10% OFF
    Was: $20.59
    Refrigerator Water Tube Fitting

    #621D

    All parts Diagram

    Refrigerator water tube fitting

    Part #4932JA3009A
    BEST SELLER
    In Stock
    $9.19 |
    10% OFF
    Was: $10.19
    Refrigerator Dispenser Ice Chute Door Hinge Spring

    #276A

    All parts Diagram

    Refrigerator dispenser ice chute door hinge spring

    Part #4970JA3011C
    BEST SELLER
    This item is not returnable
    In Stock
    $4.89 |
    17% OFF
    Phone Price: $5.89
    Refrigerator Water Tubing Clip

    #603B

    All parts Diagram

    Refrigerator water tubing clip

    Part #4930JA3091A
    BEST SELLER
    This item is not returnable
    In Stock
    $5.59 |
    15% OFF
    Phone Price: $6.59
    Refrigerator Auger Motor

    #405A

    All parts Diagram

    Refrigerator auger motor

    Part #EAU59551201
    In Stock
    $34.39 |
    13% OFF
    Phone Price: $39.39
    Refrigerator Dispenser Switch

    #402C

    All parts Diagram

    Refrigerator dispenser switch

    Part #6600JB3001E
    This item is not returnable
    In Stock
    $13.19 |
    13% OFF
    Phone Price: $15.19
    Refrigerator Water Filter Head and Tubing

    #624G

    All parts Diagram

    Refrigerator water filter head

    Part #MDJ62165101
    Replaced by #ADQ36011715
    ?
    Manufacturer substitution
    This part replaces MDJ62165101. Substitute parts can look different from the original.
    In Stock
    $81.49 |
    6% OFF
    Phone Price: $86.49
    Refrigerator Evaporator Fan Blade

    #136A

    All parts Diagram

    Refrigerator evaporator fan blade

    Part #5901JA1022A
    This item is not returnable
    In Stock
    $13.19 |
    13% OFF
    Phone Price: $15.19
