Amana ARB2107AW-PARB2107AW0 bottom-mount refrigerator Parts

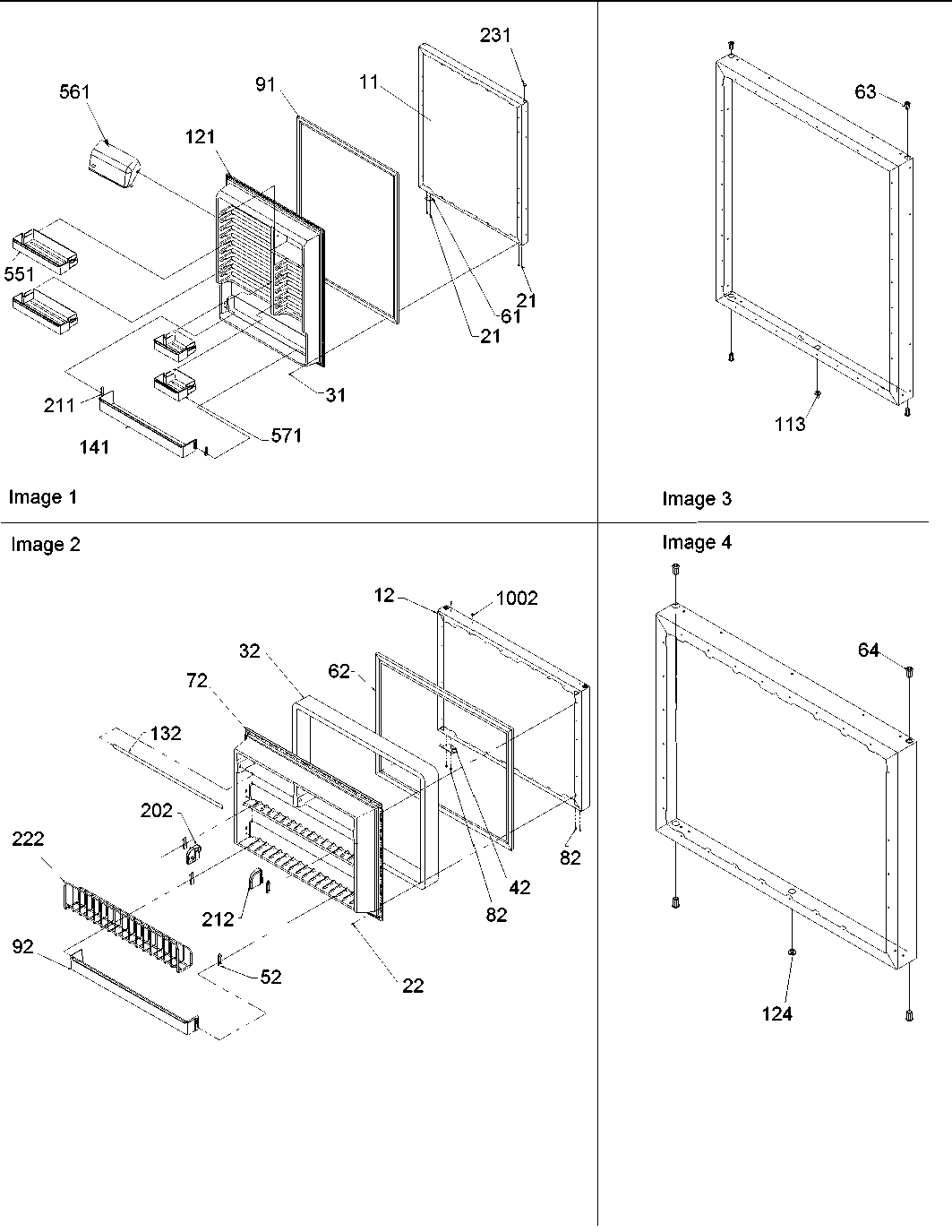

To realign the bottom freezer drawer on your Amana ARB2107AW-PARB2107AW0 bottom-mount refrigerator, adjust the drawer front using the leveling/tilt screws so the left and right gaps match. Make small changes (about 2 turns at a time), close the drawer, and recheck the seal and alignment.

Quick alignment steps

• Pull the freezer drawer open and remove heavy items so the drawer front is easy to move.
• Locate the drawer-front adjustment screws (typically one on each side of the drawer front or on the drawer slides).
• Turn one side counterclockwise to raise that side of the drawer front; turn clockwise to lower it.
• Make small adjustments (about 2 full turns), then close the drawer to check the gap.
• Repeat until the drawer front is level and the gasket contacts evenly all the way around.
• Confirm the drawer glides smoothly and does not rub the cabinet.

What “good alignment” looks like

Check	What you want to see	What to adjust if it’s off
Side-to-side gap	Even gap on left and right	Raise the low side or lower the high side
Drawer closes	Closes without pushing hard	Level the drawer front; check for ice buildup
Seal contact	Gasket touches evenly	Re-level; clean gasket and mating surface

Why it matters

A freezer drawer that sits low on one side can leak cold air, cause frost buildup, and make the compressor run longer. Proper alignment helps the door seal, temperature stability, and energy efficiency.

If it still won’t line up

• Check for ice or debris on the rails and lower gasket area.
• Make sure the refrigerator is level front-to-back; a slight backward tilt helps doors self-close.
• Inspect the drawer gasket for tears, hardening, or sections pulled out of the channel.

For more DIY help that applies to many refrigerator door and seal issues, use our guide: how to fix a fridge door seal.

Last updated: February 2026

Water on the floor around your Amana ARB2107AW-PARB2107AW0 bottom-mount refrigerator is usually caused by a clogged defrost drain, a loose or cracked drain pan, or a water-supply leak (if your unit has an ice maker or water dispenser). Fixing the source stops repeat puddles.

Most common causes (and what to check first)

• Defrost drain clogged or frozen: Water can overflow inside the freezer and run out onto the floor.
• Drain pan out of position or cracked: Defrost water misses the pan or leaks from it.
• Water line connection leaking: Slow drips at the inlet valve area or tubing can pool under the fridge.
• Door not sealing: Excess frost can create extra meltwater that overwhelms the drain.
• Leveling issue: If the cabinet tilts forward, water can track out instead of draining correctly.

Quick troubleshooting steps

1. Unplug the refrigerator and pull it out far enough to inspect behind and underneath.
2. Look for the water source:
   • Water only after defrost cycles often points to the defrost drain.
   • Water near the back lower area can point to the drain pan or water line.
3. Clear the defrost drain (common DIY fix):
   • Remove the freezer drawer/bins as needed.
   • Find the drain opening under the evaporator cover area.
   • Melt ice with warm air (hair dryer on low) and flush with warm water.
4. Inspect the drain pan: confirm it is seated flat and not cracked.
5. If connected to water, check fittings and tubing for mineral tracks, wet insulation, or active drips.

Symptom-to-cause guide

What you notice	Most likely cause	What to do
Puddle appears every few days	Defrost drain partially blocked	Clear/flush the drain path
Water seems to come from underneath center	Drain pan shifted or cracked	Reseat pan; replace if damaged
Water near back wall connection	Supply line or inlet valve leak	Tighten fittings; replace leaking tubing/valve
Frost buildup, then water	Door gasket leak or door not closing	Clean/reshape gasket; confirm door alignment

Why it matters

A continuing leak can damage flooring and can also lead to ice buildup around the evaporator area, which reduces cooling performance and makes the refrigerator run longer.

For step-by-step help, use our DIY guide: how to get rid of refrigerator puddles.

Last updated: February 2026

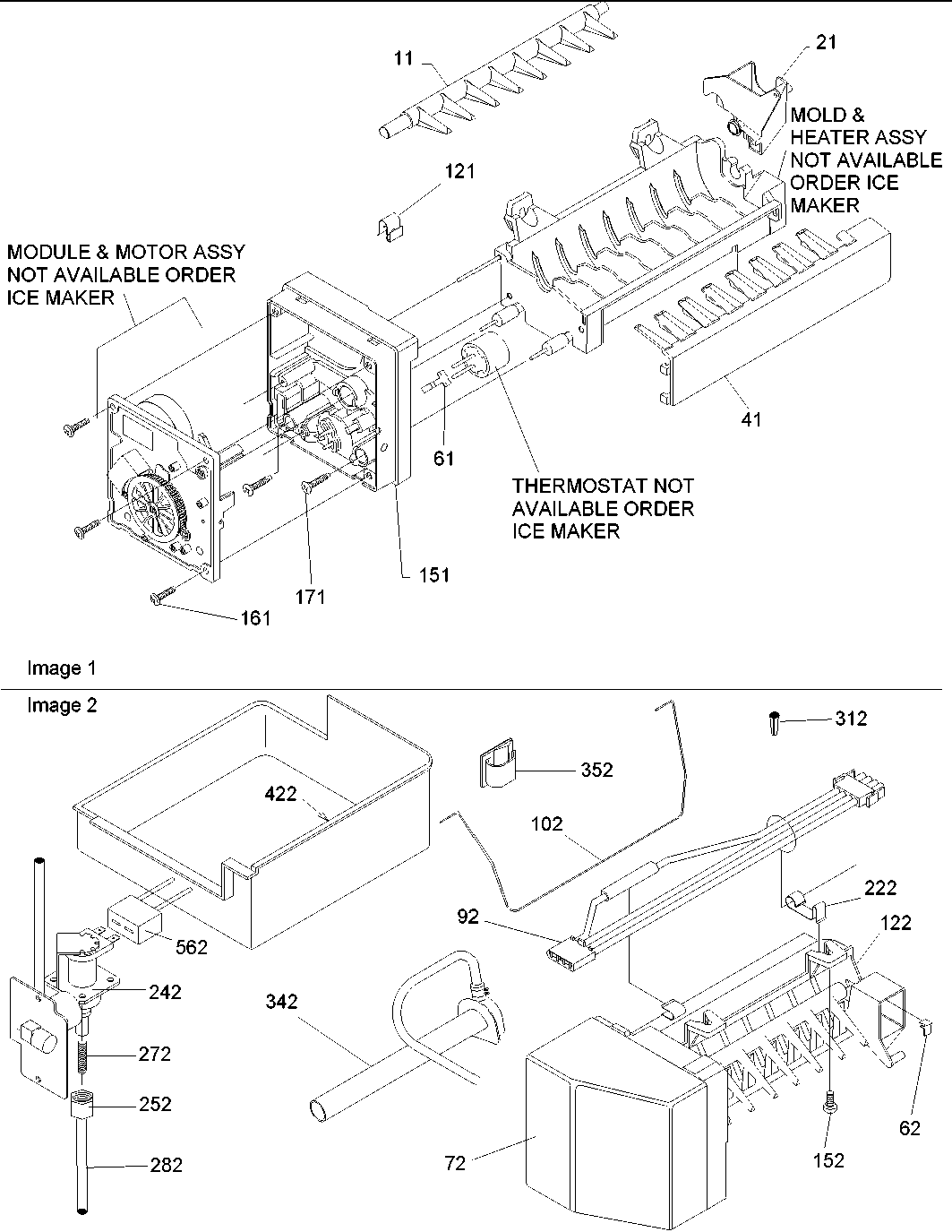

On the Amana ARB2107AW-PARB2107AW0 bottom-mount refrigerator, we reset the ice maker sensor by doing a simple power reset: turn the ice maker off (if it has an on/off switch), unplug the refrigerator for 60 seconds, then plug it back in and turn the ice maker on. This clears most sensor and control glitches.

Quick reset steps

• Turn the ice maker switch to OFF (or lift the shutoff arm to the off position, if equipped).
• Unplug the refrigerator (or switch the breaker off).
• Wait 60 seconds.
• Restore power.
• Turn the ice maker back ON.
• Allow 24 hours for normal ice production to fully recover.

If it still will not make ice

These checks address the most common “sensor” complaints (no ice, intermittent ice, overfilling) on bottom-mount refrigerators:

• Confirm the freezer is cold enough; target 0°F to 5°F.
• Make sure the ice maker is actually enabled (switch on or shutoff arm down).
• Check for a frozen fill tube (ice blockage where water enters the ice maker).
• Verify the water supply valve is fully open and the supply line is not kinked.
• Replace the water filter if flow is weak or the filter is overdue.

What to expect after a reset

What you see	What it usually means	What we do next
No water enters during a harvest cycle	Water supply or inlet valve issue	Check supply, filter, then test inlet valve
Ice is small or hollow	Low water flow	Replace filter, check for kinks
Ice maker cycles but no ice drops	Frozen fill tube or mold issue	Thaw fill tube, inspect ice maker

Why it matters

A power reset forces the ice maker control and sensor circuit to restart cleanly. If the problem returns quickly, the root cause is usually temperature, water flow (filter or inlet valve), or an ice maker component that is sticking.

For step-by-step filter and water-flow help, use how to replace the water filter in an Amana refrigerator.

Last updated: February 2026

Ice on the bottom of an Amana ARB2107AW-PARB2107AW0 bottom-mount refrigerator almost always happens when defrost water cannot drain to the pan, so it pools under the evaporator area and freezes. The most common cause is a clogged or frozen defrost drain (often from food debris or ice).

What to check first (fast, high-success steps)

• Unplug the refrigerator before removing panels or using any tools.
• Look for a sheet of ice on the freezer floor (common on bottom-mount designs).

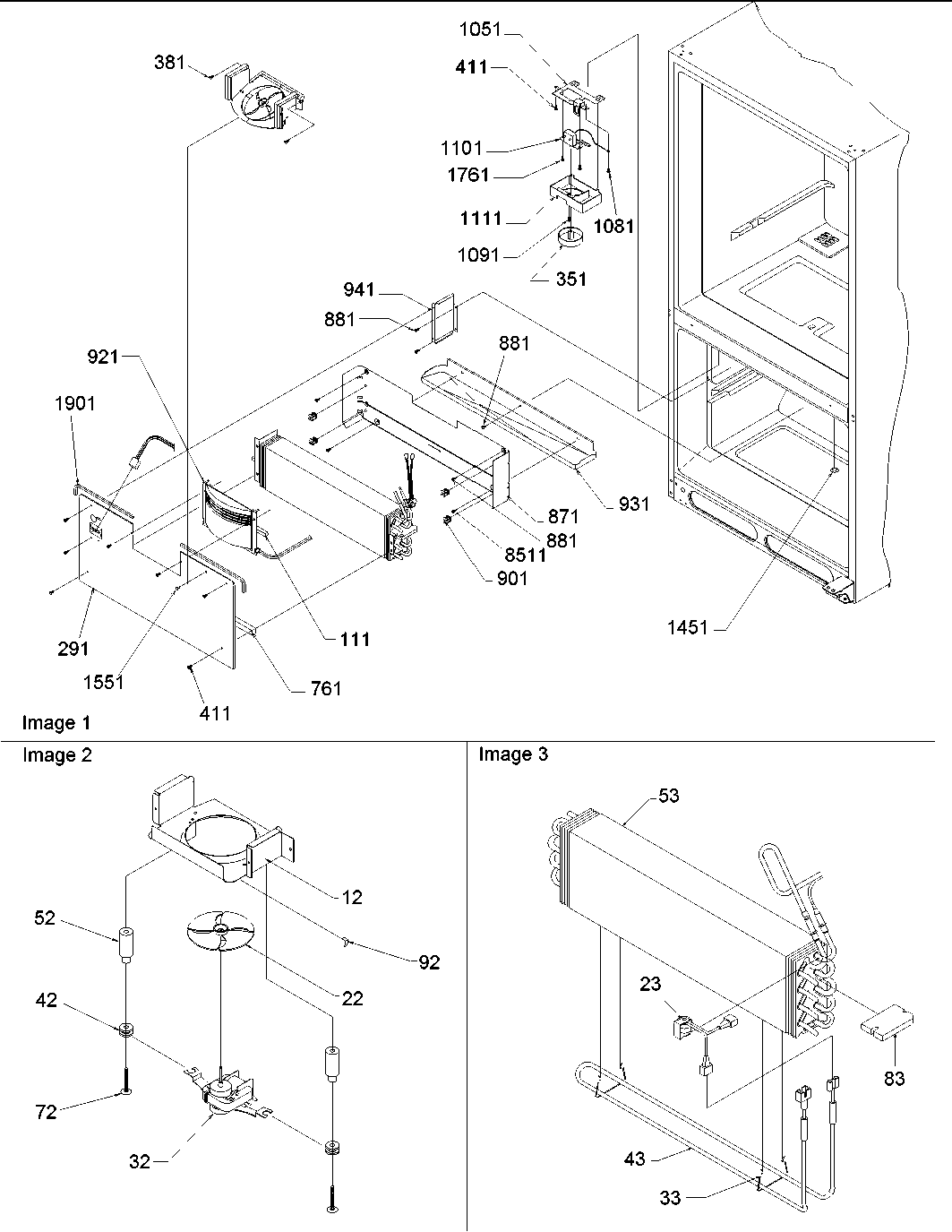

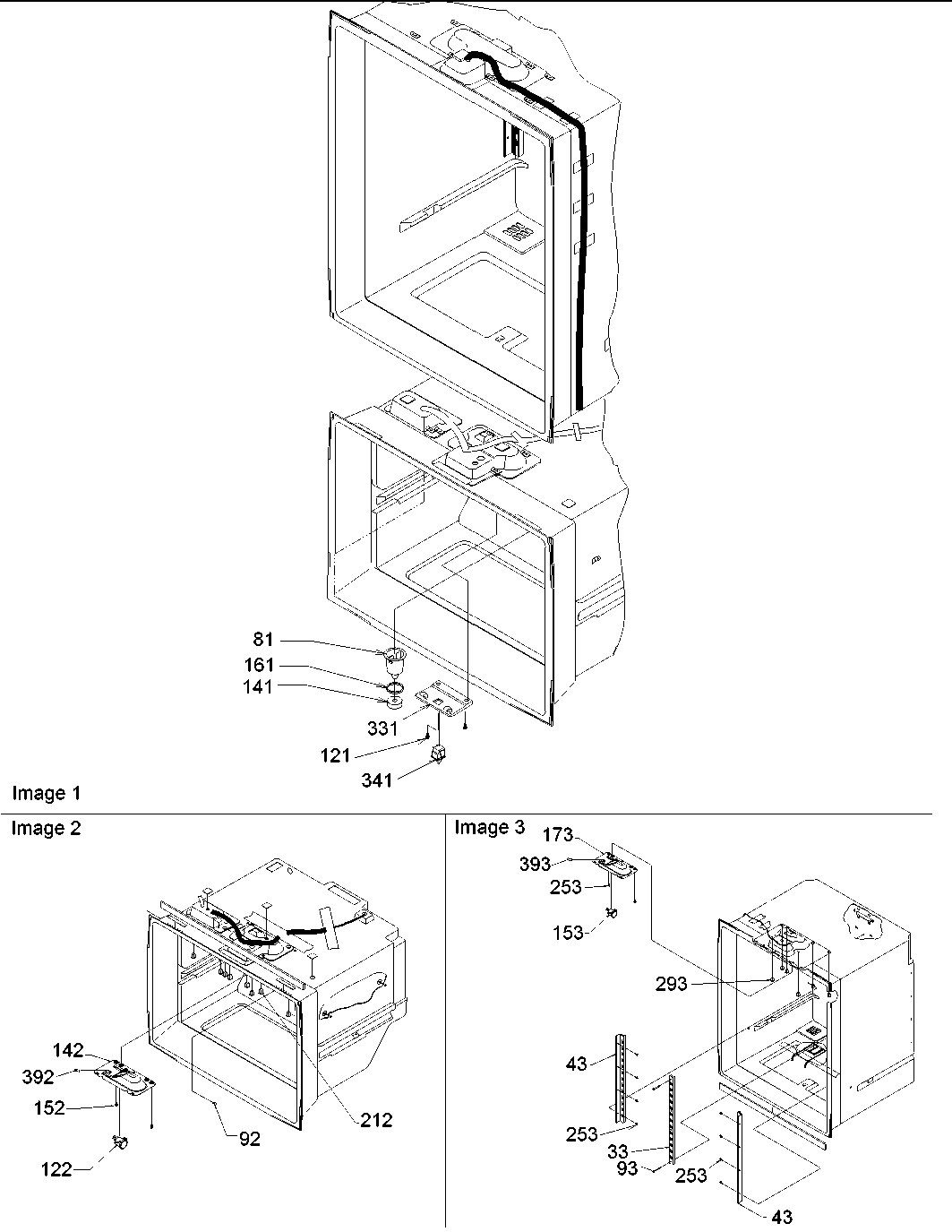

• Check the drain trough and drain hole under the evaporator cover for ice or sludge.
• Flush the drain hole with hot water (a turkey baster works well) until it flows freely.
• Clear the drain tube from the back (near the drain pan) if water does not pass through.
• Make sure packages are not blocking air vents; poor airflow can increase frost and meltwater.

Common causes and what they look like

Symptom	Most likely cause	What usually fixes it
Ice sheet on freezer bottom	Frozen/clogged defrost drain	Thaw ice, flush drain, clear tube
Water then ice returns every few days	Partial clog or refreezing at drain	Deep clean drain, confirm heater warms drain area
Water in fresh-food section	Drain backing up and overflowing	Clear drain path, verify unit is level
Heavy frost plus ice buildup	Door not sealing or left ajar	Clean gasket, improve seal, reduce humidity

Why it matters

When the defrost drain is restricted, meltwater has nowhere to go. It refreezes into a thick layer of ice, can block airflow, and can lead to warmer temperatures, leaks, and repeated icing.

Helpful DIY guidance

We recommend following a step-by-step drain and water-system check process. These guides match common Amana refrigerator designs and help you avoid repeat clogs:

• How to get rid of refrigerator puddles
• How to fix your evaporator cooling fan
• How to fix a fridge door seal

Last updated: February 2026
