Whirlpool
Electric Range

Model # YWFC150M0EB3 Official Whirlpool free standing electric range

Here are the diagrams and repair parts for Official Whirlpool YWFC150M0EB3 free standing electric range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 123 parts  |

Range Oven Temperature Sensor W10181986
#23

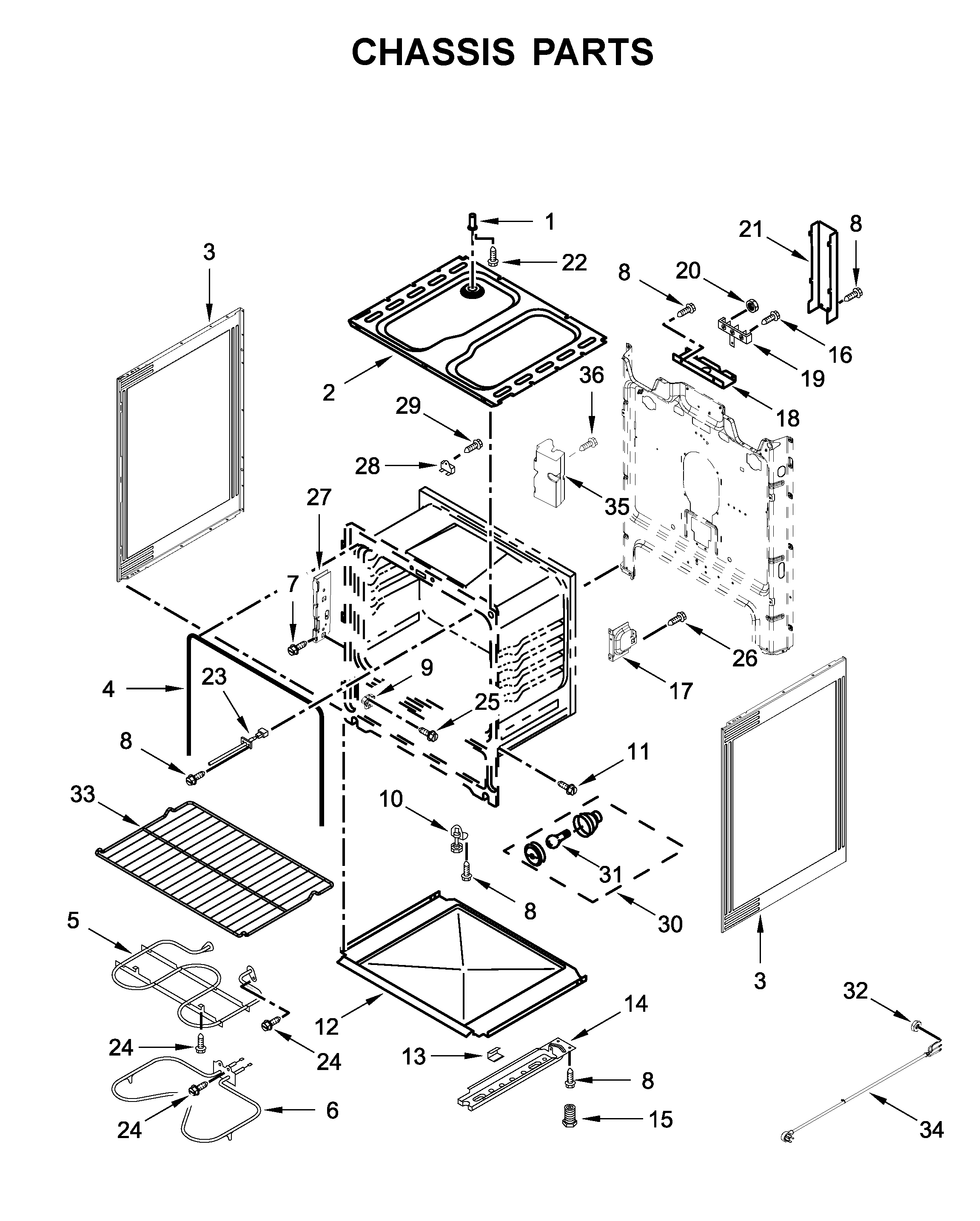

Chassis parts diagram

Range oven temperature sensor

Part #W10181986

Replaced by #WPW10181986

?
Manufacturer substitution
This part replaces W10181986. Substitute parts can look different from the original.
BEST SELLER
$65.03
8% OFF Phone Price : $71.03
In Stock
Infinite Switch (silver) 3148951
#4A

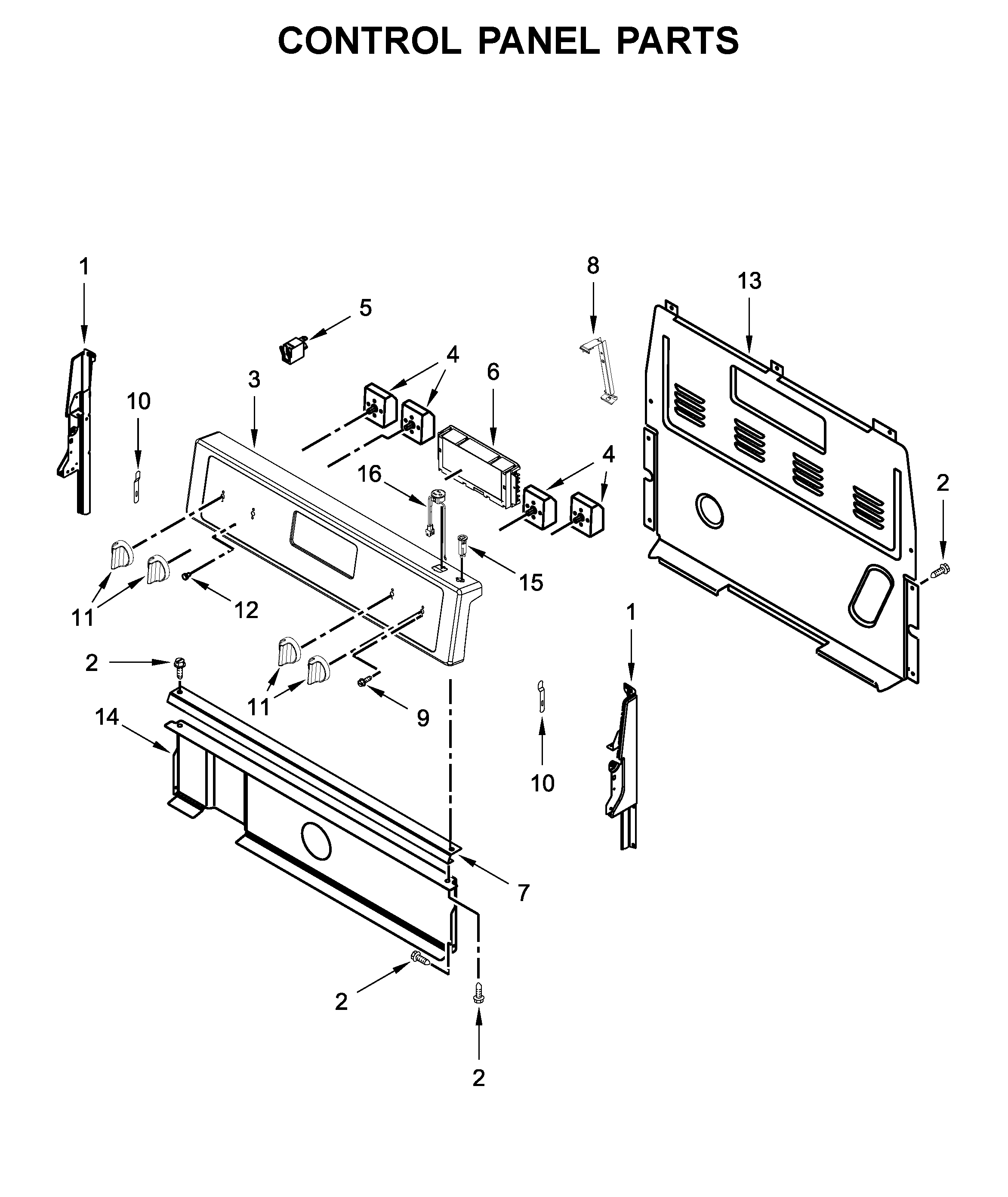

Control panel parts diagram

Infinite switch (silver)

Part #3148951

Replaced by #WP3149404

?
Manufacturer substitution
This part replaces 3148951. Substitute parts can look different from the original.
BEST SELLER
$37.05
14% OFF Phone Price : $43.05
In Stock
Appliance Touch-up Paint 72017
#NI

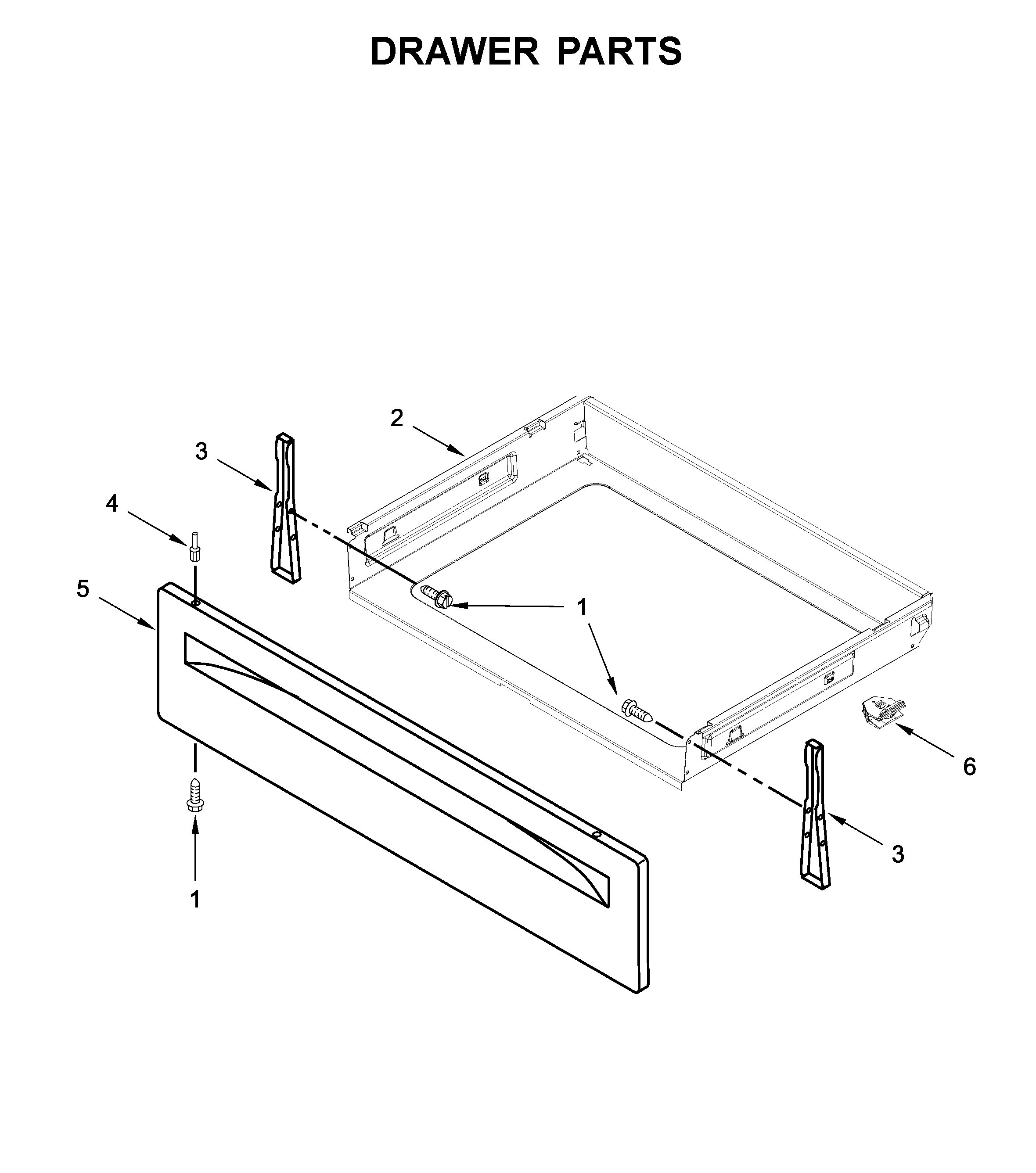

Drawer parts diagram

Appliance touch-up paint

Part #72017

Replaced by #72017

?
Manufacturer substitution
This part replaces 72017. Substitute parts can look different from the original.
BEST SELLER
$8.29
11% OFF Phone Price : $9.29
In Stock
Range Safety Thermostat 3196548
#28

Chassis parts diagram

Range safety thermostat

Part #3196548

Replaced by #WP3196548

?
Manufacturer substitution
This part replaces 3196548. Substitute parts can look different from the original.
BEST SELLER
$23.64
20% OFF Phone Price : $29.64
In Stock
Range Surface Element Control Switch 3148953
#4

Control panel parts diagram

Range surface element control switch

Part #3148953

Replaced by #WP3148953

?
Manufacturer substitution
This part replaces 3148953. Substitute parts can look different from the original.
BEST SELLER
$50.48
11% OFF Phone Price : $56.48
In Stock
Magic Chef Range Surface Element Receptacle 814399
#11

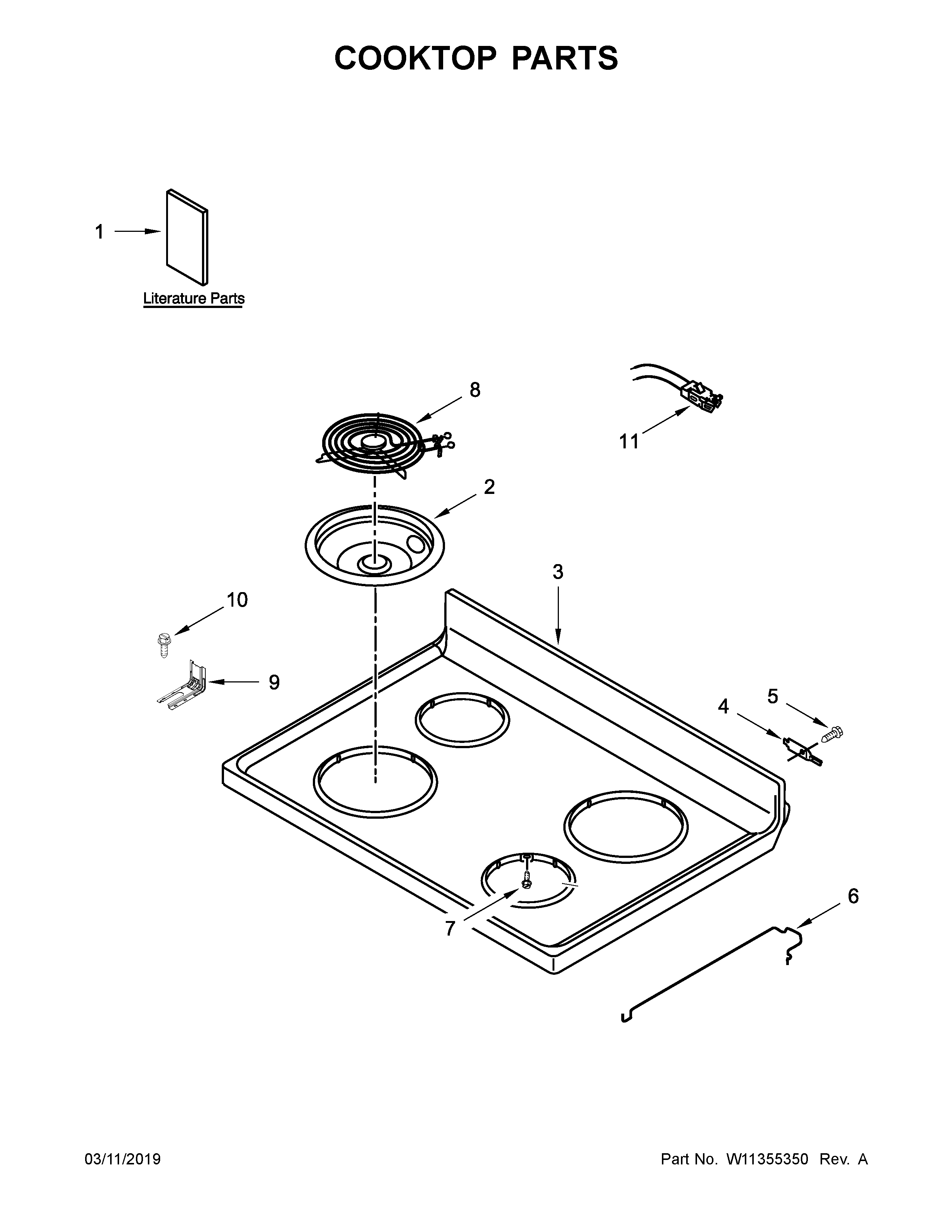

Cooktop parts diagram

Magic chef range surface element receptacle

Part #814399

BEST SELLER
$34.99
15% OFF Phone Price : $40.99
In Stock
Door Trim W10746436
#3

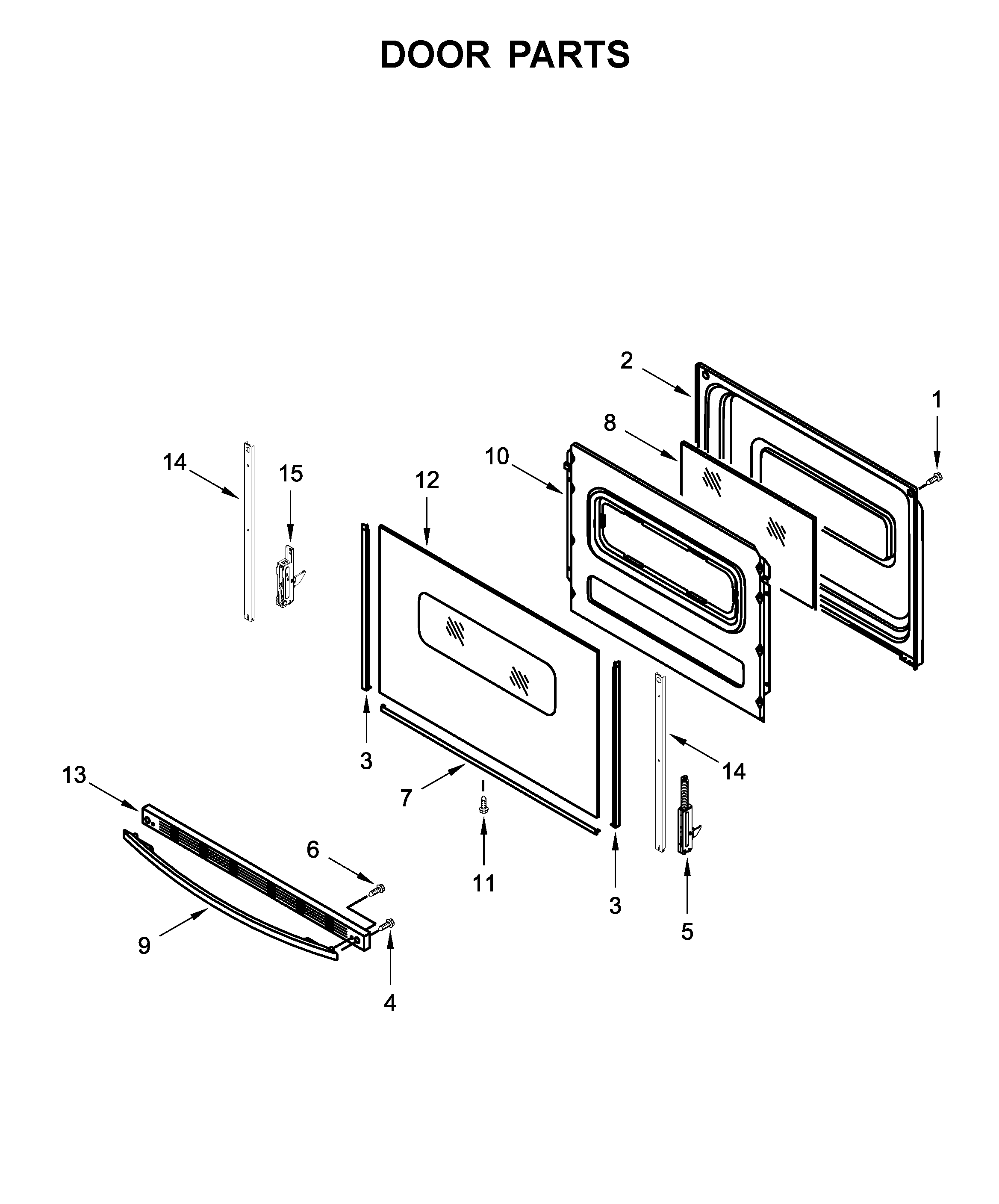

Door parts diagram

Door trim

Part #W10746436

Replaced by #W10761018

?
Manufacturer substitution
This part replaces W10746436. Substitute parts can look different from the original.
BEST SELLER
$33.20
15% OFF Phone Price : $39.20
In Stock
Burner-bake, W11022836
#6

Chassis parts diagram

Burner-bake,

Part #W11022836

Replaced by #W11182108

?
Manufacturer substitution
This part replaces W11022836. Substitute parts can look different from the original.
BEST SELLER
$60.44
9% OFF Phone Price : $66.44
In Stock
Oven Door Trim W10746435
#3A

Door parts diagram

Oven door trim

Part #W10746435

Replaced by #W10761014

?
Manufacturer substitution
This part replaces W10746435. Substitute parts can look different from the original.
BEST SELLER
$42.16
12% OFF Phone Price : $48.16
In Stock
Light Assembly W11175594
#30

Chassis parts diagram

Light assembly

Part #W11175594

Replaced by #W11594027

?
Manufacturer substitution
This part replaces W11175594. Substitute parts can look different from the original.
$56.53
10% OFF Phone Price : $62.53
In Stock
